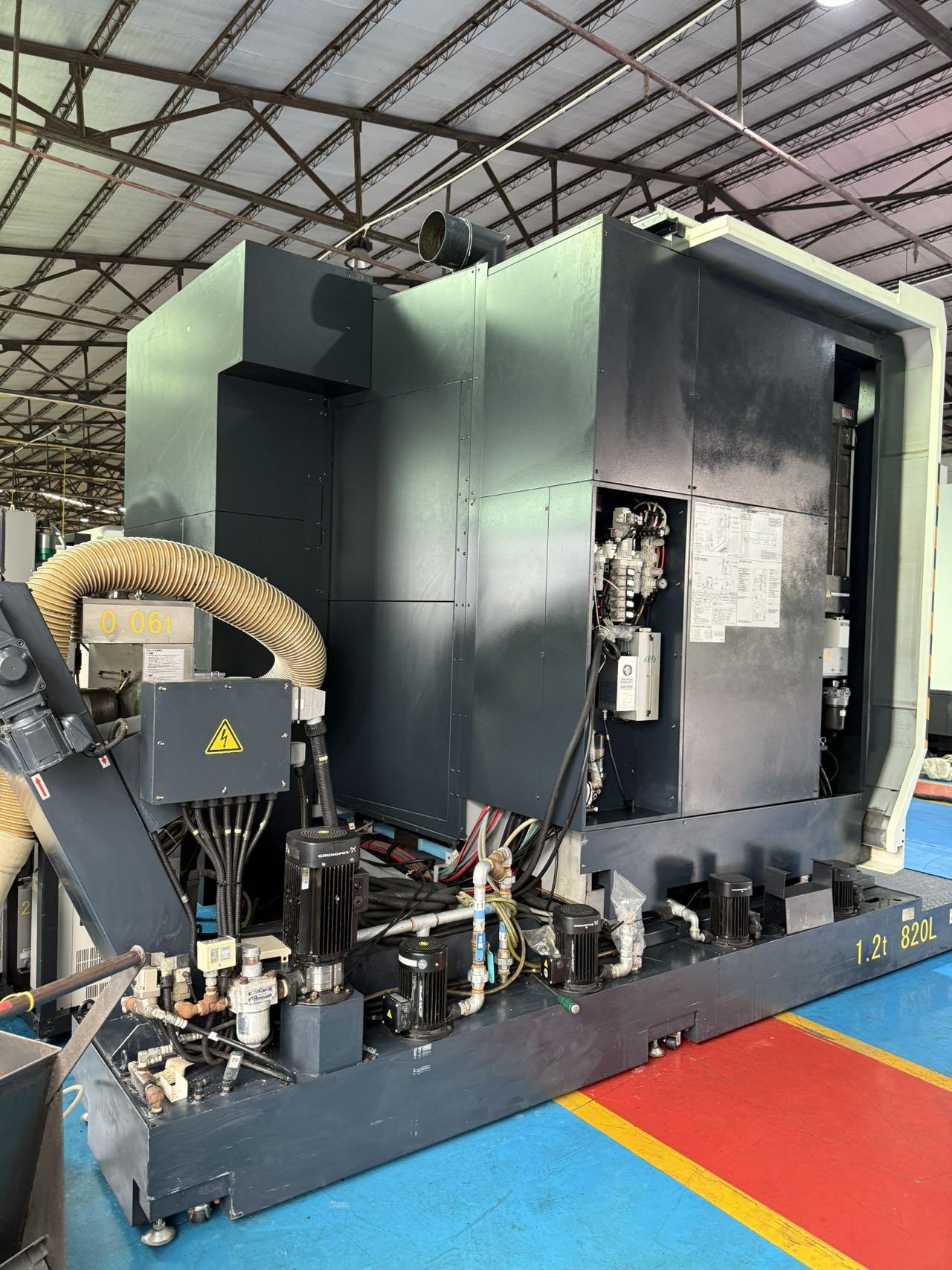

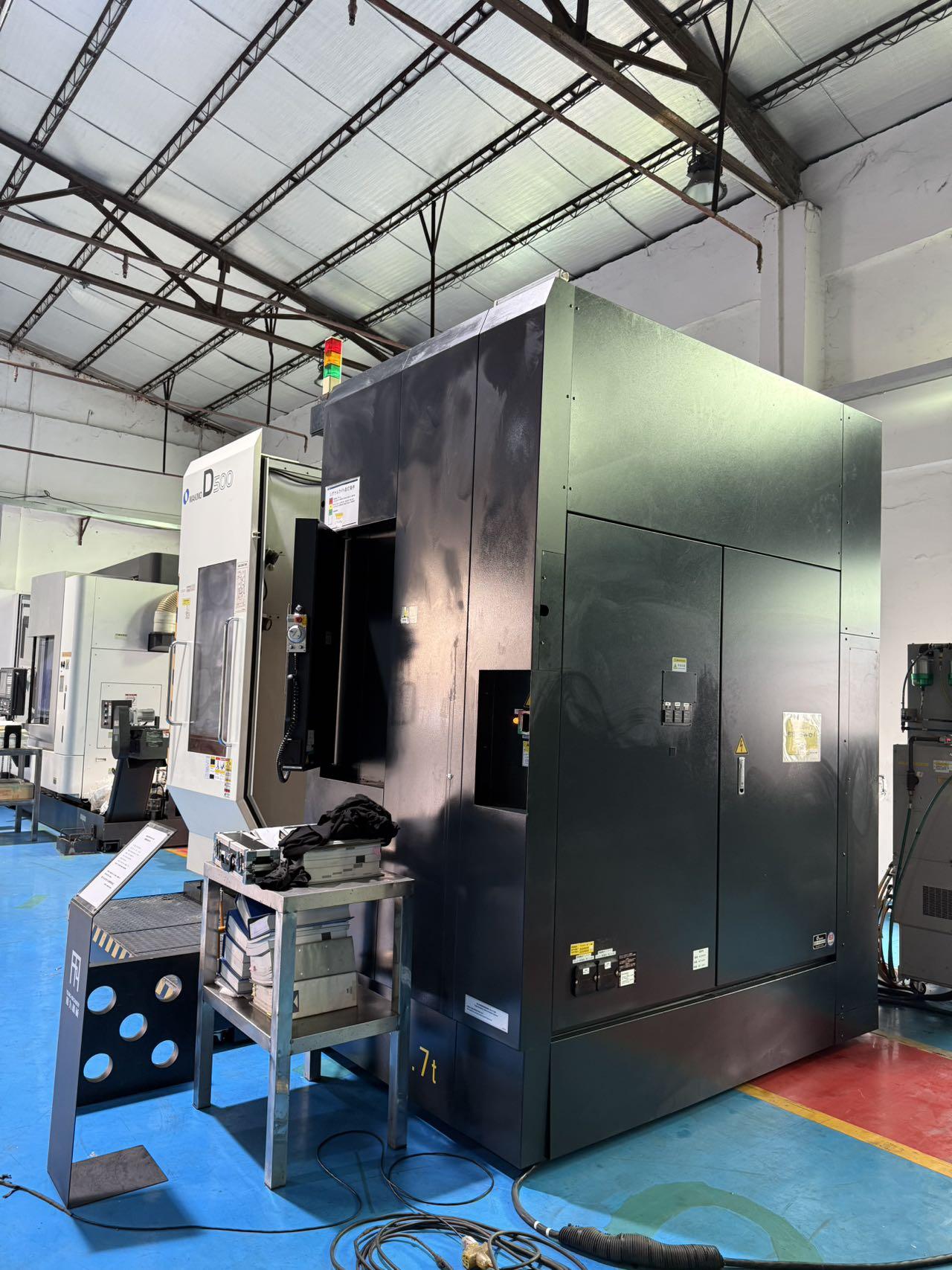

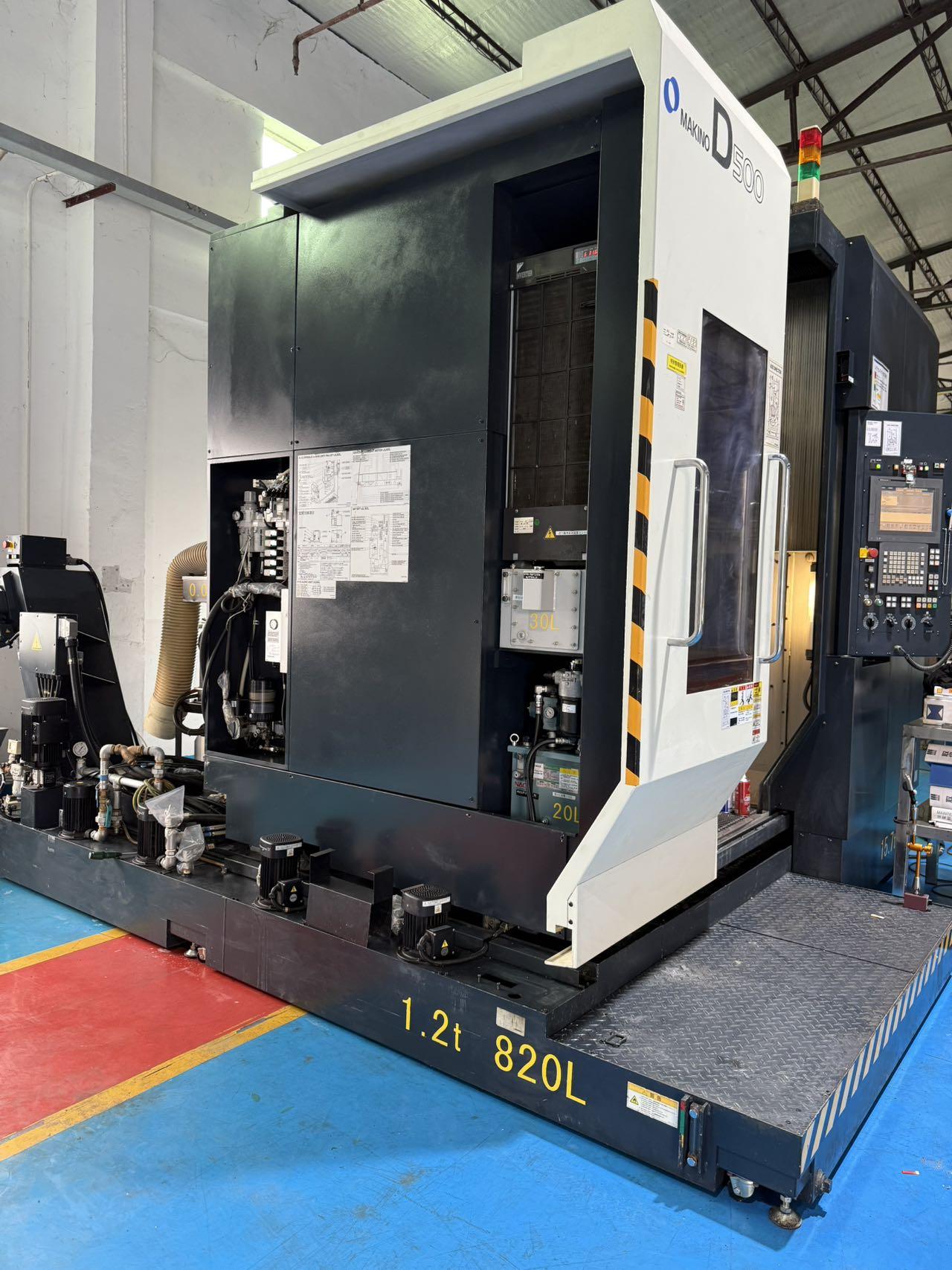

Makino D500 5 axis machining centre

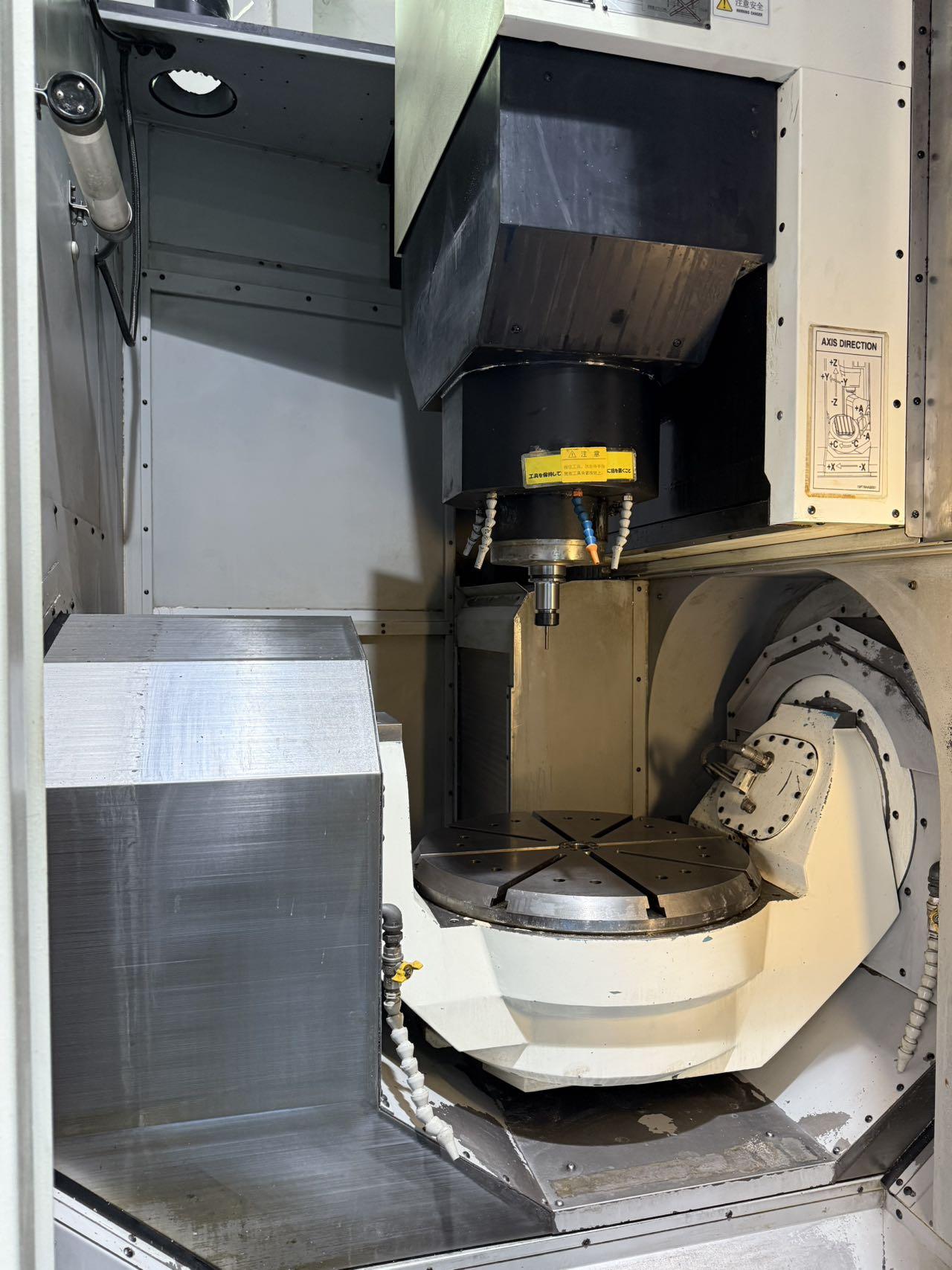

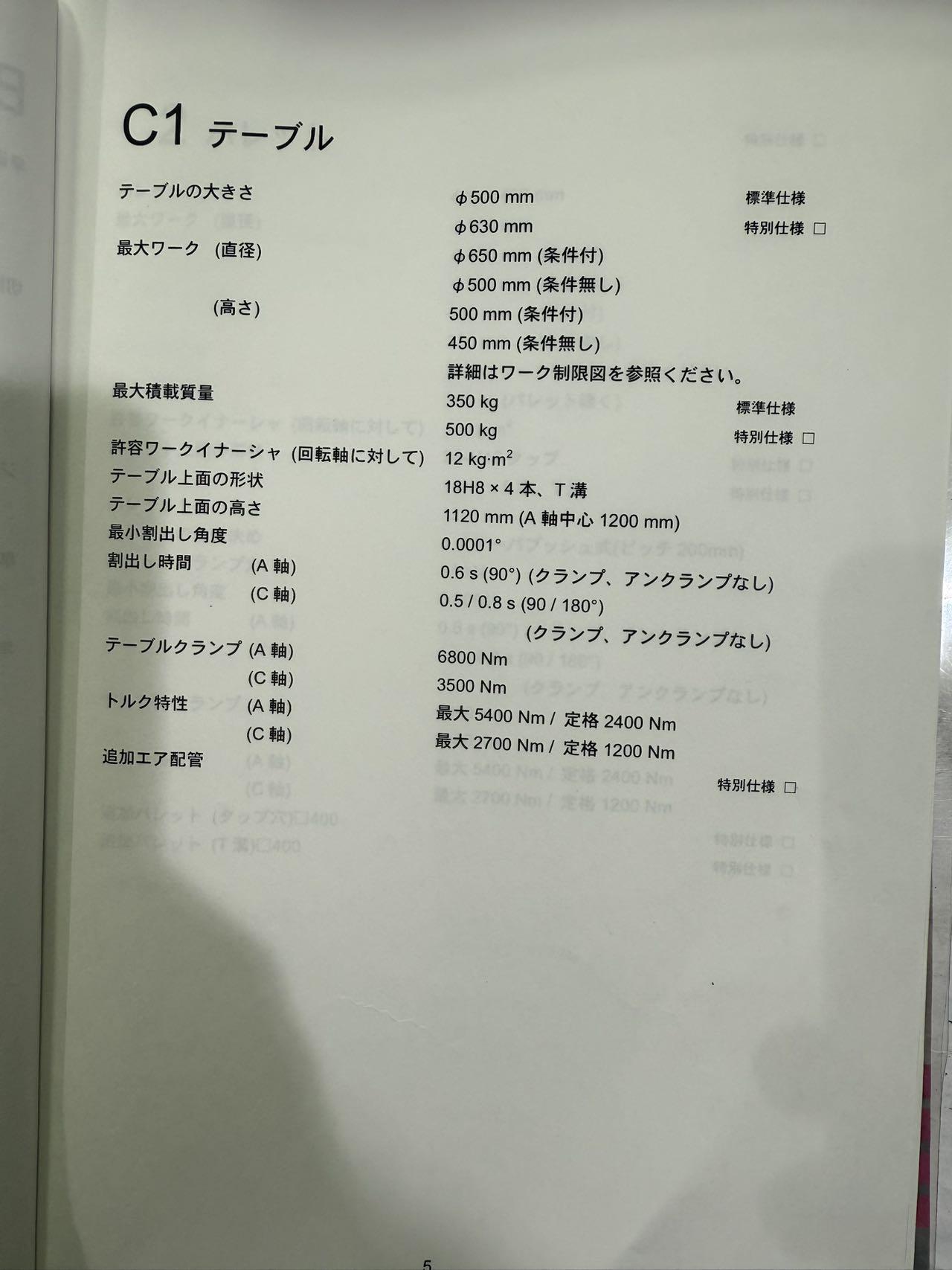

WorkWorktable size: 400*400mm

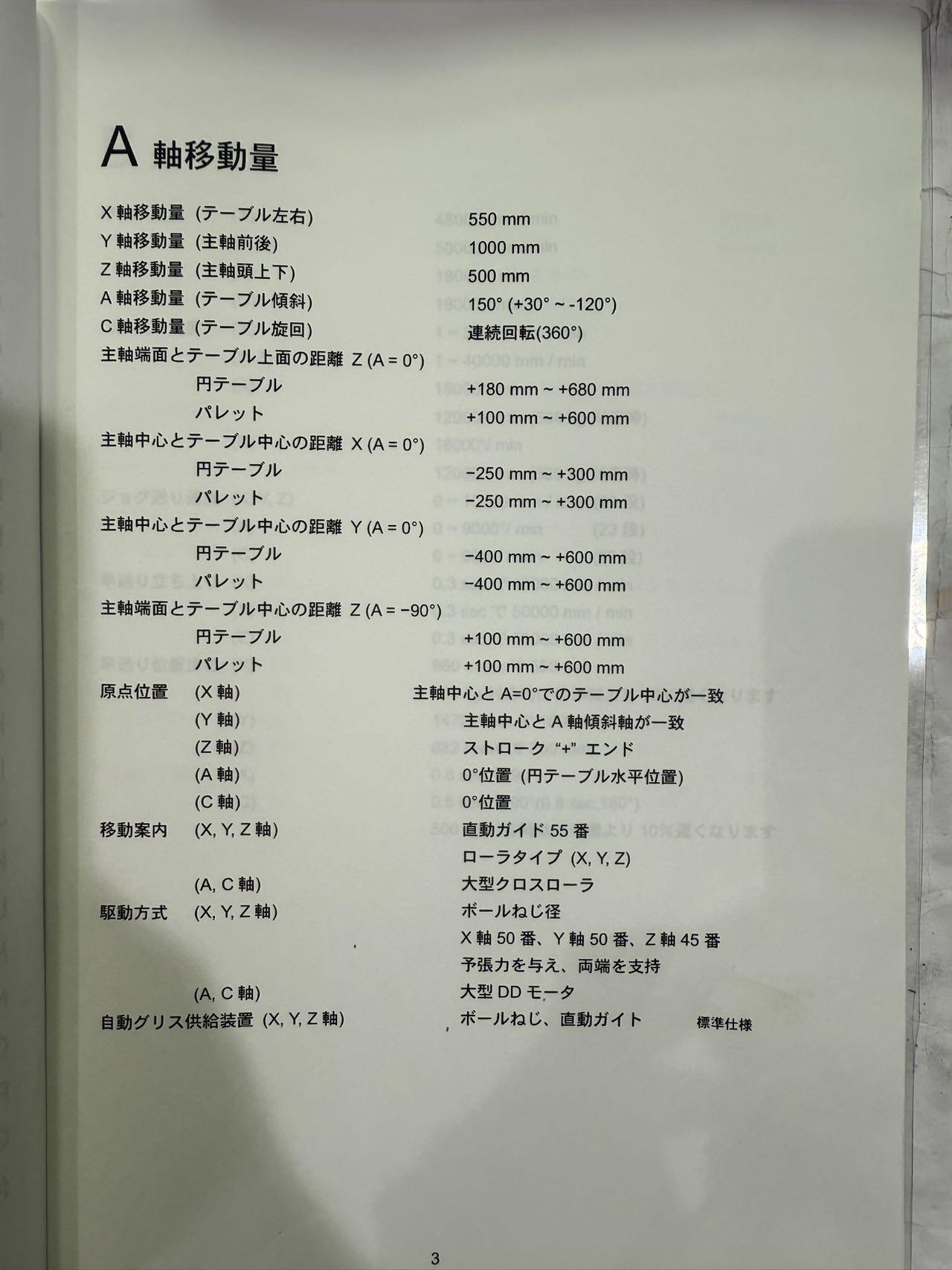

three-axis travel: 550*1000*500mm

A-axis travel: +30°/-120°

C-axis travel: 360°

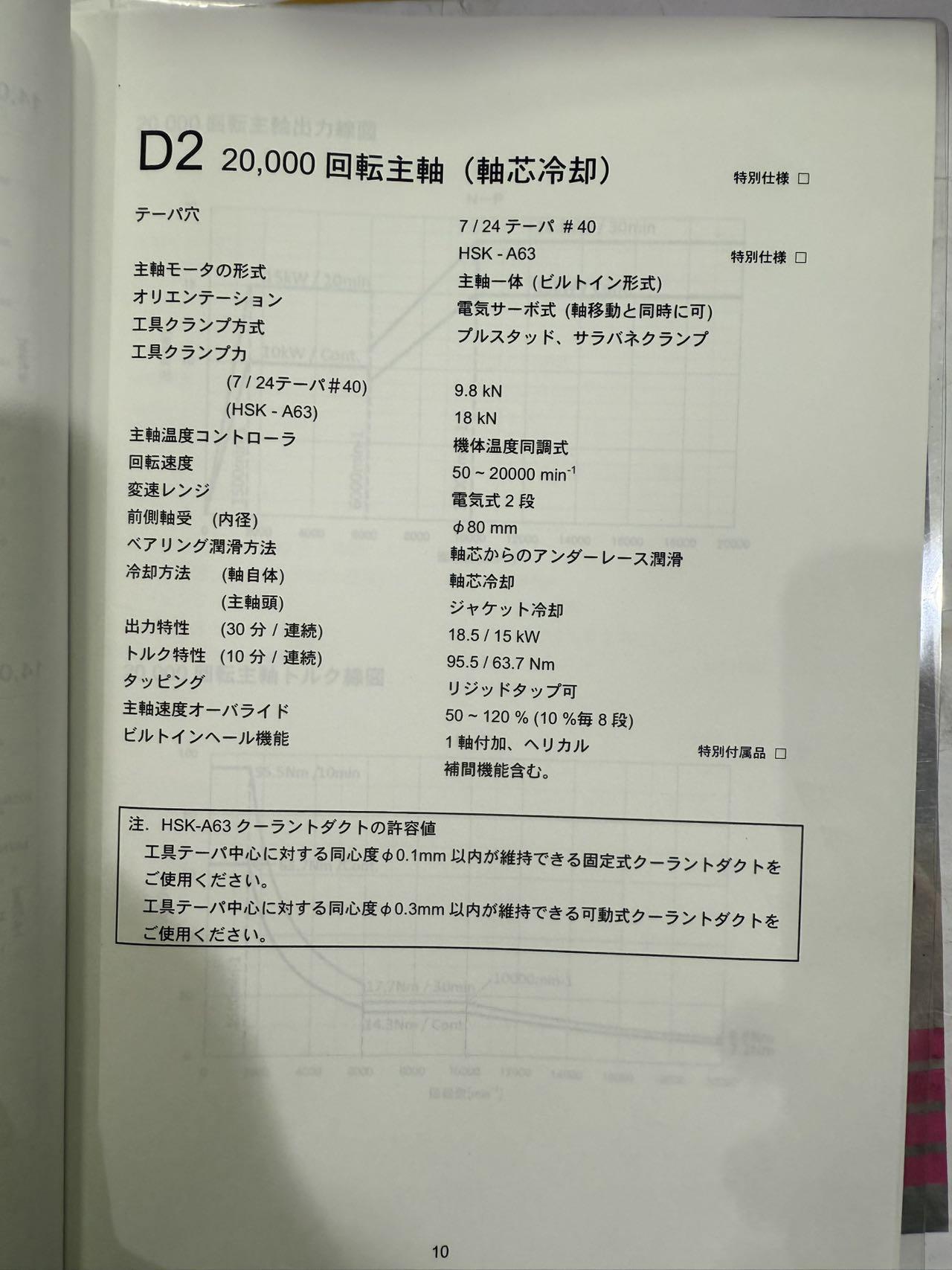

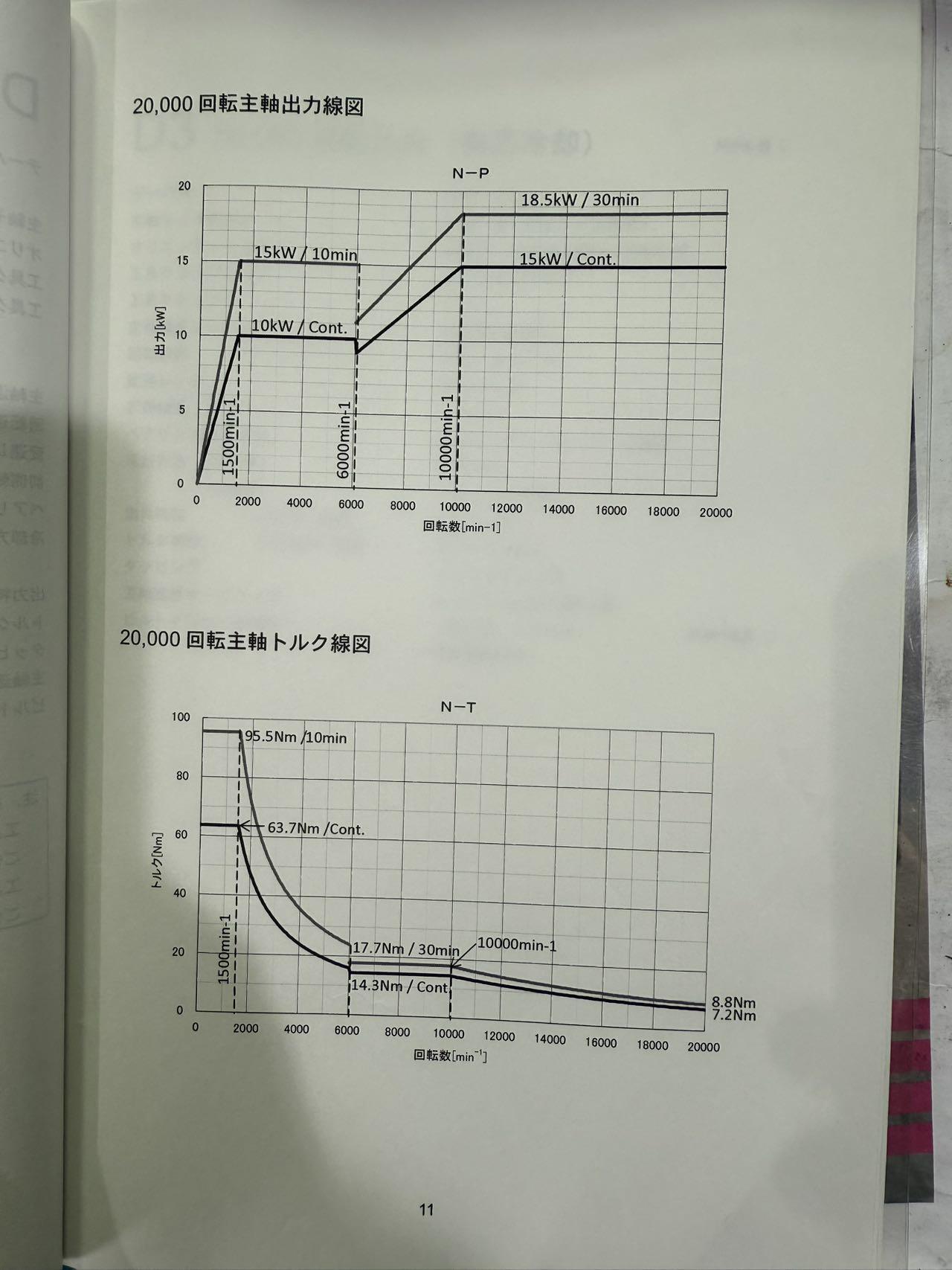

Spindle speed: 20,000 RPM

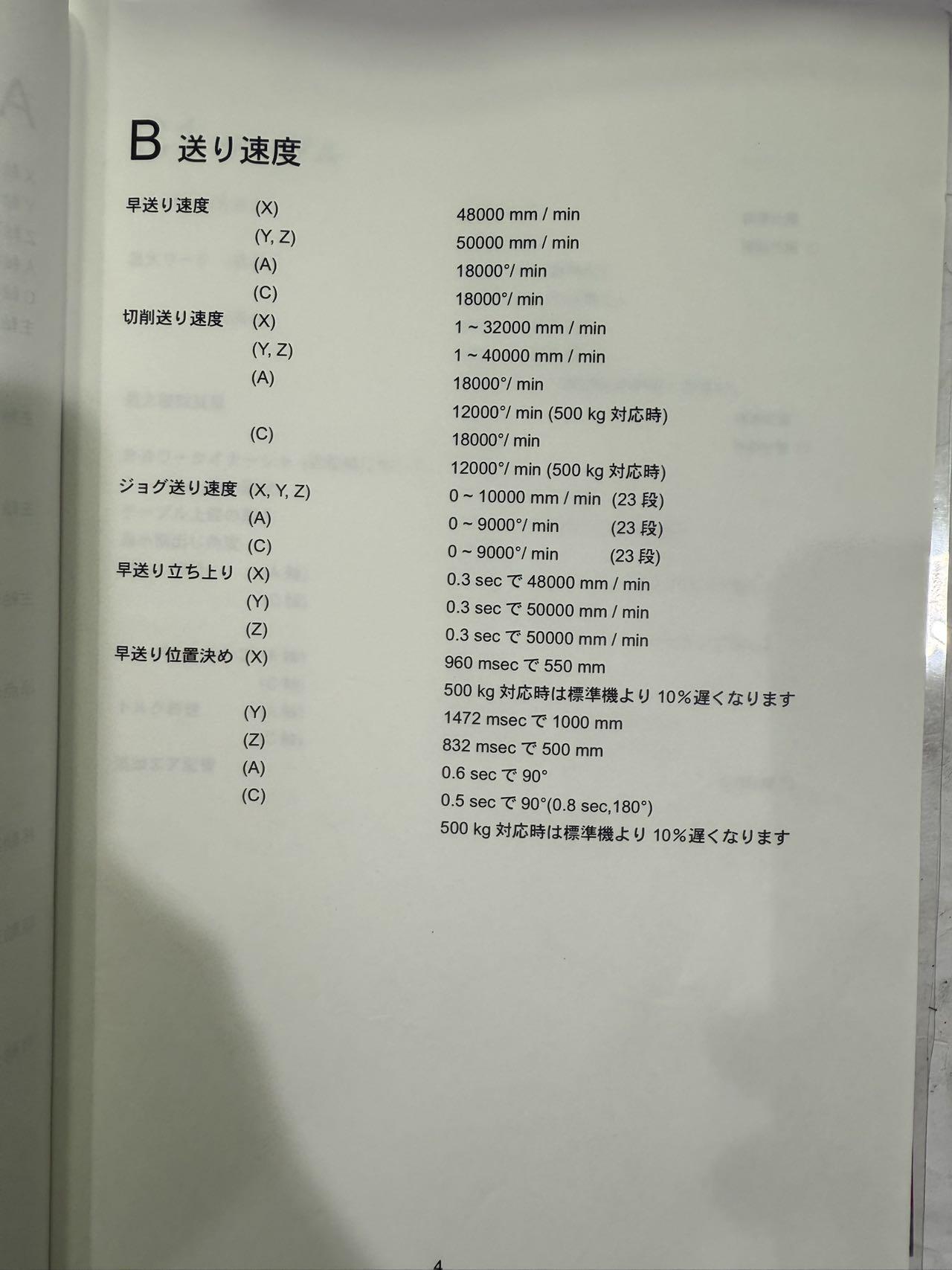

X-axis Fast moving rate: 48,000 mm/min

Y/ Z-axis Fast moving rate: 5000mm/min

X-axis Cutting rate: 32,000 mm/min

Cutting rate of Y/Z axis: 40,000 mm/min

Maximum workpiece size: 650*420mm

Load-Load: 350kg

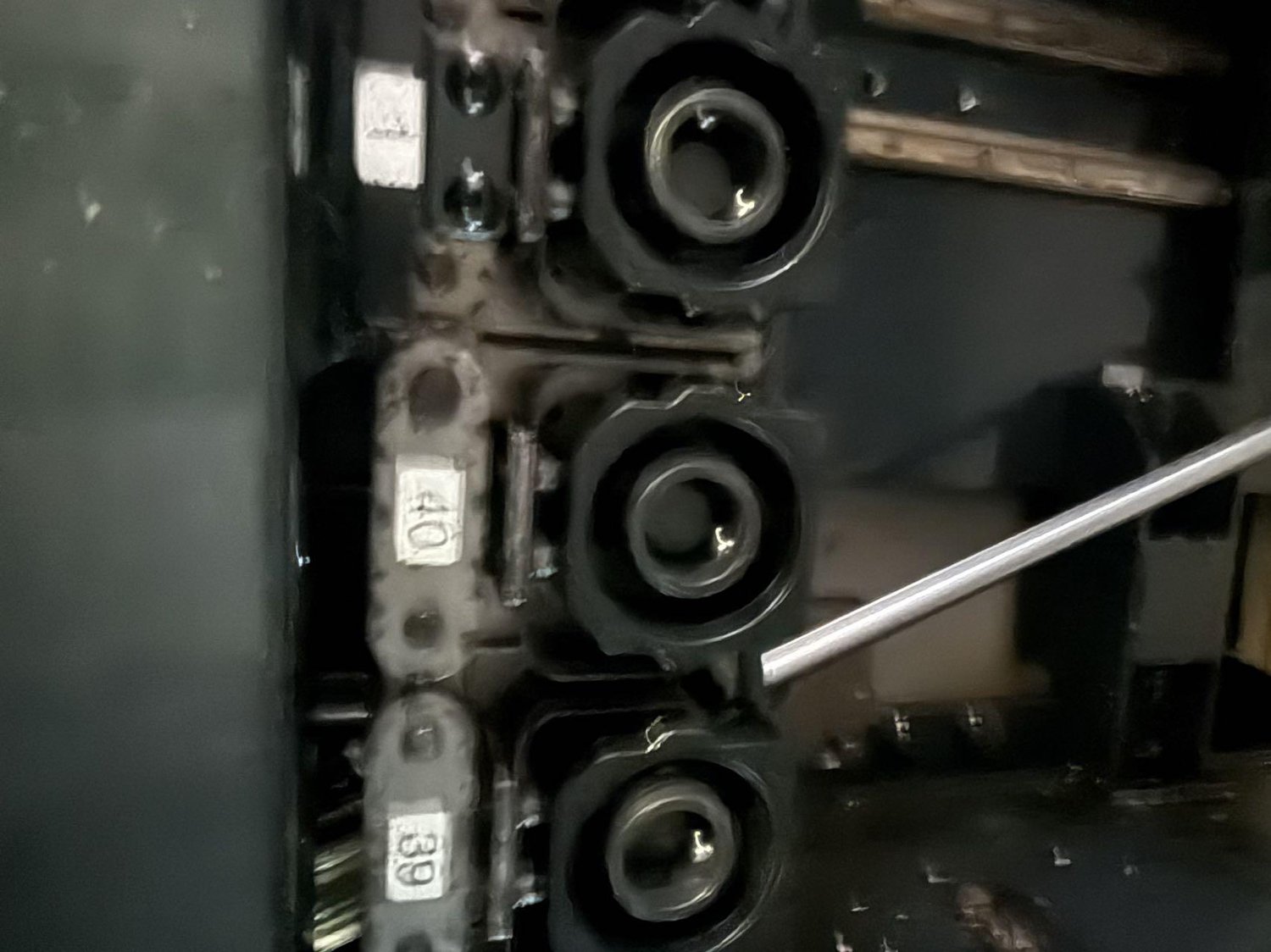

magazine capacity: 60

Tool to Tool: 4.2 seconds

Maximum Tool diameter: 140mm

Maximum Tool weight: 8kg
