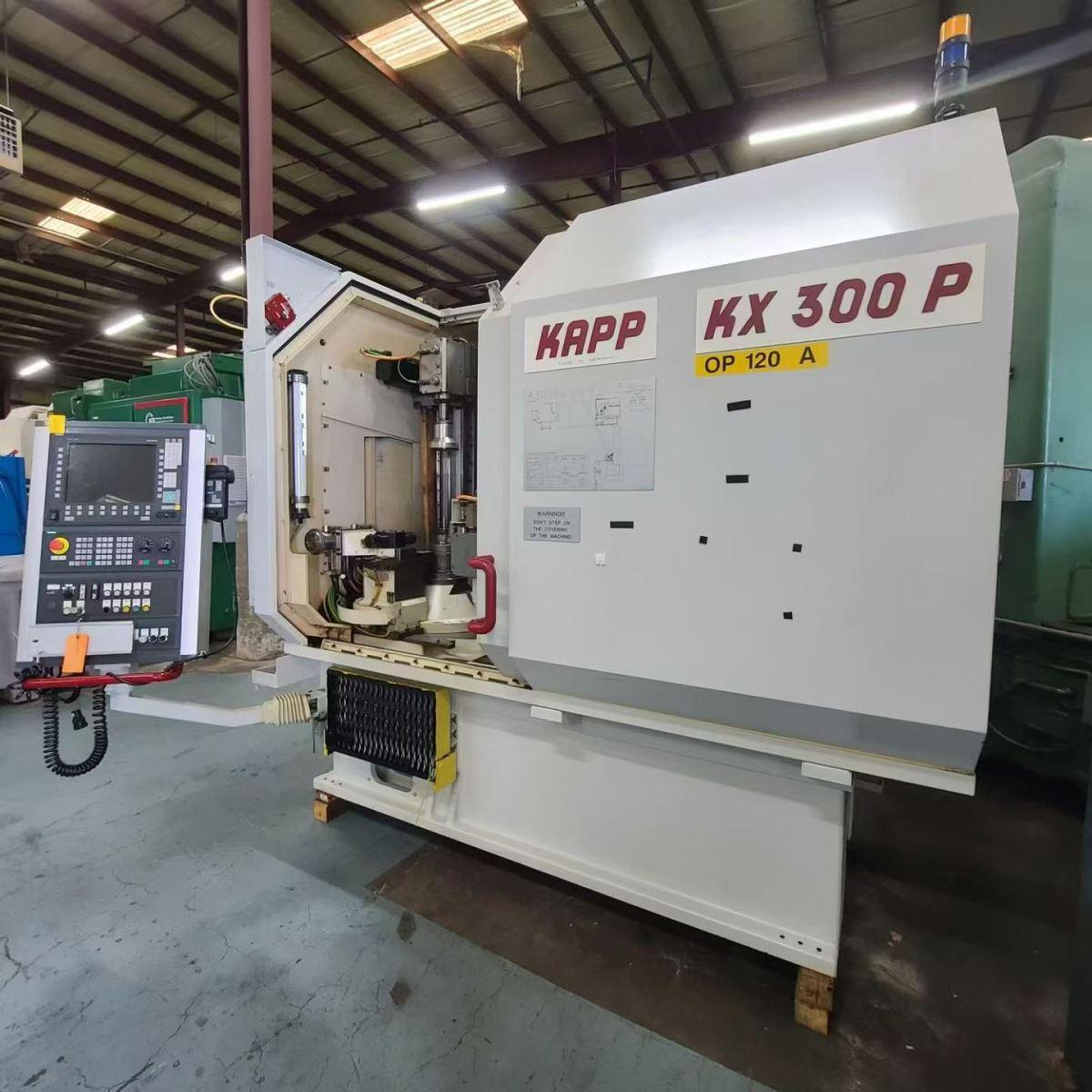

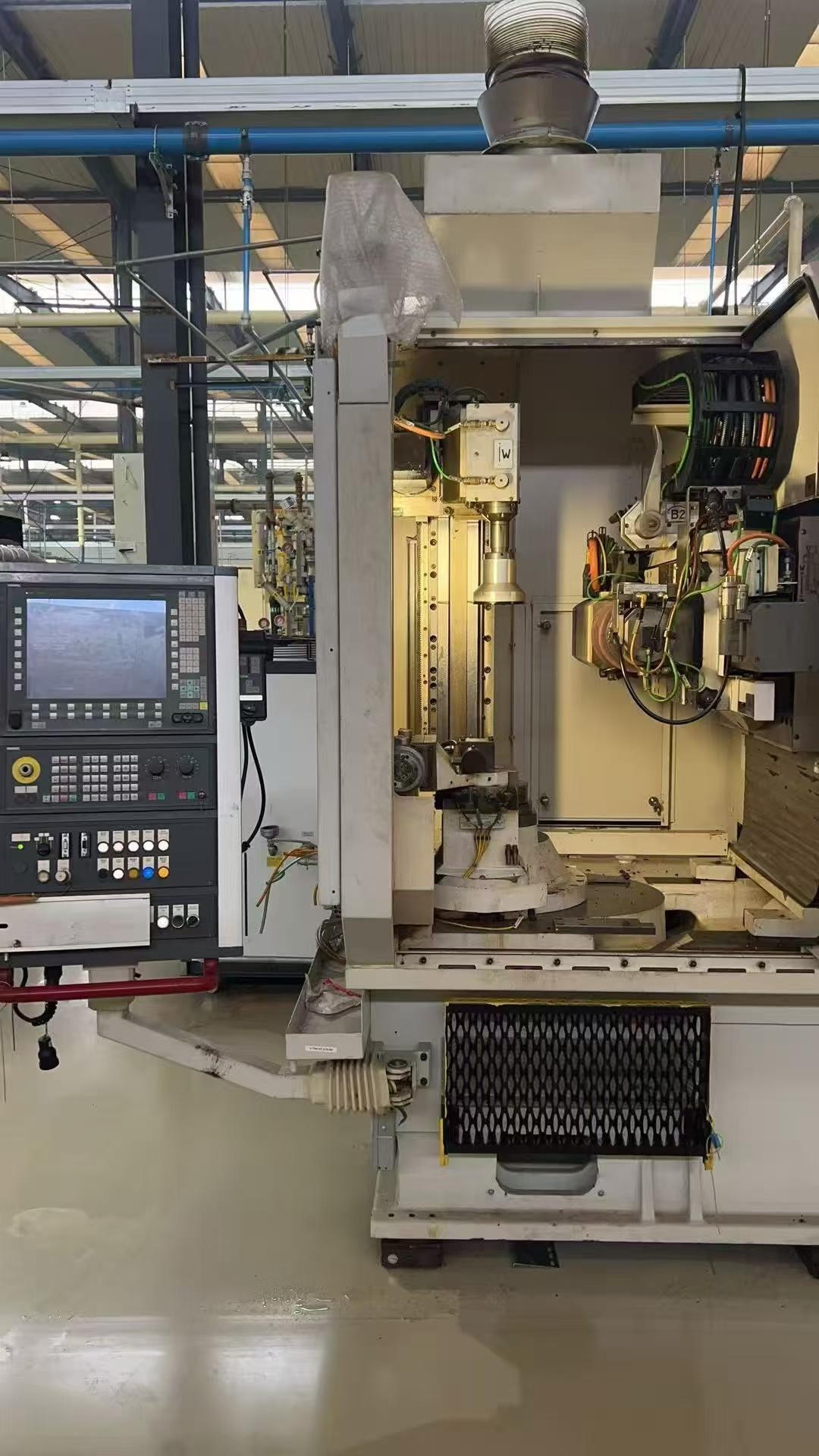

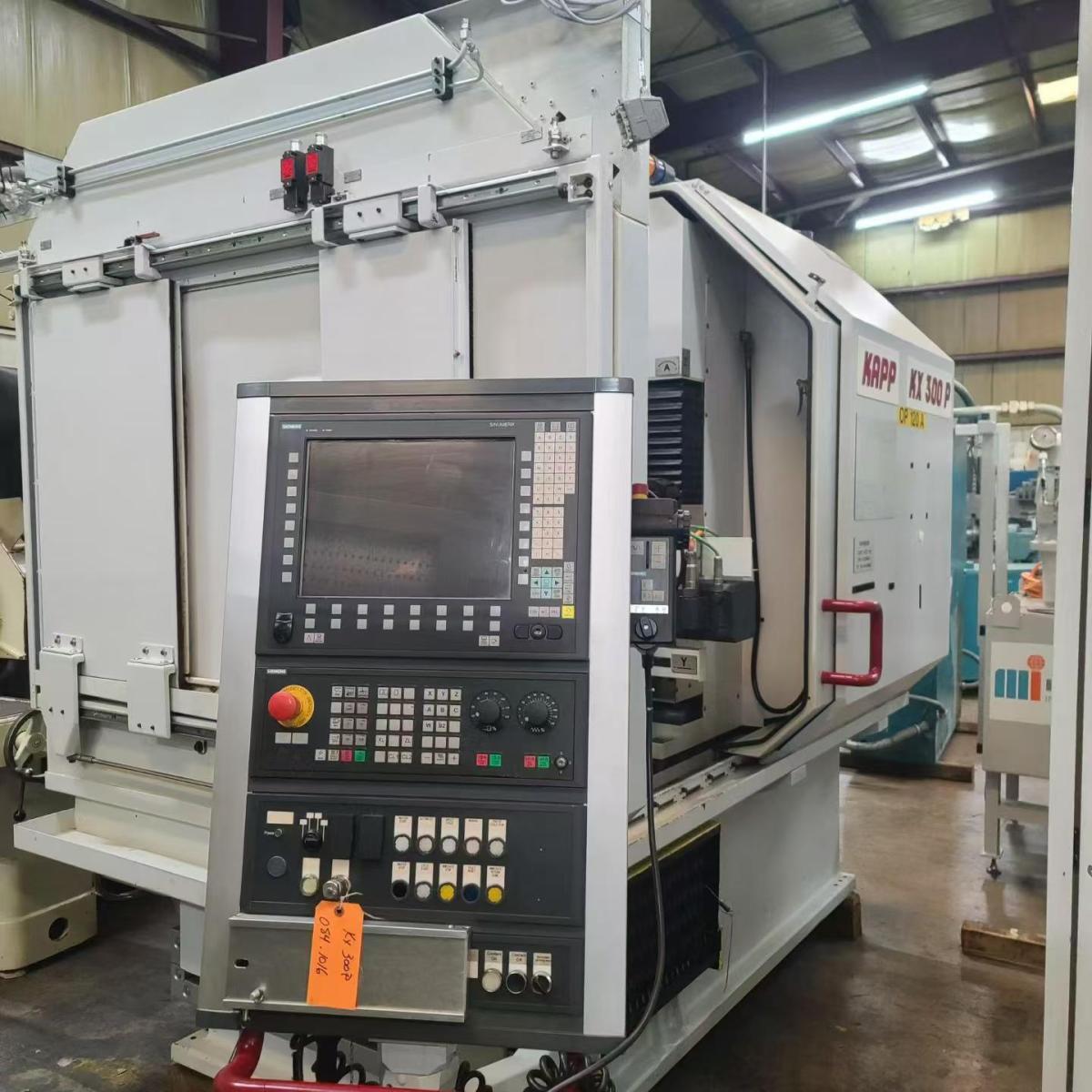

KAPP‑NILES KX300P Gear grinding machine

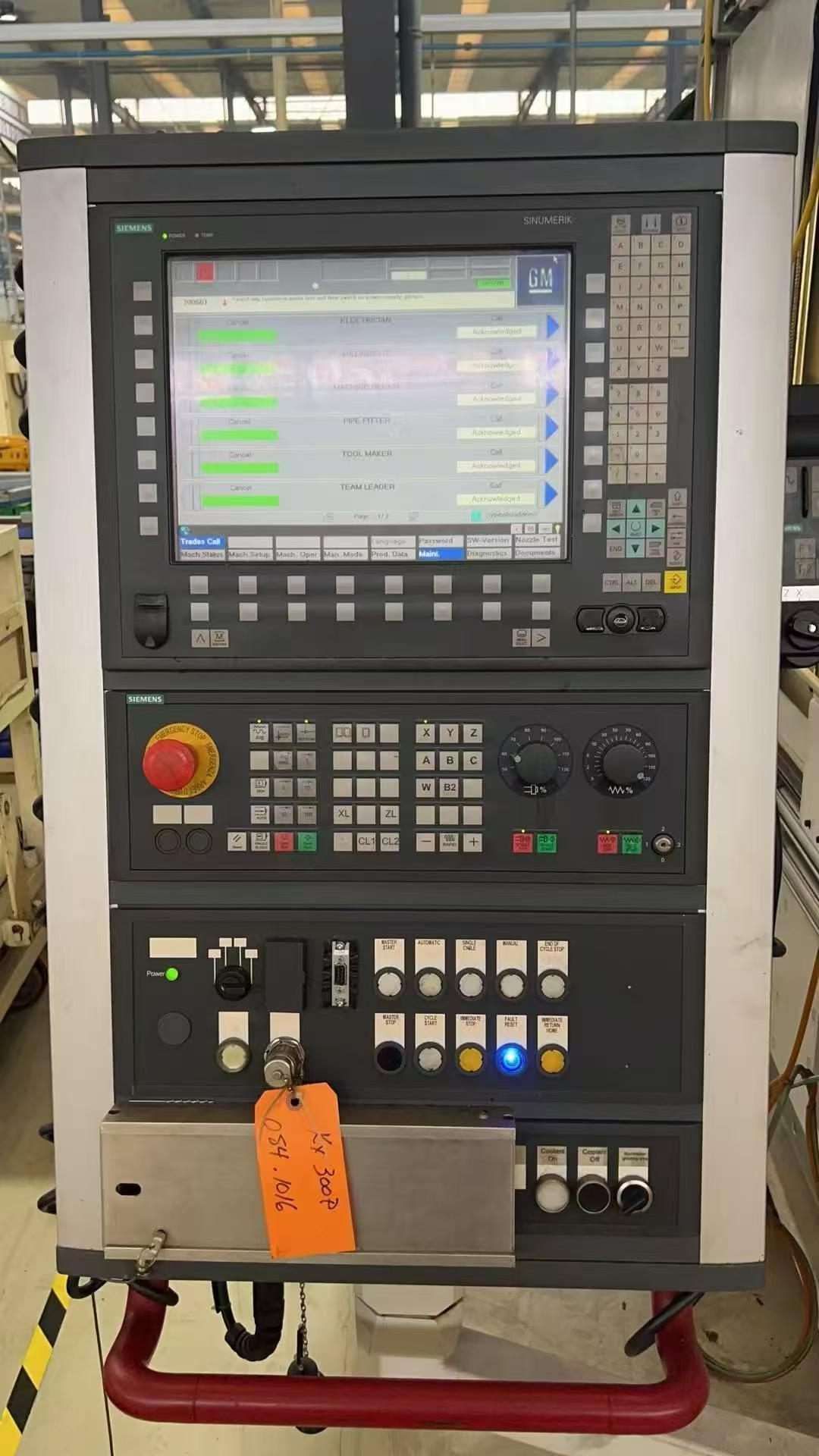

CNC System: Siemens 840D-SL (KAPP Dedicated Gear Grinding Software)
Maximum Workpiece Tip Diameter: 350 mm
Maximum Workpiece Length: 800 mm
Maximum Gear Face Width: 320 mm
Grinding Module: 0.5–8 mm (Generating Grinding); 0.5–10 mm (Profile Grinding)
Grinding Head Swivel Angle: ±45° (for Both Spur and Helical Gears)
Drive Configuration: Direct Drive for Both Grinding Wheel Spindle and Workpiece Spindle
Grinding Process: Combined Continuous Generating Grinding and Profile Grinding
Grinding Wheel Configuration: Ceramic Worm Grinding Wheel and CBN Dressing Wheel Supported
