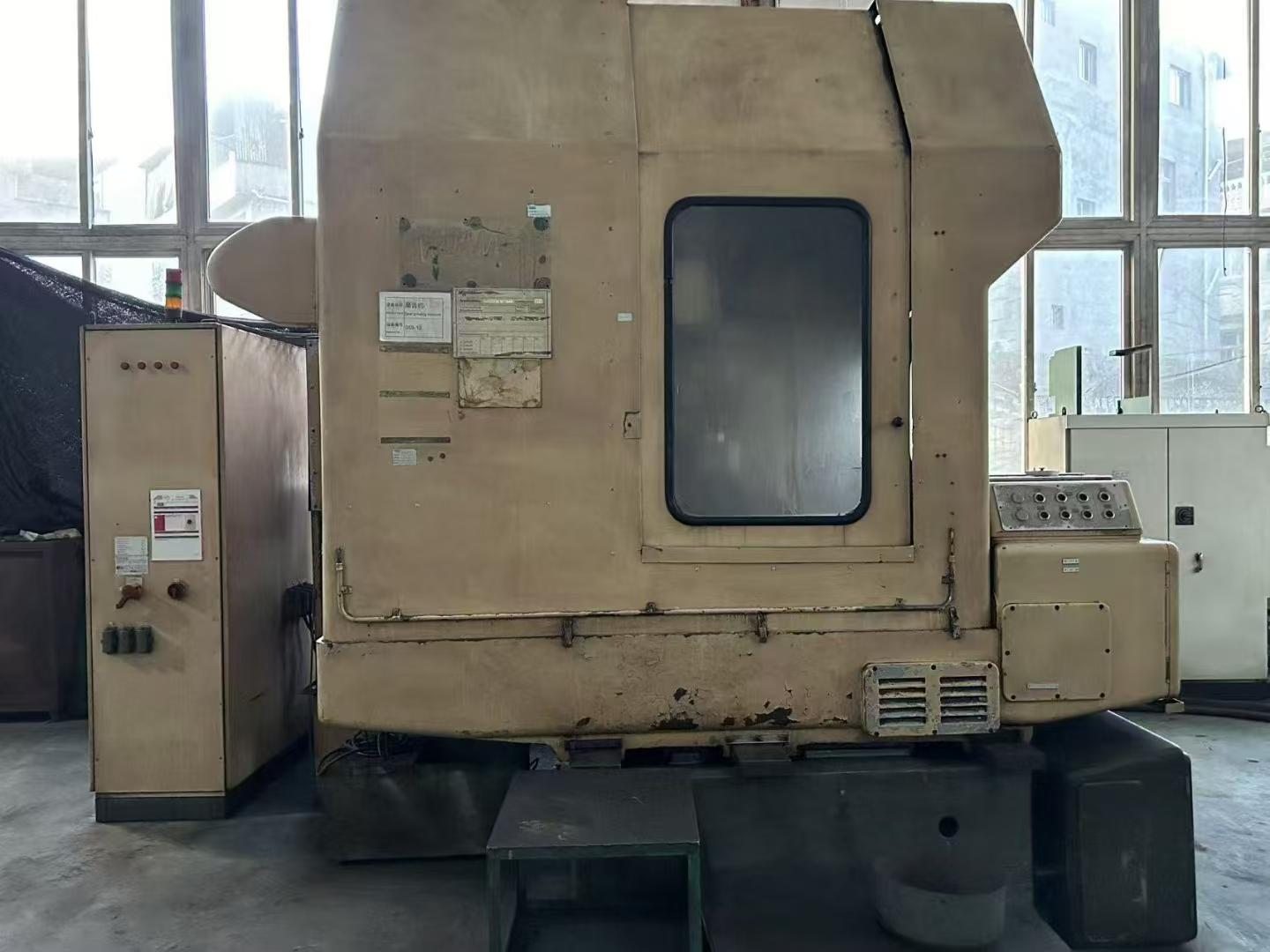

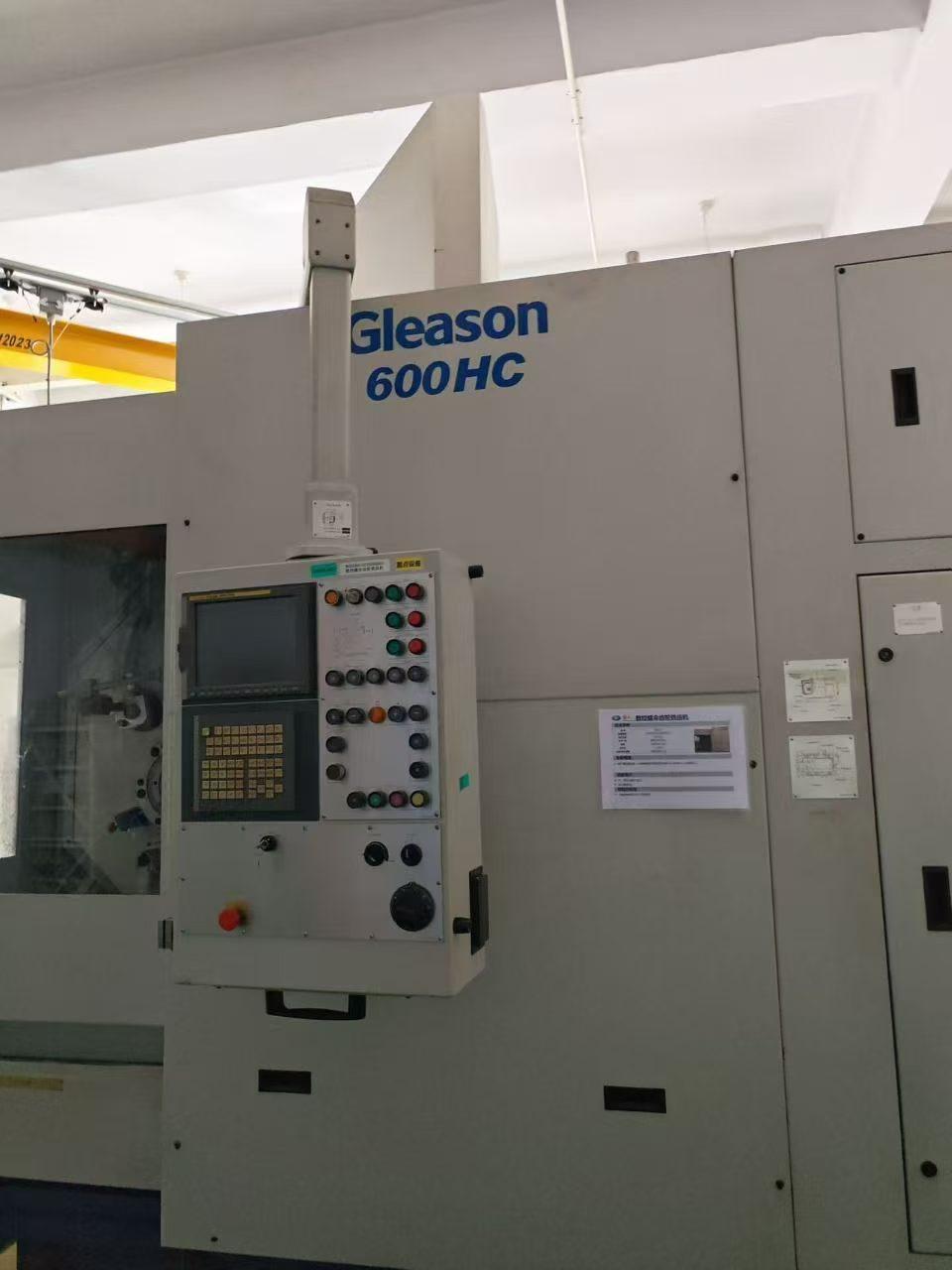

GLEASON 600HC Gear grinding machine

Tool Head Parameters
Face milling cutter (FM) head diameter: 457 mm
Hob cutter (FH) head radius: 210 mm
Maximum tool spindle speed: 600 rpm
Work Spindle Parameters
Front taper diameter: 203 mm
Taper bore diameter: 181 mm
Taper bore depth: 884 mm
Maximum work spindle speed: 600 rpm
Dimensions & Weight
Floor space (L × W × H): 4400 × 3500 × 3500 mm (including peripheral equipment)
Machine weight: 26,000 kg
Electrical Specifications
Total connected load: 139 kVA
Main fuse rating: 200 A
Operating voltage: 400 V
Power supply frequency: 50 Hz
Control voltage: 24 V DC
