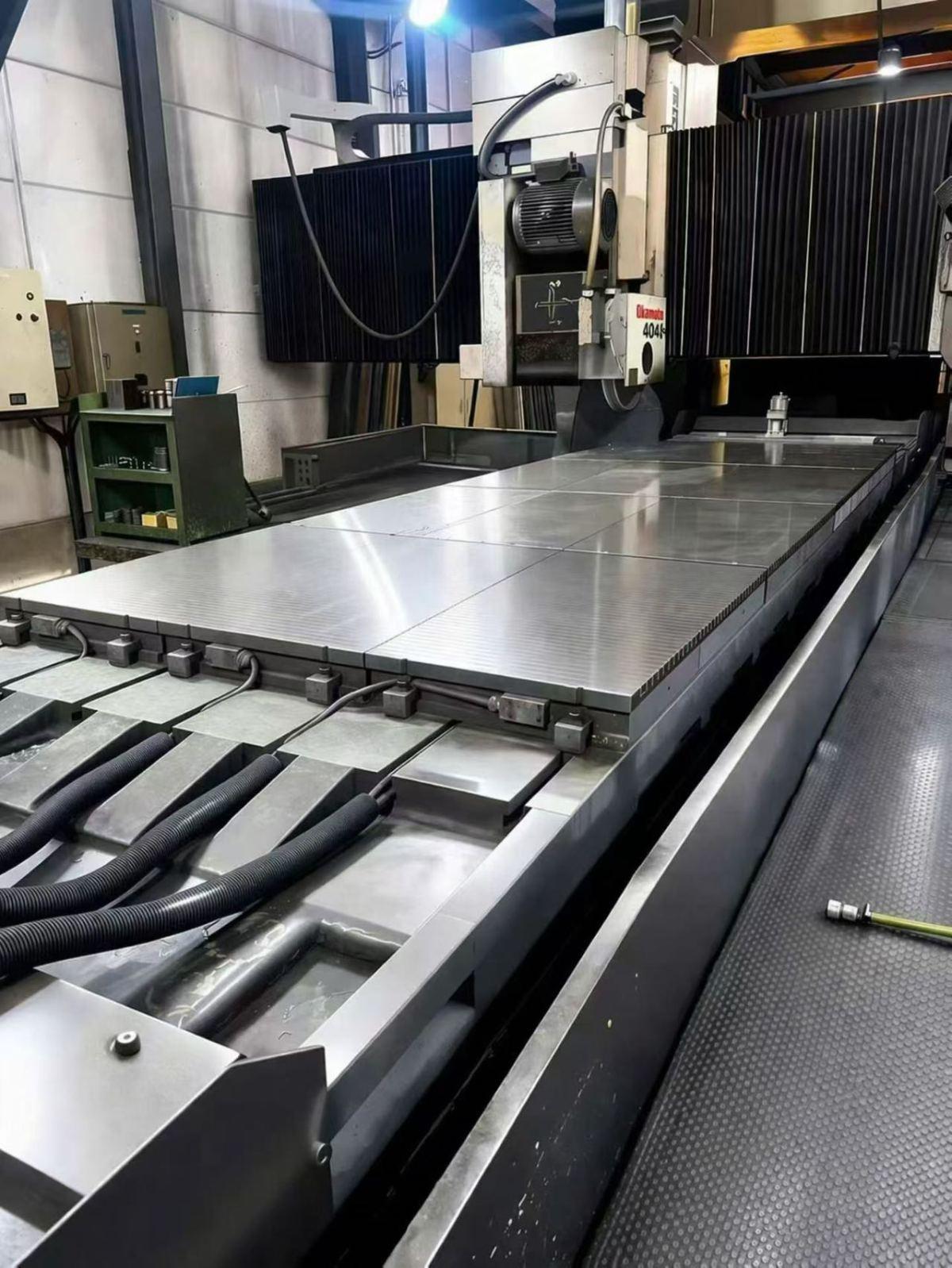

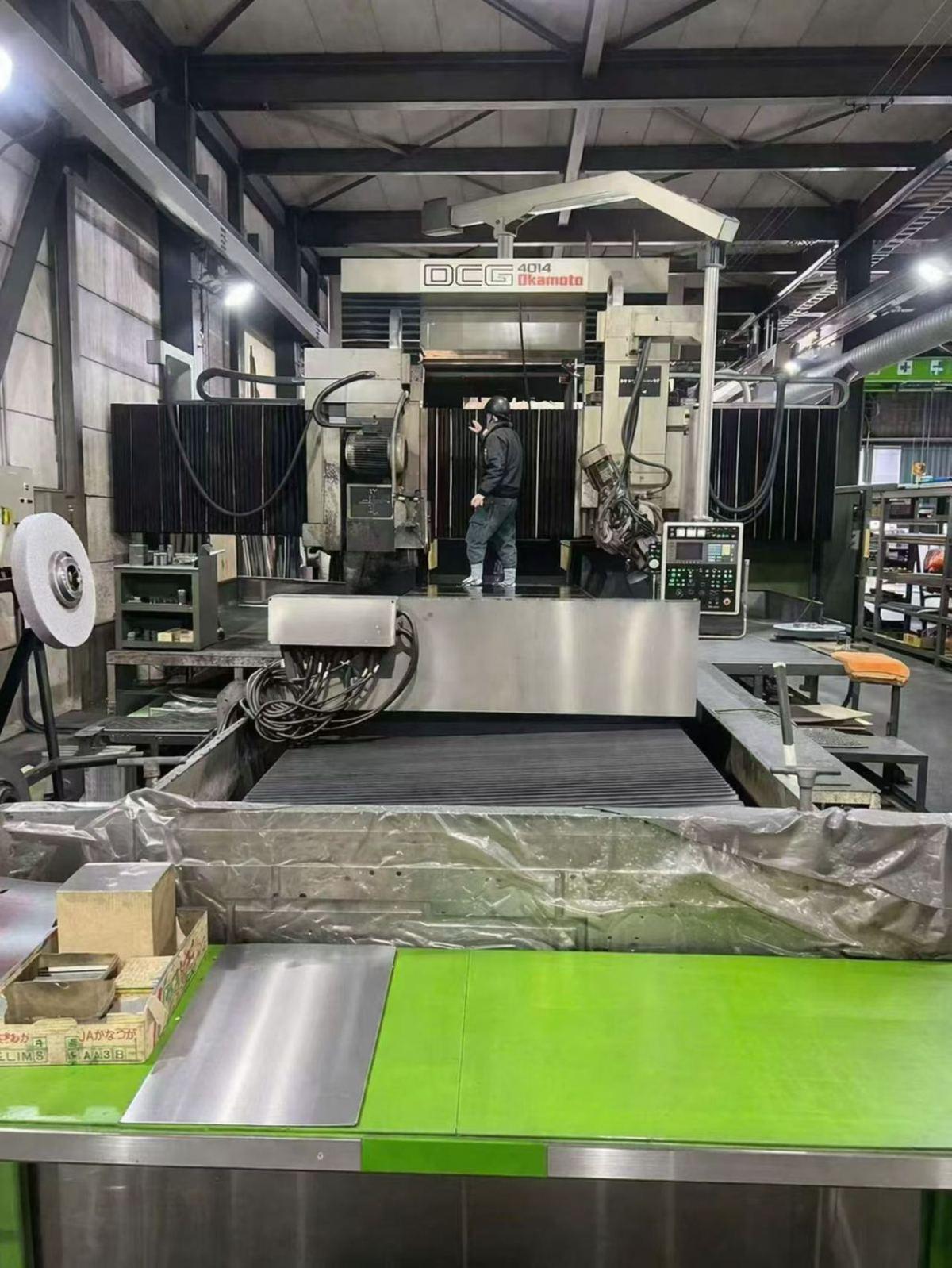

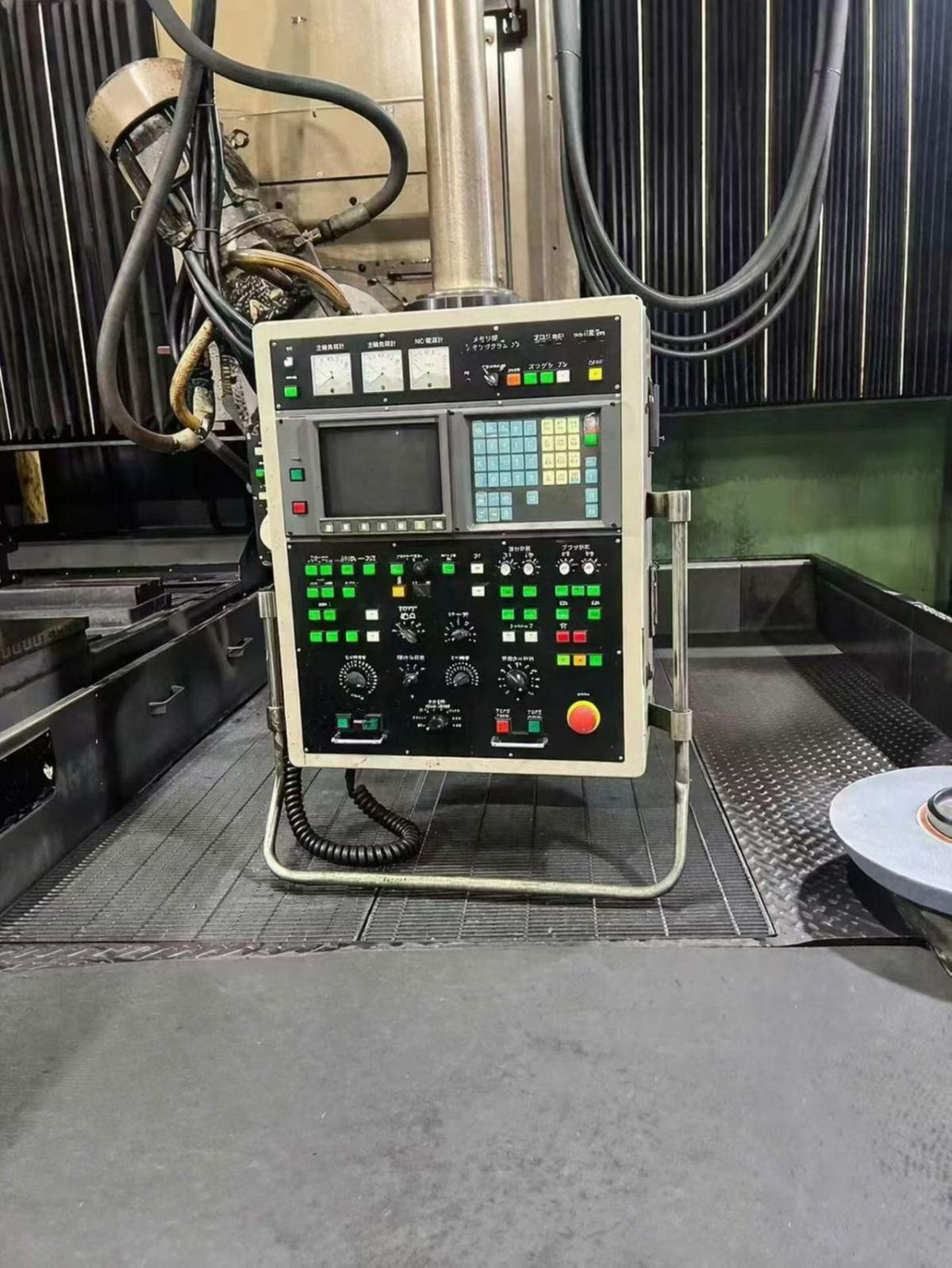

Okamoto DCG-4014 Surface grinder

Maximum Machining Height: 1250 mm (Grinding Wheel Shaft: φ610)
Worktable Surface Size: 4000 × 1350 mm
Maximum Width: 1600 mm
Table Load Capacity: 12 tons
Maximum Left-Right Feed Travel: 4500 mm
Front-Back Feed Travel: 2445 mm
Rapid Feed Rate: 3000 mm/min
Incremental Feed Rate: 0.0001 to 99.9999 mm
Grinding Wheel Head Vertical Travel (Y-axis): 150 mm
Rotary Vertical Shaft (V-axis) Travel: 500 mm
Rapid Feed Rate: 1000 mm/min
Gantry Crossbeam Vertical Travel: 1300 mm
Feed Rate at 50 Hz (60 Hz): 425 (510) mm/min
Horizontal Grinding Wheel Specification (Maximum): φ610 × 100 × 203.2 mm
Grinding Wheel Shaft Speed (60 Hz): 980 rpm
Rotary Vertical Shaft Grinding Wheel Specification (Maximum): φ510 × 50 × 127 mm
Grinding Wheel Shaft Speed (60 Hz): 900–3000 rpm
Rotary Vertical Shaft (A-axis) Rotation Angle: ±65°
