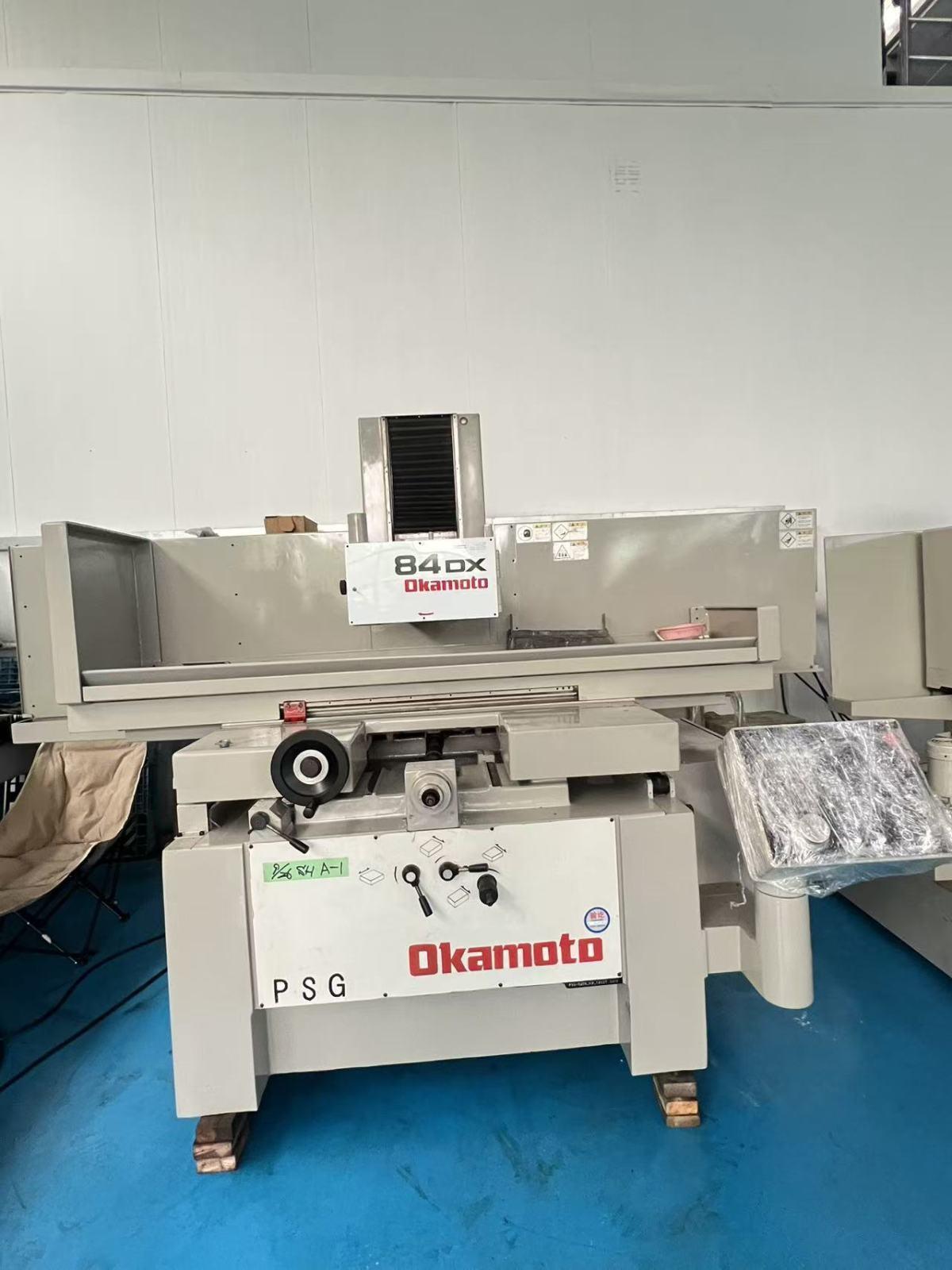

Okamoto PSG84DX Surface grinder

Table size: 850 × 400 mm
Standard chuck size: 800 × 400 × 85 mm
Table load capacity (including magnetic chuck): 700 kg
T-slot (quantity × width): 17 × 3 mm
Longitudinal feed:
Maximum feed travel: 950 mm
Average longitudinal feed rate: 3–25 mm/min
Manual feed per revolution: 47 mm
Cross feed:
Maximum feed travel: 440 mm
Manual feed per revolution: 5.0 mm
Handwheel scale: 0.02 mm
Automatic feed:
Intermittent feed: 0.5–20 mm
Continuous feed: 0.2–1.0 m/min
Vertical feed:
Automatic plunge and cross feed: 0.0001–0.03 mm (15 levels)
Manual fine feed device: 0.0001 / 0.001 / 0.01 mm
Manual down feed per revolution: 0.01 / 0.1 / 1.0 mm
No-load grinding cycles: 0–5 times
Vertical rapid feed rate: 600 mm/min
Grinding wheel speed (50/60 Hz): 1500 / 1800 rpm
Motor power:
Spindle motor: 3.7 / 4 kW
Hydraulic pump: 2.2 / 4 kW
Vertical rapid & down feed: 0.4 kW (AC servo)
Total power requirement (magnetic chuck + cooling system): 11.0 kVA
Floor space: 3322 × 2211 × 2115 mm
Machine weight: 5000 kg
