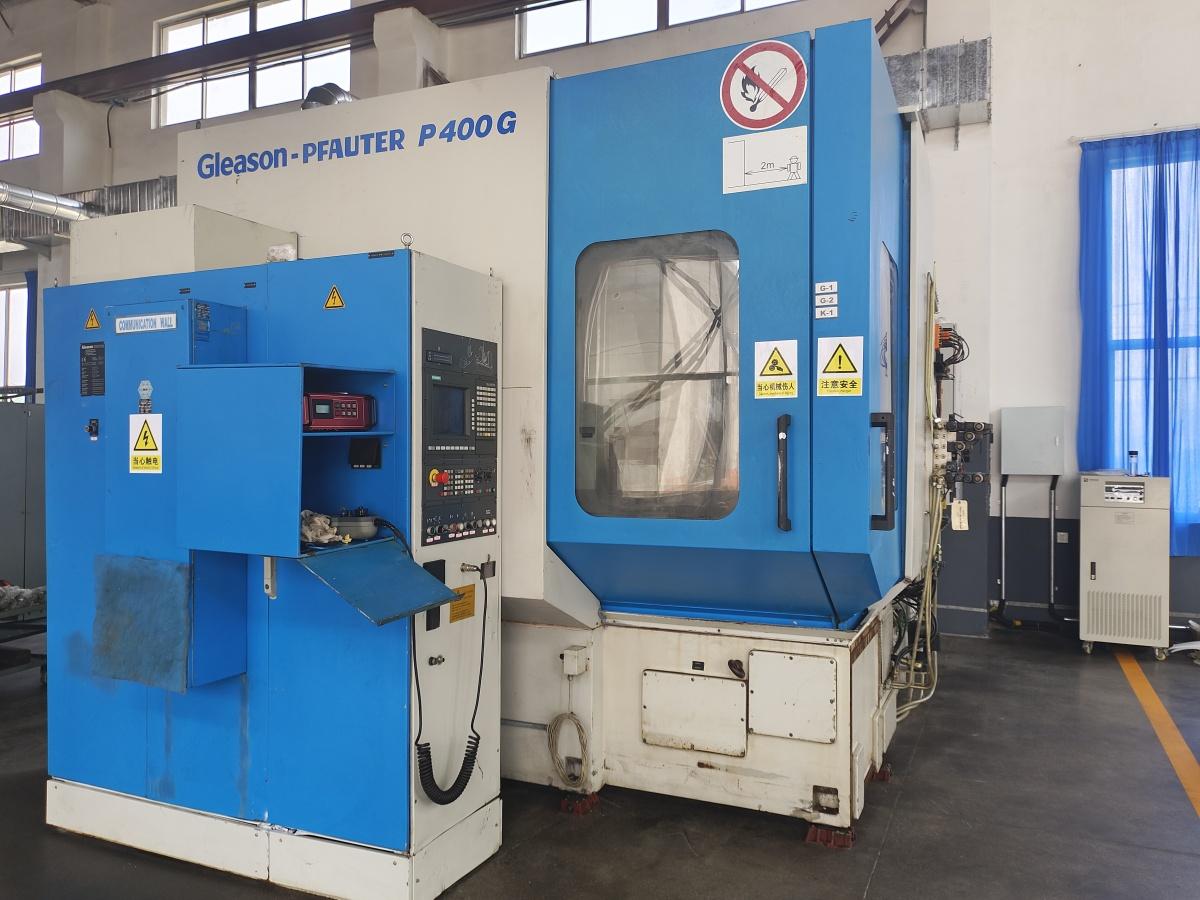

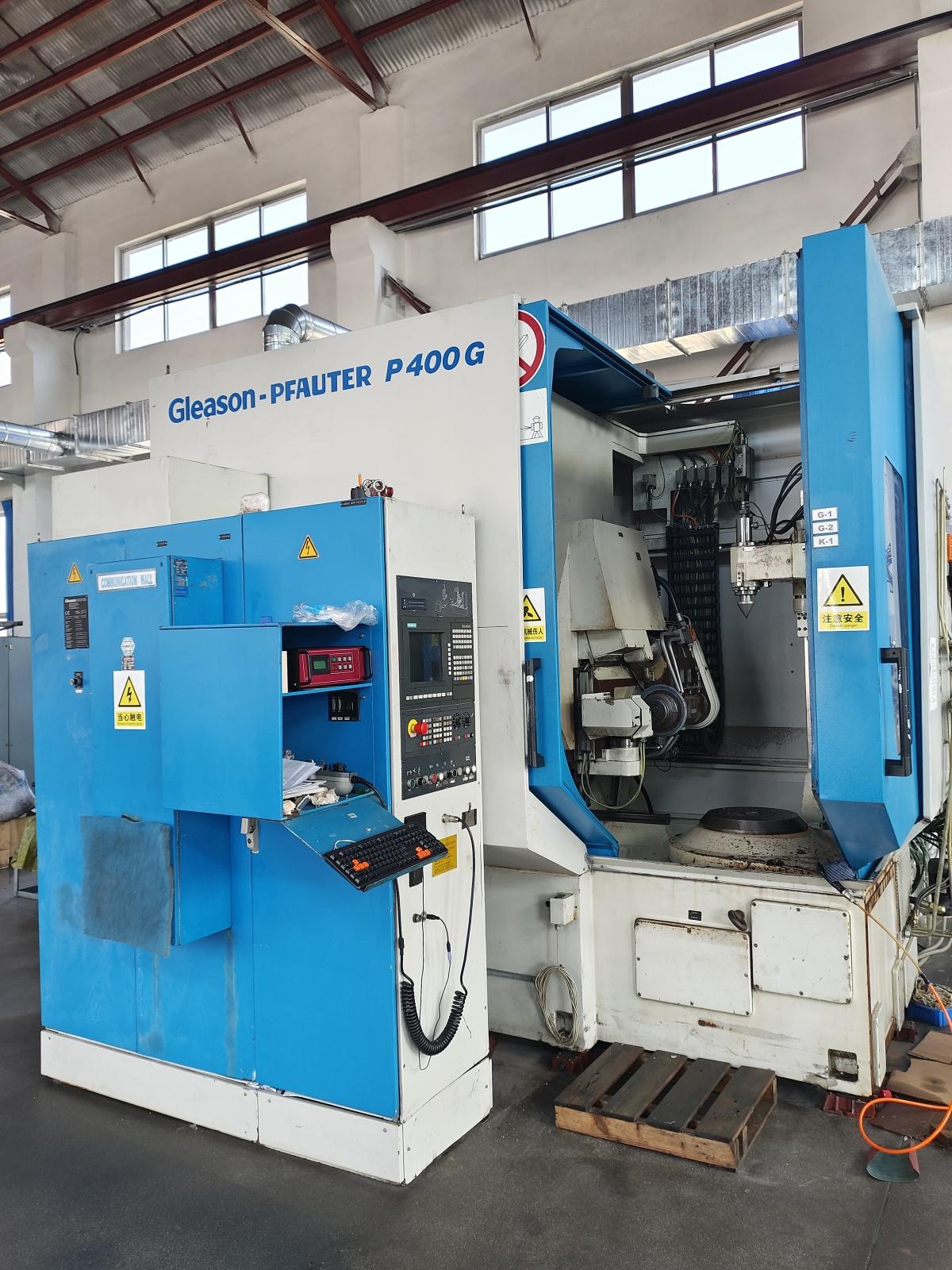

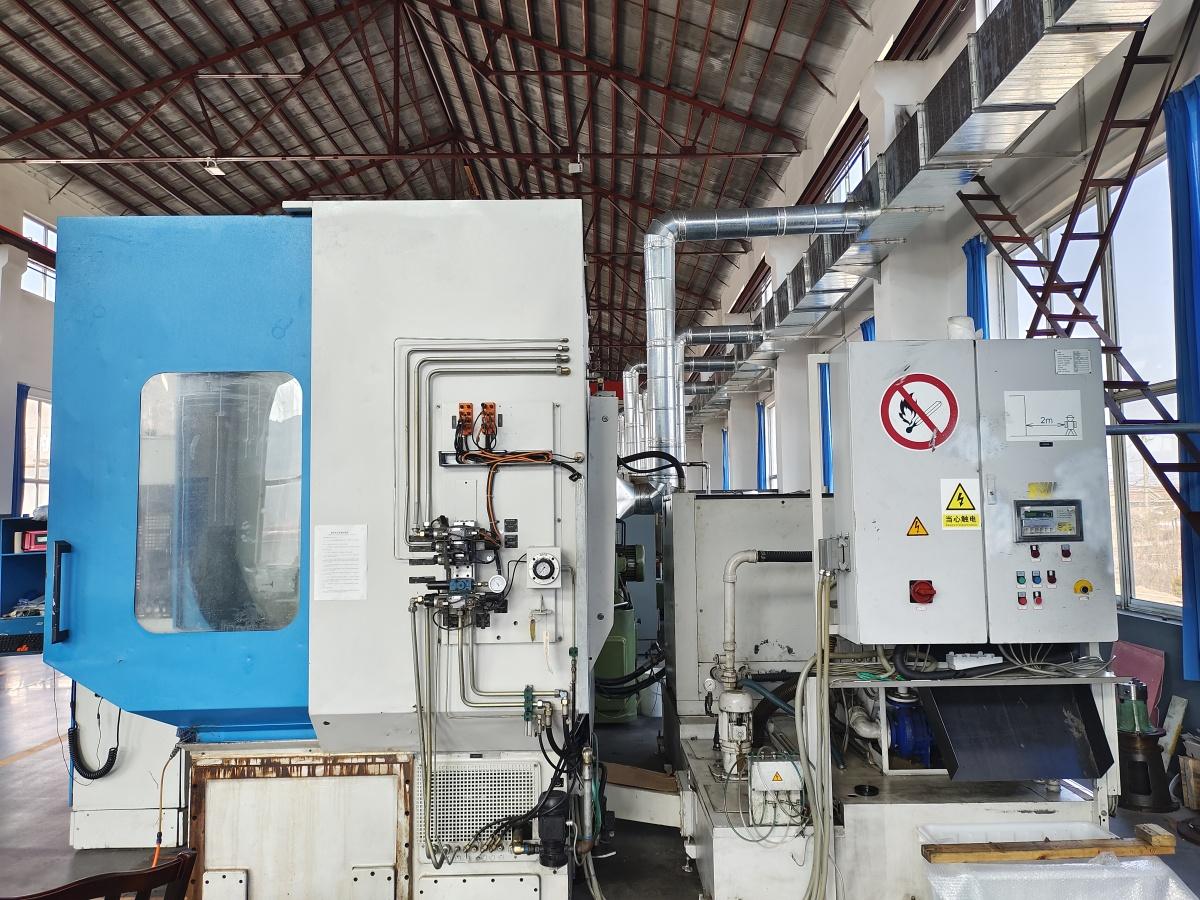

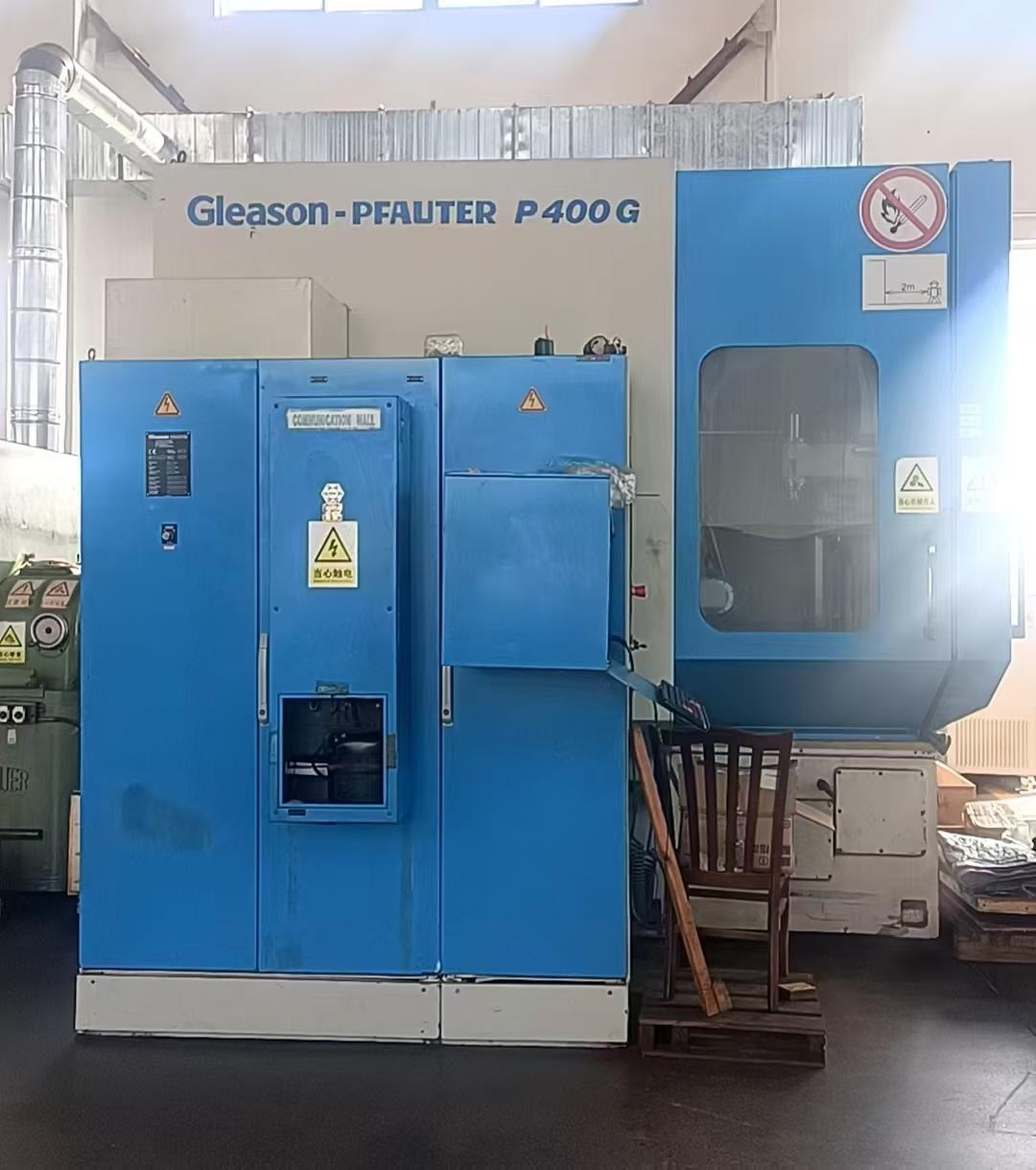

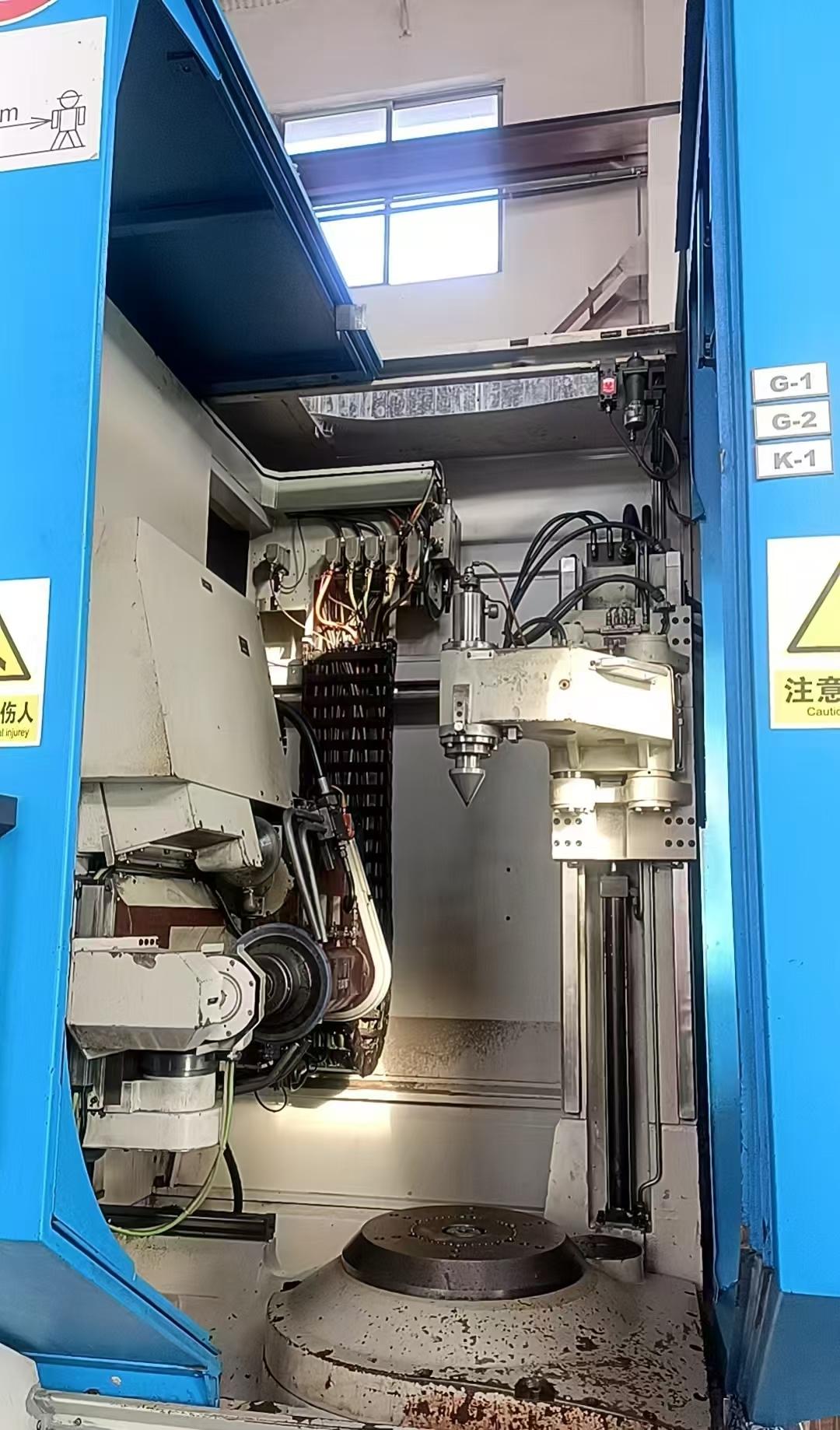

Gleason Pfauter P400G Gear grinding machine

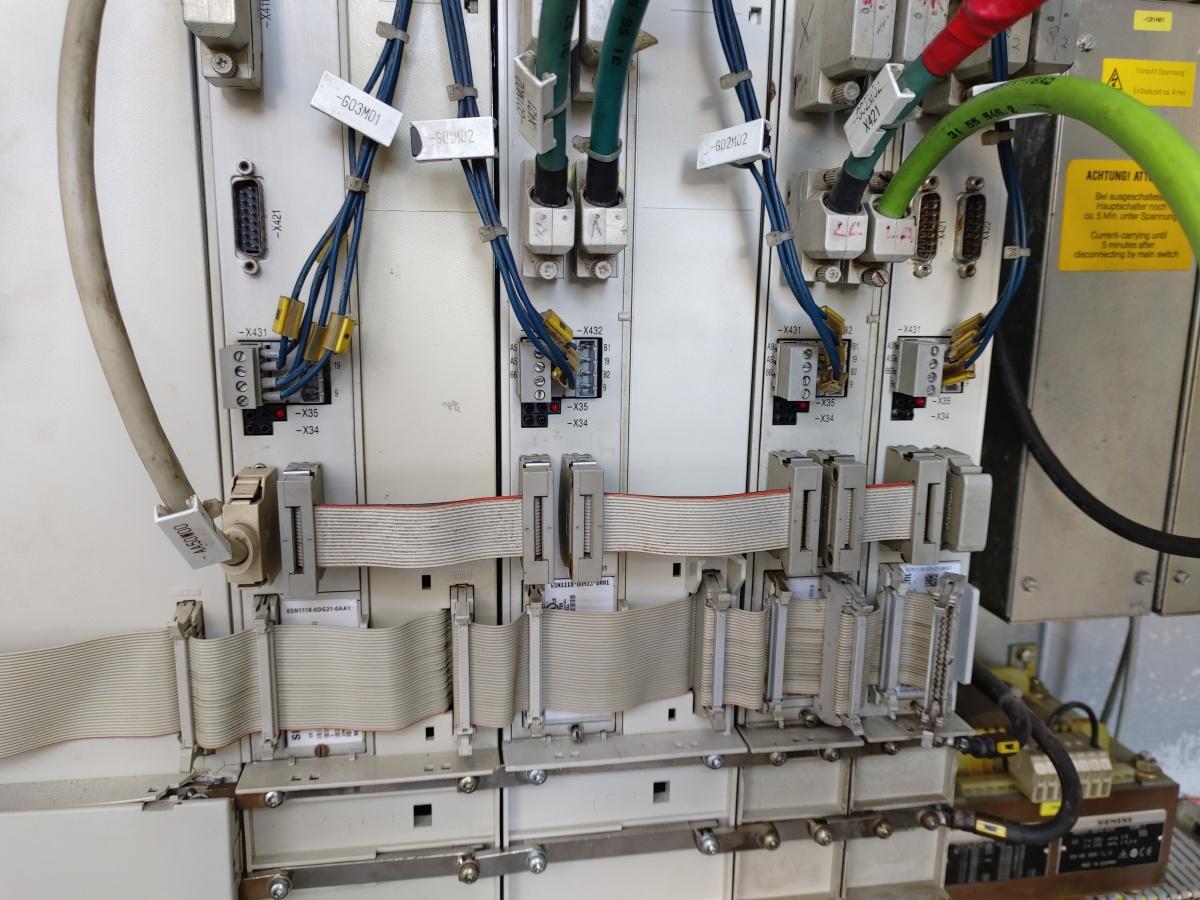

CNC System: Siemens
Maximum workpiece diameter: Ø400 mm
Maximum grinding wheel diameter: Ø350 mm
Maximum grinding wheel width: 50/70 mm
Maximum module: Approx. M12
Three-axis travel: 440 × 200 × 400 mm
Maximum worktable load: 10 kN
Worktable diameter: Ø380 mm
Maximum travel of the axial slide (standard): 400 mm
Maximum travel of the axial slide (optional): 600 mm
Grinding wheel spindle diameter: Ø80 mm
Swivel angle range: ±45°
Grinding wheel speed range: 600–6000 rpm
Machine weight (with tailstock column): Approx. 19,000 kg
Overall dimensions: Approx. 4255 × 5485 × 3050 mm
