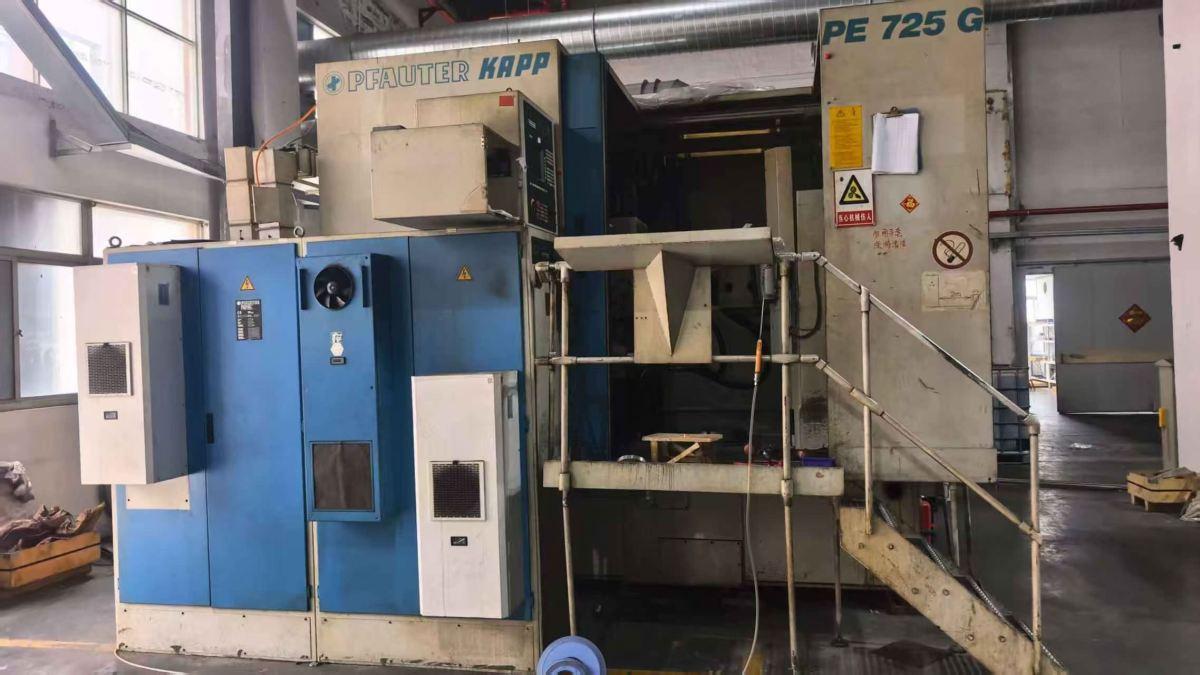

PFAUTER-KAPP PE 725 G Gear grinding machine

[Product Information]:

Inventory number：4813154
Brand：PFAUTER-KAPP
Model：PE 725 G
Origin：Germany
Location：China
Year：1999
Create Time：2026-10-18

Specifications:

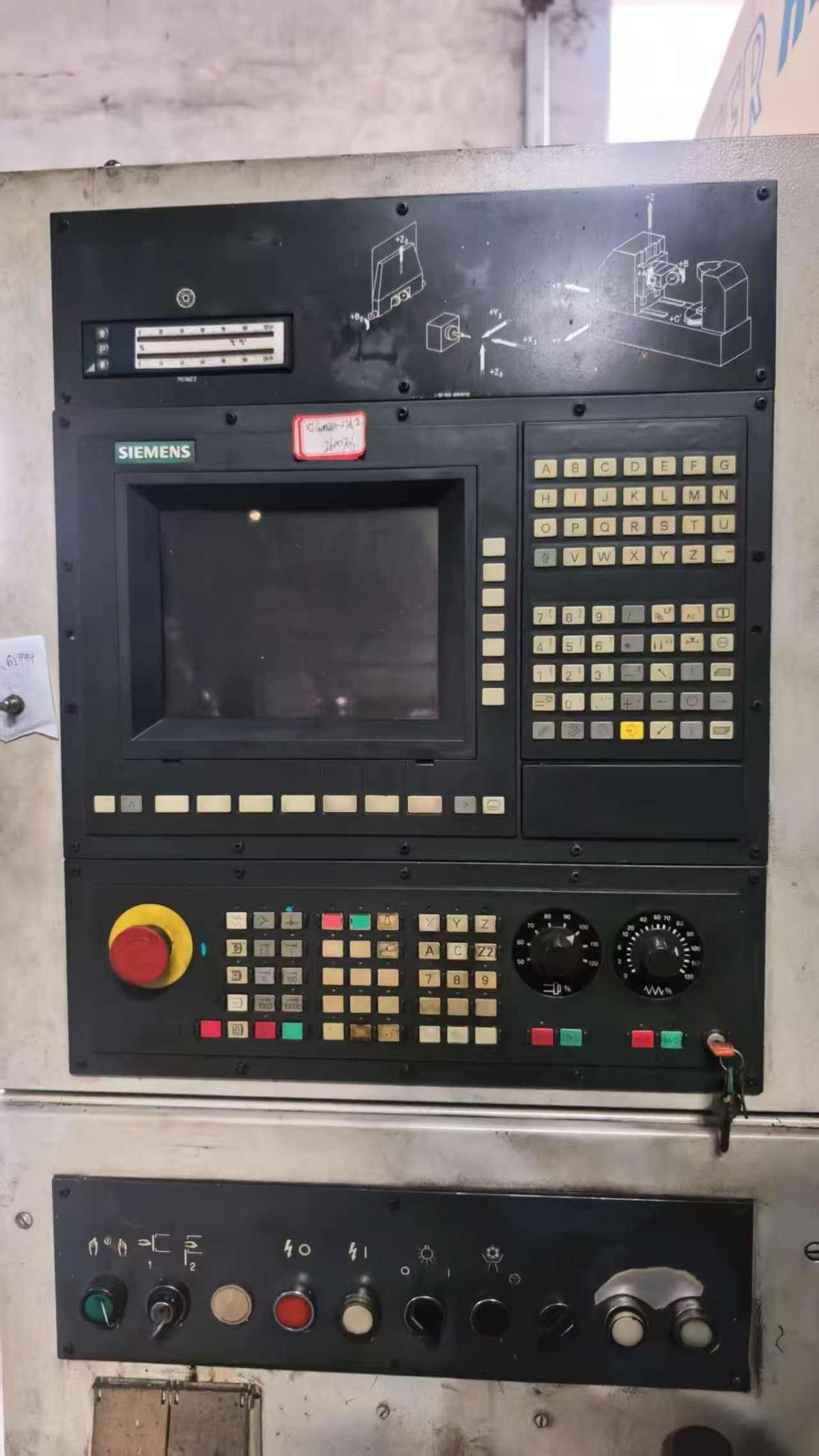

CNC System: SIEMENS 840C
Worktable diameter: 450 mm
Worktable bore diameter: 125 mm
Worktable speed: 22 rpm
Maximum workpiece diameter: 800 mm
Z-axis vertical travel: 600 mm
Maximum module: 16
Y-axis tangential travel: 150 mm
X-axis radial travel: 600 mm
Grinding head swivel angle: ±45°
Grinding wheel size: 300 × 80 × 80 mm
Grinding wheel speed: Up to 8,000 rpm
Machine weight: 12,500 kg

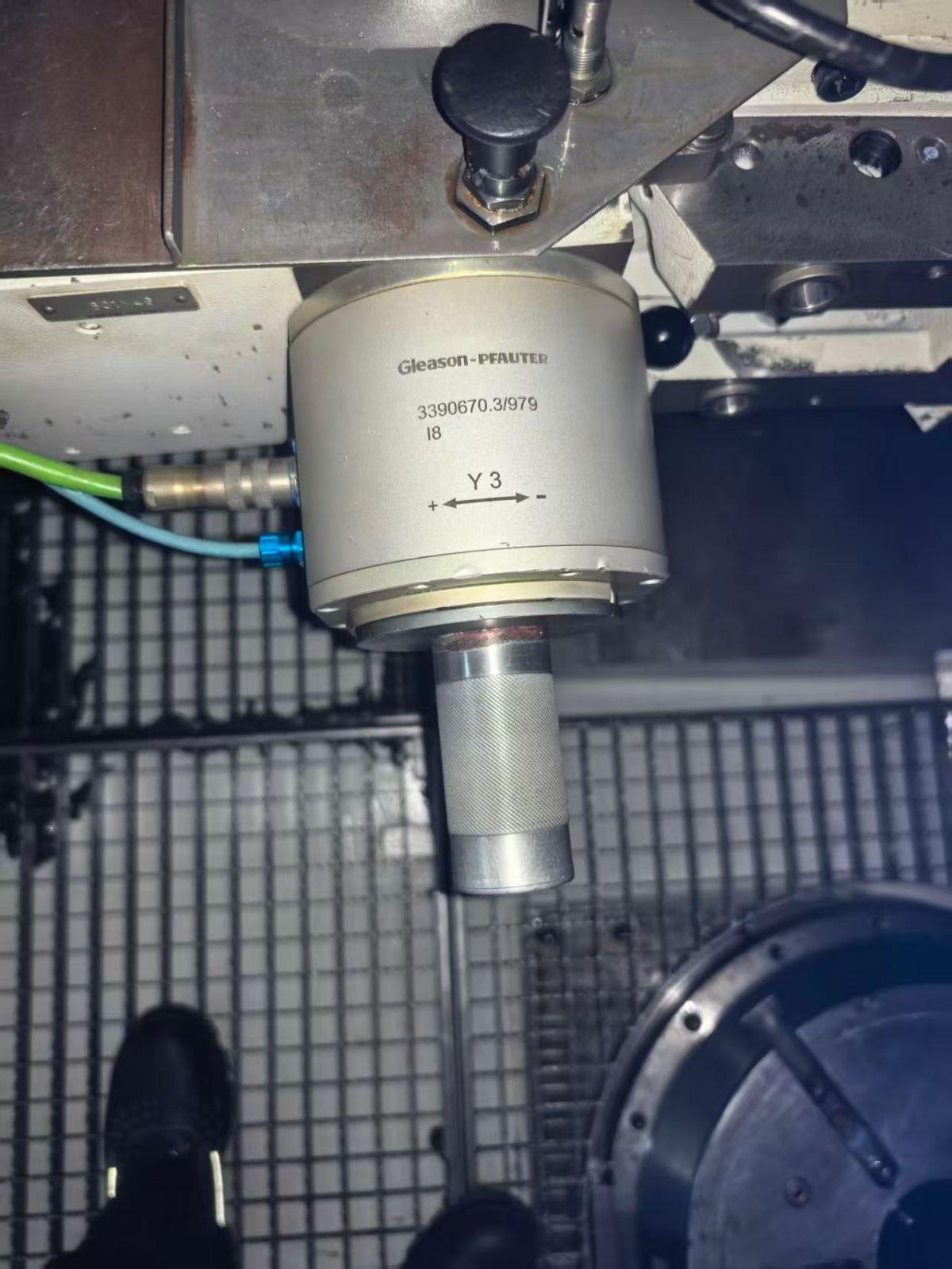

Integrated RENISHAW measuring probe
