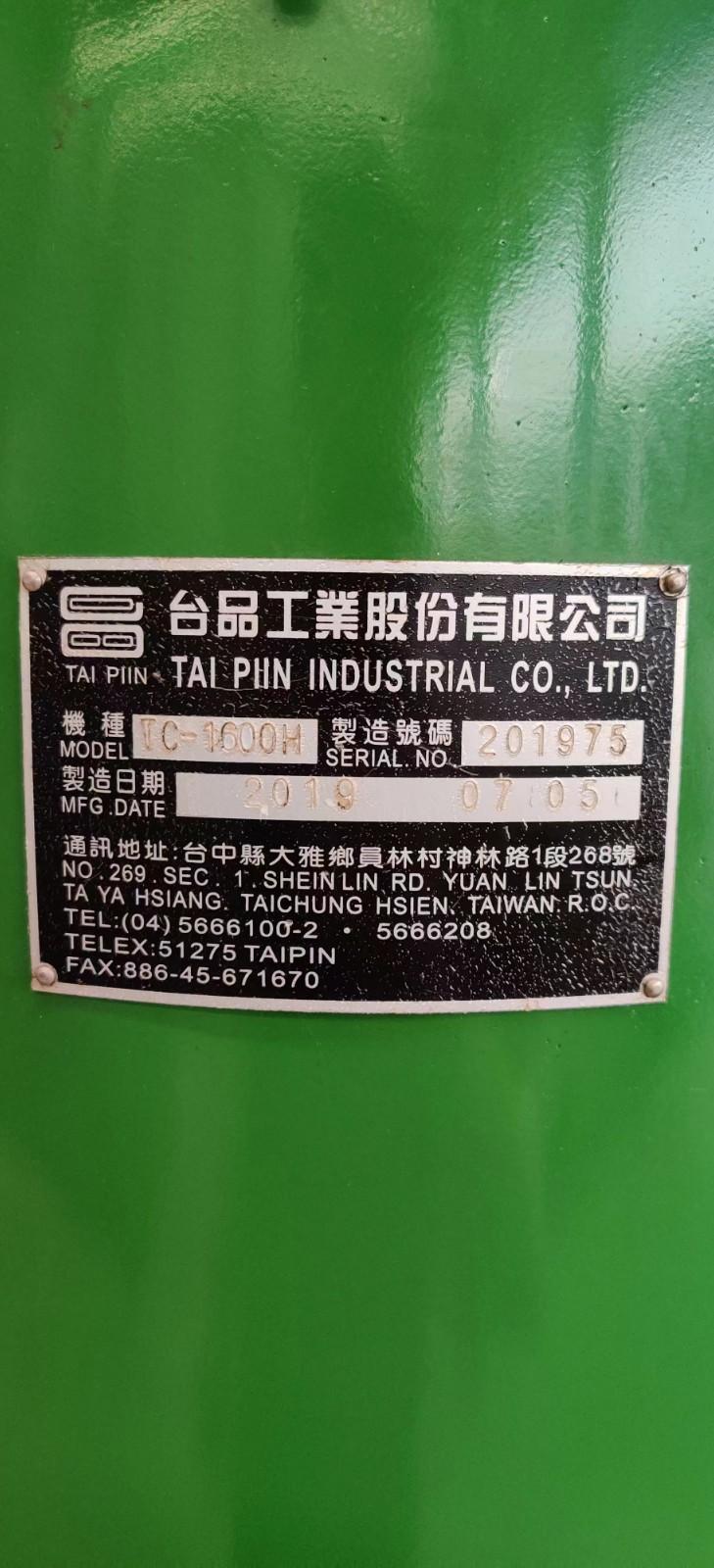

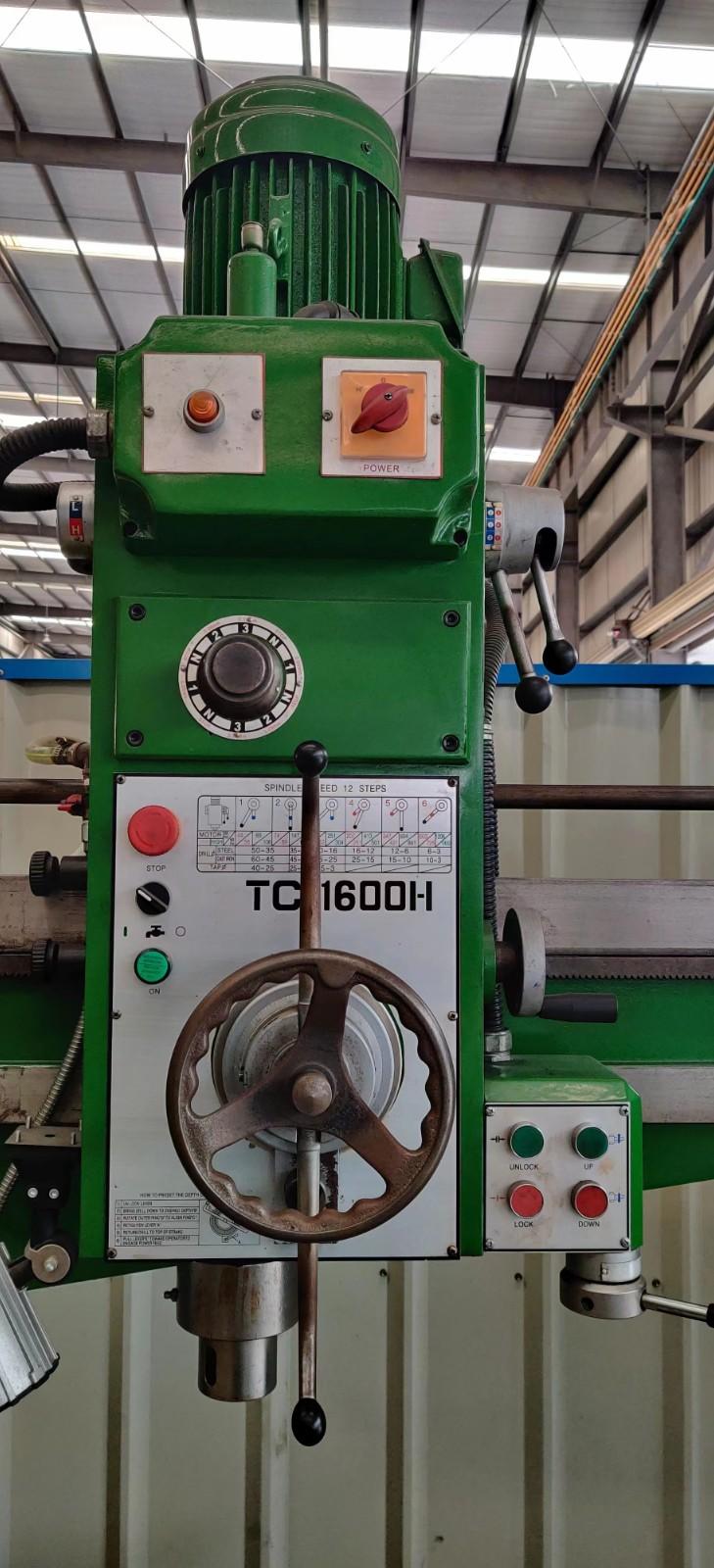

Tai Pin 1600H Radial drill

Distance from spindle center to column surface 350-1600mm

Horizontal movement of spindle head on rotary arm 1250mm

Machining distance from the end of spindle to base 465-1420mm

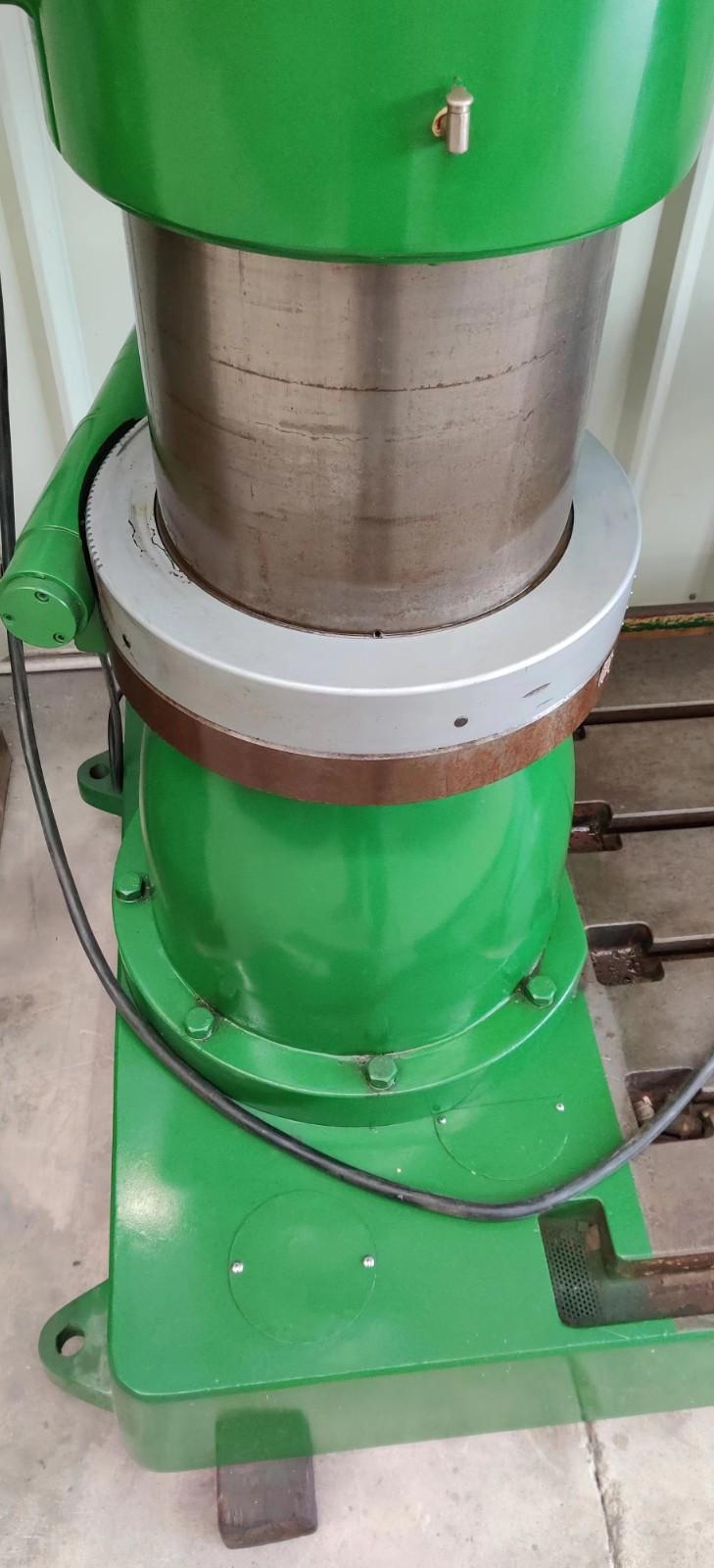

Vertical lifting stroke of swivel arm on the column is 680mm

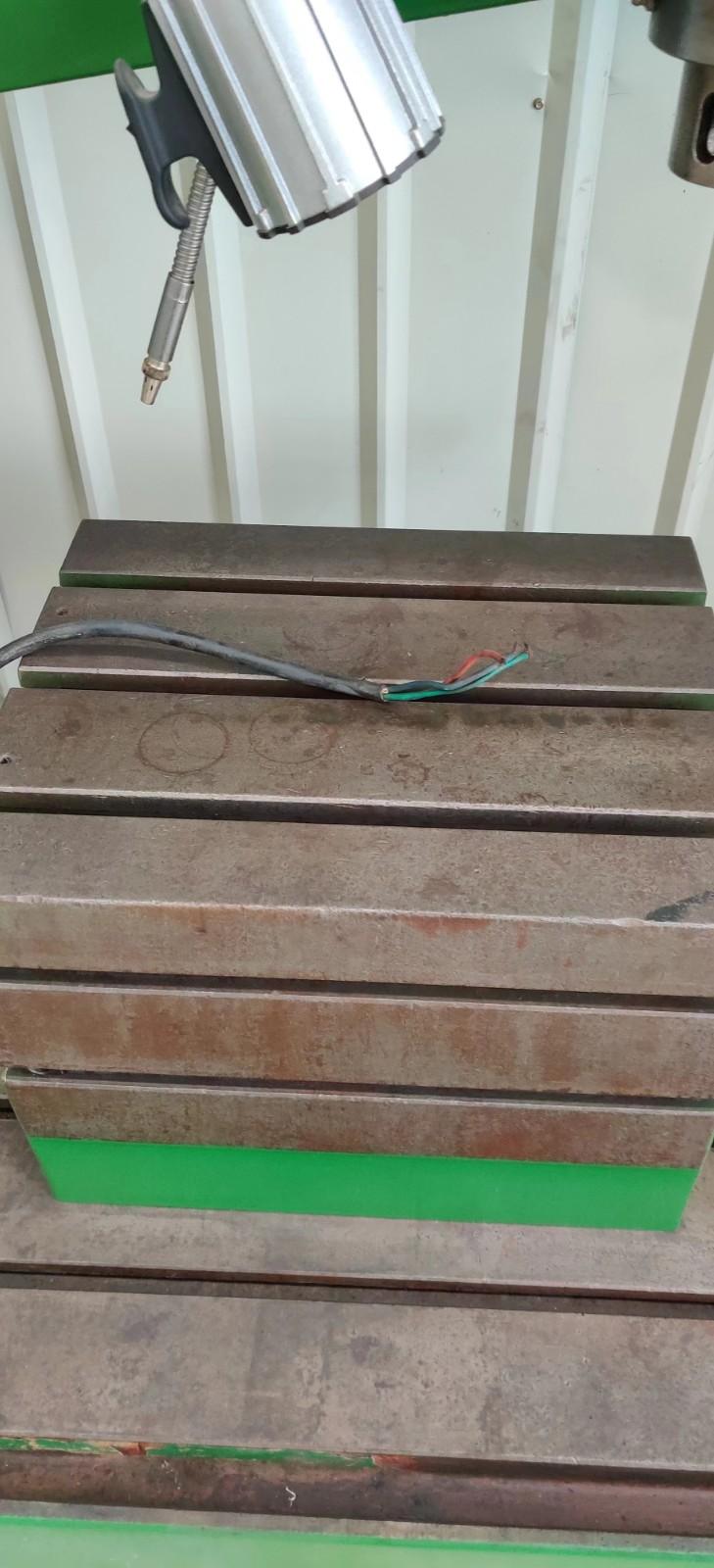

Effective working area of Box type worktable 630x500x500mm

Base size (length x width x thickness) 2550x970x200mm

Z-axis travel 250mm

Spindle speed 56-1450rpm
