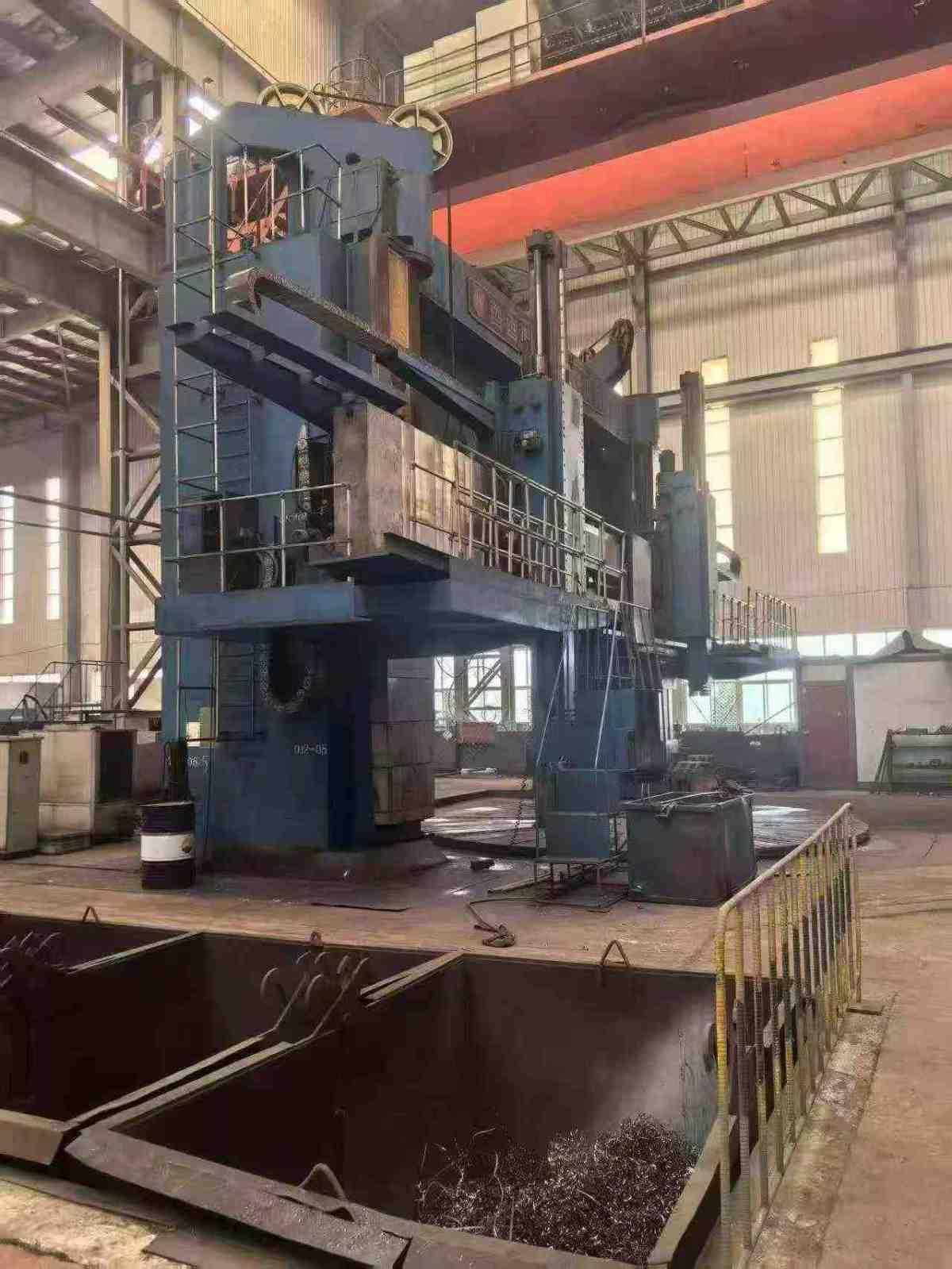

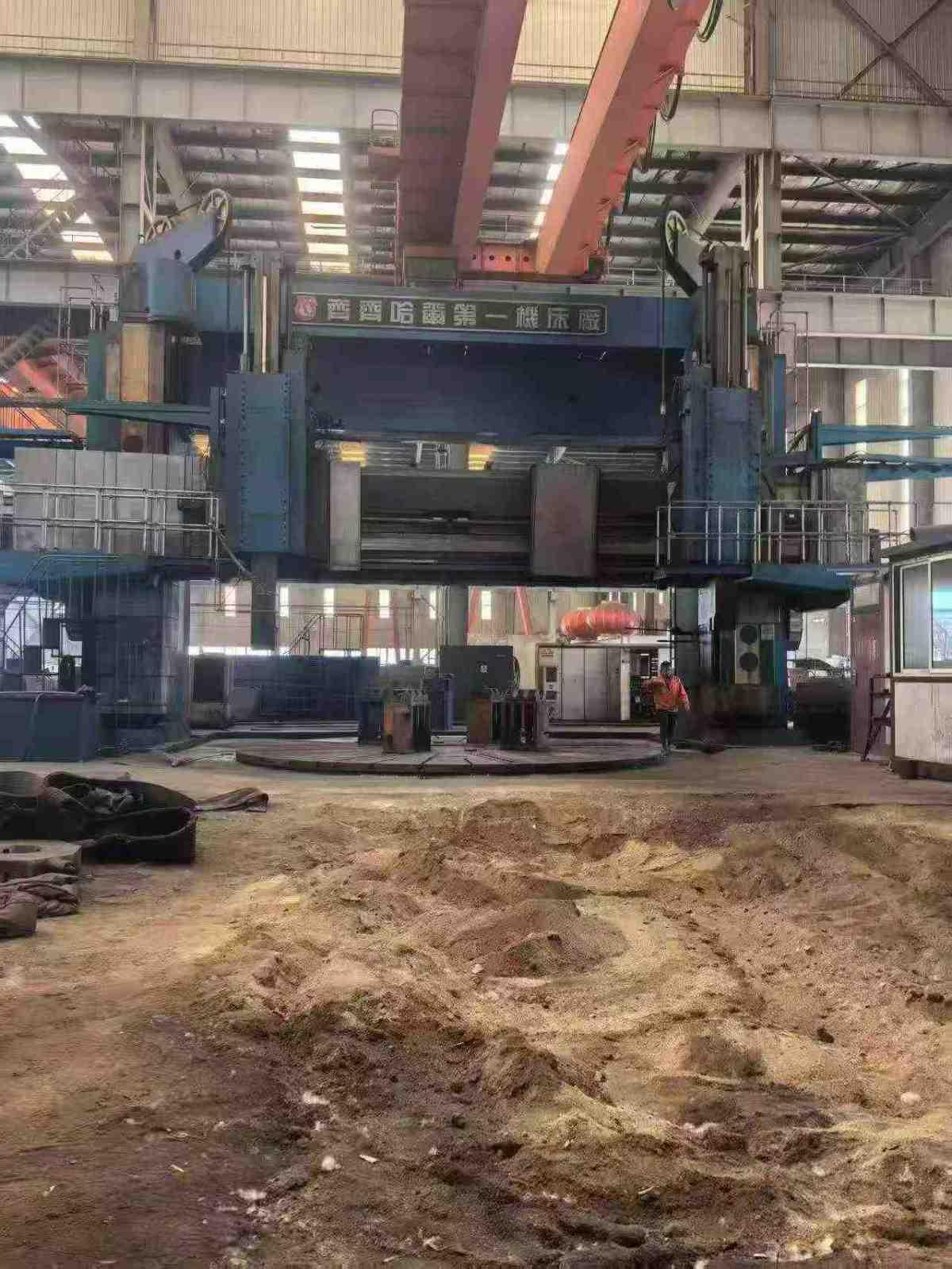

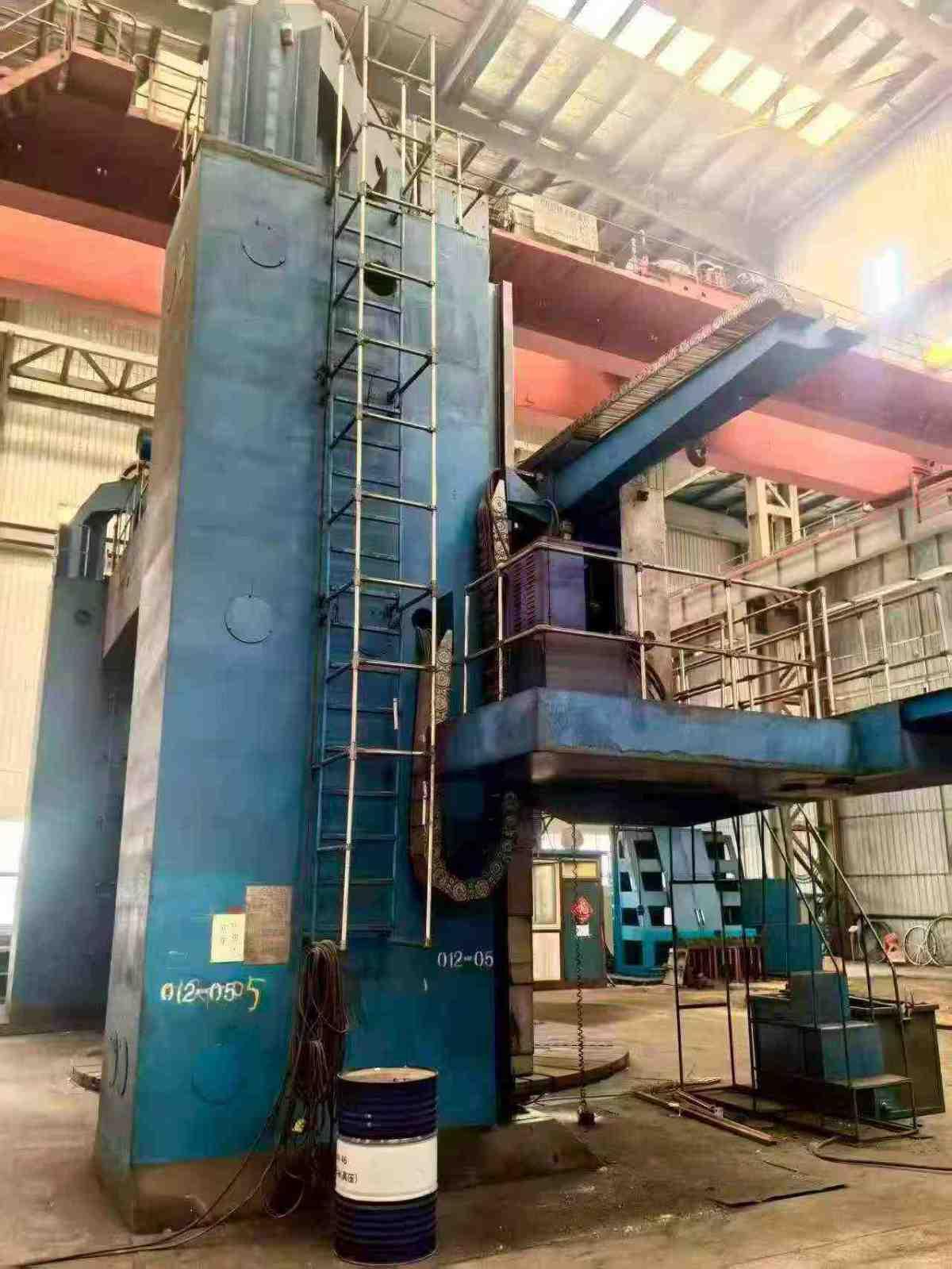

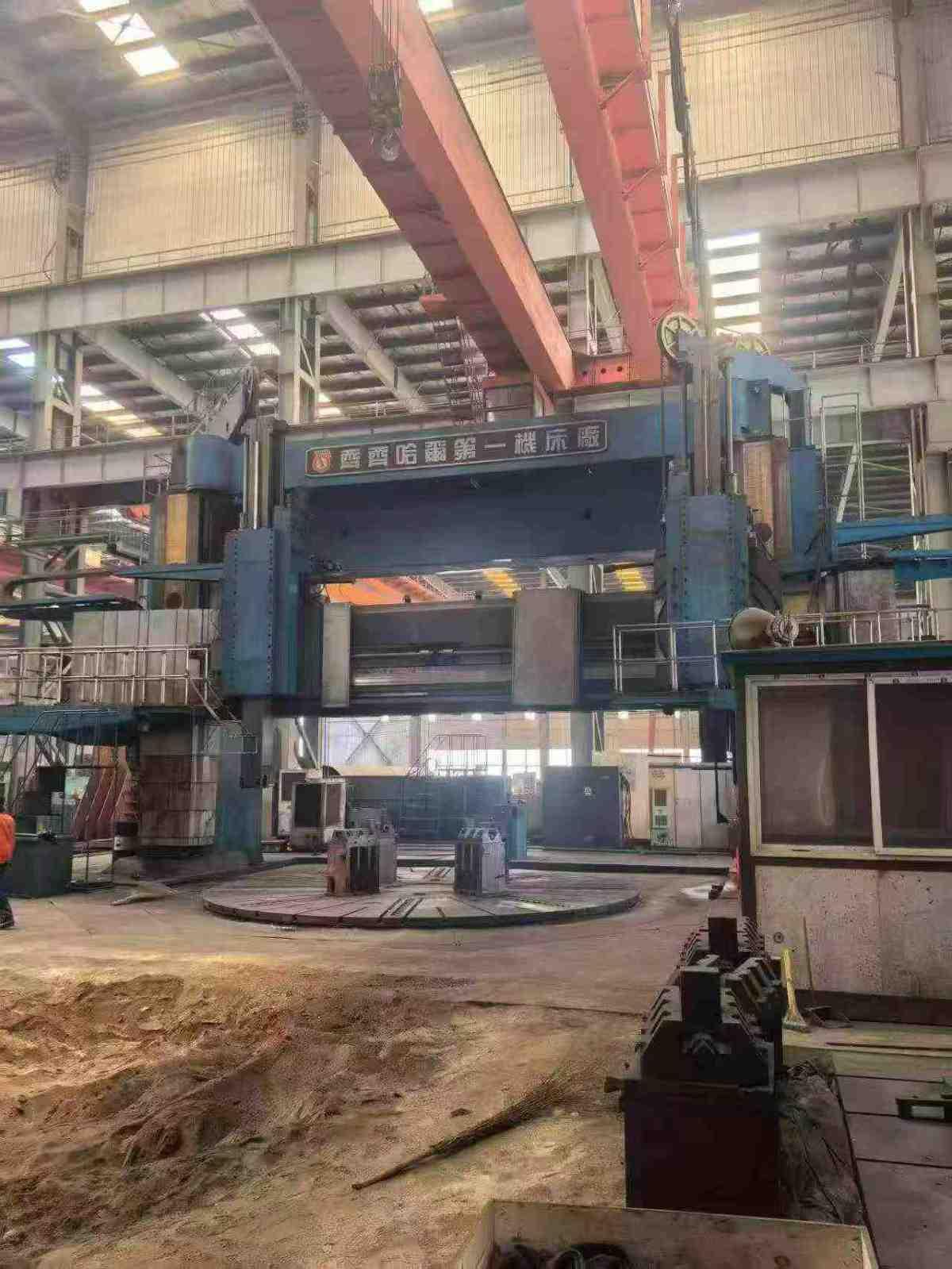

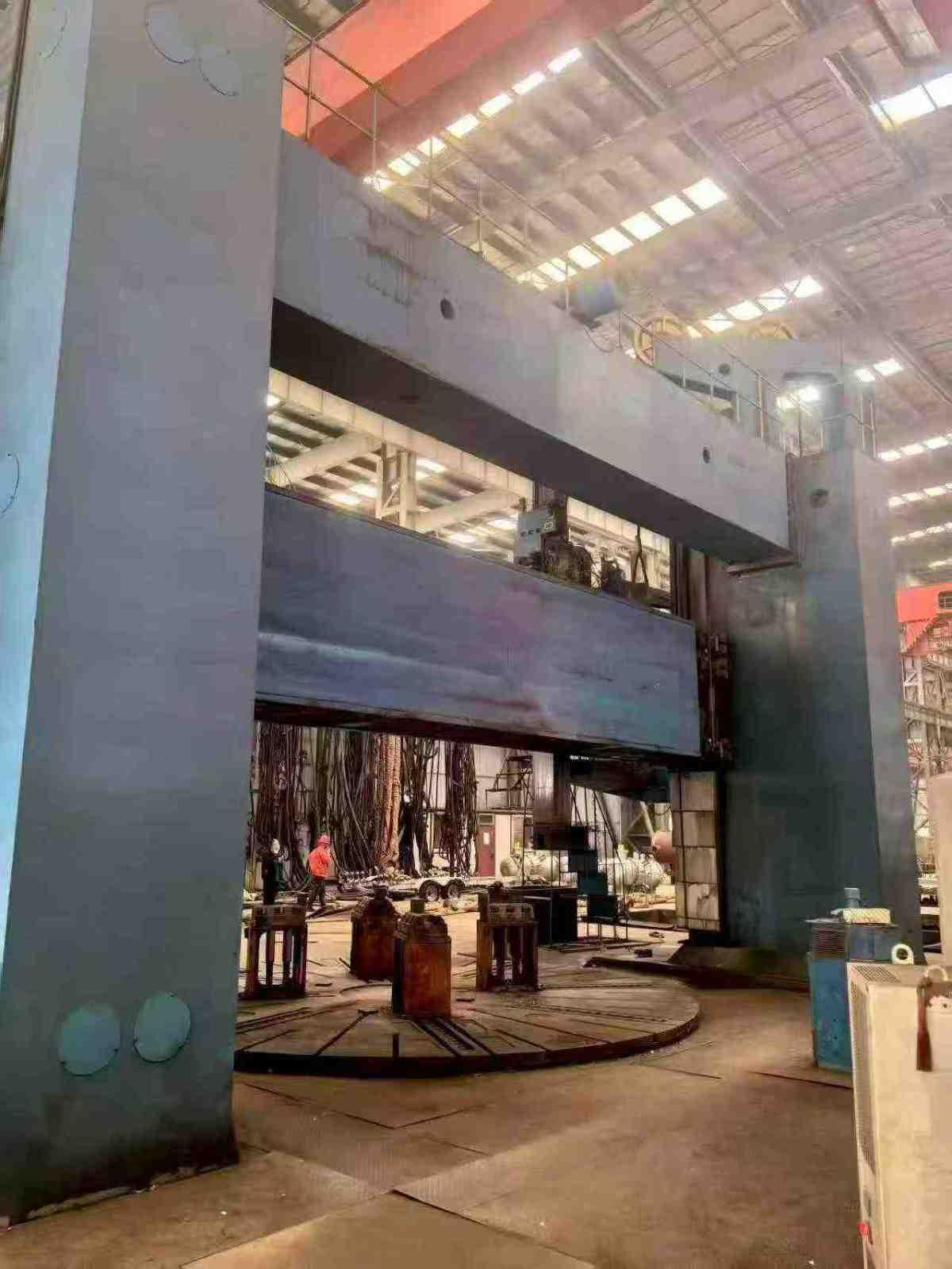

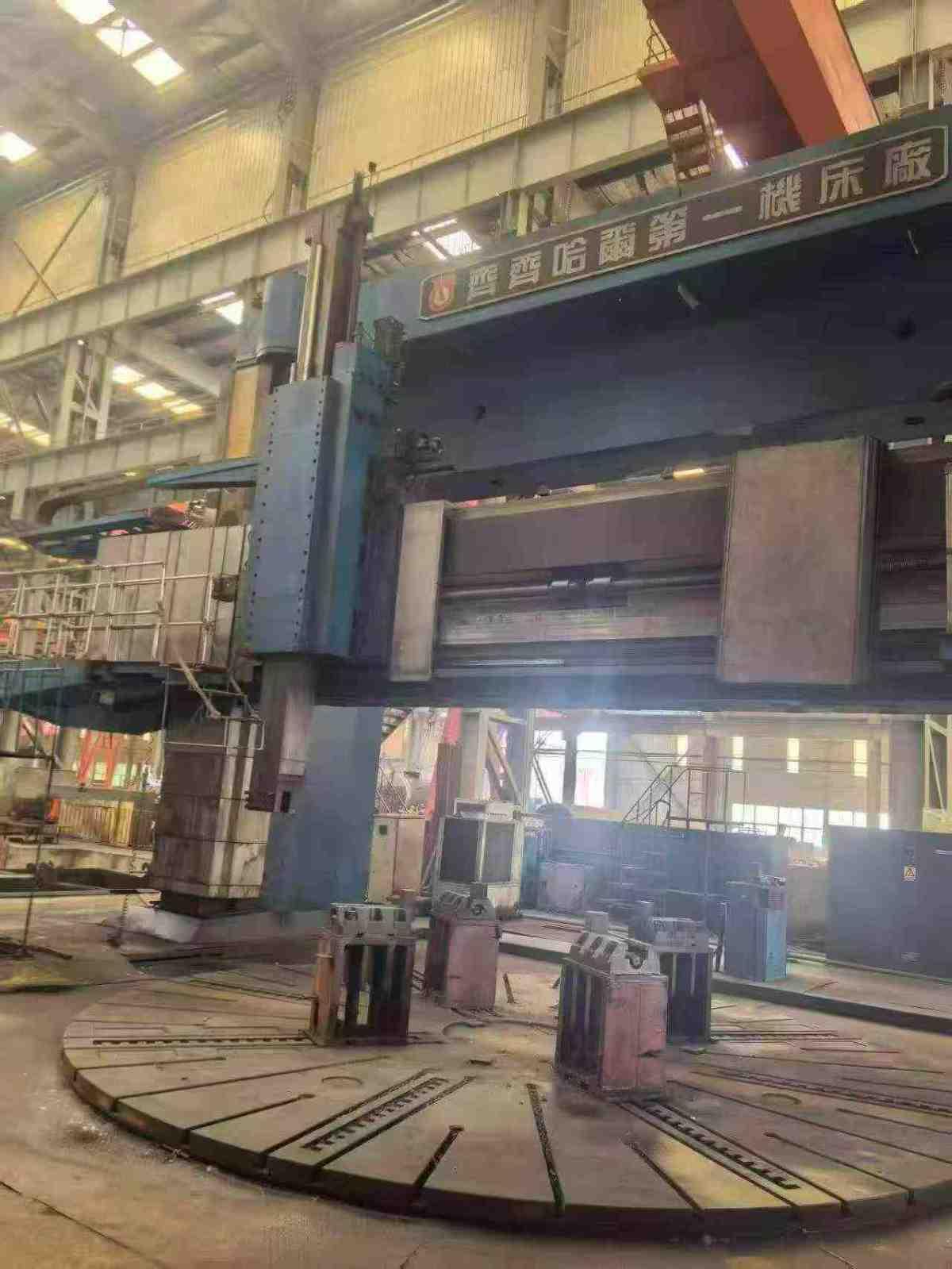

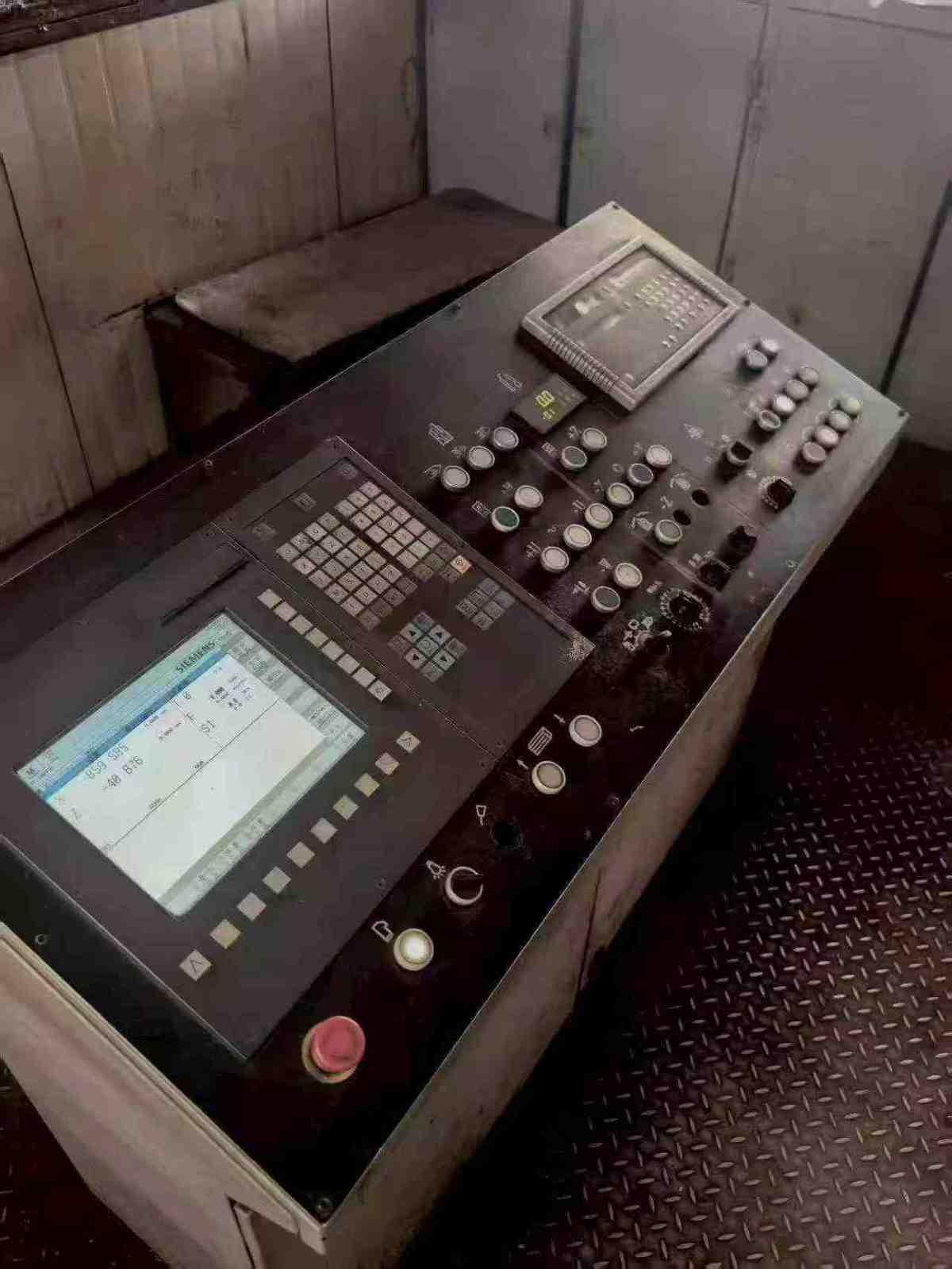

Qizhong DVT1000x50/150Q-NC CNC vertical lathe

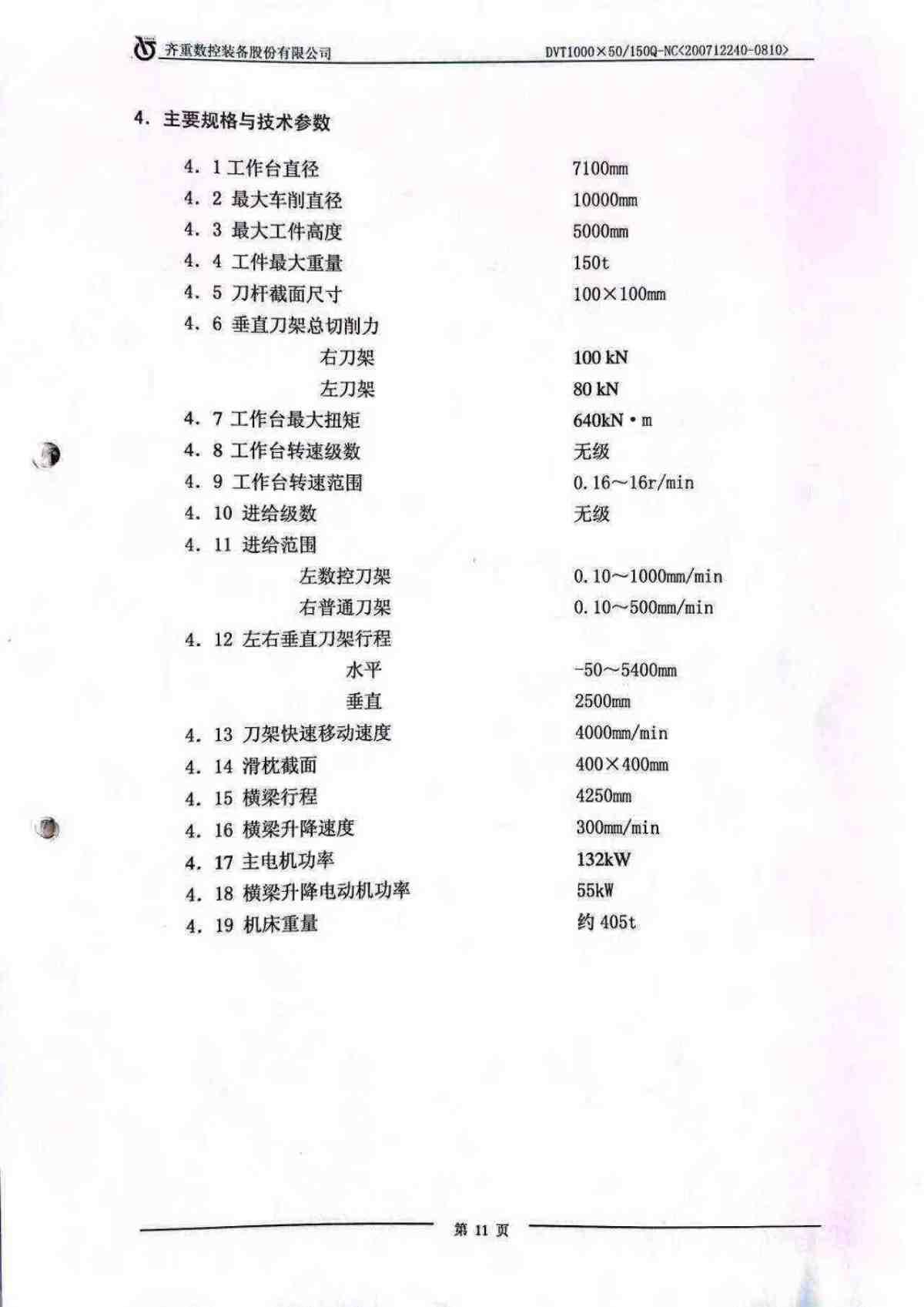

Worktable diameter: 7100 mm
Maximum Machining diameter: 10,000 mm
Maximum workpiece height: 5000 mm
Maximum workpiece weight: 150 tons
Tool holder cross-section: 100 × 100 mm
Vertical tool post cutting force:
Right tool post: 100 kN
Left tool post: 80 kN
Maximum table torque: 640 kN·m
Table speed range: 0.16–16 r/min
Speed control mode: Stepless speed regulation
Left CNC tool post: 0.10–1000 mm/min
Right manual tool post: 0.10–500 mm/min
Feed mode: Stepless speed regulation
Horizontal travel: 0–5400 mm
Vertical travel: 2500 mm
Rapid traverse speed (tool post): 4000 mm/min
Ram section: 400 × 400 mm
Crossrail travel: 4250 mm
Crossrail lifting speed: 300 mm/min
Main motor power: 132 kW
Crossrail lifting motor power: 55 kW
Machine weight: approx. 405 tons
