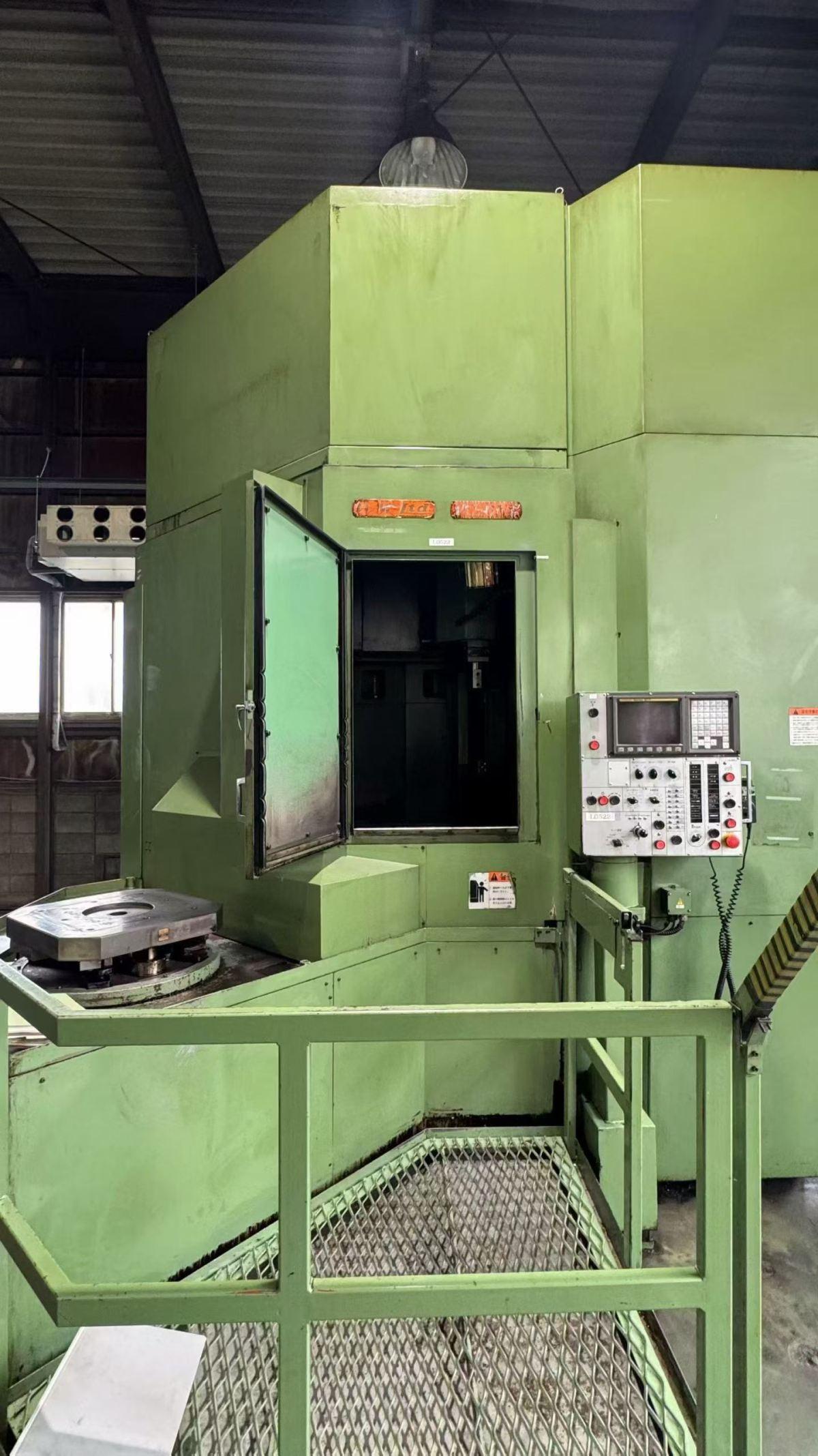

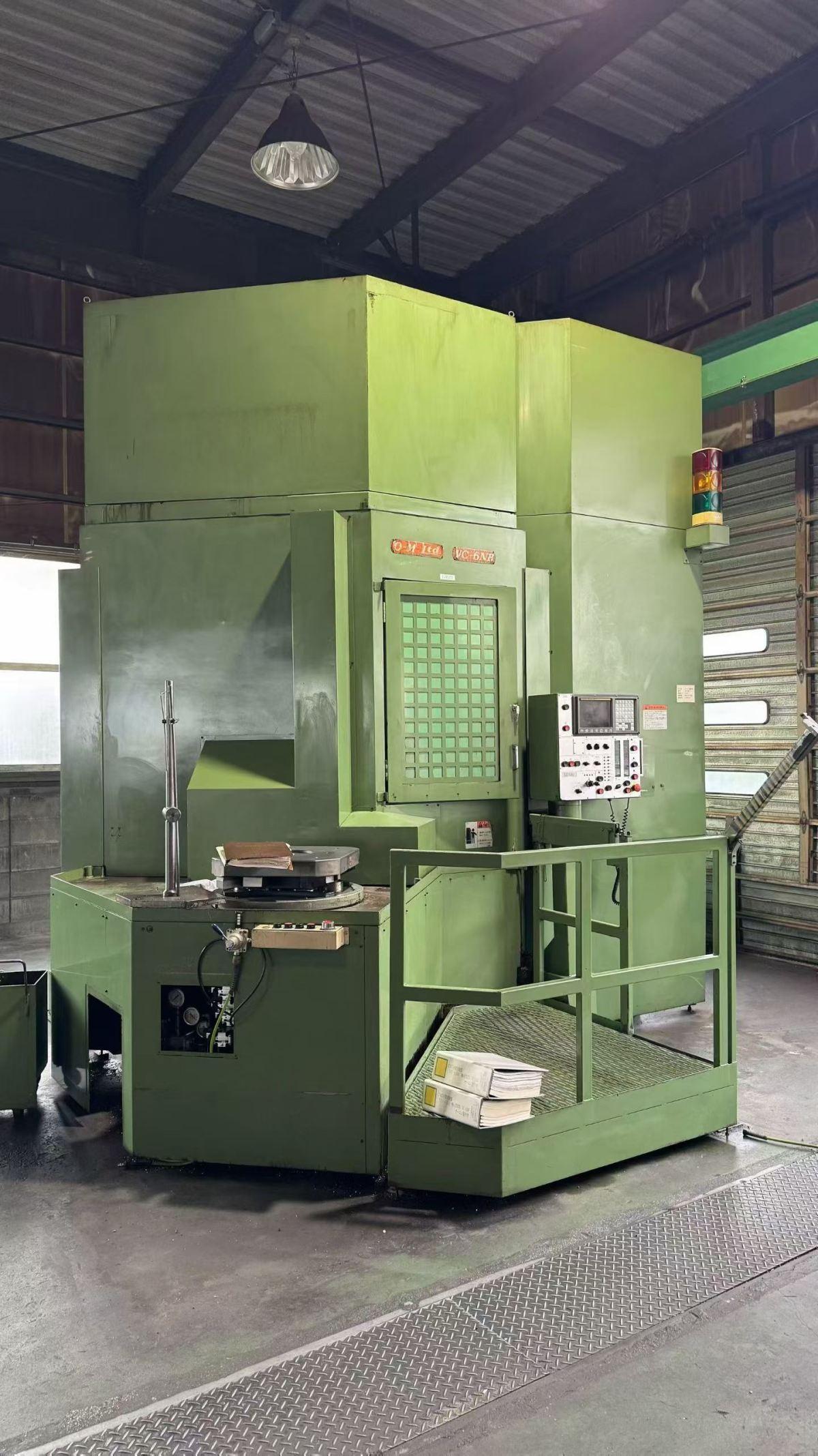

O-M VC-6NR CNC vertical lathe

[Product Information]:

Inventory number：812800
Brand：O-M
Model：VC-6NR
Origin："Japan
Location：China
Year：1998
Create Time：2026-08-01

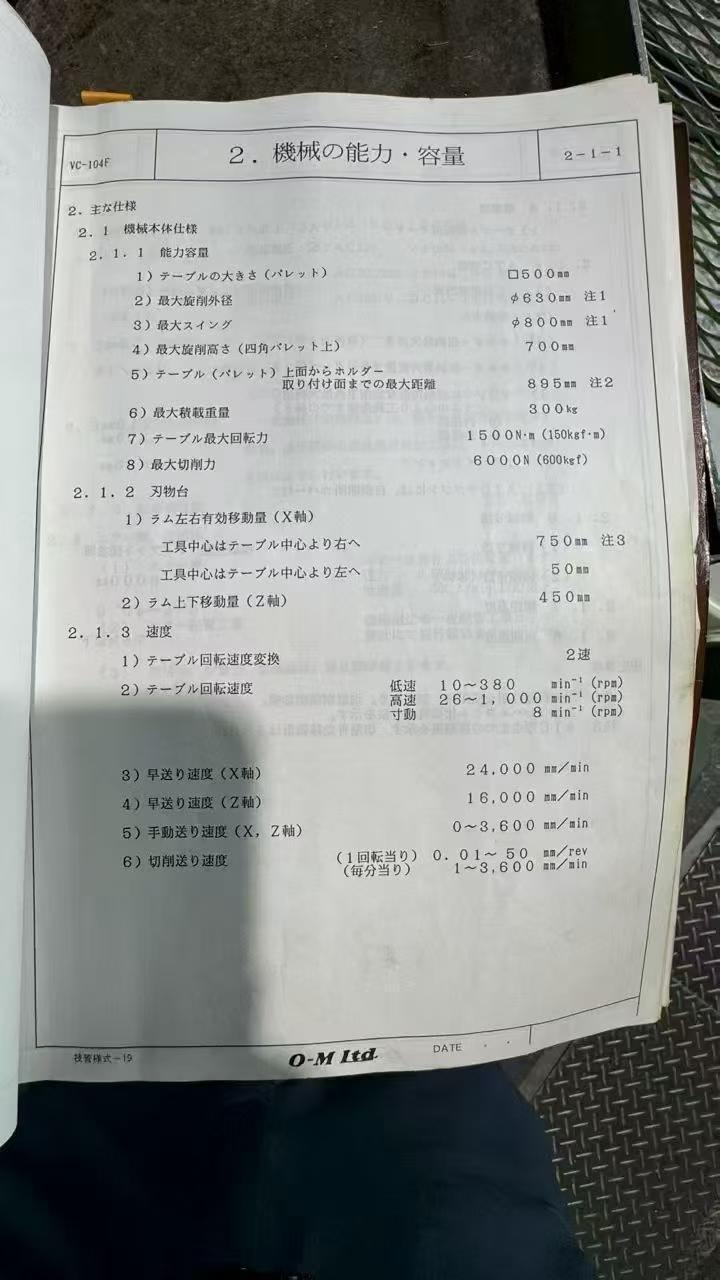

Specifications:

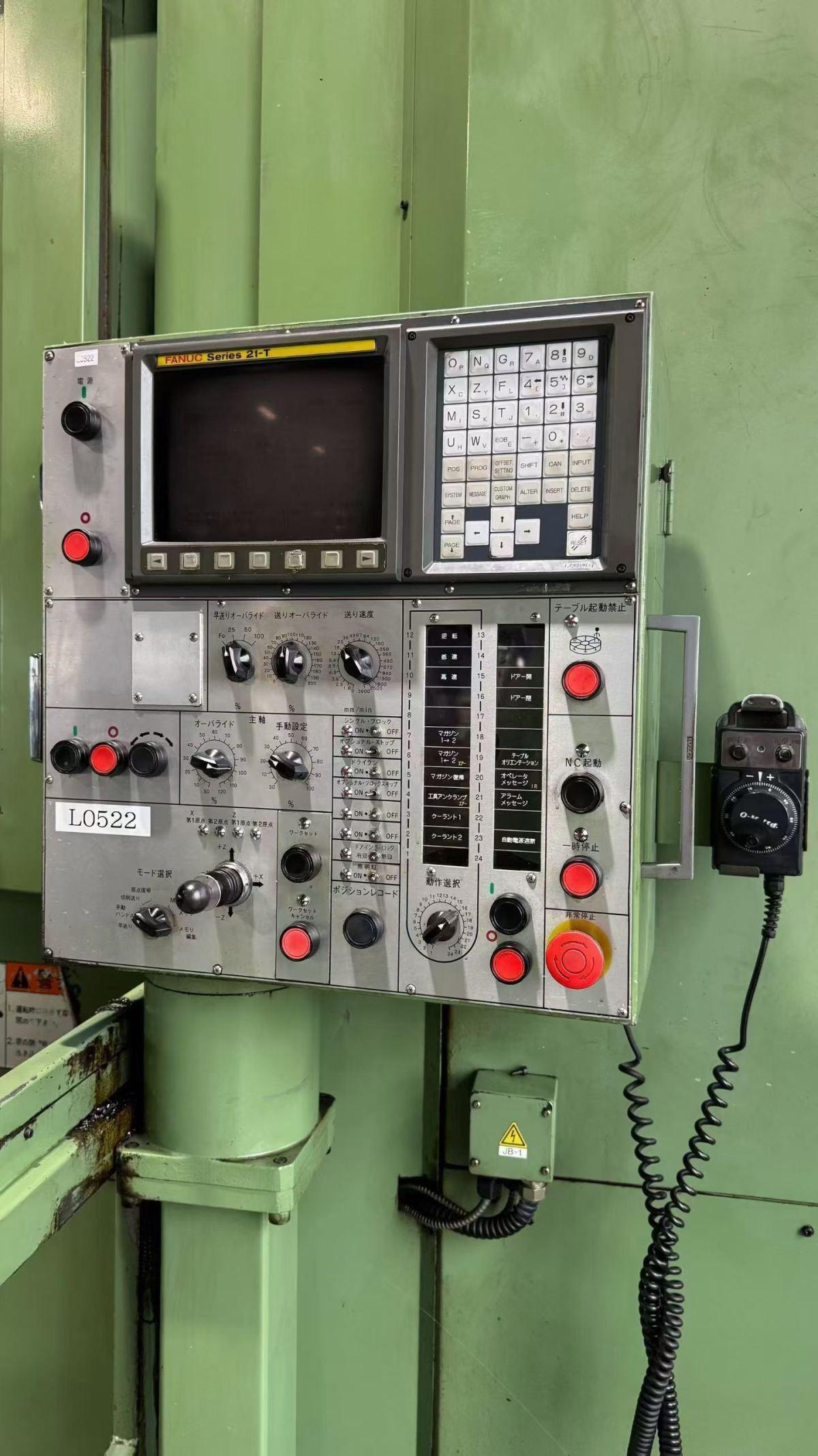

CNC System: FANUC Series 21-T
Worktable size: 500 mm
Maximum machining external diameter: Ø630 mm
Maximum rotational diameter: Ø800 mm
Maximum machining height: 700 mm
Distance from worktable surface to tool installation position: 895 mm
Maximum workpiece weight: 300 kg
Maximum worktable torque: 1500 N·m
Maximum cutting force: 6000 N
X-axis travel: 750 mm
Z-axis travel: 450 mm
Worktable speed range: 10–1000 rpm
C-axis indexing speed: 8 rpm
X-axis rapid traverse: 24,000 mm/min
Z-axis rapid traverse: 16,000 mm/min
