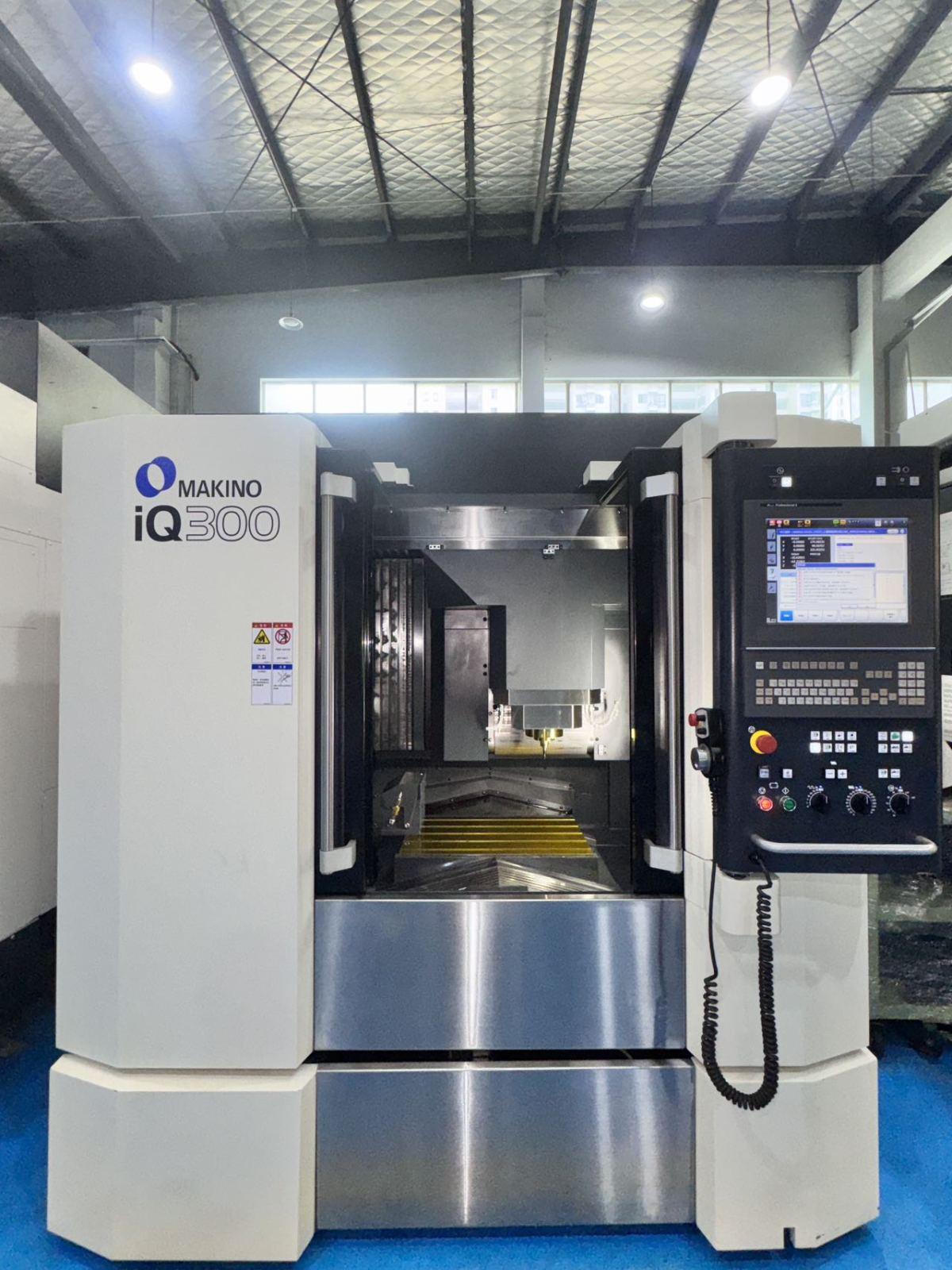

Makino iQ300 Vertical Machining centre

Three-axis travel: 400 × 350 × 200 mm

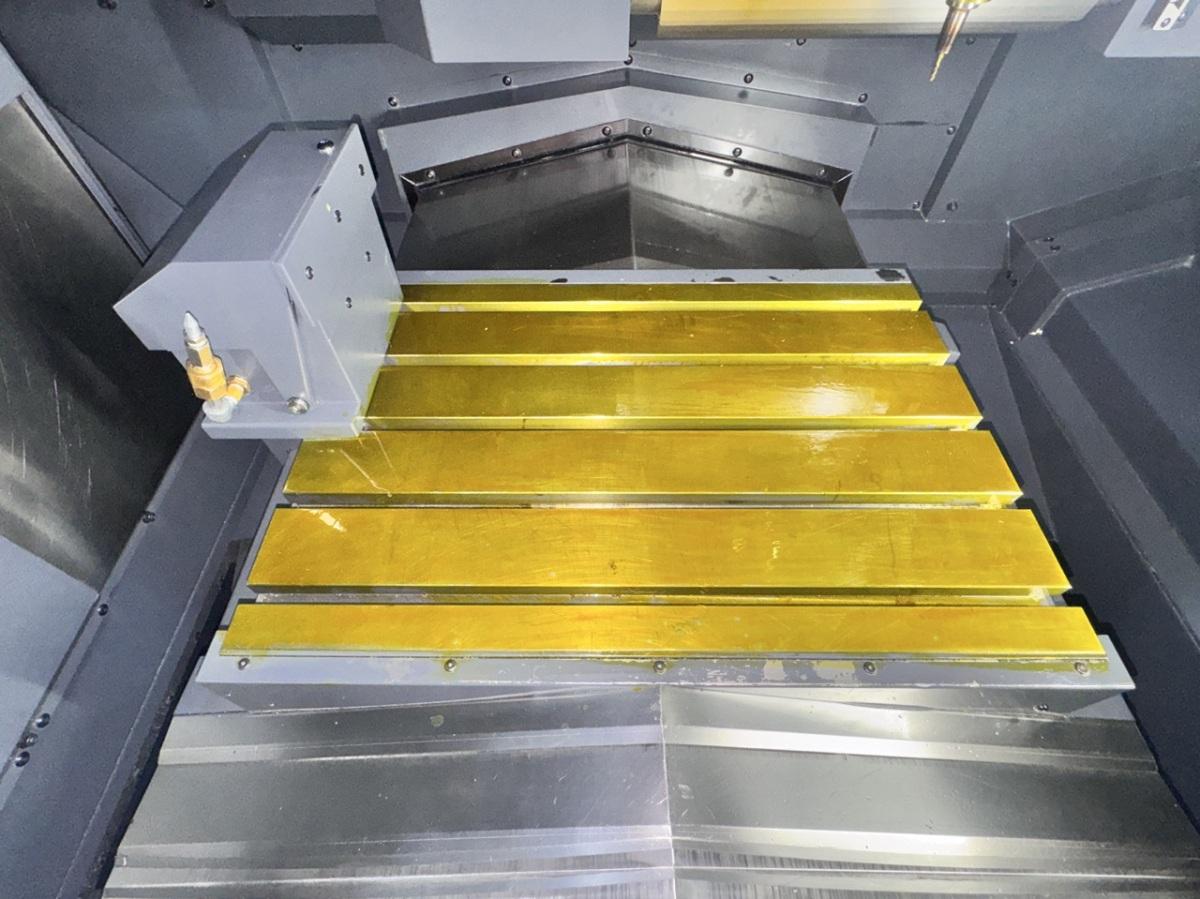

Worktable size: 600 × 400 mm

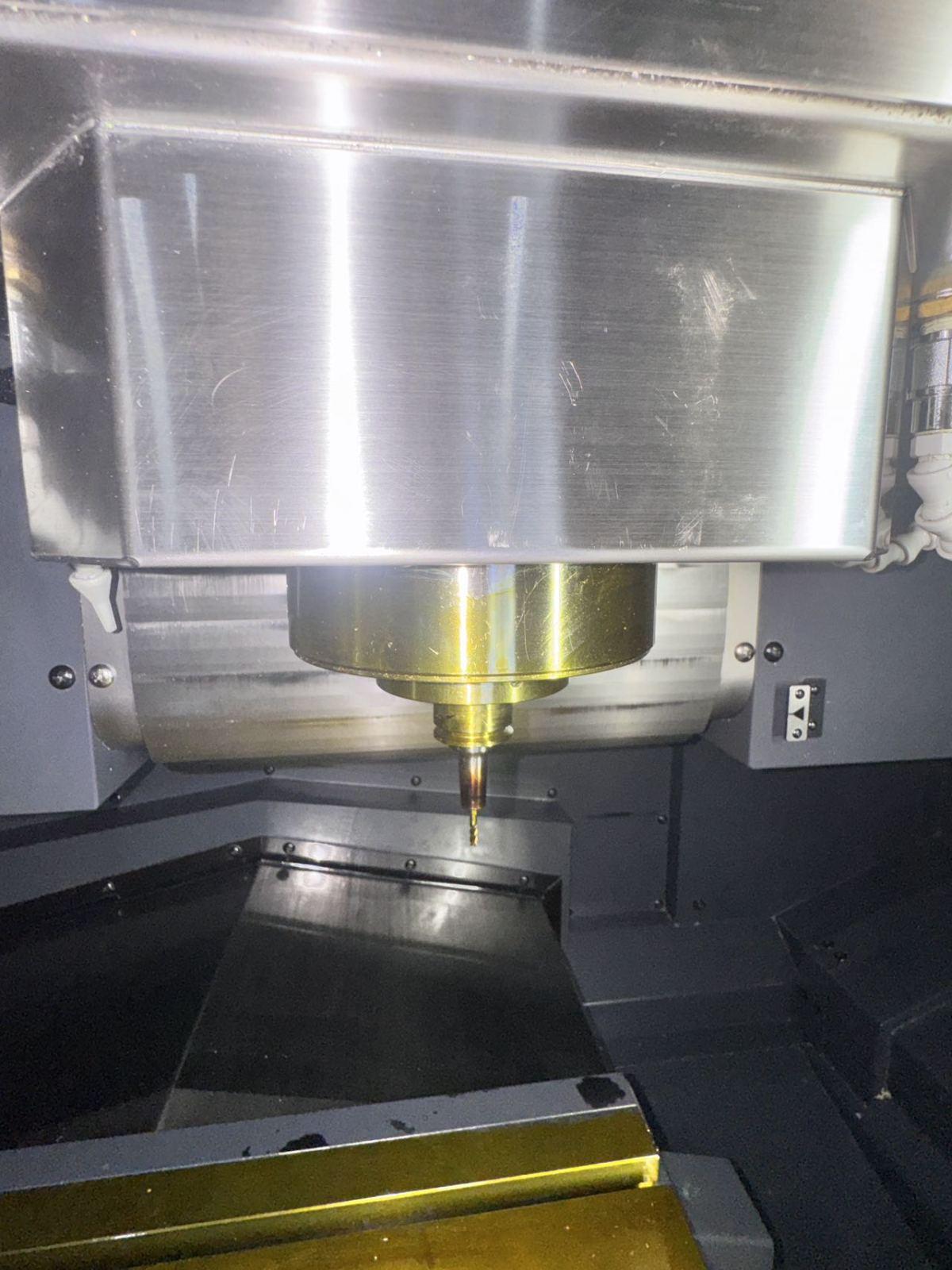

Spindle speed: 400–45,000 rpm
Spindle speed (optional): 80,000 / 120,000 rpm
Spindle interface: HSK-E32
X×Y axis-Rapid traverse rate:16,000 mm/min
Z axis-Rapid traverse rate: 8,000 mm/min
X×Y axis-Cutting feed rate: 1–16,000 mm/min
Z axis-Cutting feed rate: 1–8,000 mm/min
Maximum workpiece size: 600 × 580 × 190 mm
Maximum workpiece weight: 100 kg

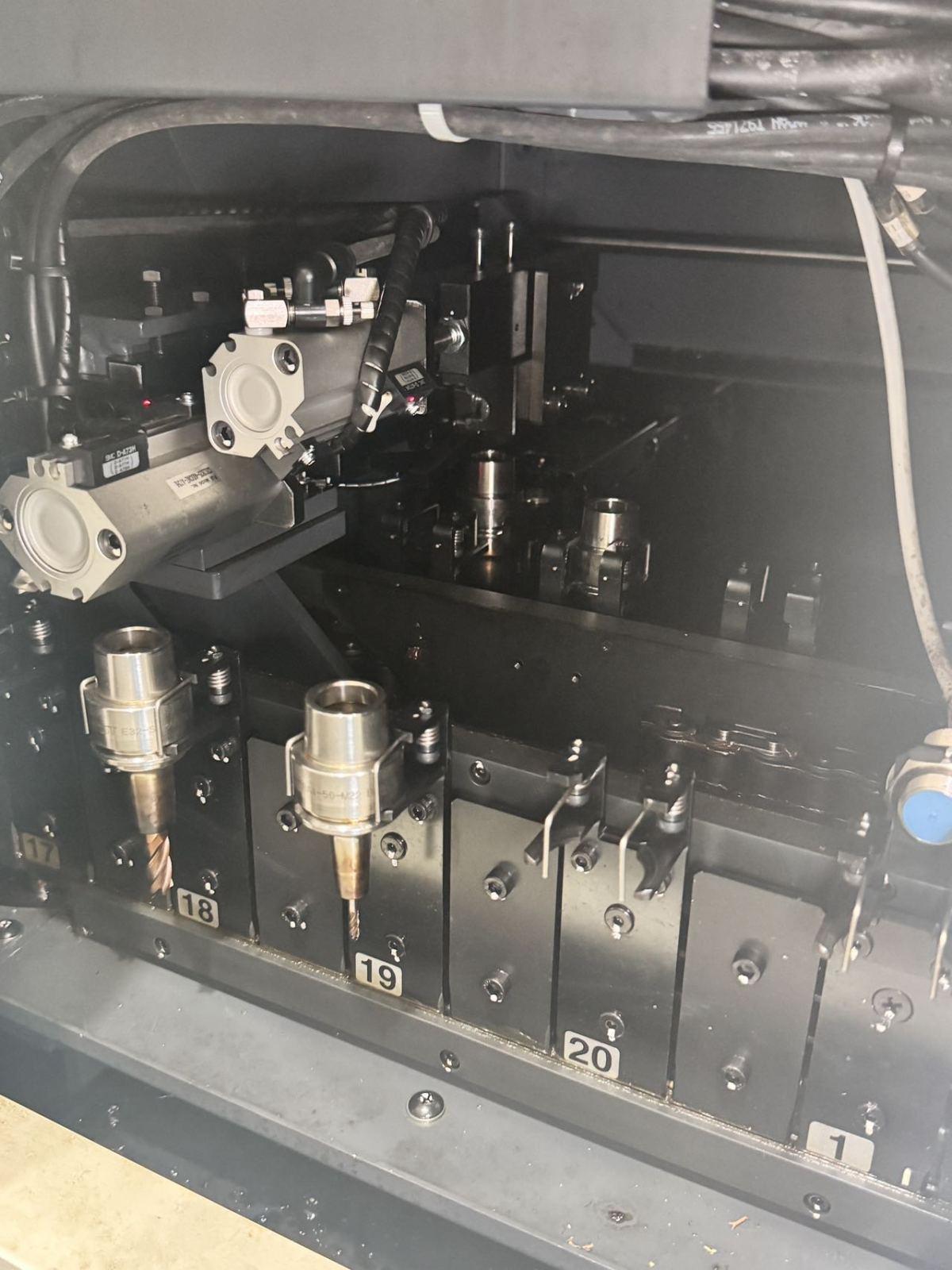

Tools Magazine capacity: 20
Tools Magazine capacity (optional): 24 / 40
Maximum tool length: 120 mm
Maximum tool diameter: 32 mm
Maximum tool weight: 0.5 kg
