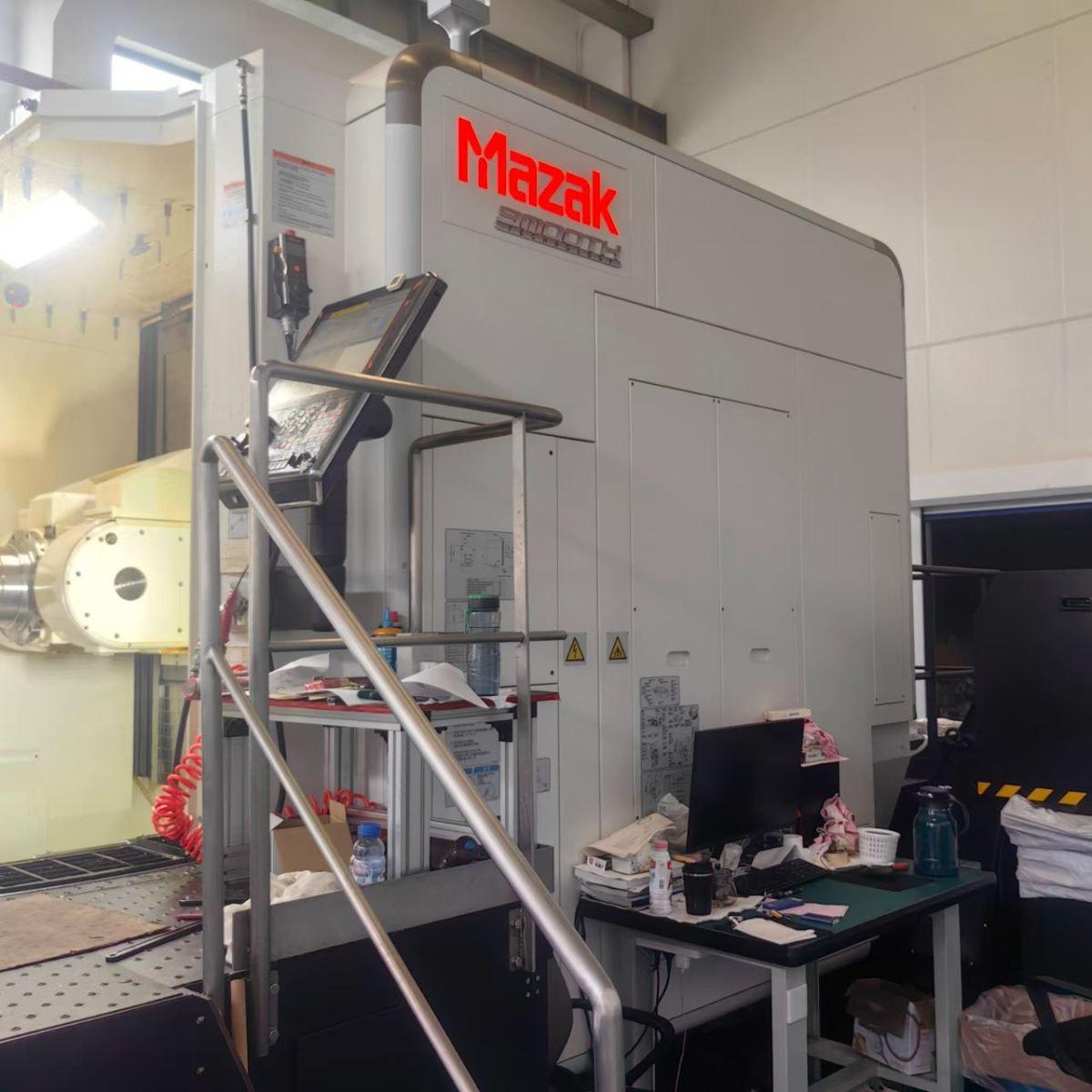

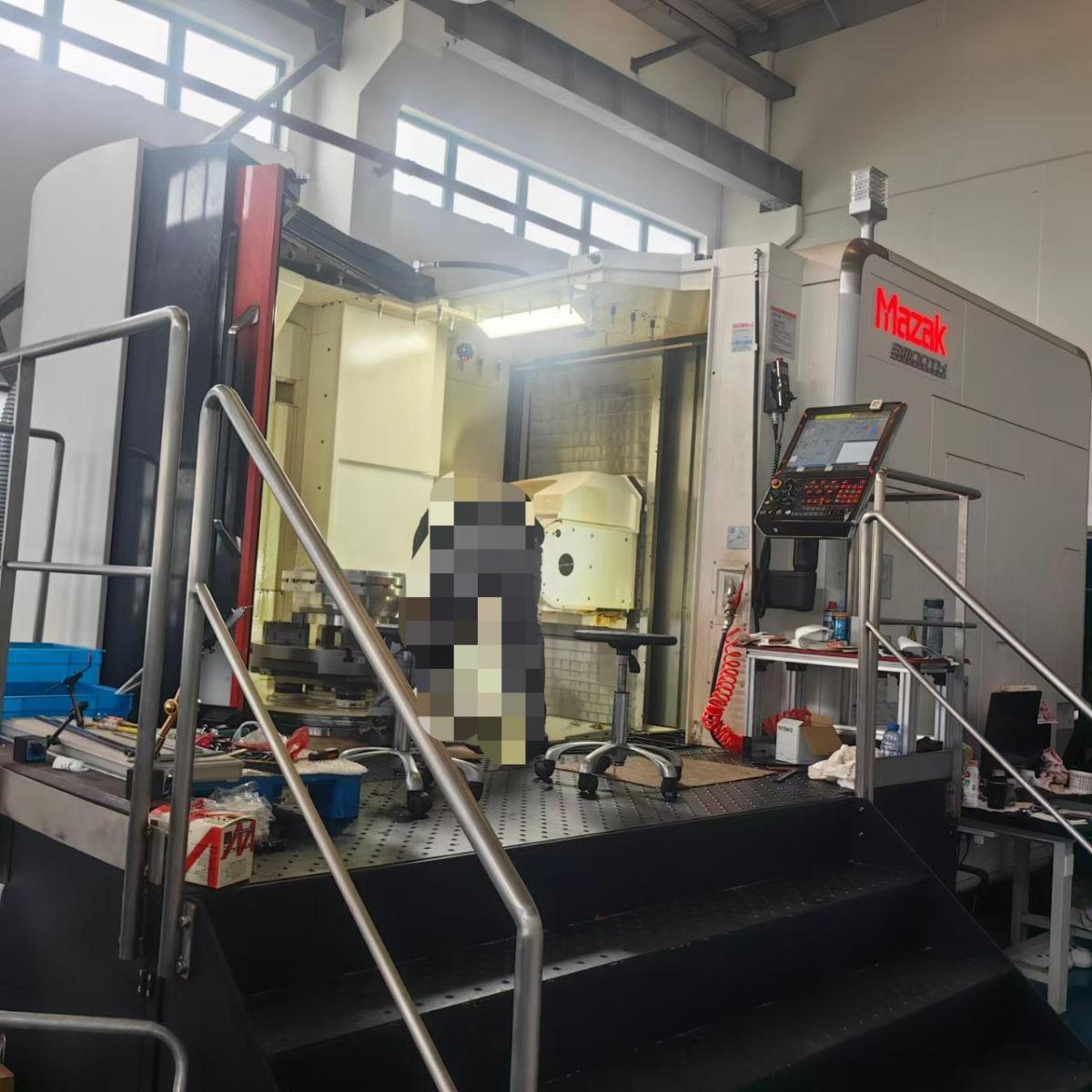

MAZAK INTEGREX i-630V6 Turn Mill Machining Centre

Three-axis travel (X/Y/Z): 1425 × 1050 × 1050 mm
Maximum turning spindle speed of the worktable: 500 rpm

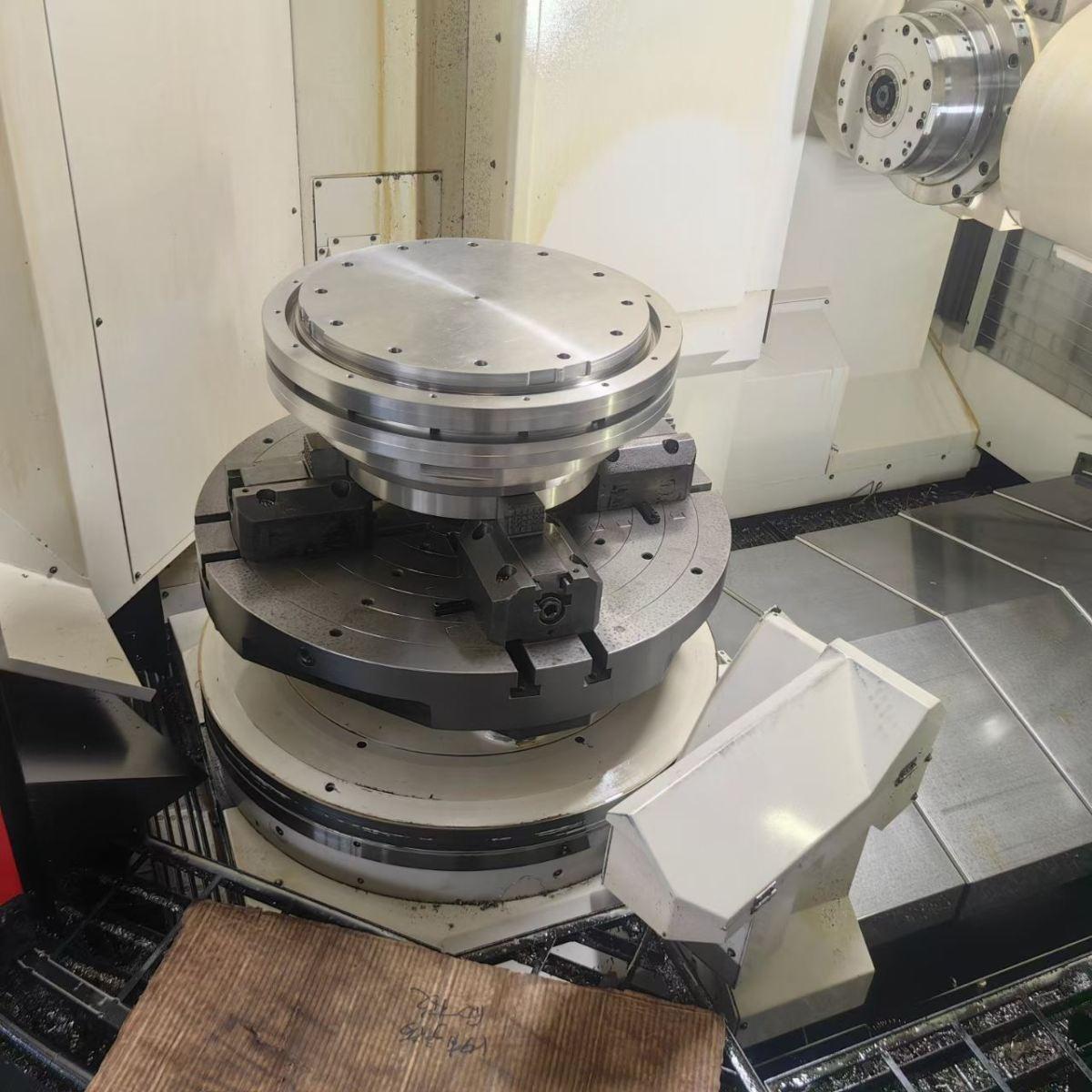

Worktable size: 630 × 630 mm
Spindle taper: BT50
Spindle speed: 5000 rpm
Magazine capacity: 80
Maximum workpiece diameter: 1250 mm
Maximum workpiece height: 1400 mm
B-axis rotation angle: 150°
C-axis rotation angle: 360°
Worktable indexing accuracy: 0.001°
Configuration:
Glass scale
Center-through coolant system
