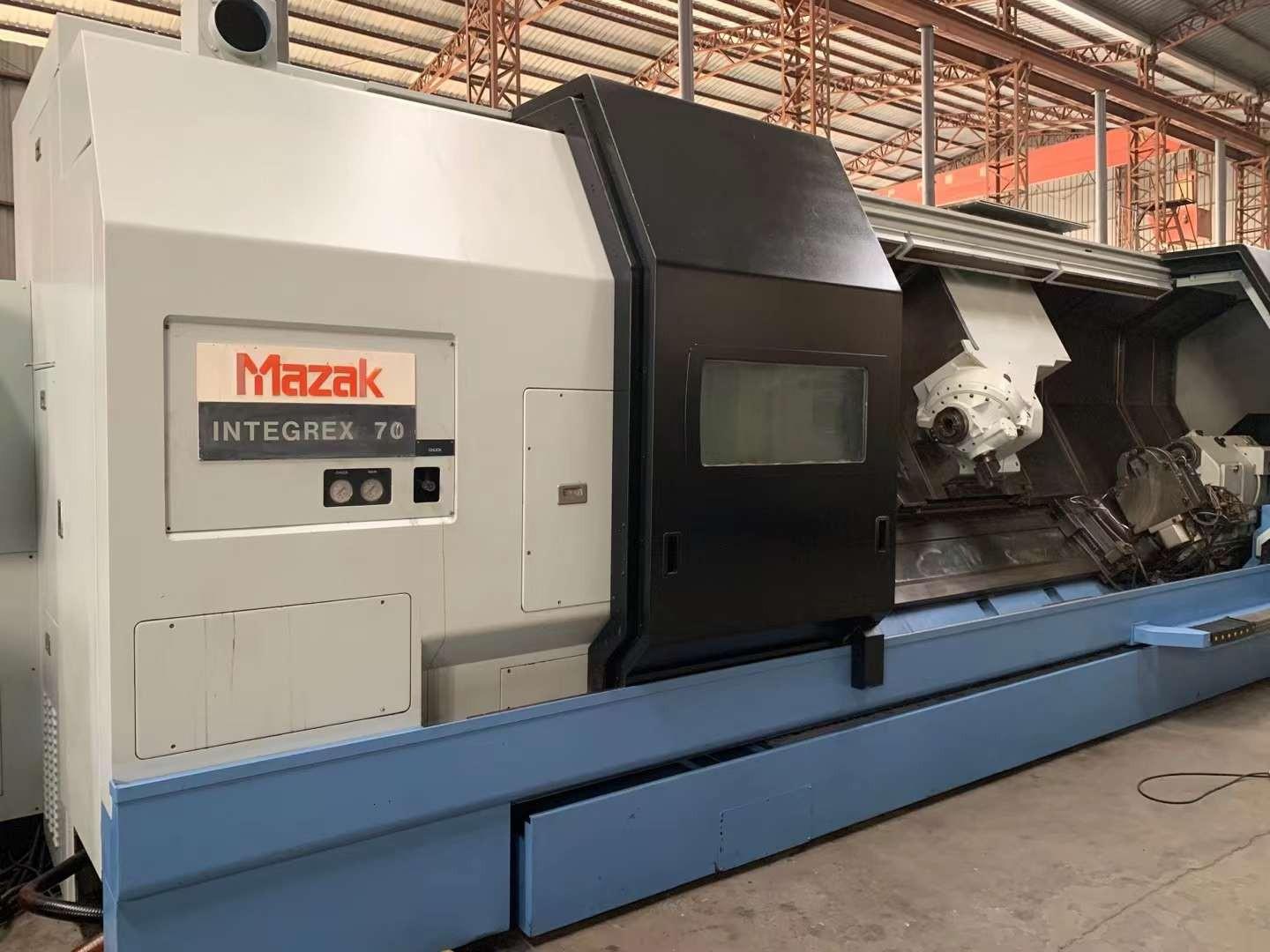

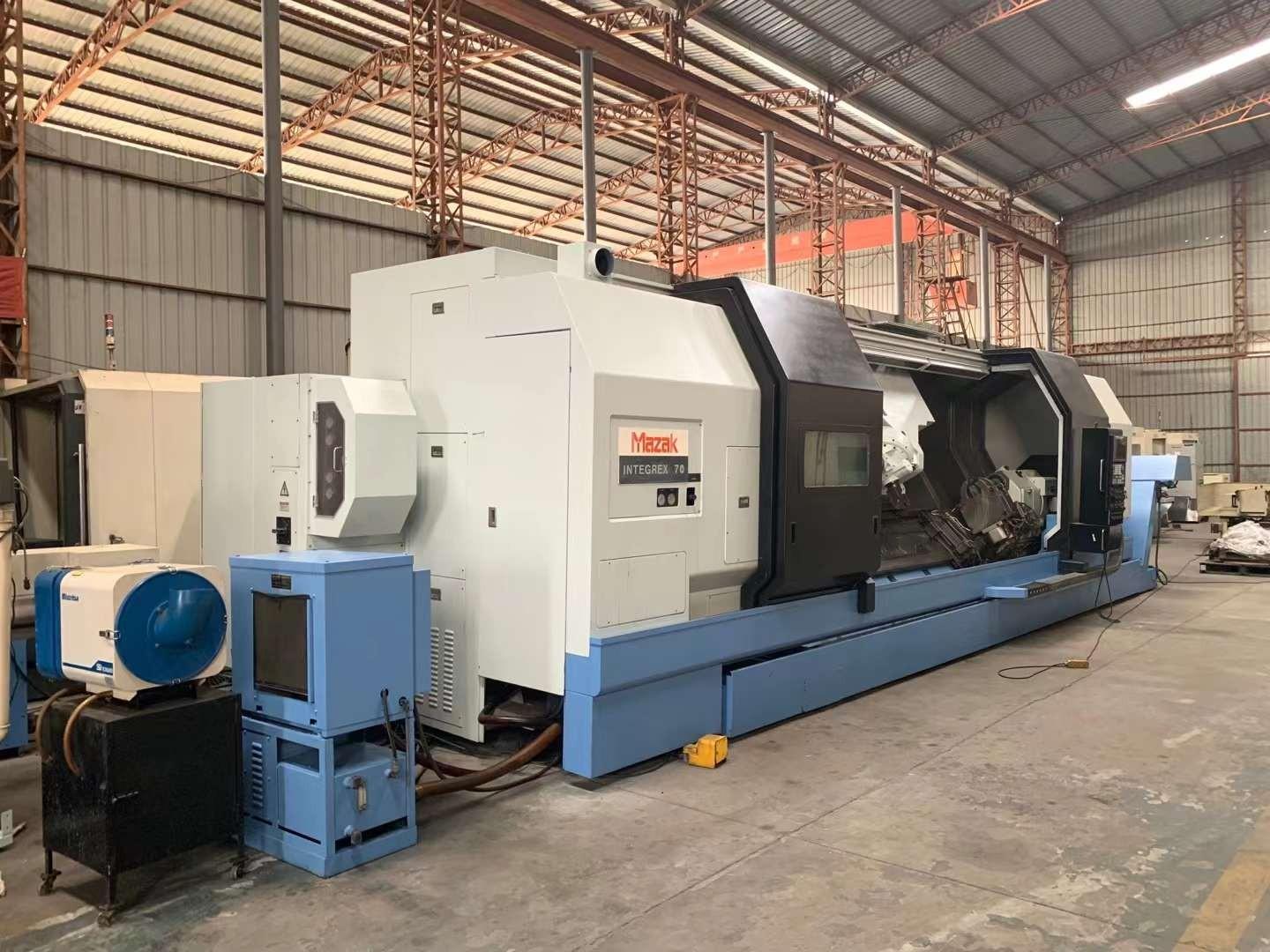

MAZAK Integrex 70/4000 Turn Mill Machining Centre
[Product Information]:
- Inventory number：80122
- Brand：MAZAK
- Model：Integrex 70/4000
- Origin：Japan
- Location：China
- Year：
- Create Time：2022-12-01
Specifications:
Japan Mazak Integrex 70/4000 4 meters turning milling complex machining center
Max. swing: 914.4mm
Center spacing: 2204.72mm-701.04mm
Y axis stroke: +/-150.14mm
Z axis stroke: 4000mm
Spindle hole: 118.11mm
Spindle speed: 1300rpm
Spindle header: JIS A-100
Support weight: 2993.69kg
Milling cutter spindle speed range: Standard 333-2000rpm
Milling spindle taper: 50
Turret position: 2AT
C bag: 60
Tool diameter (no radiation tool) :160.02mm
Tool diameter (with radiation tool) :101.6mm
Tool Length: 459.74mm
Tool weight: 19.97kg
Equipment:

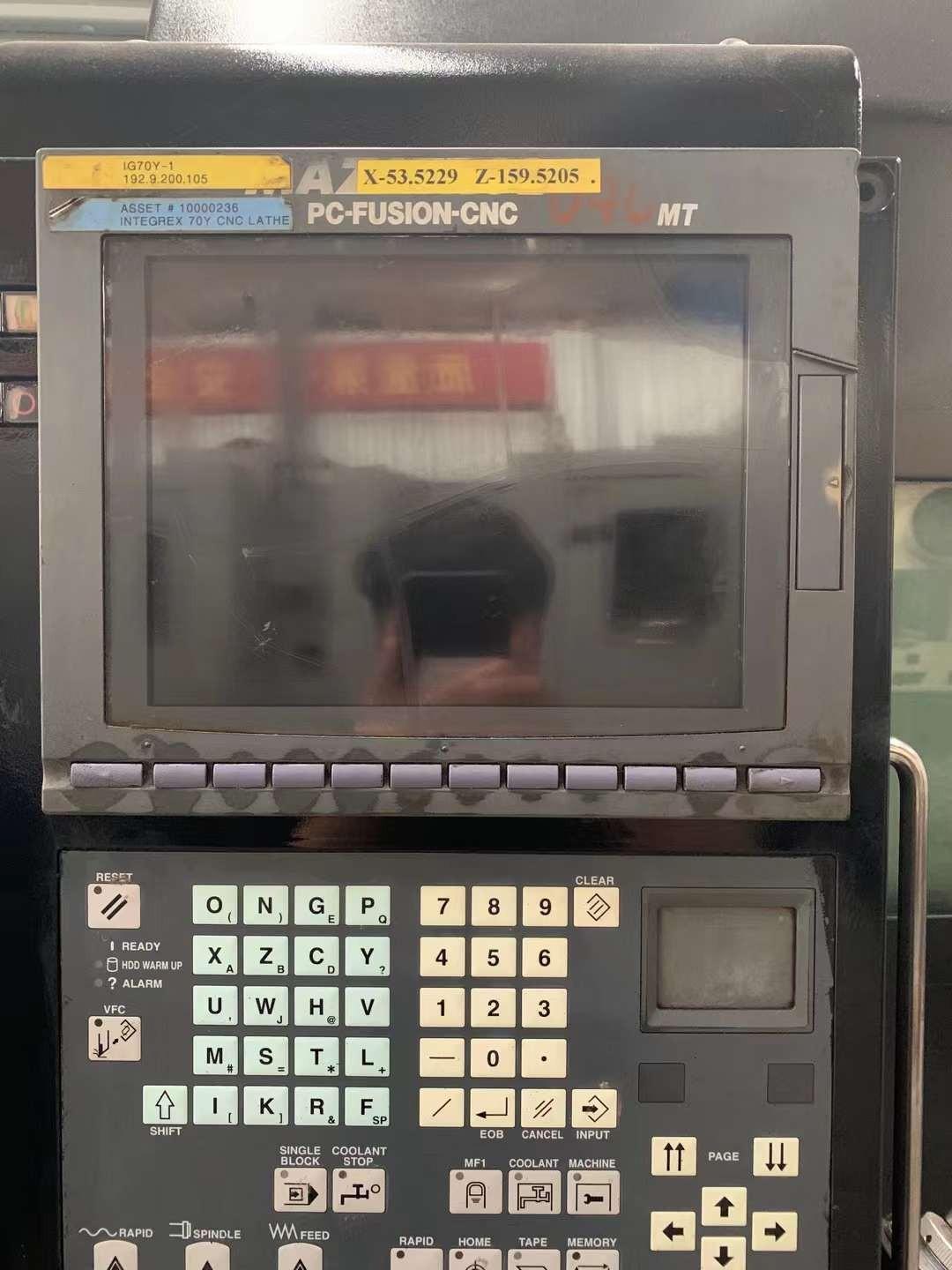

Mazatrol PC-Fusion 64MT CNC control

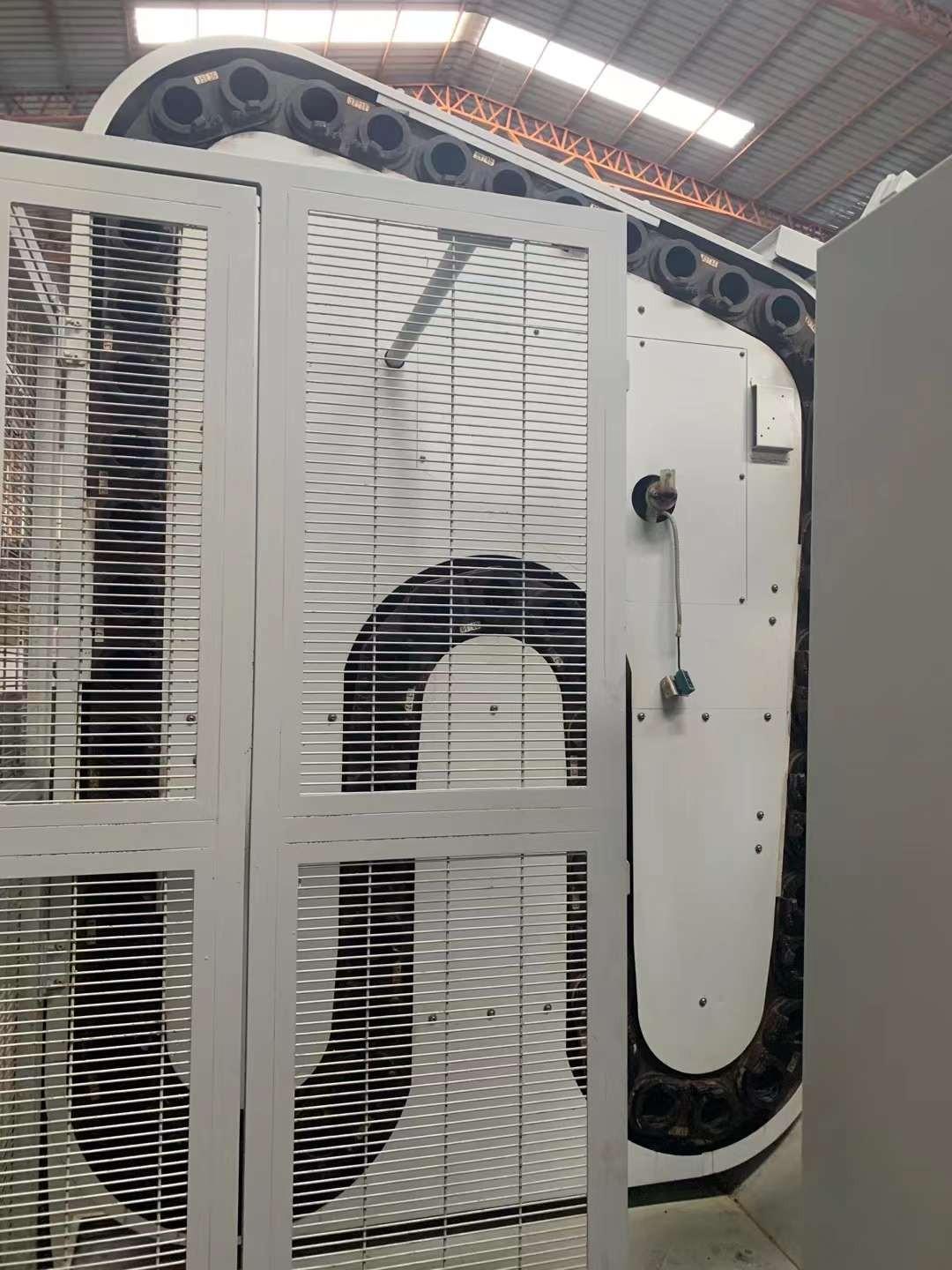

60 automatic tool changer
5486.4mm ball lock chuck
chip conveyor
