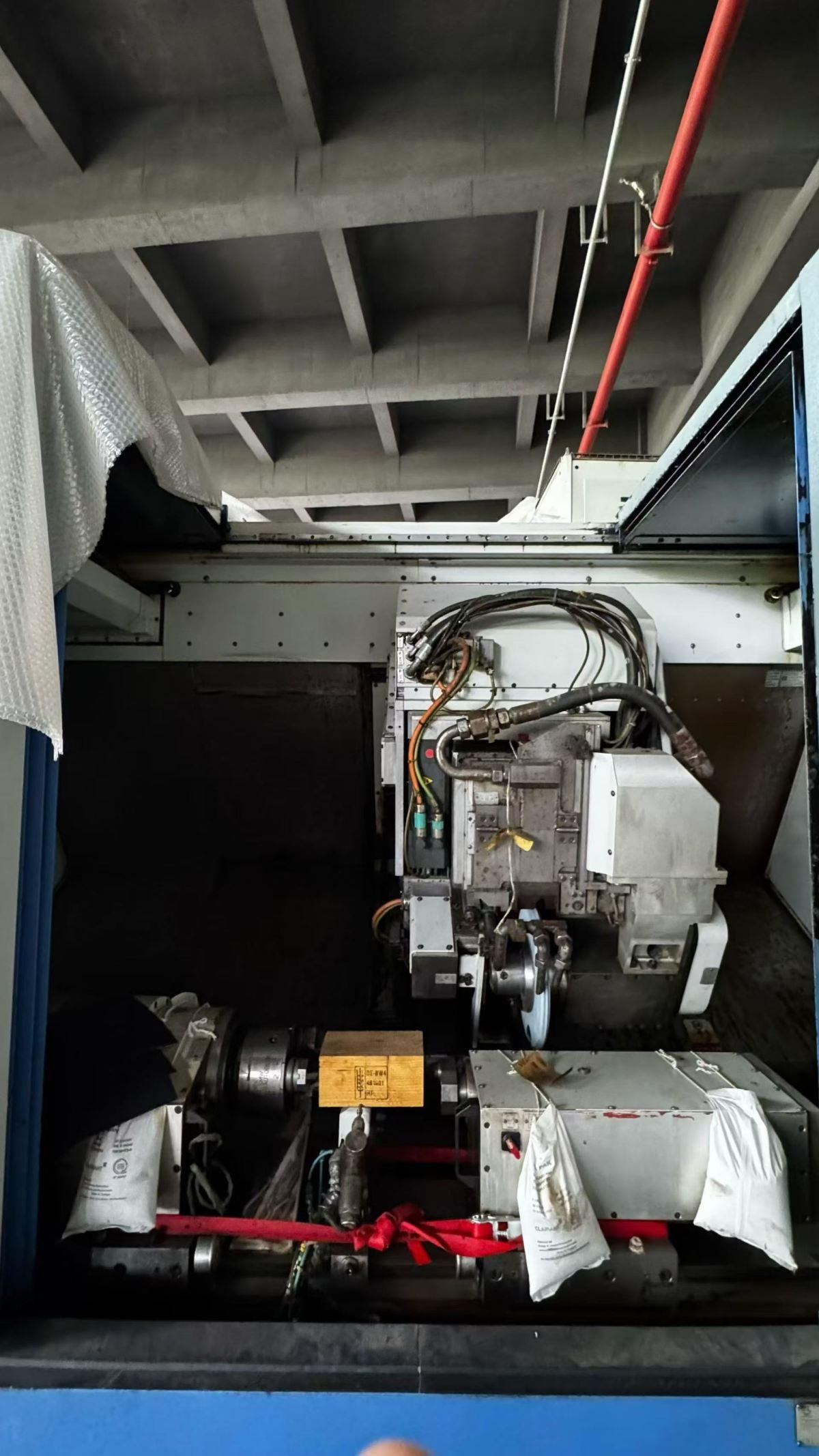

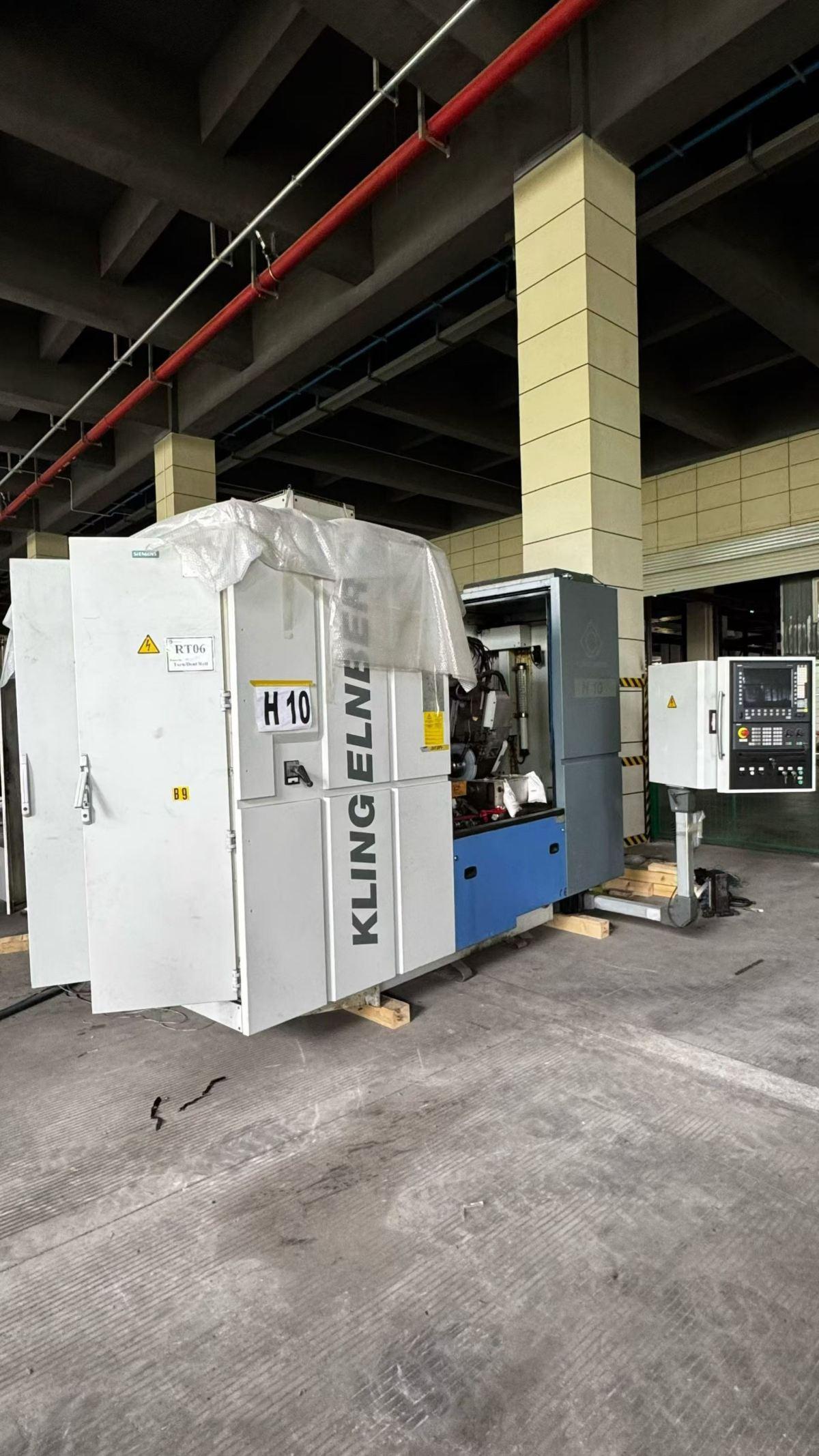

KLINGELNBERG H10/800 Grinding machines

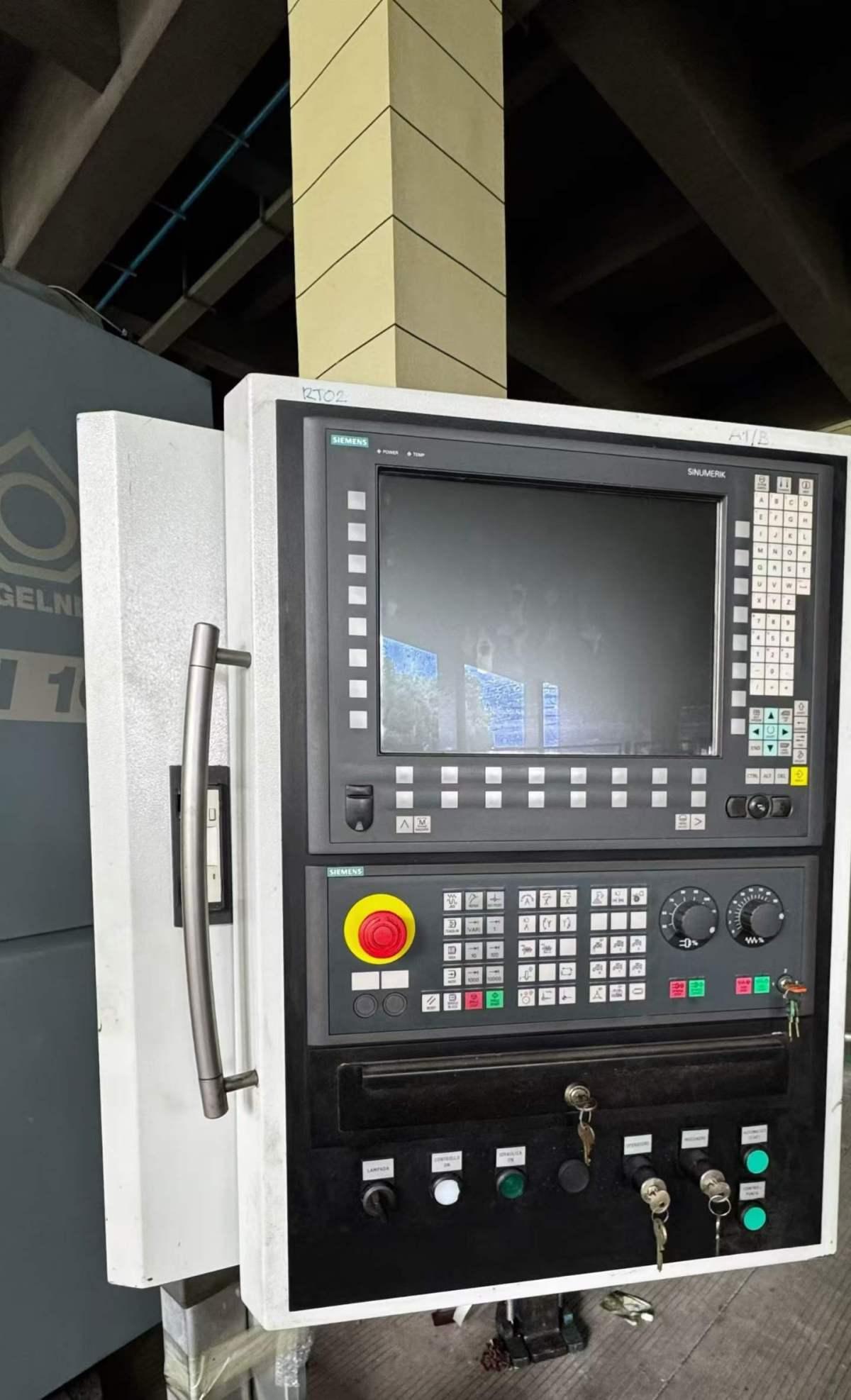

CNC System: Siemens SINUMERIK 840D
Maximum workpiece diameter: 150 mm
Maximum grinding length: 800 mm
Center distance: 500–800 mm
Thread pitch: 0–∞ mm
Grinding diameter: 150 mm
Tooth depth: 40 mm
Number of starts / teeth: 1–999
Helix angle: ±90°
Total power: 30 kW
Machine weight: approximately 13.5 tons
Machine dimensions (L × W × H): 6500 × 5500 × 4500 mm
