TAIYO KOKI NVG-8T Grinding machines

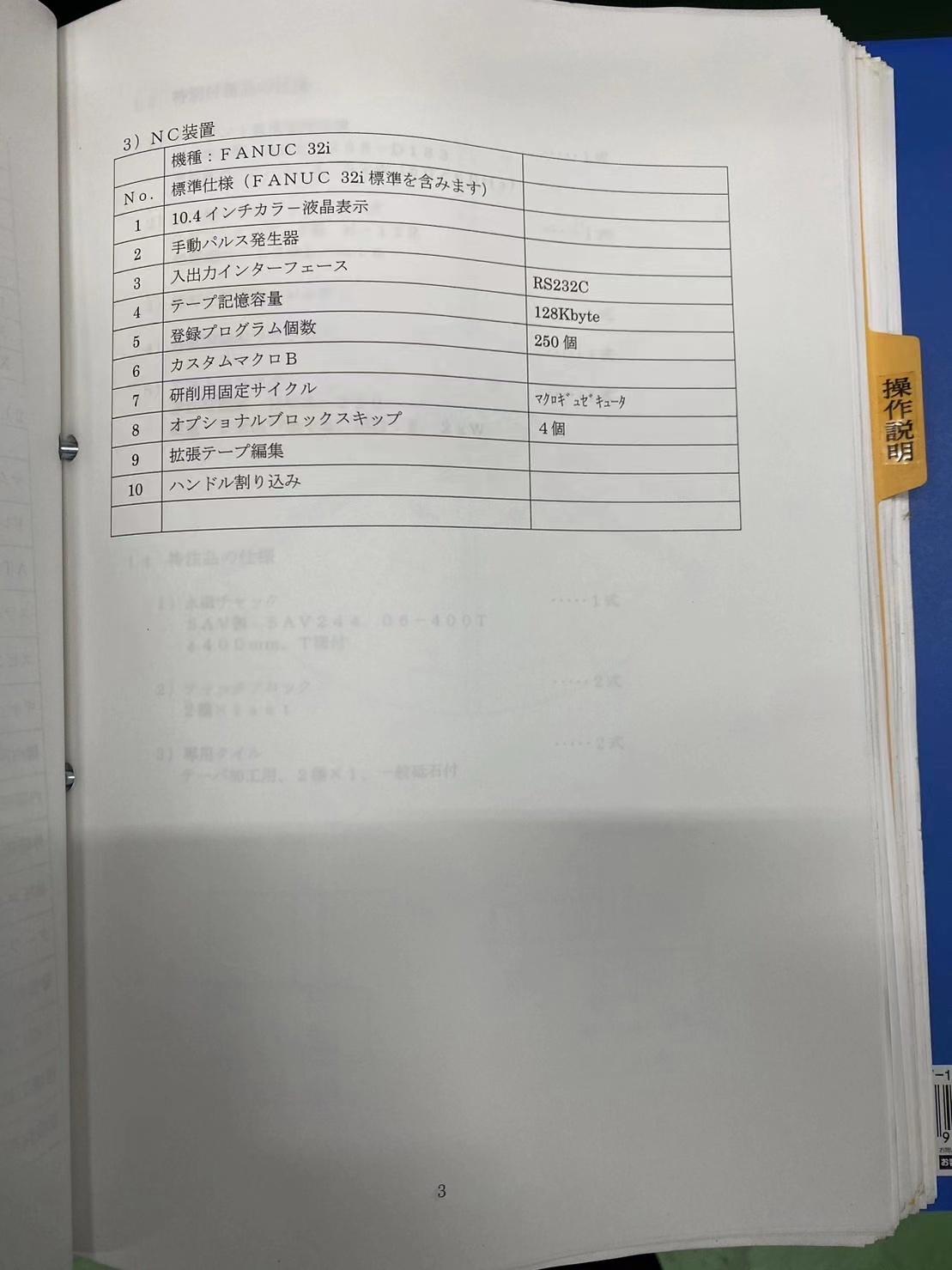

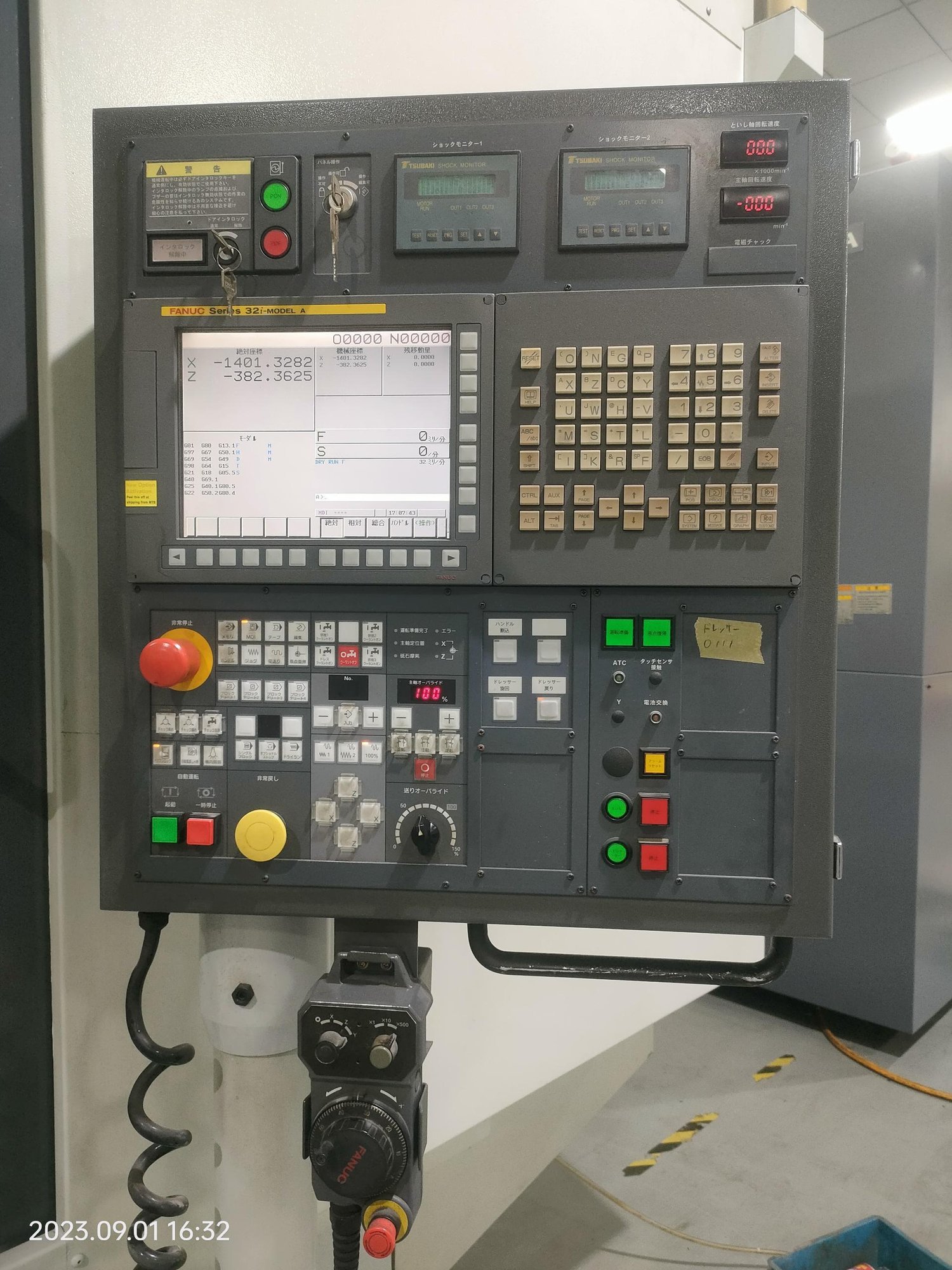

CNC System: FANUC 32i

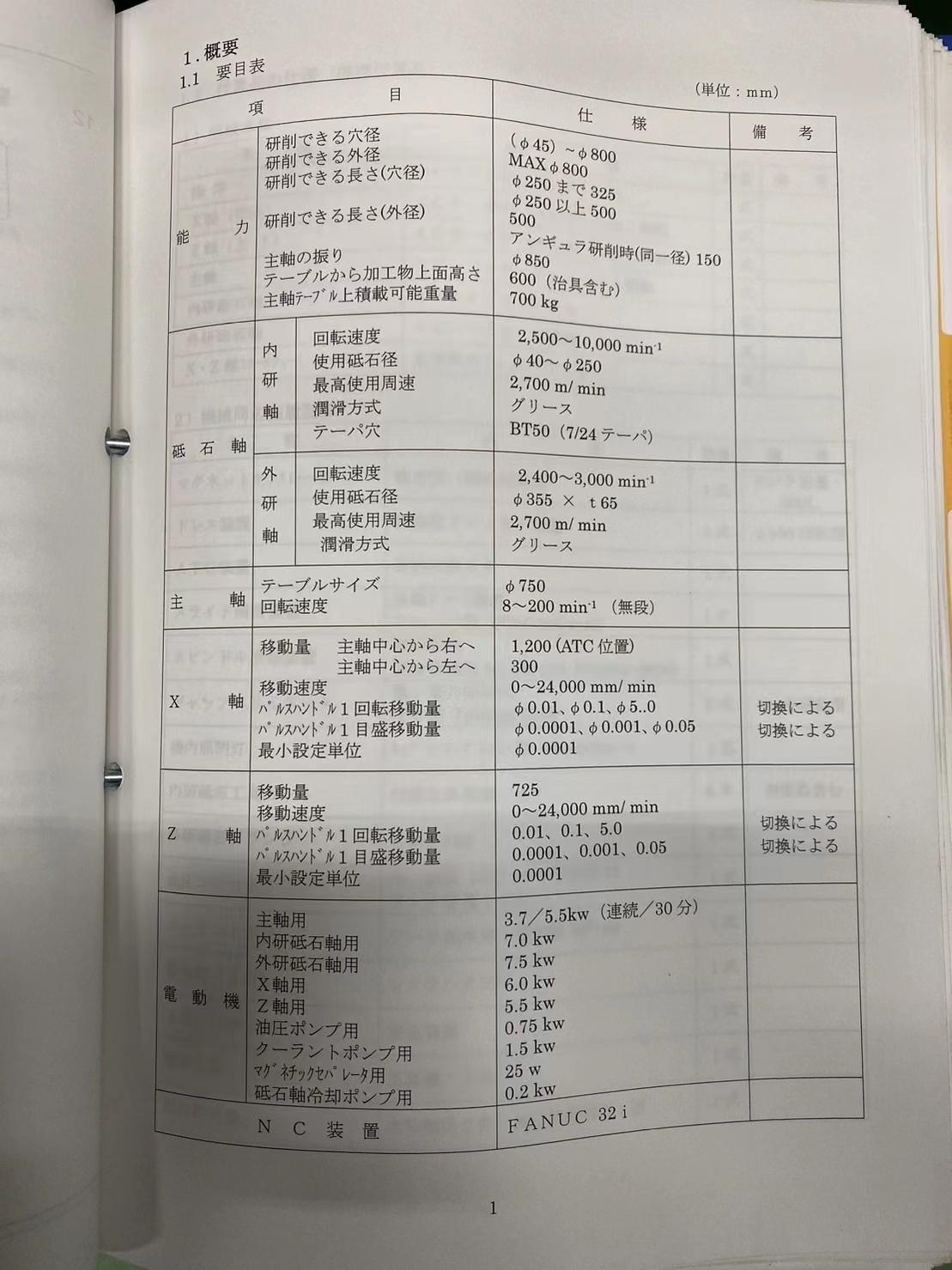

X-axis travel :1200mm

Z-axis travel :725mm

A-axis travel :+120

C-axis travel :360°

indexing method :0.0001mm

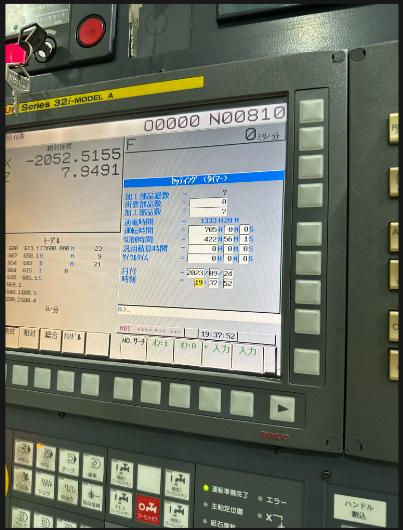

Power-on time :1333 hours

Running time :705 hours

Distance from spindle workWorktable to the end of the grinding wheel shaft :1050mm

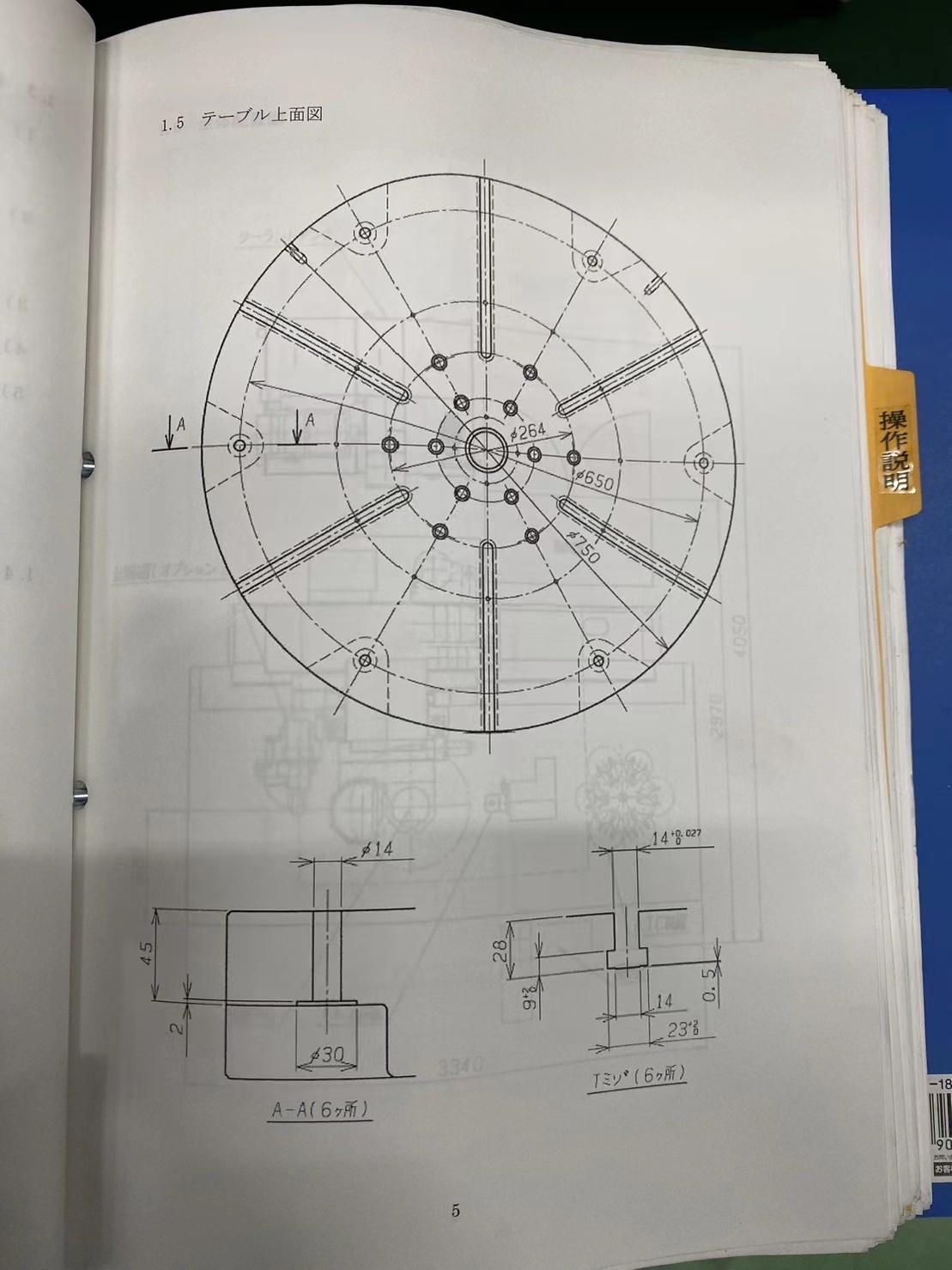

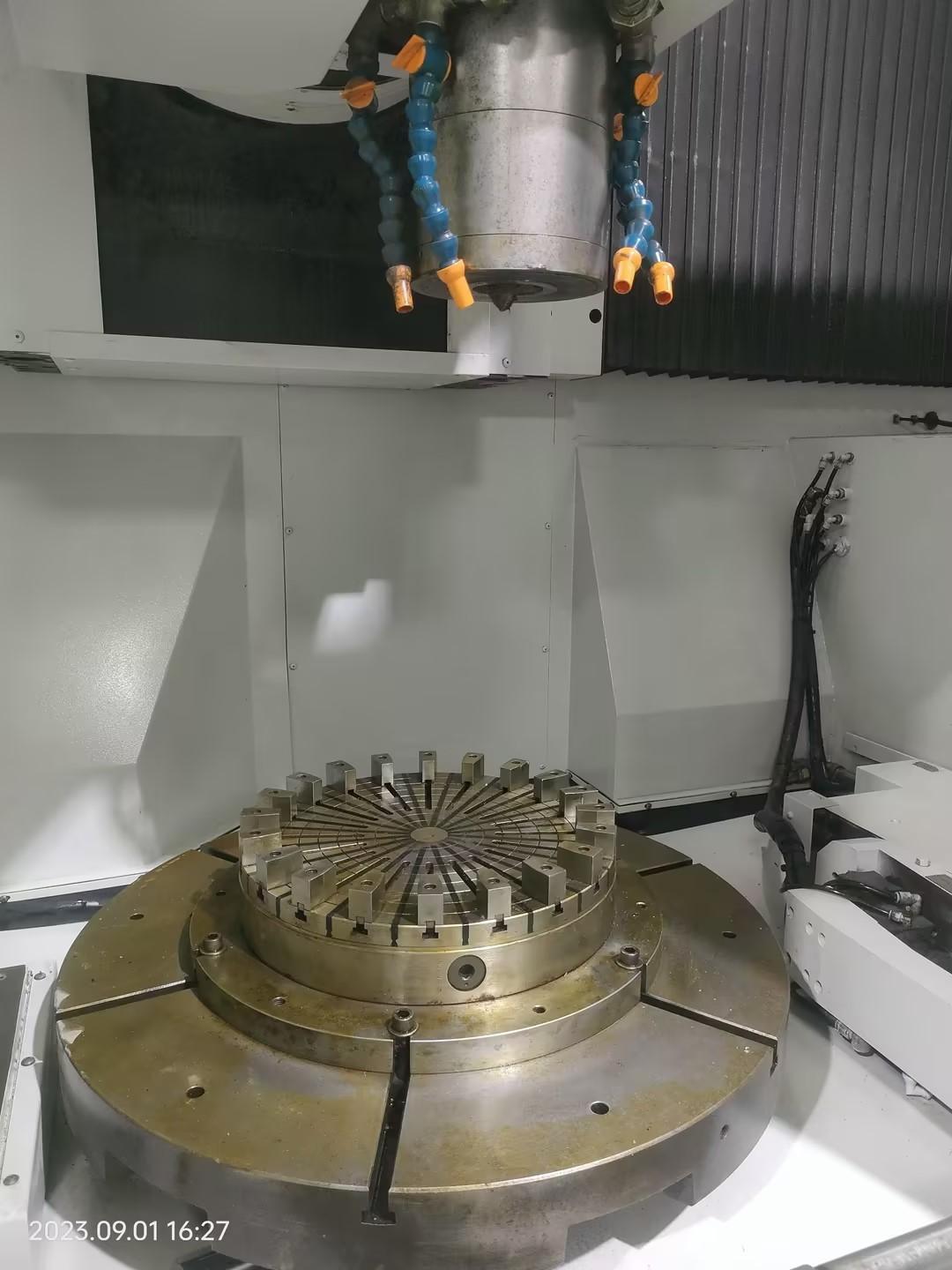

WorkWorktable size :φ 250mm

WorkWorktable load :700KG

Grinding travel :850mm

Grinding Internal diameter :40-800mm

Spindle speed :8-200rpm

grinding wheel speed: 2500-10000 minutes for the internal grinding spindle

External grinding spindle :3000rpm

power :371KW

Minimum lateral feed rate :0.0001mm

Longitudinal minimum feed rate :0.0001mm

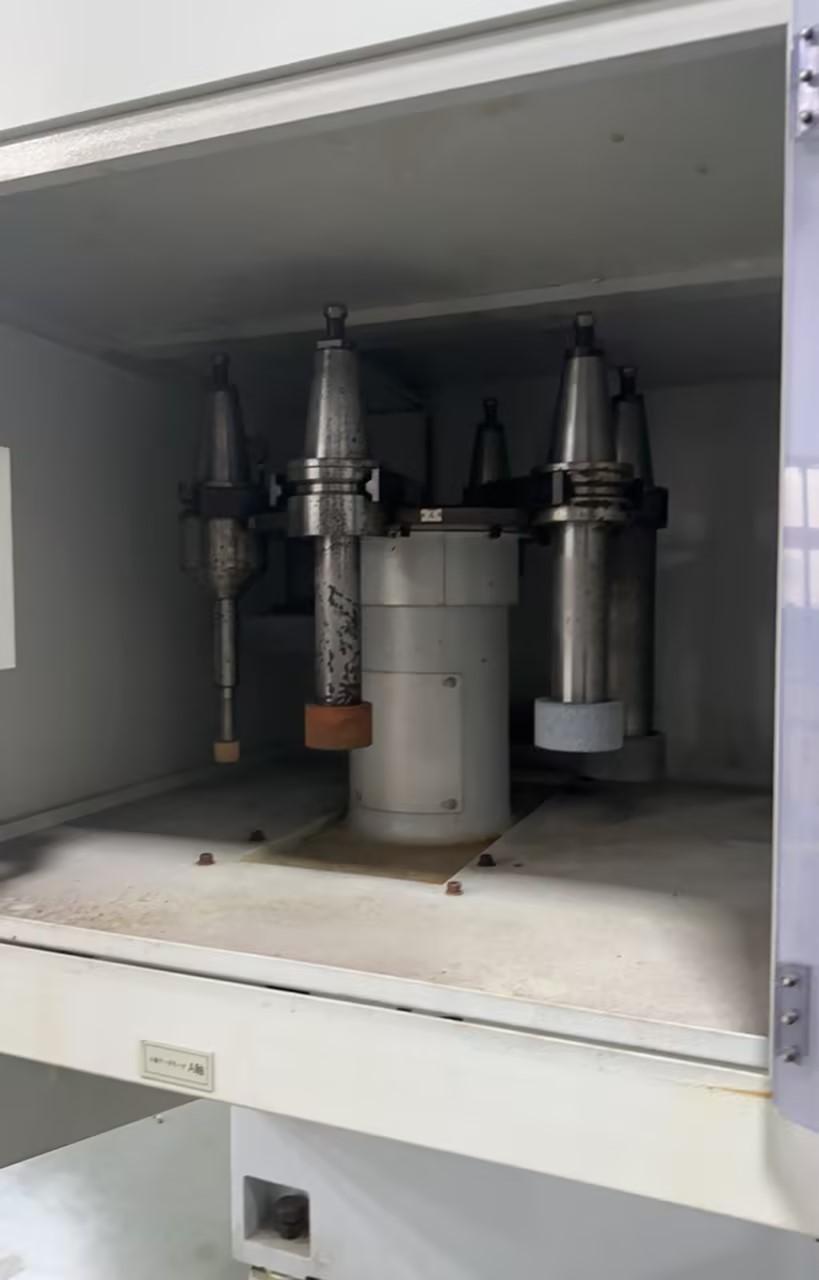

tools magazine :6 pieces

Overall Footage :3,340*4,050*3200mm
