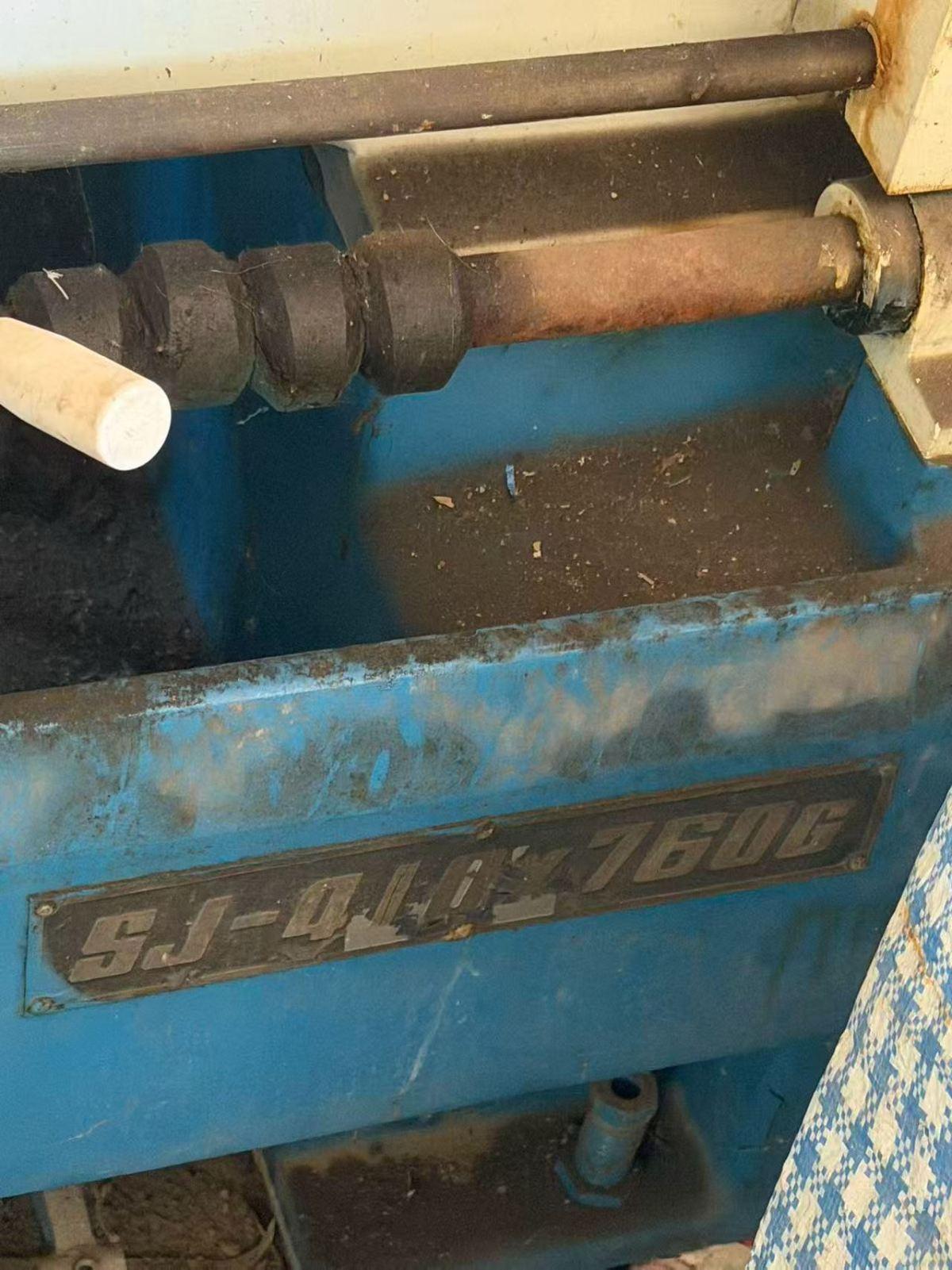

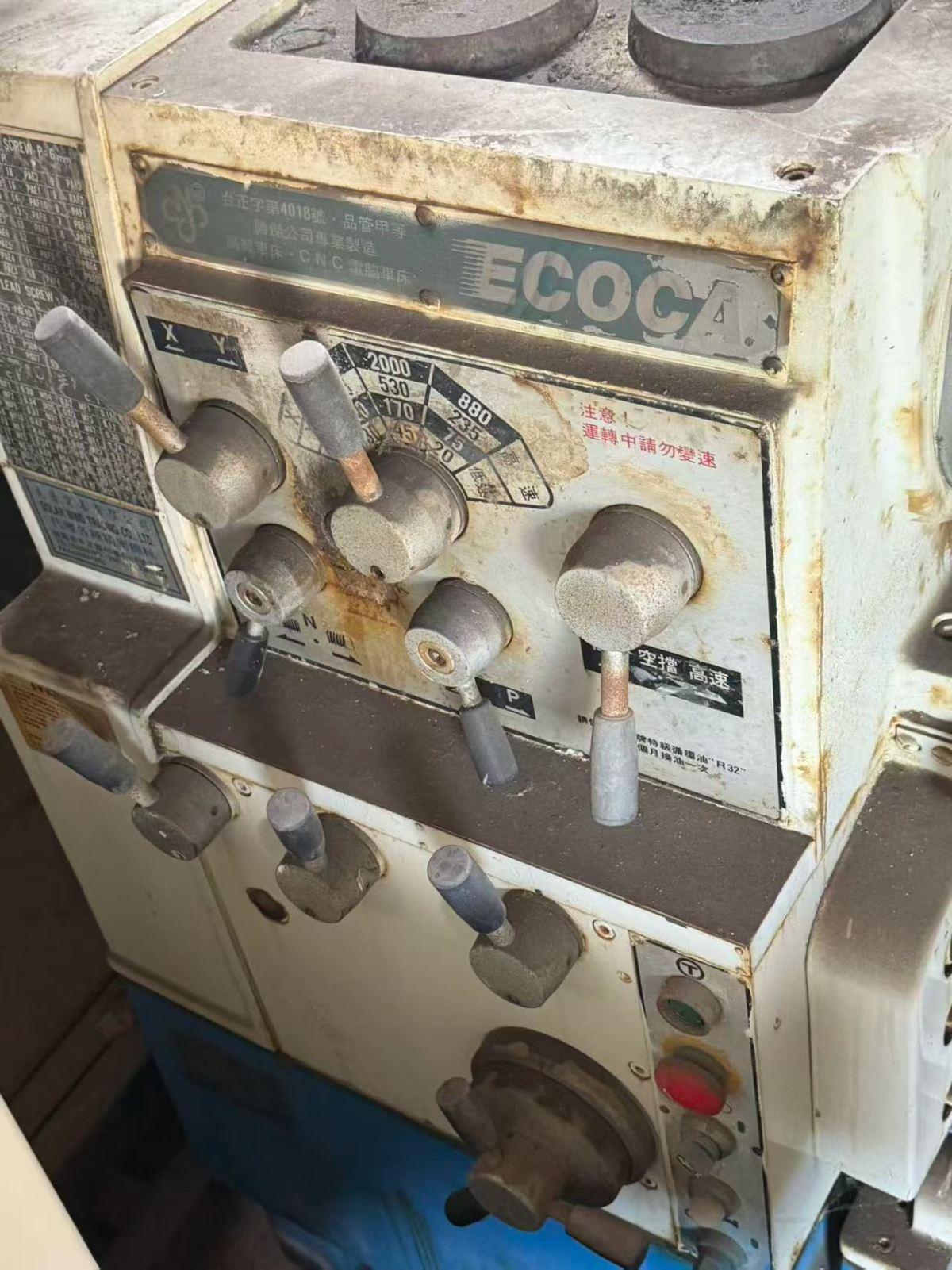

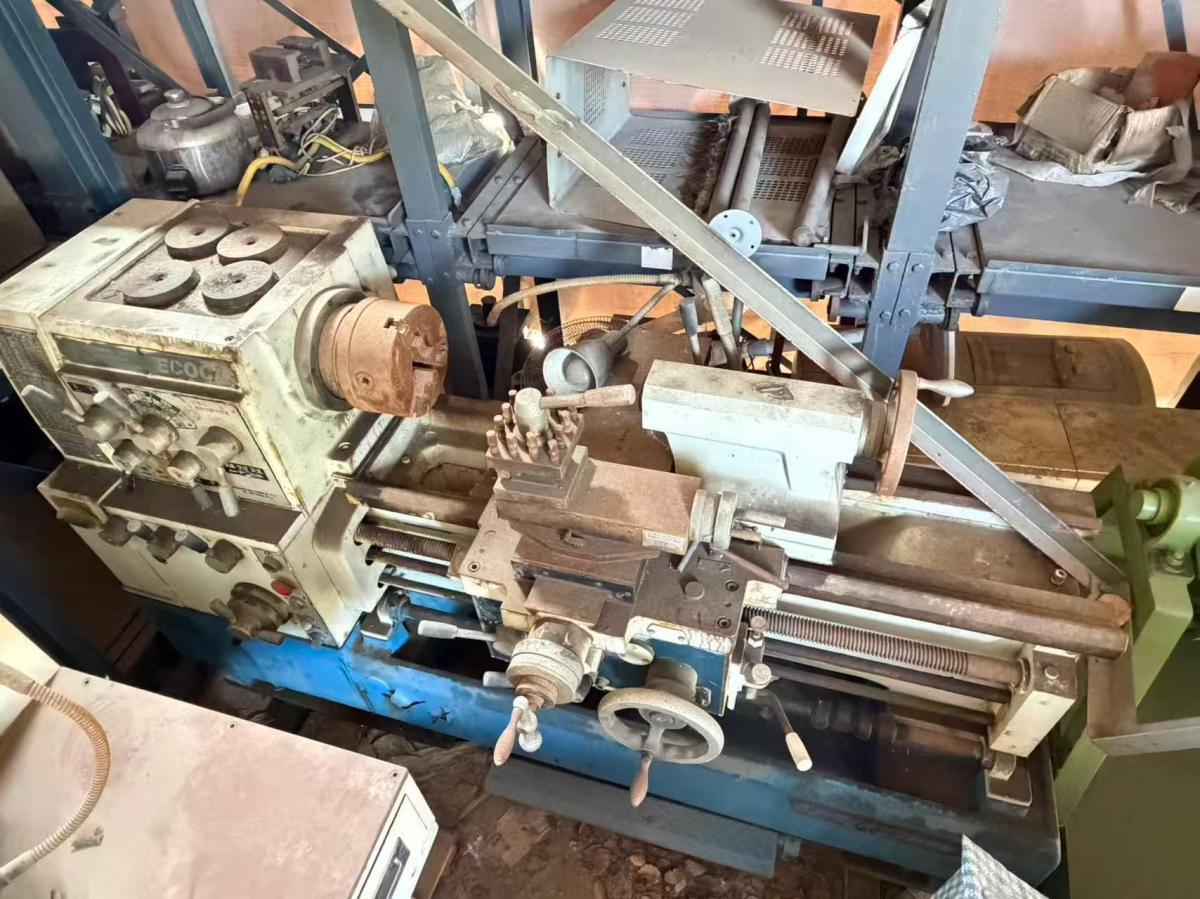

ECOCA SJ-410x760G Lathe

The maximum rotation diameter on the bed is 410mm
The maximum diameter of rotation on the slide plate: 210mm
Maximum rotation diameter in the saddle groove: 630mm
Maximum distance between the two centers: 760mm
Effective length of the saddle groove: 200mm
The diameter of spindle through hole is 58mm
spindle taper: MT#6
spindle head form: CAMLOCK D6
Spindle speed range: 20 to 2000 RPM
The Internal diameter of spindle bearing is 80mm
