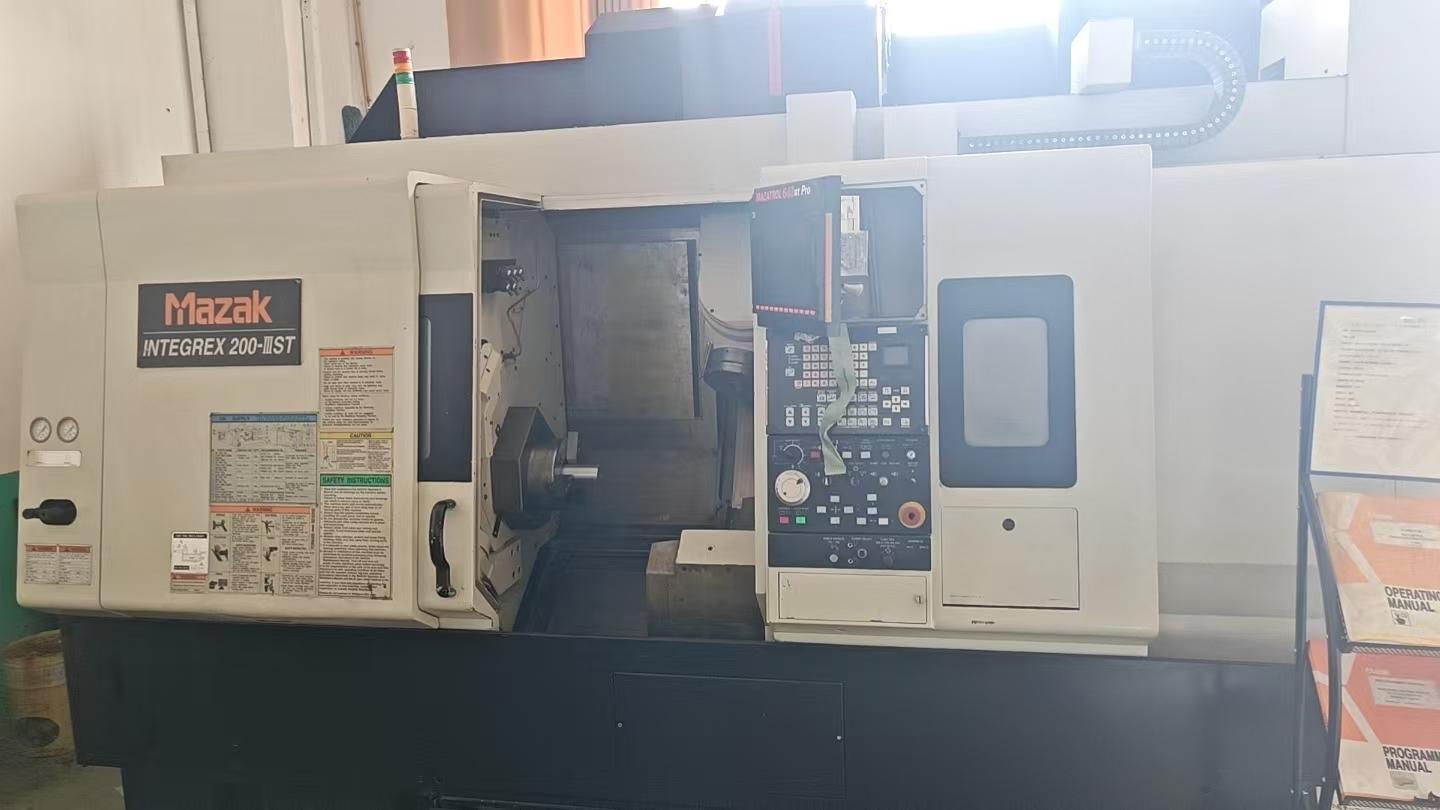

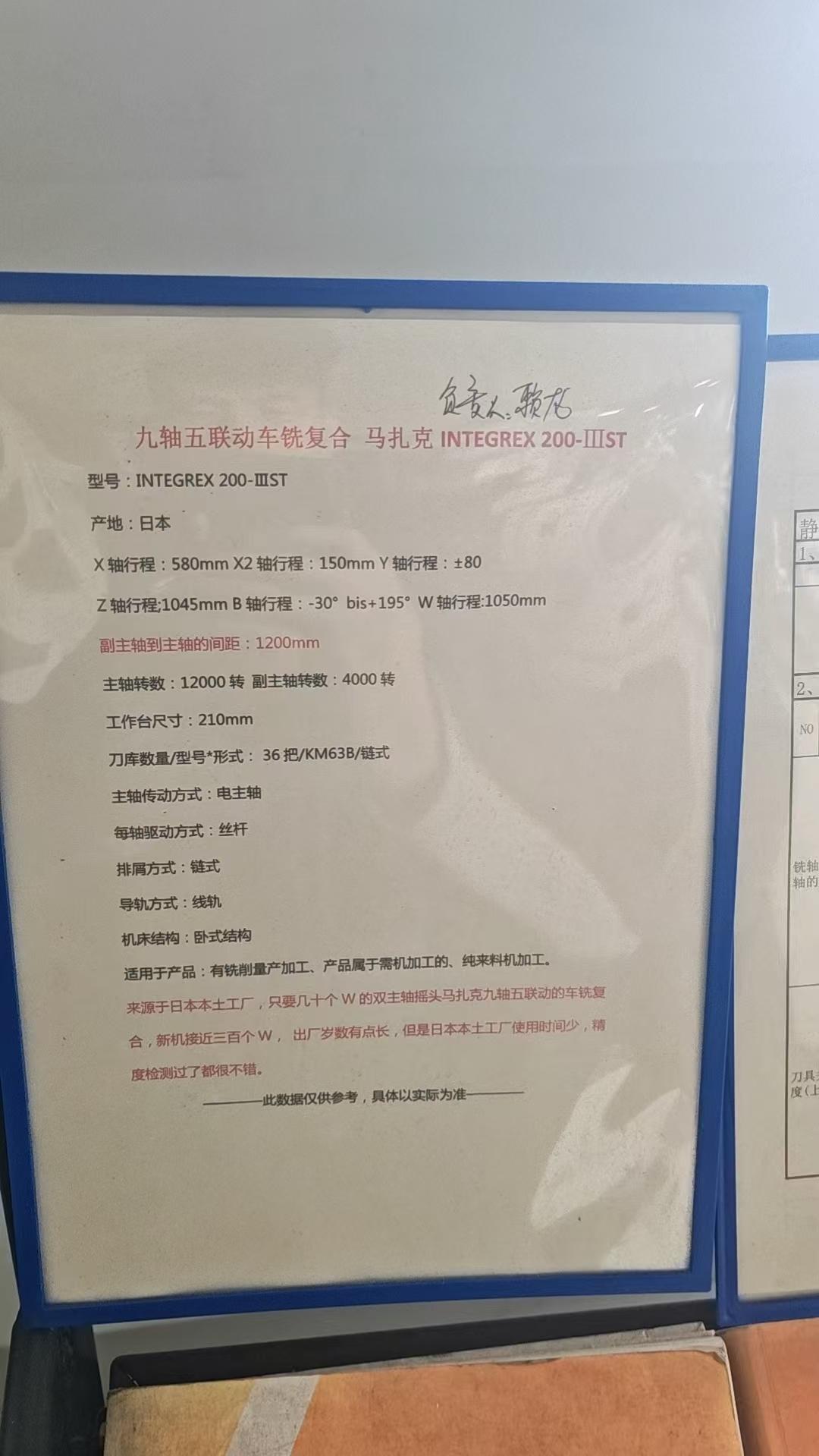

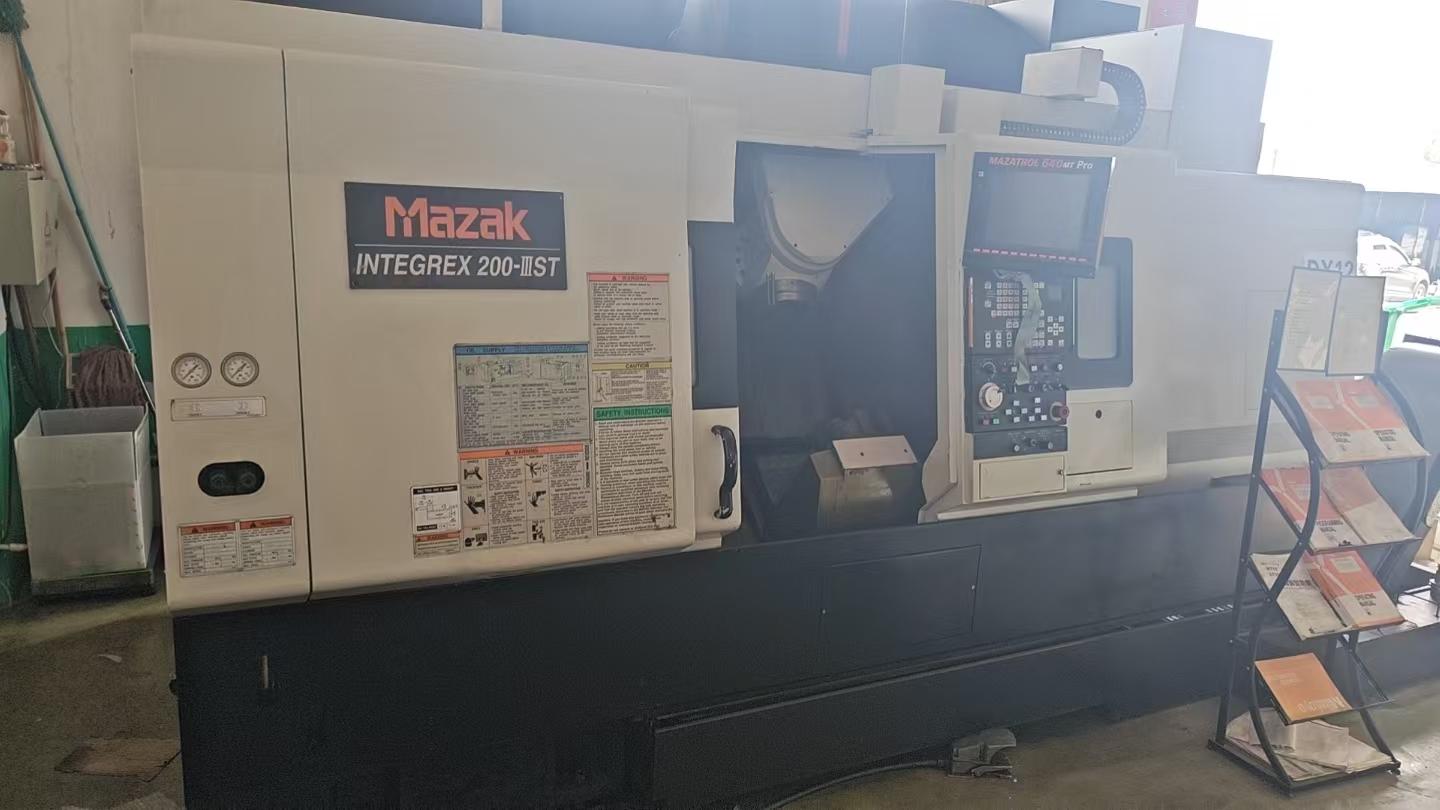

MAZAK INTEGREX 200-III ST Turn Mill Machining Centre

X-axis travel: 580 mm
X2-axis travel: 150 mm
Y-axis travel: ±80 mm
Z-axis travel: 1,045 mm

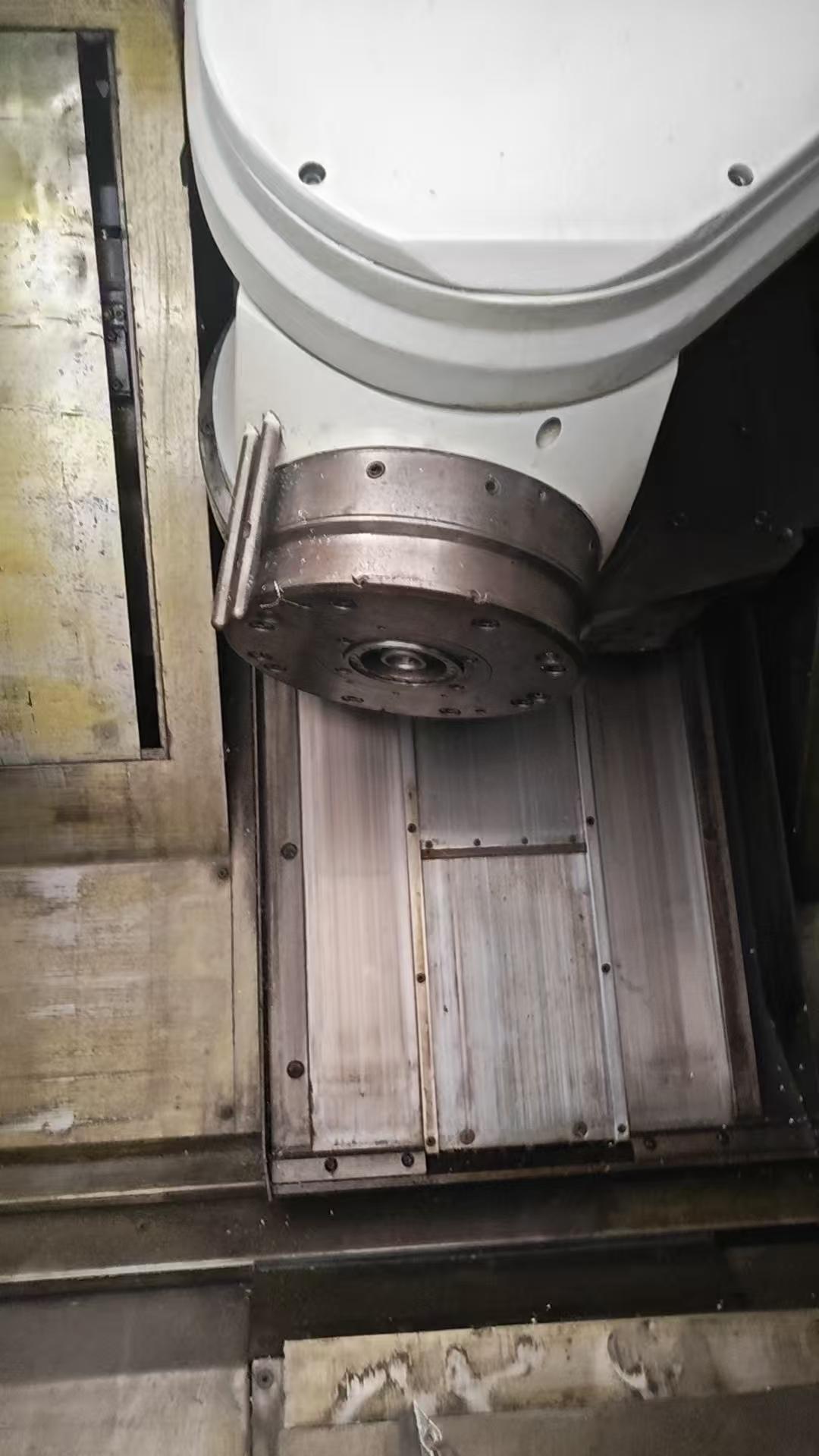

B-axis swing range: -30° to +195°
W-axis travel: 1,050 mm
Distance between main spindle and sub-spindle: 1,200 mm
Spindle speed: 12,000 rpm

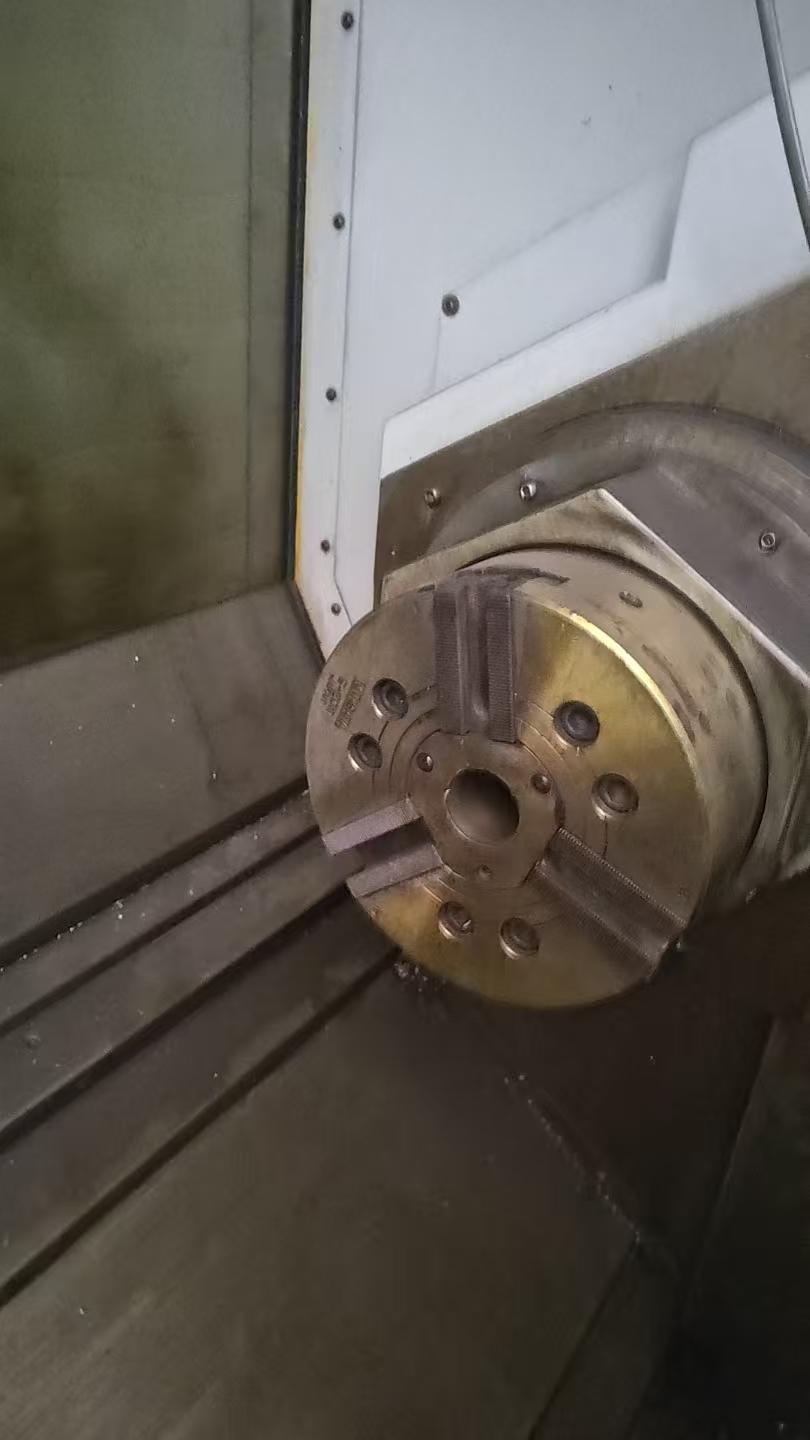

Sub-spindle speed: 4,000 rpm
Worktable size: 210 mm
Tool magazine capacity: 36 tools (KM63, chain type)
Spindle drive method: Built-in motor spindle
Feed drive system: Ball screw
Tool changing method: Chain type
Guideway type: Linear guideways
Machine structure: Horizontal type
Application scope: Machining of non-ferrous metal parts, precision finishing of products, and mold finishing.
