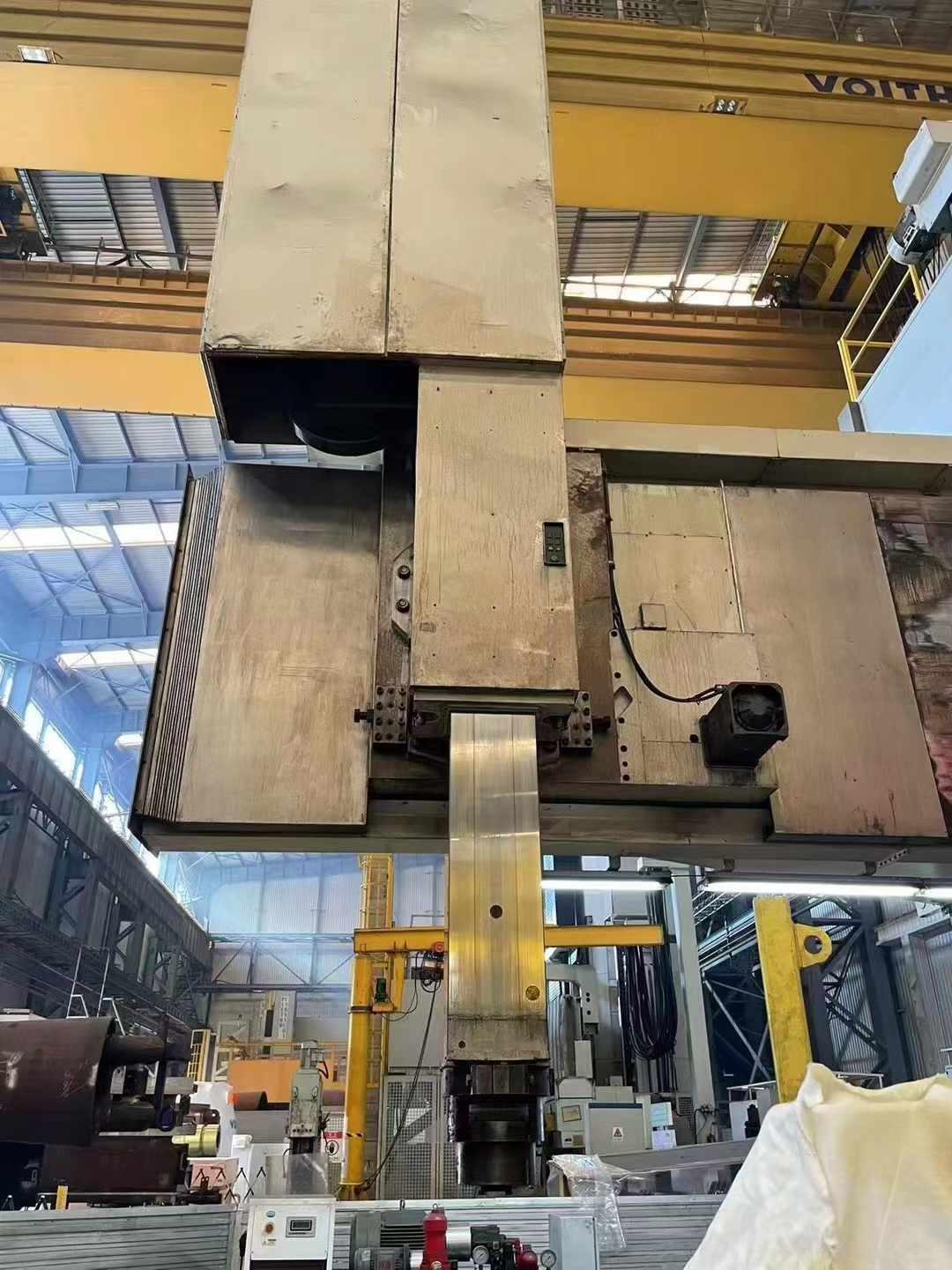

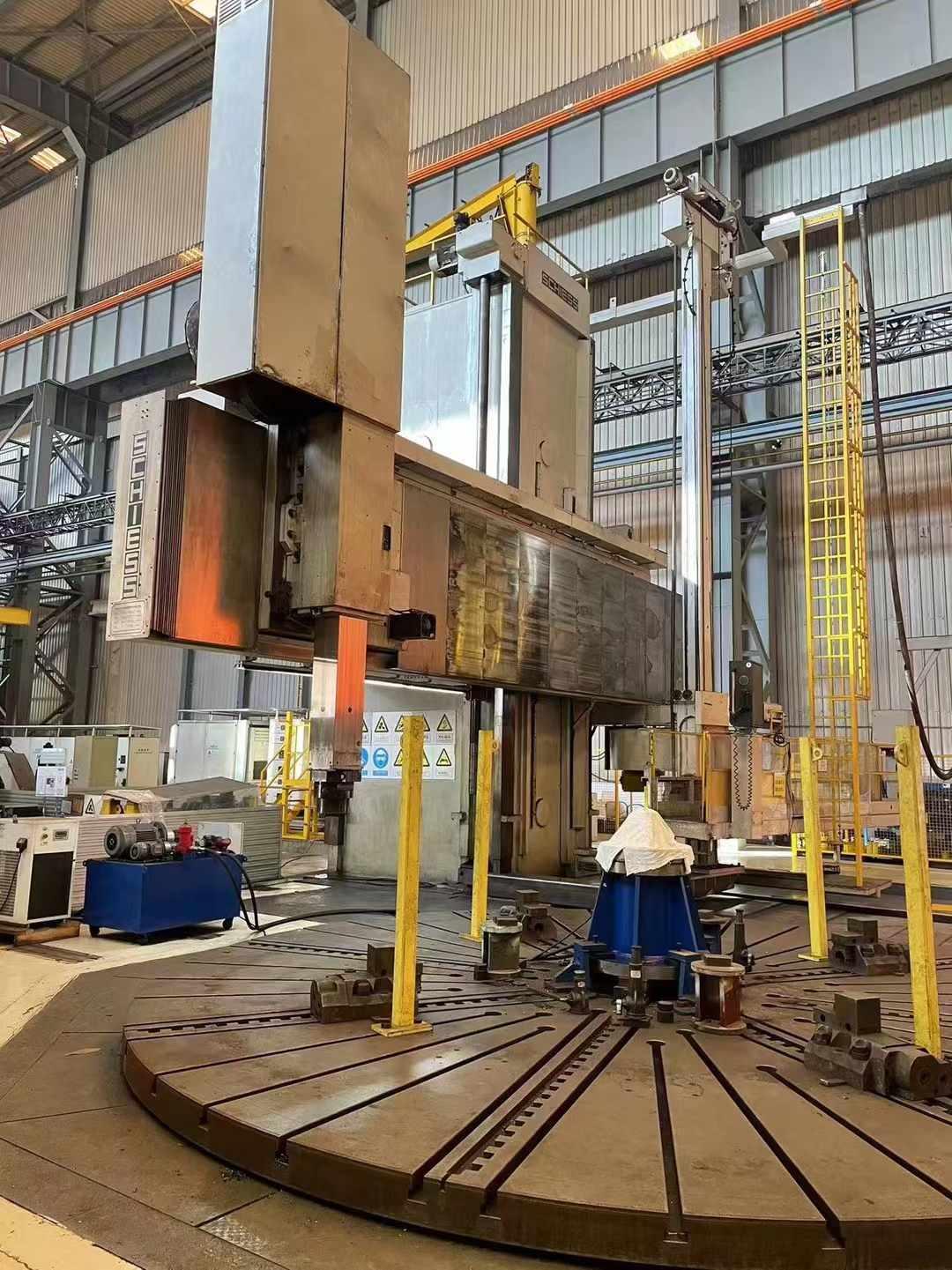

SCHIESS 63DFG Turn Mill Machining Centre

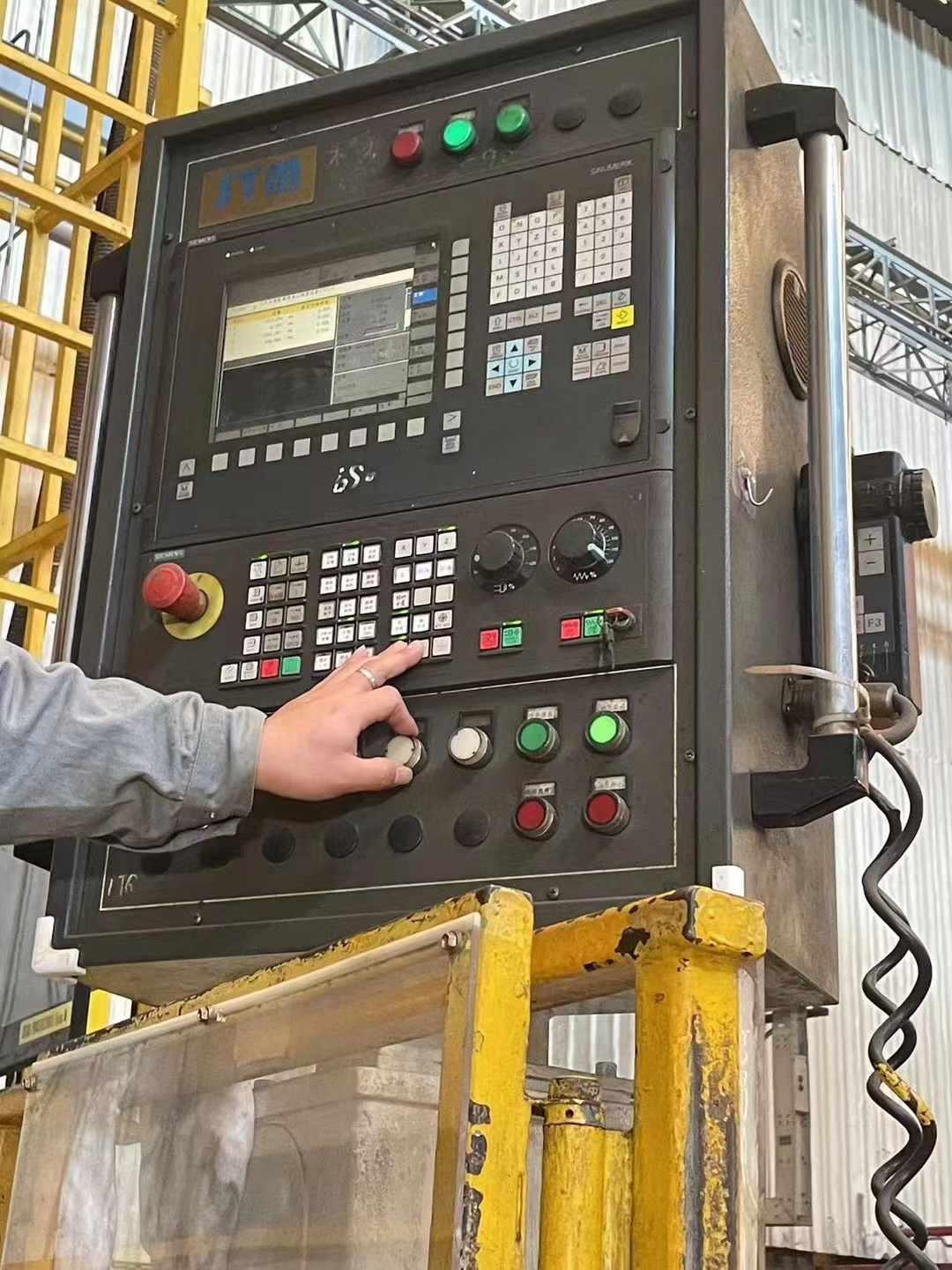

CNC CNC System: Siemens 840D

machining  diameter: 14 m

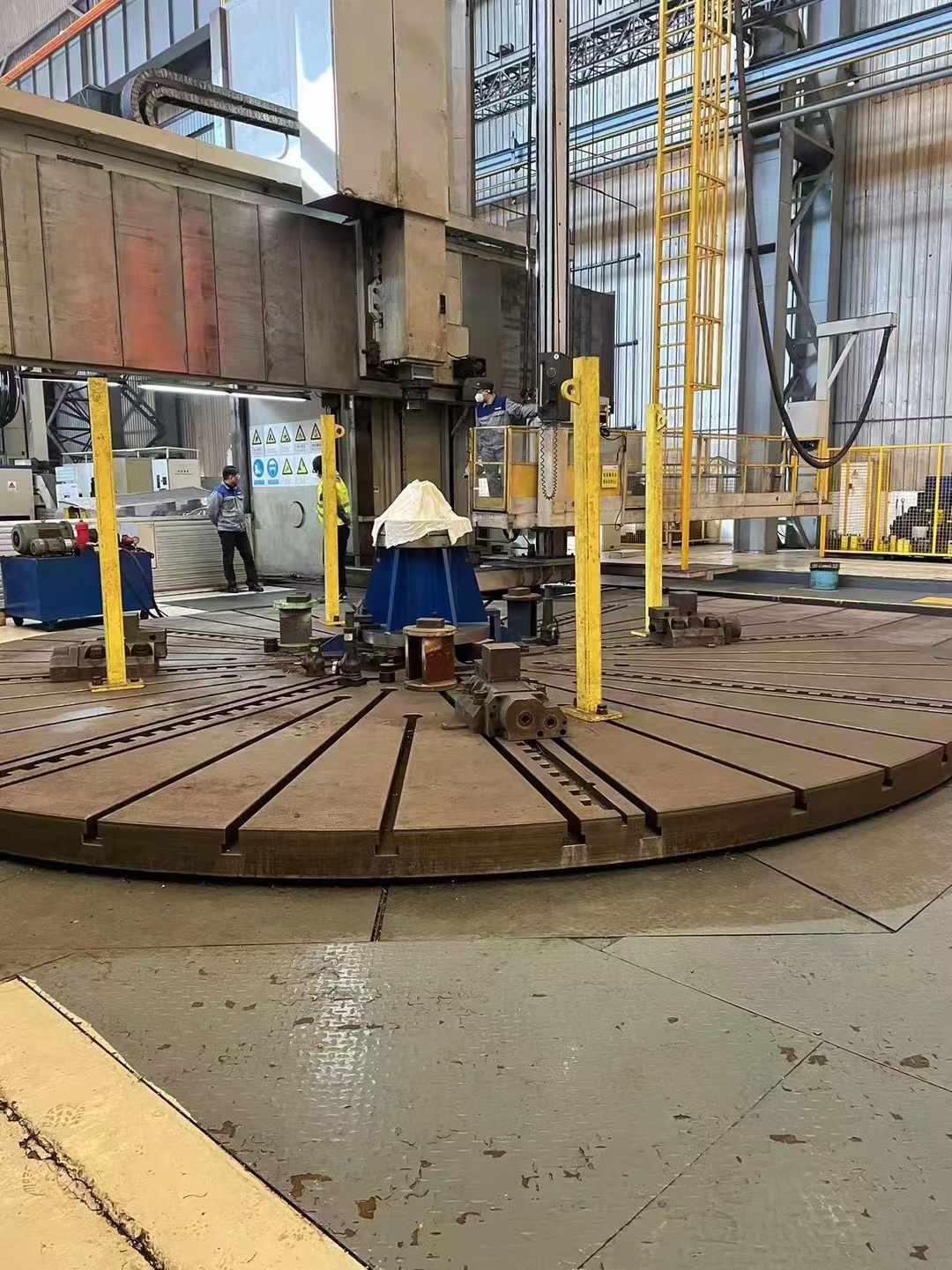

Worktable diameter: 7 meters

Weight: 200 tons

X-axis: 9 m

Y-axis machining  height: 5.6 m

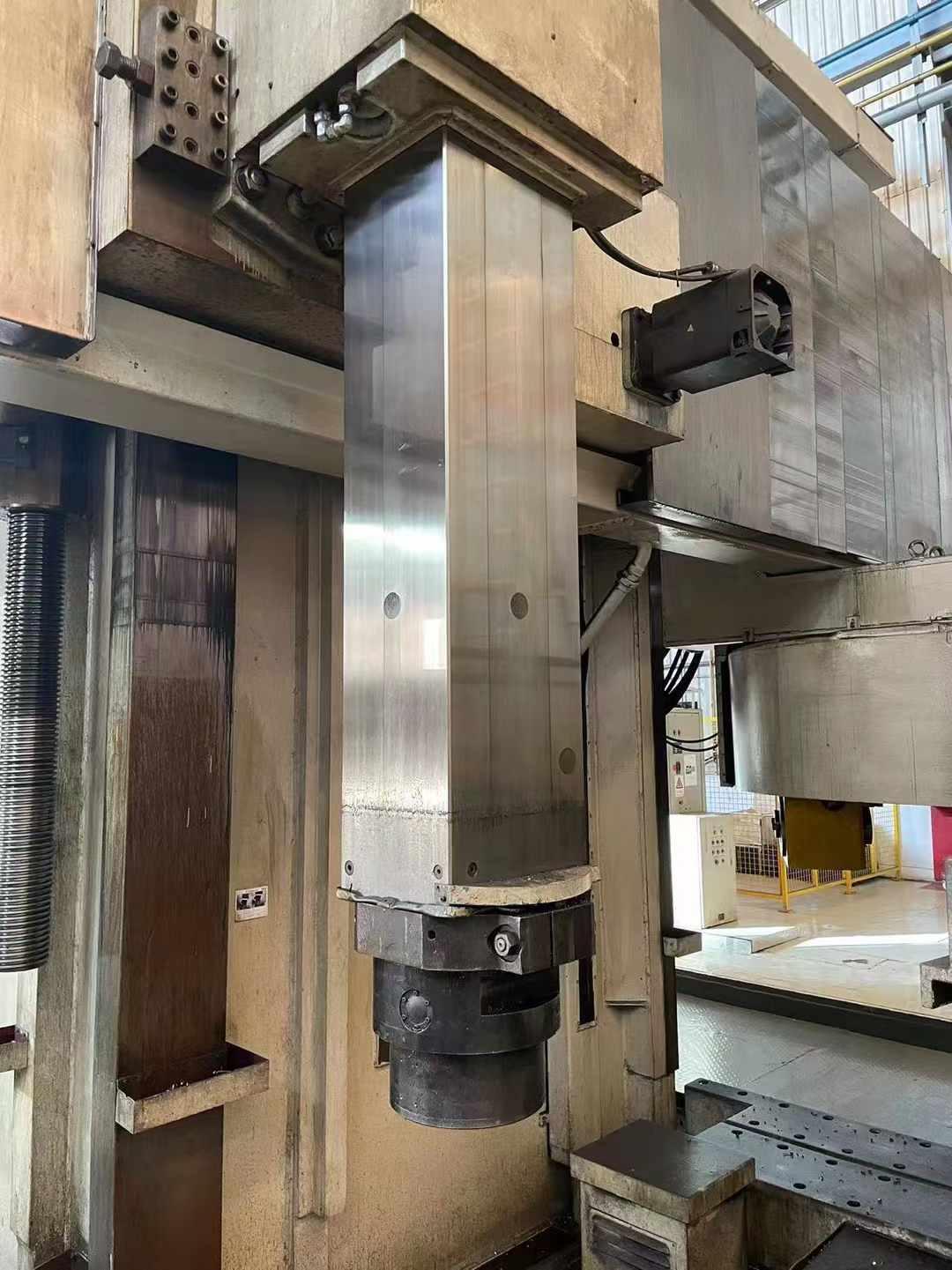

travel up and down the tool holder: 2.8 meters

Settings:

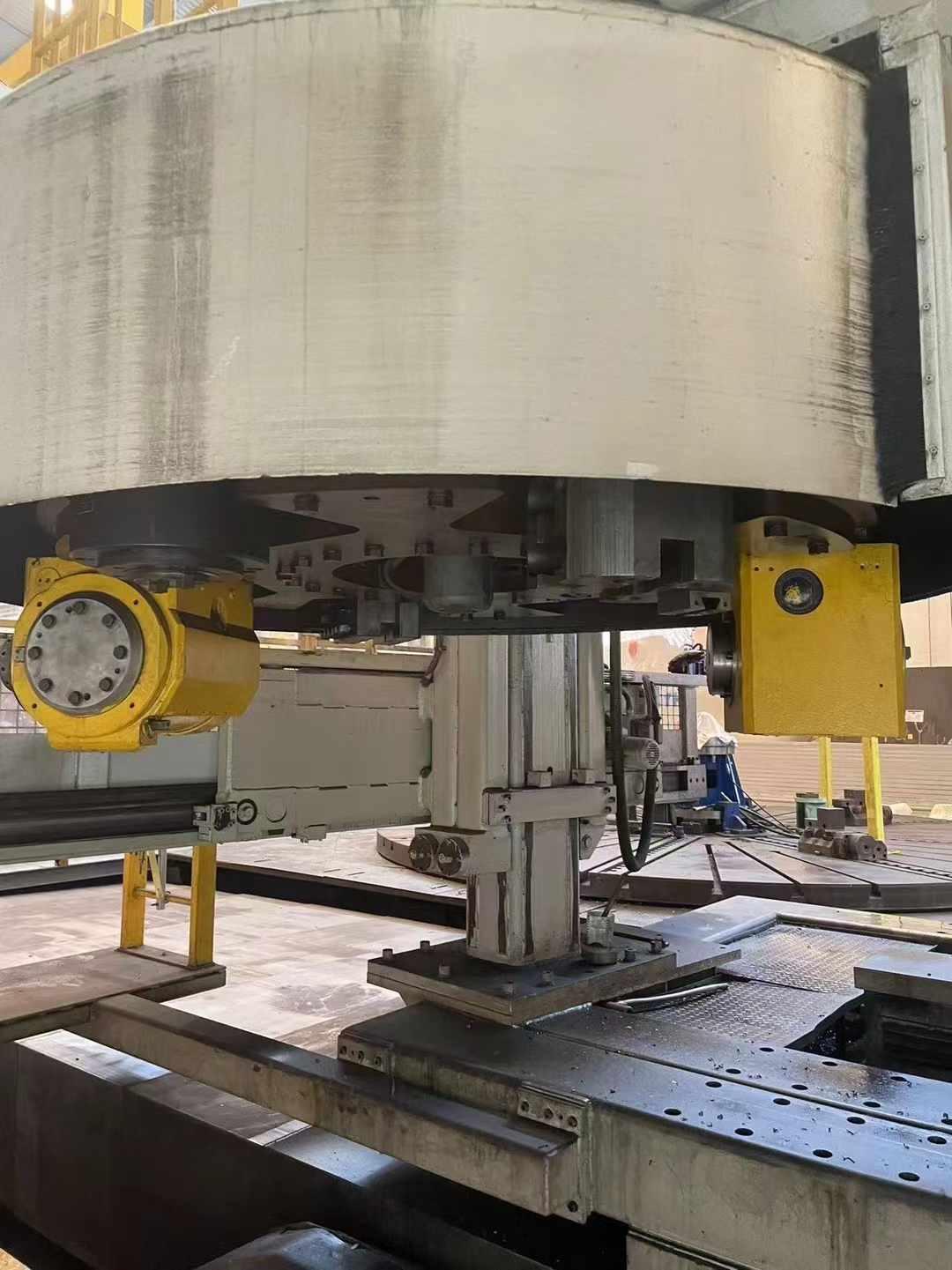

With 1 universal 5 axes head,

1 pentahedral head,

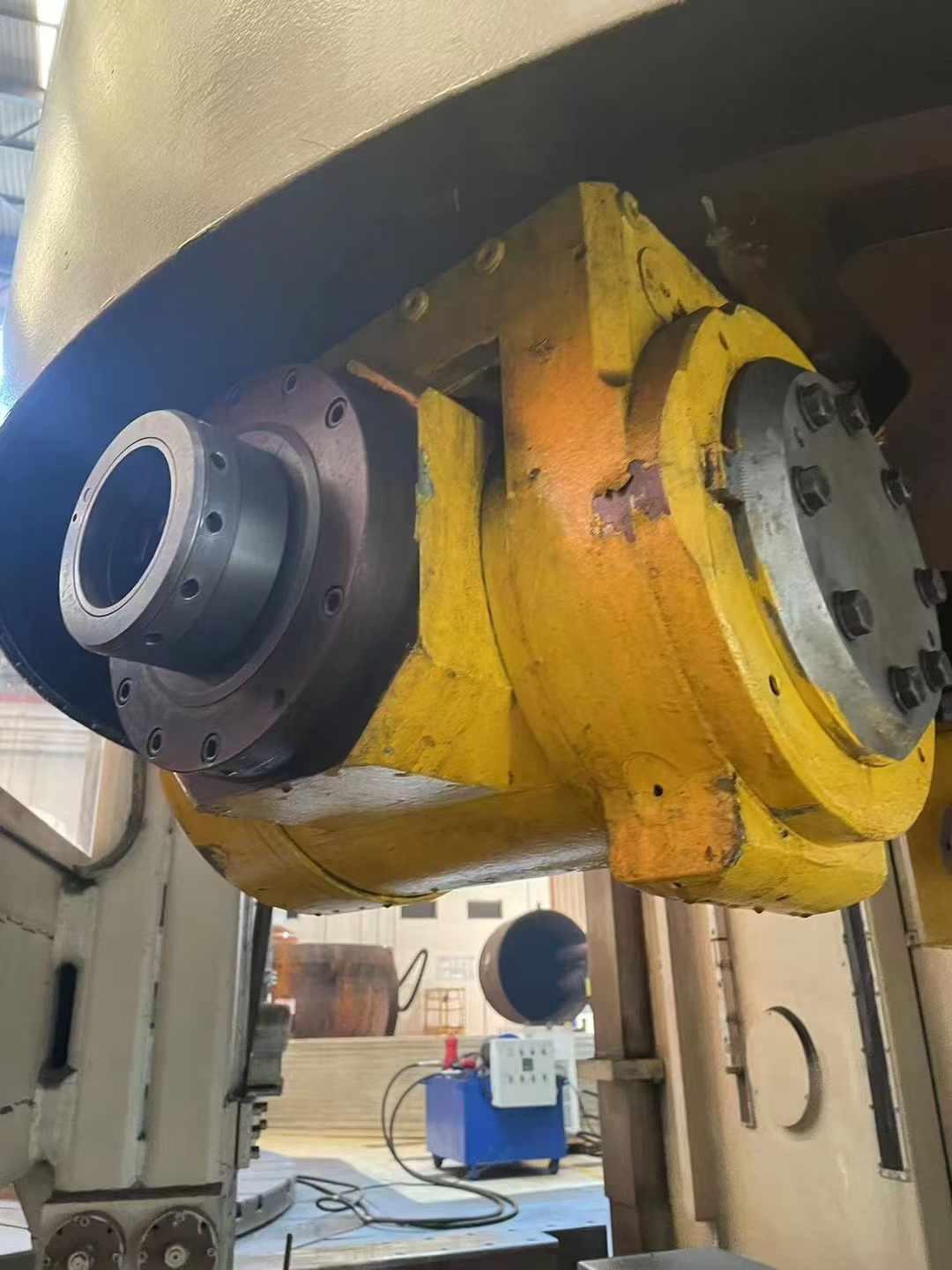

1 90 degree Angle milling head,

1 extended head,

Two tool holders, six in total

Each axis is fully close loop Heidenhain glass scale

Single arm milling ability (can be converted) :

Milling width: 5 meters

Milling length: 9 m
