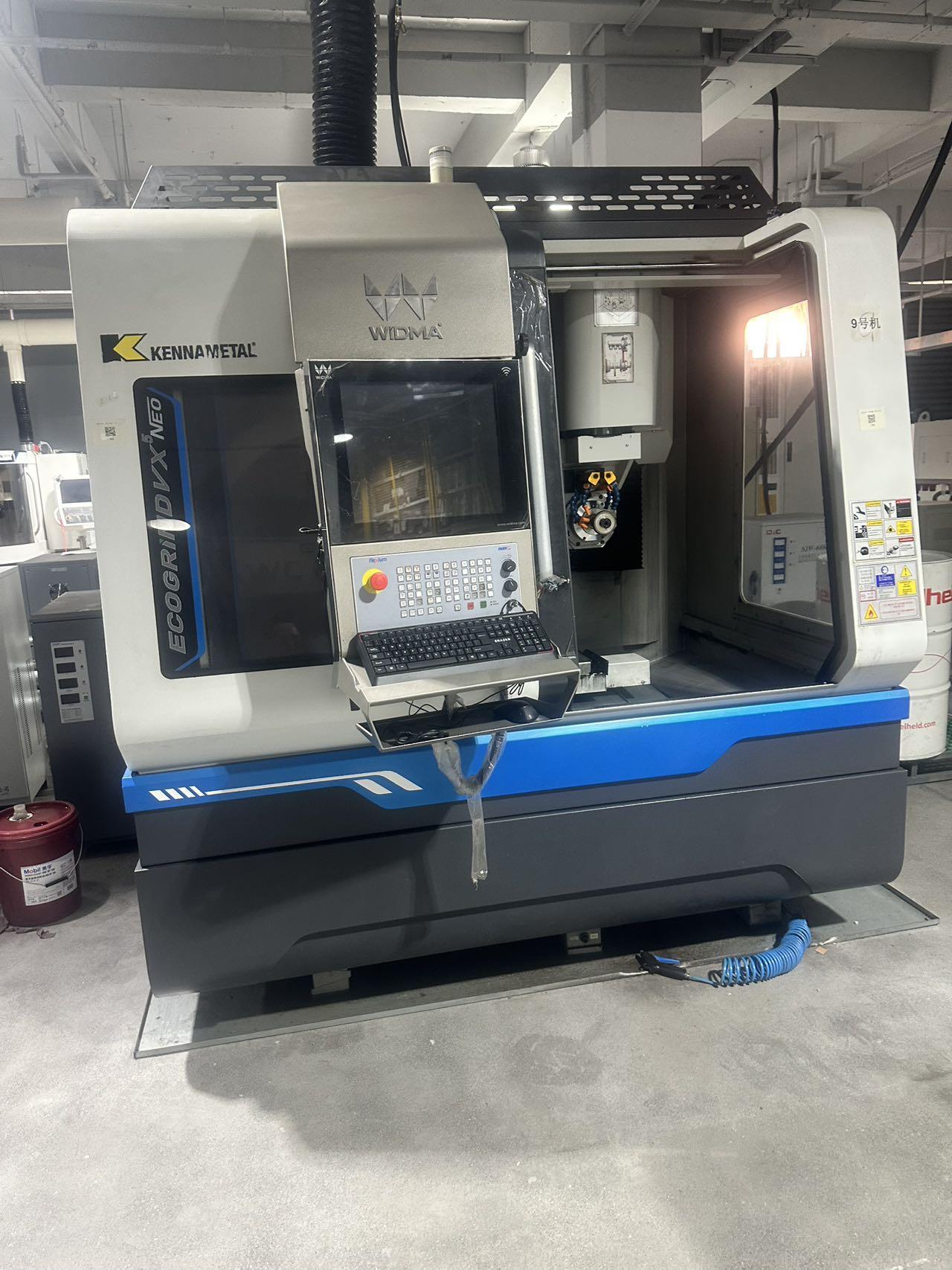

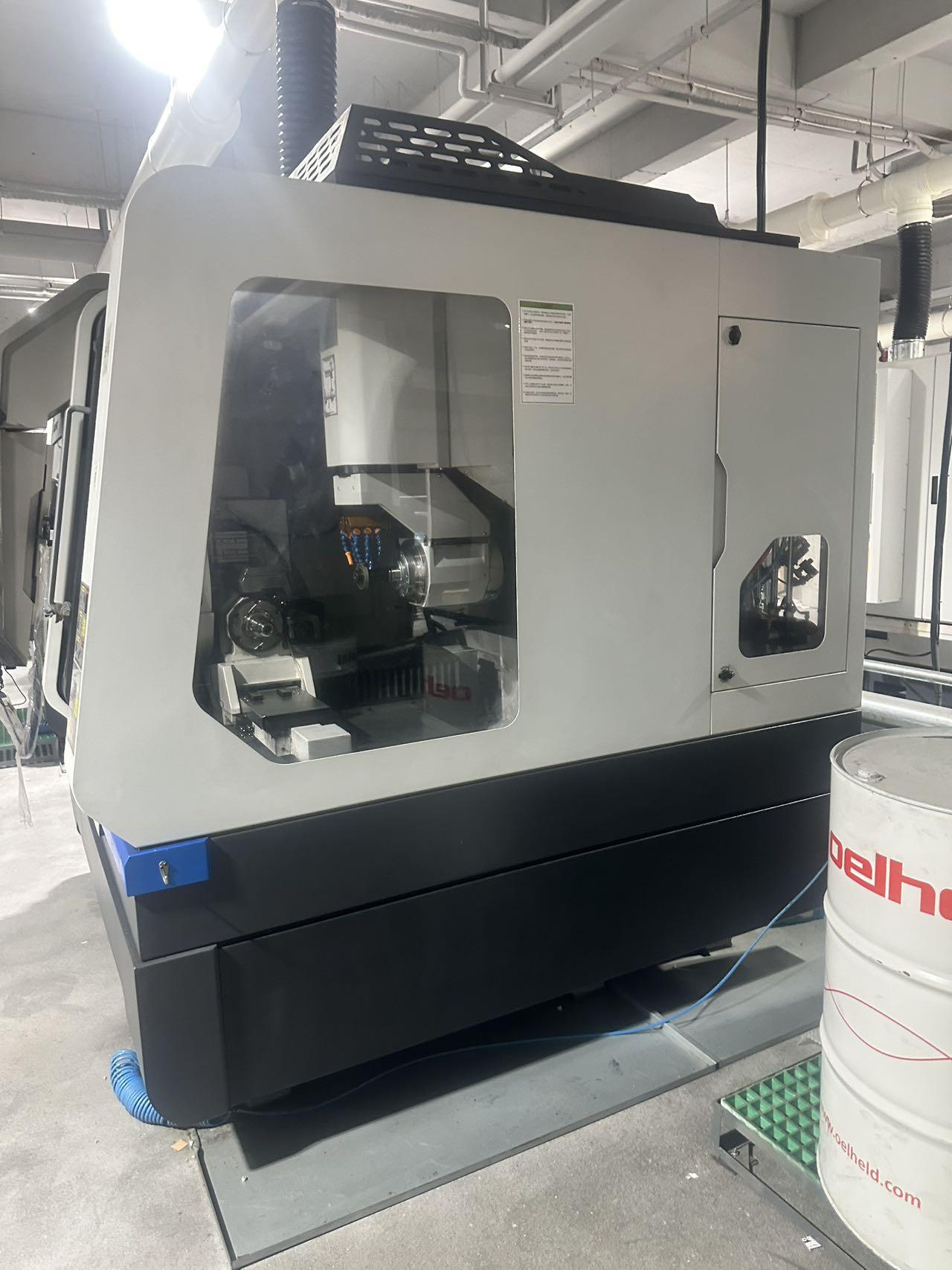

WIDMA KENNAMETAL ECOGRIND VX5 NEO Tool grinder

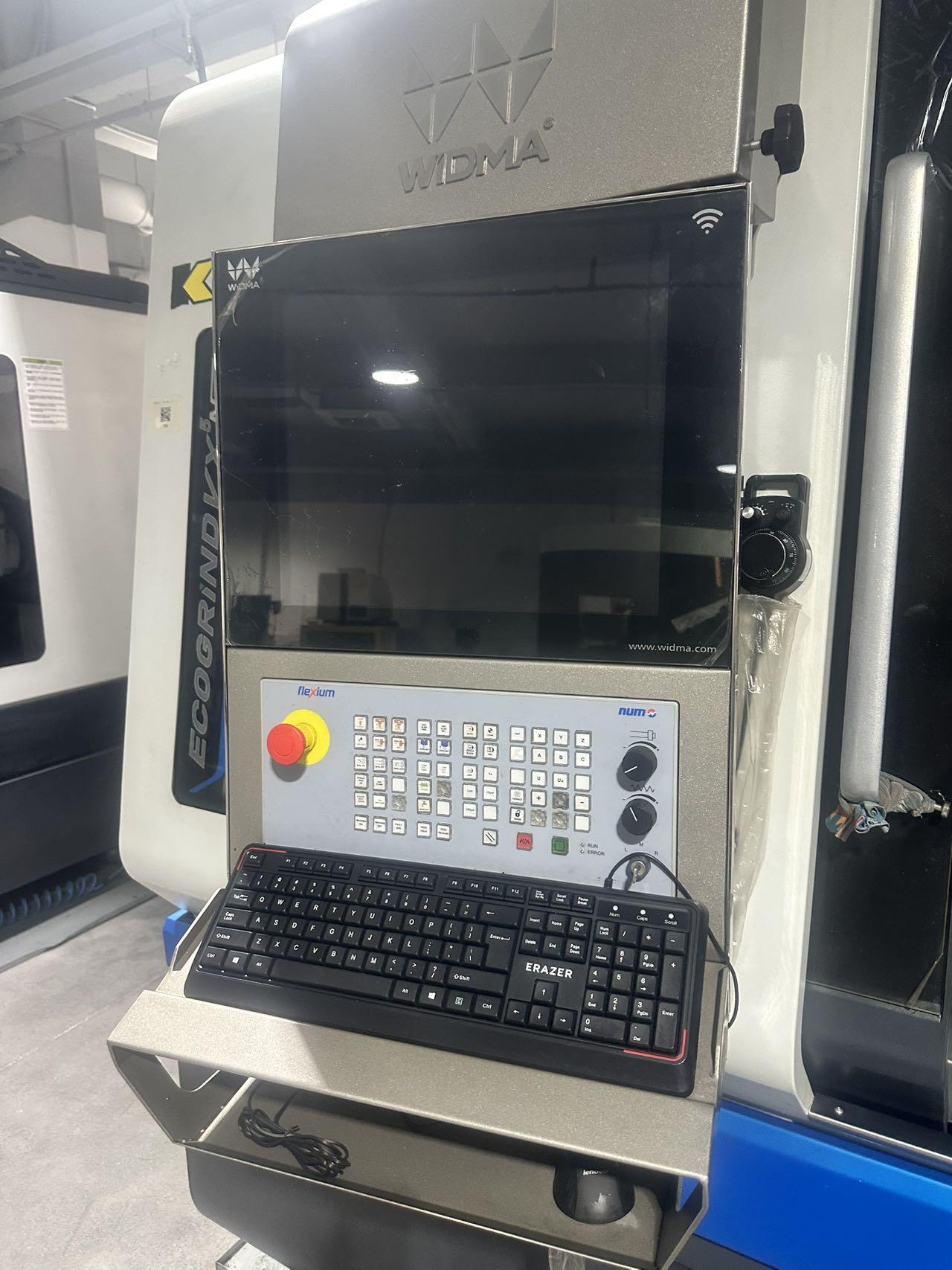

CNC System: NUM Flexium Plus
Tool diameter range: 3–22 mm
Maximum regrinding workpiece diameter: 220 mm
Maximum workpiece length for surface grinding (GPL): 430 mm
Maximum workpiece length for outer diameter (OD) grinding (GPL): 490 mm
Maximum workpiece length for groove grinding (GPL): 430 mm
Maximum workpiece weight: 25 kg
Axis travel (X / Y / Z): 500 × 250 × 500 mm
Rapid traverse (X / Y / Z): 20 × 20 × 20 m/min

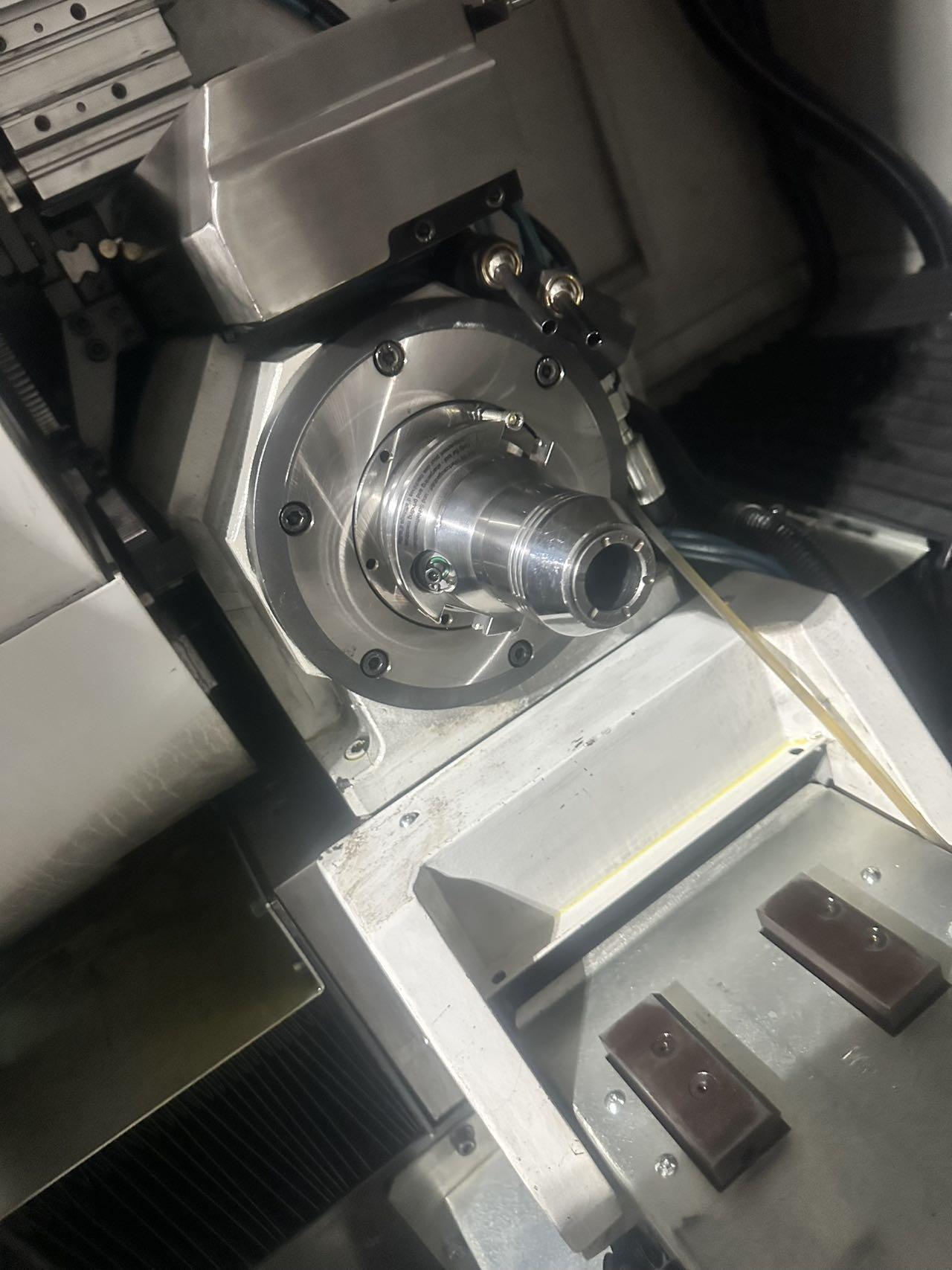

A-axis rotation: Continuous (any angle)
A-axis rotational speed: 1200 rpm
A-axis spindle taper: ISO 50
B-axis rotation angle (grinding head swivel axis): +40° to –215°
B-axis rotational speed: 50 rpm
Number of grinding spindle heads: 1

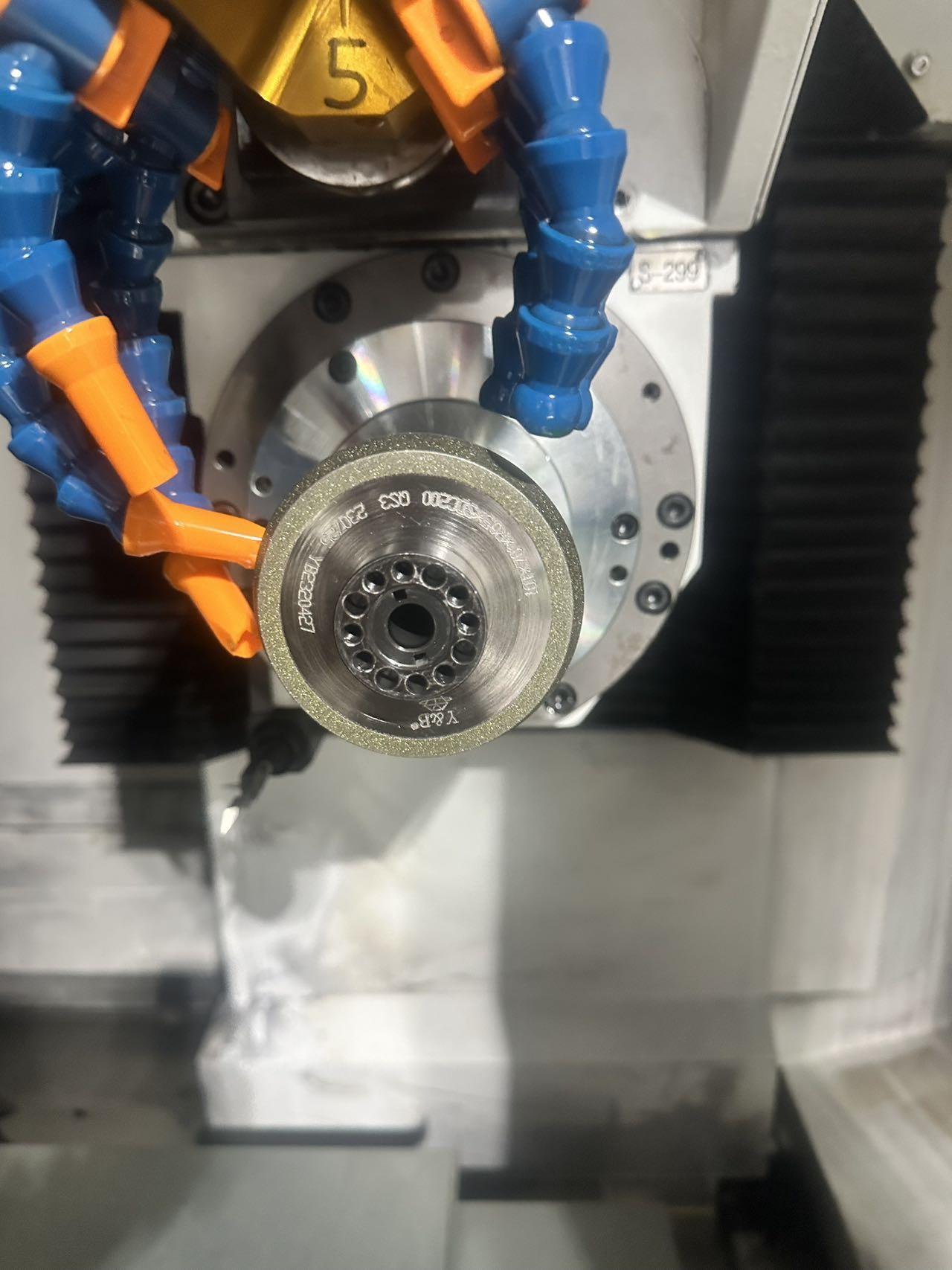

Automatic wheel changer with coolant manifold: 5 wheel groups
Spindle power (continuous / peak): 25 / 38 kW
Maximum spindle speed: 9000 rpm
Spindle nose taper: HSK E50
Machine weight: 7 t
Dimensions (W × D × H): 2150 × 3000 × 2200 mm
