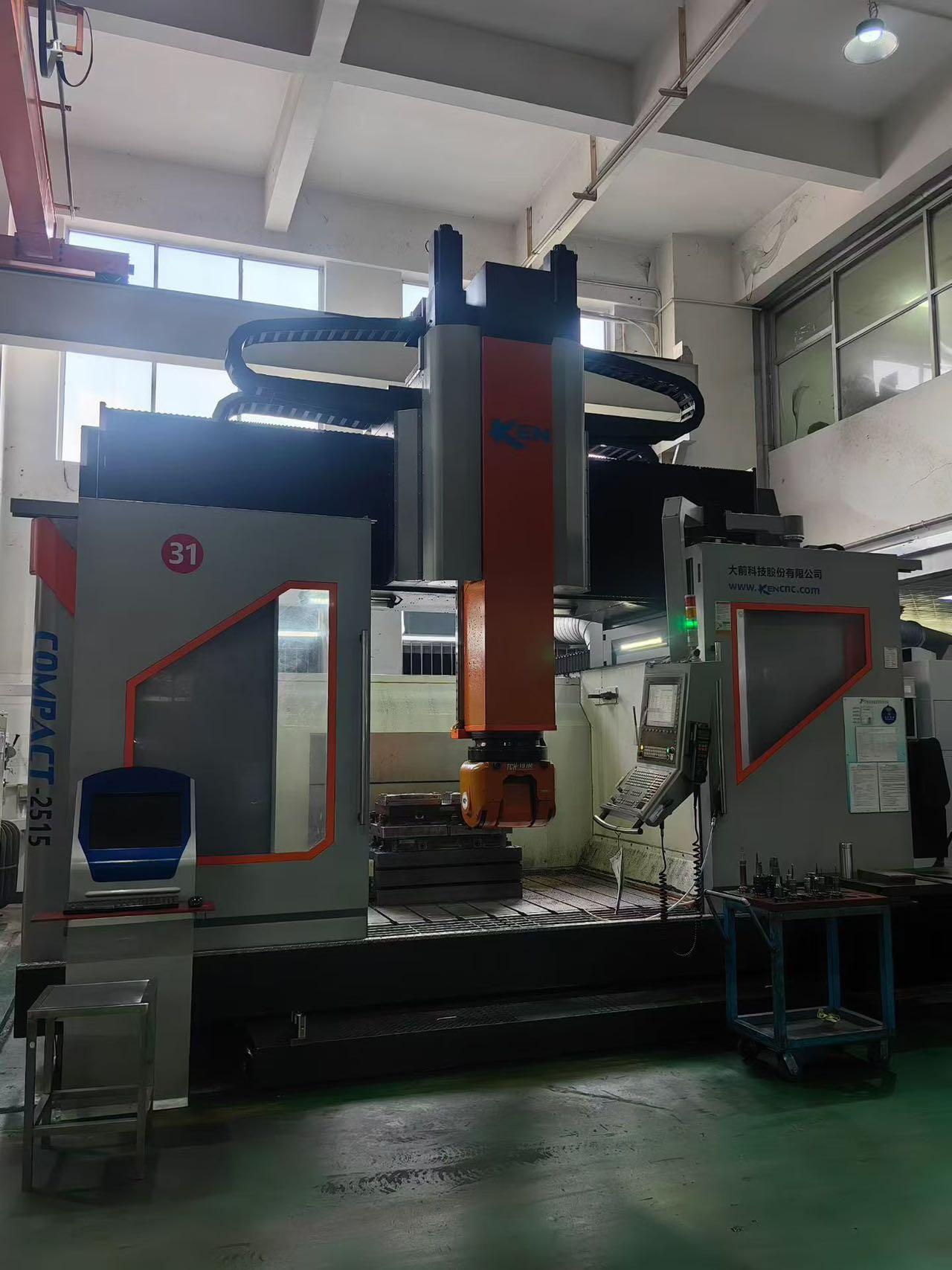

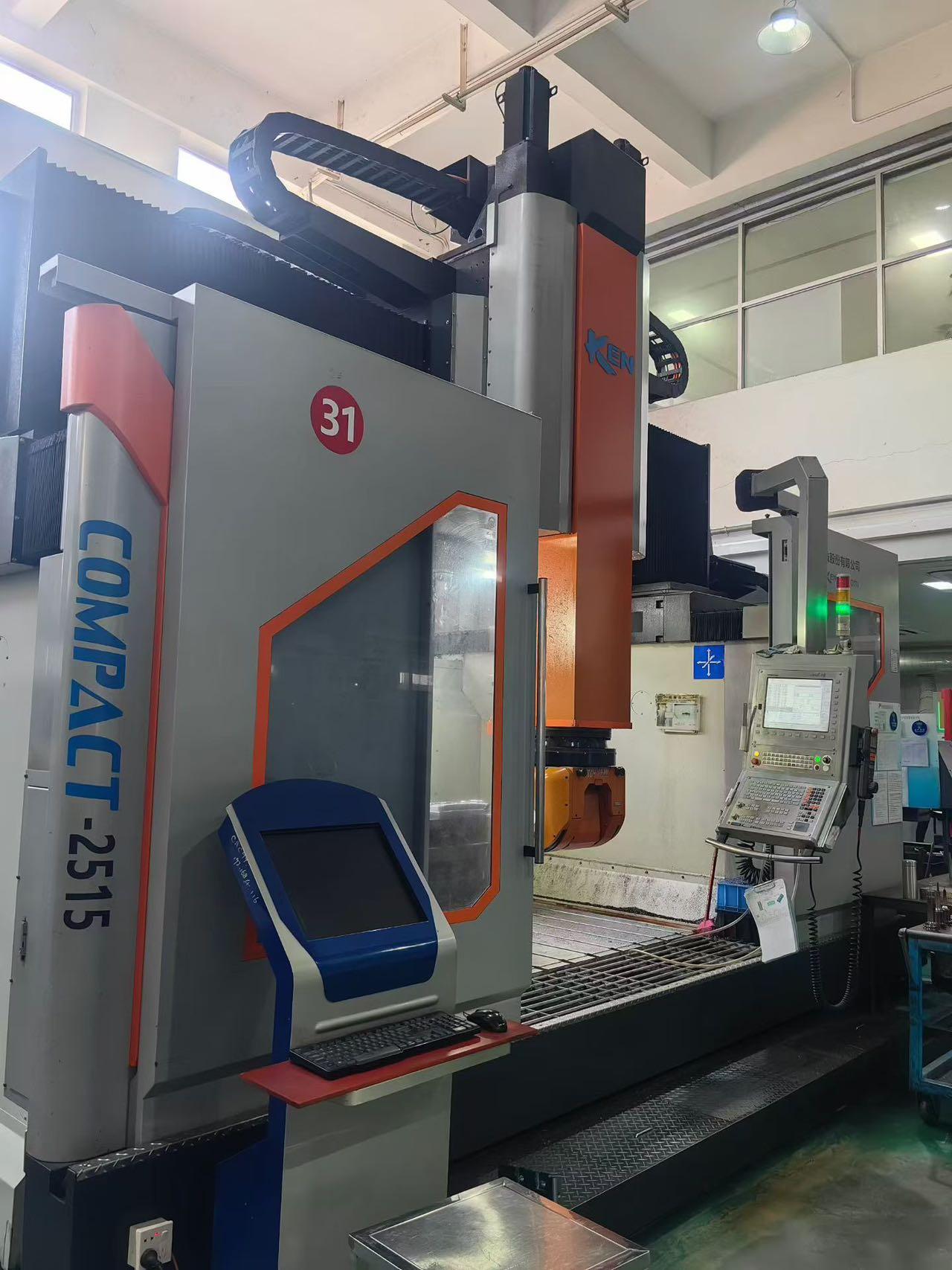

Ken COMPACT-2515 Gantry machining centre

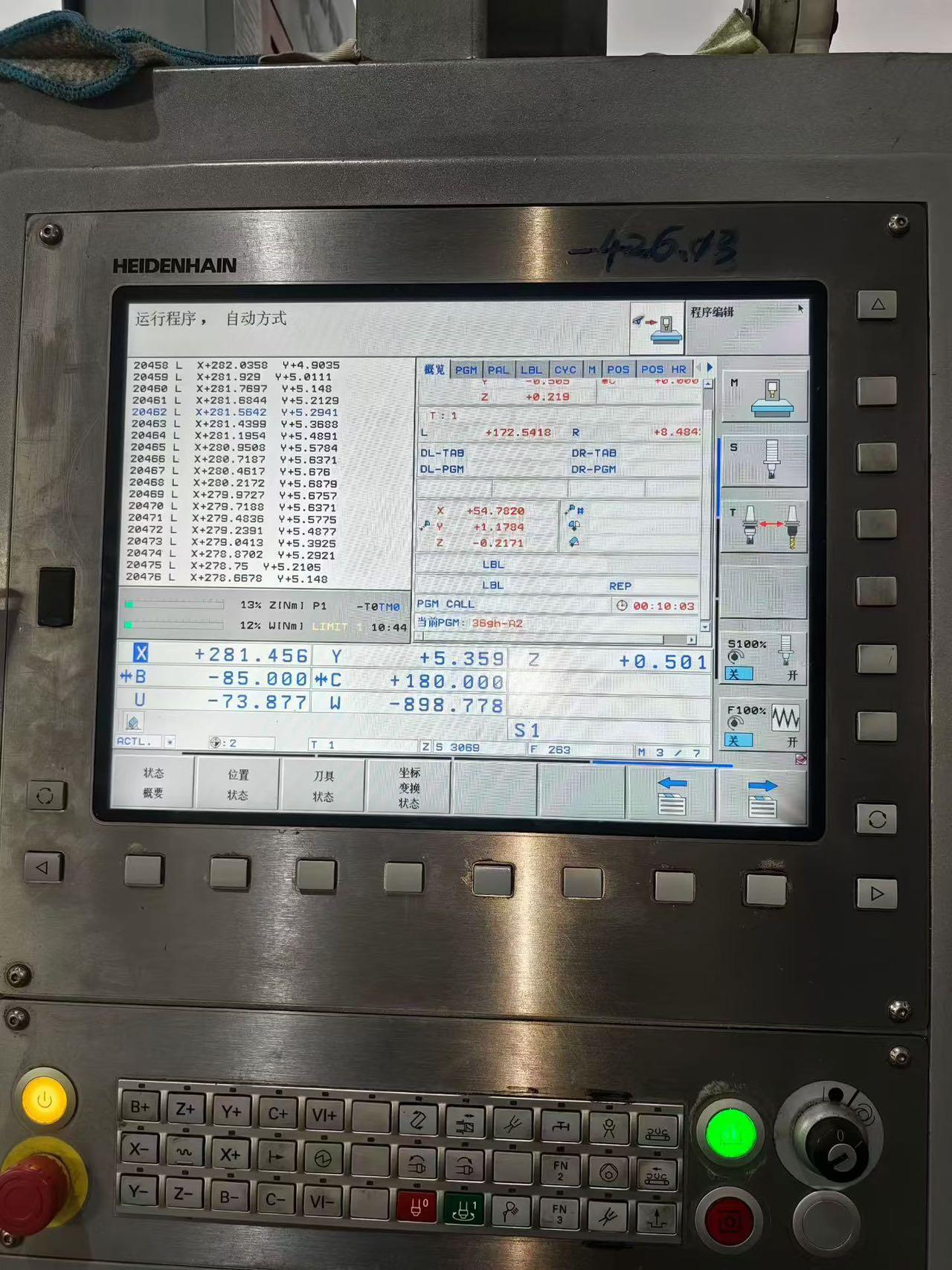

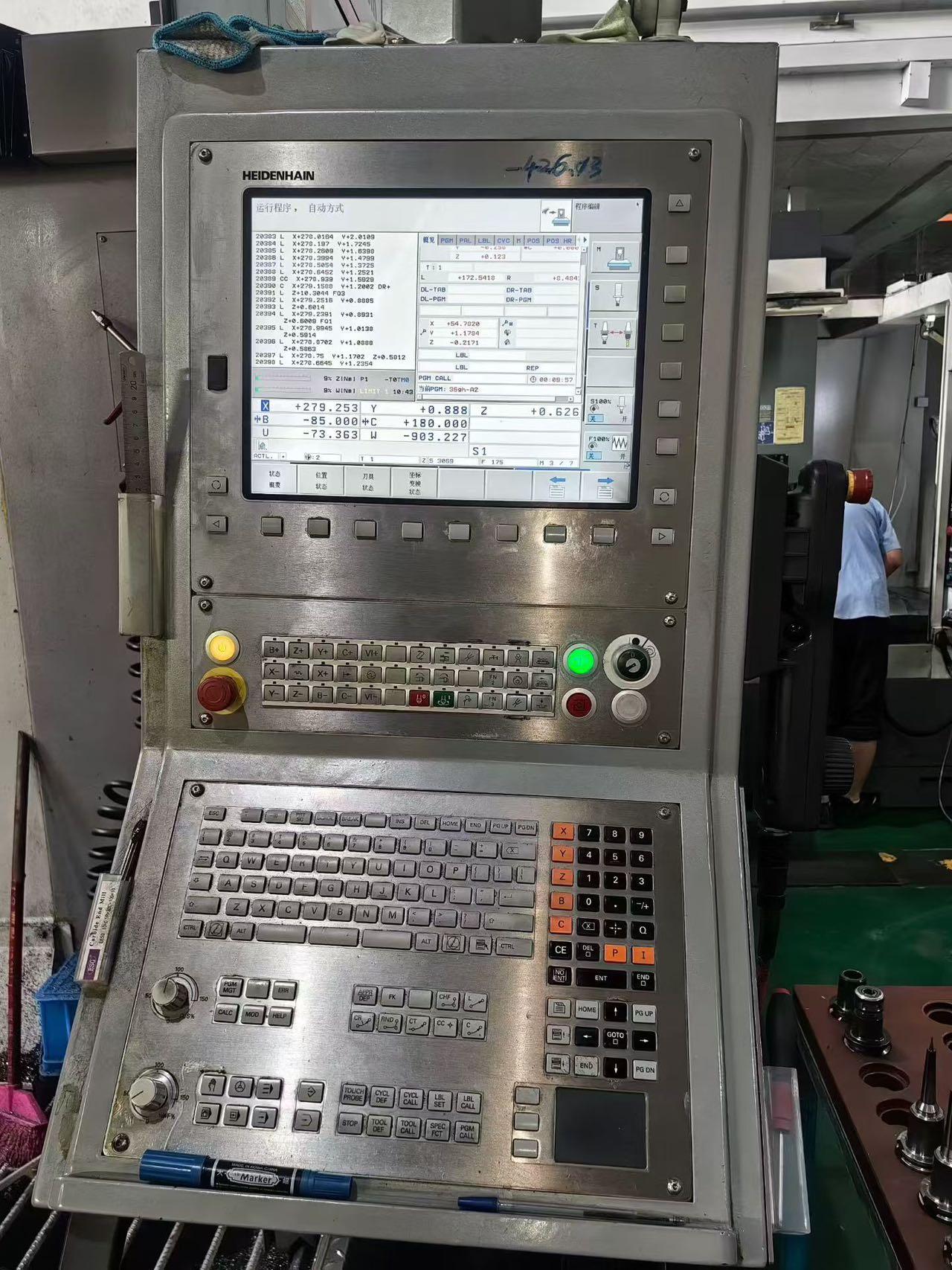

CNC CNC System: Heidenhain

Spindle speed: 24,000 RPM

spindle: HSK-A63

three-axis travel: 2500*1500*1000mm

Distance between columns: 3395mm

WorkWorktable size: 2500*1500mm

Distance between spindle nose and workWorktable surface: 350-1350mm

WorkWorktable load: 4000kg/㎡

magazine capacity: 30

Configuration

With a glass scale

Laser Tool aligner aligner Aligner

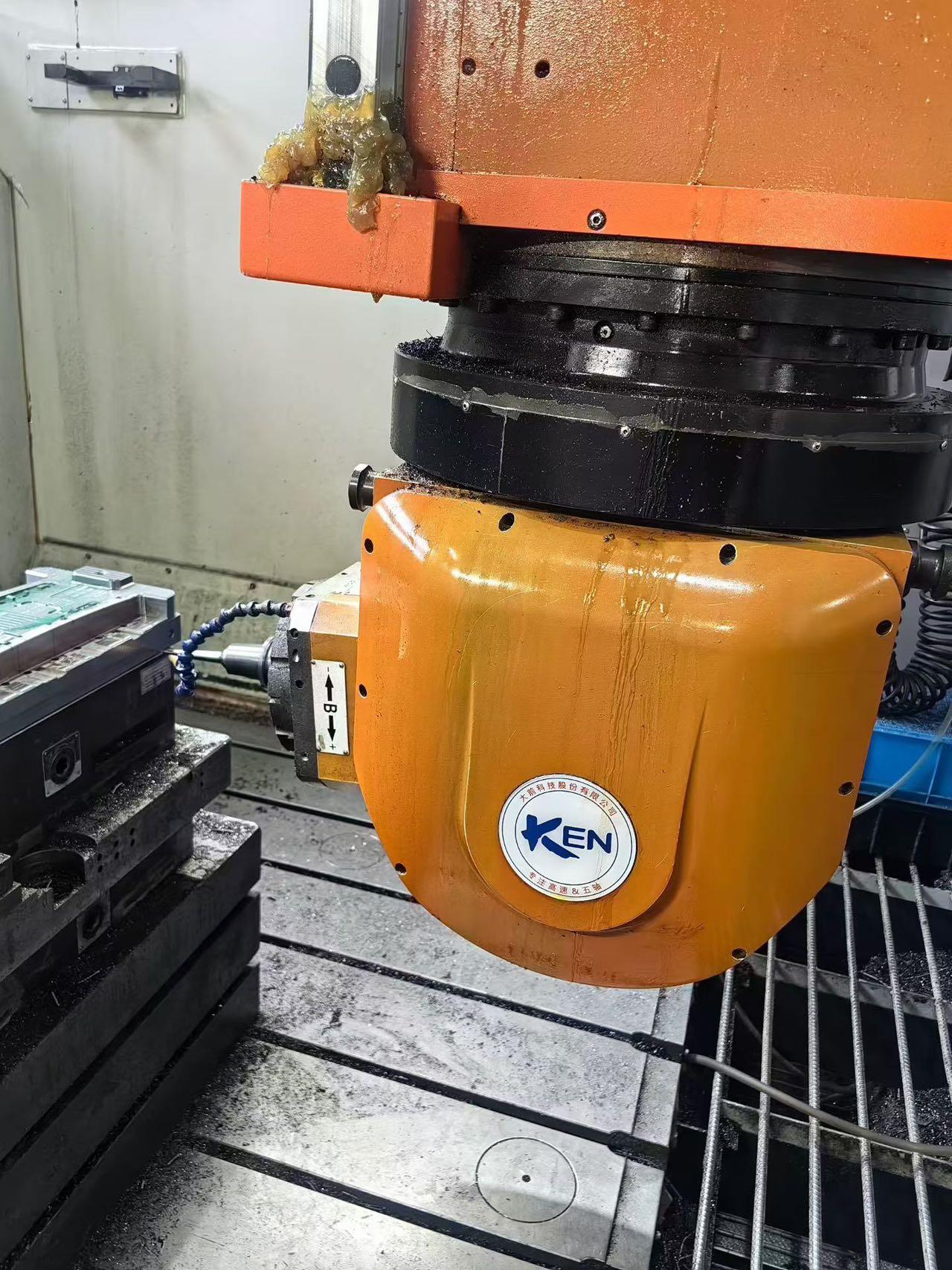

A63 spindle

Overall Footage: approximately 6139*5900*5980mm

Weight: Approximately 32 tons
