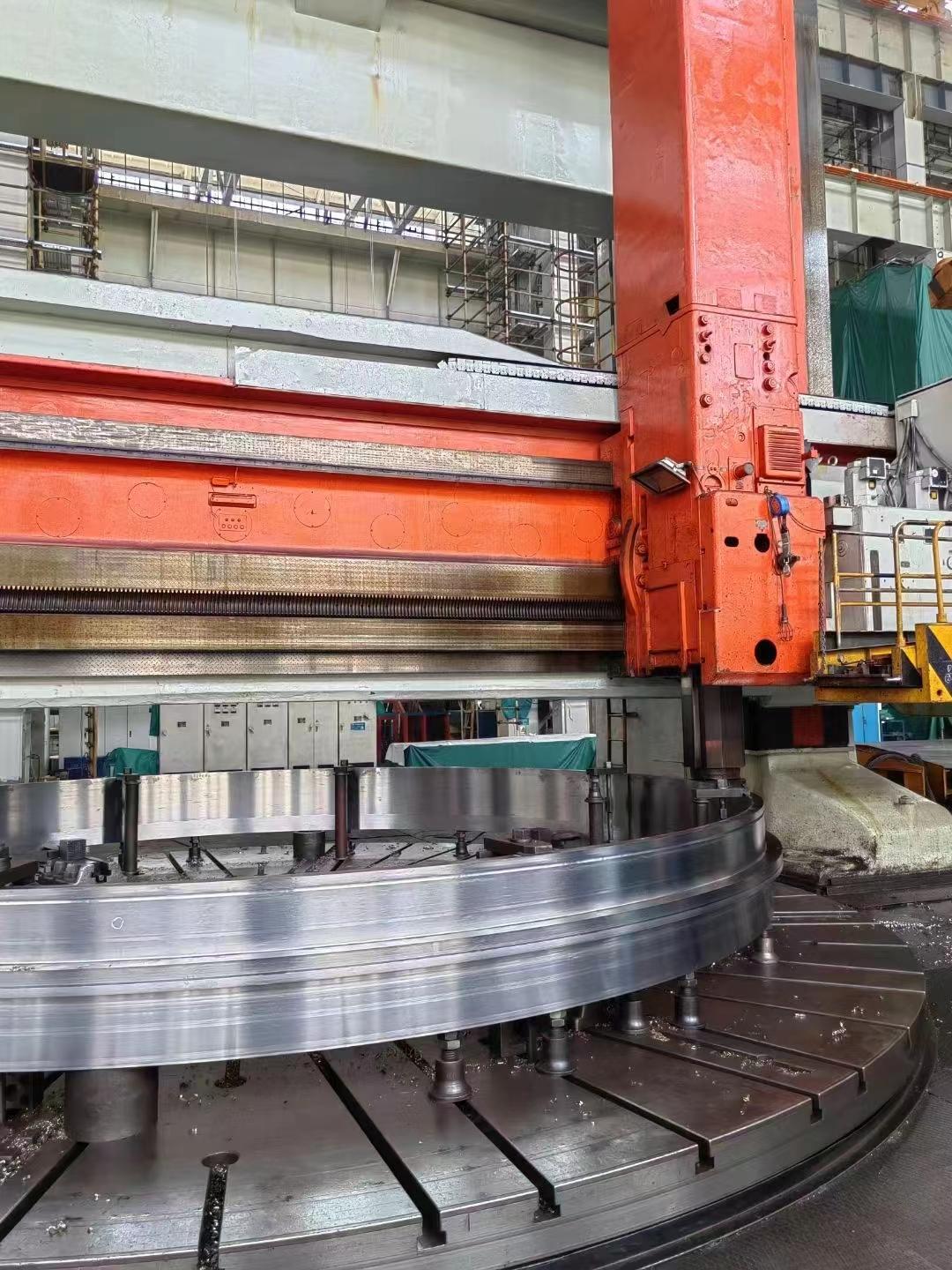

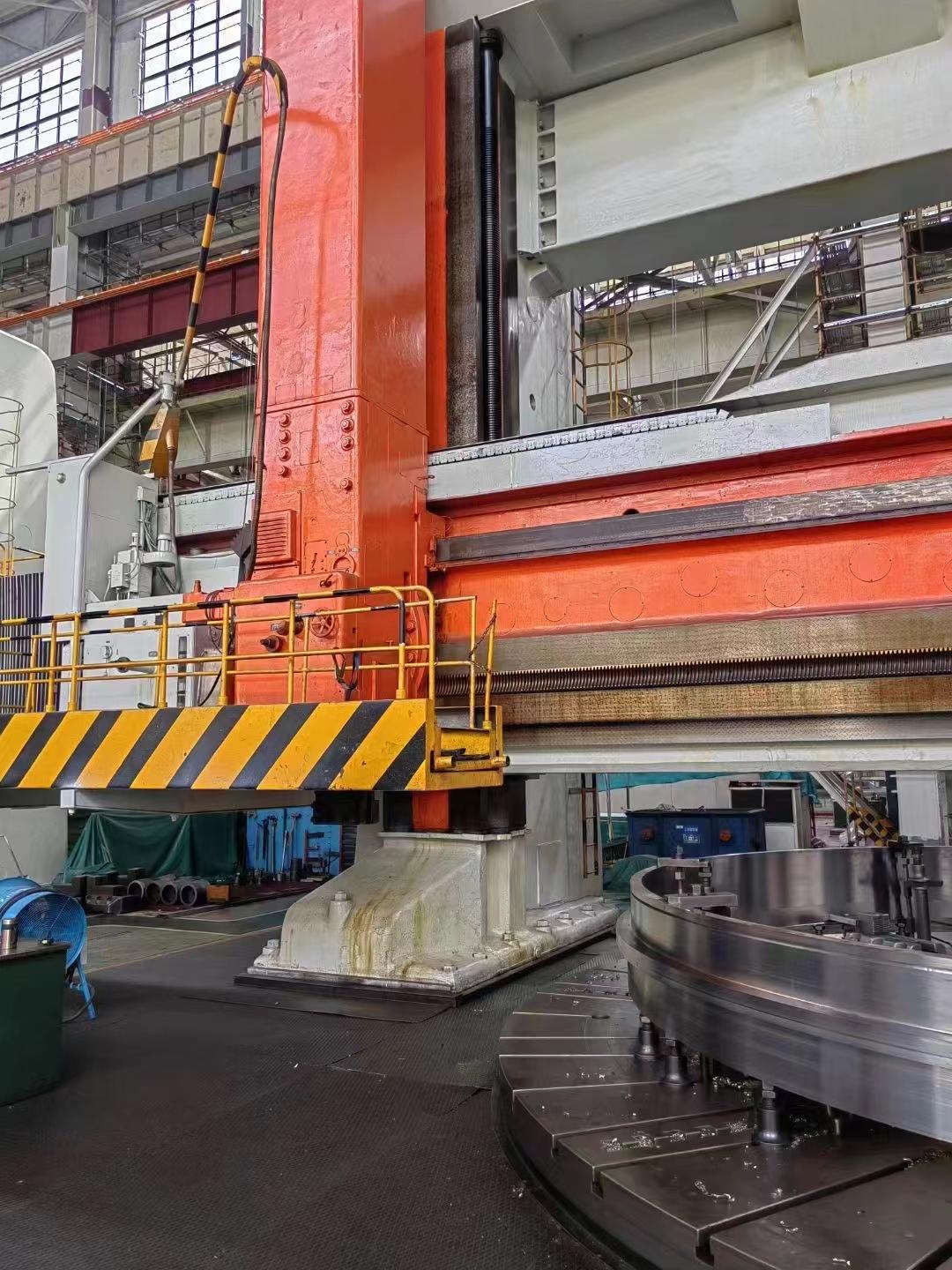

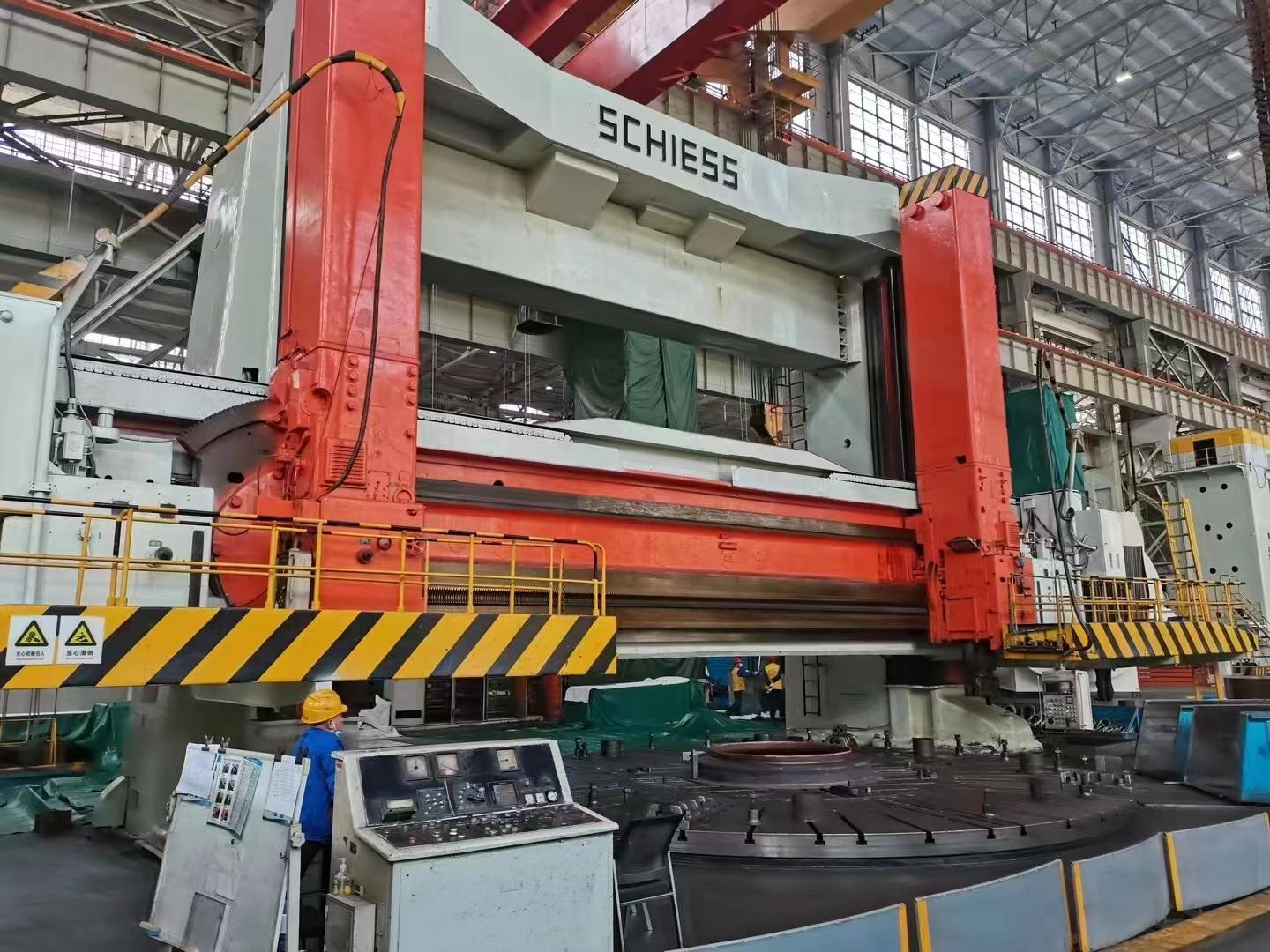

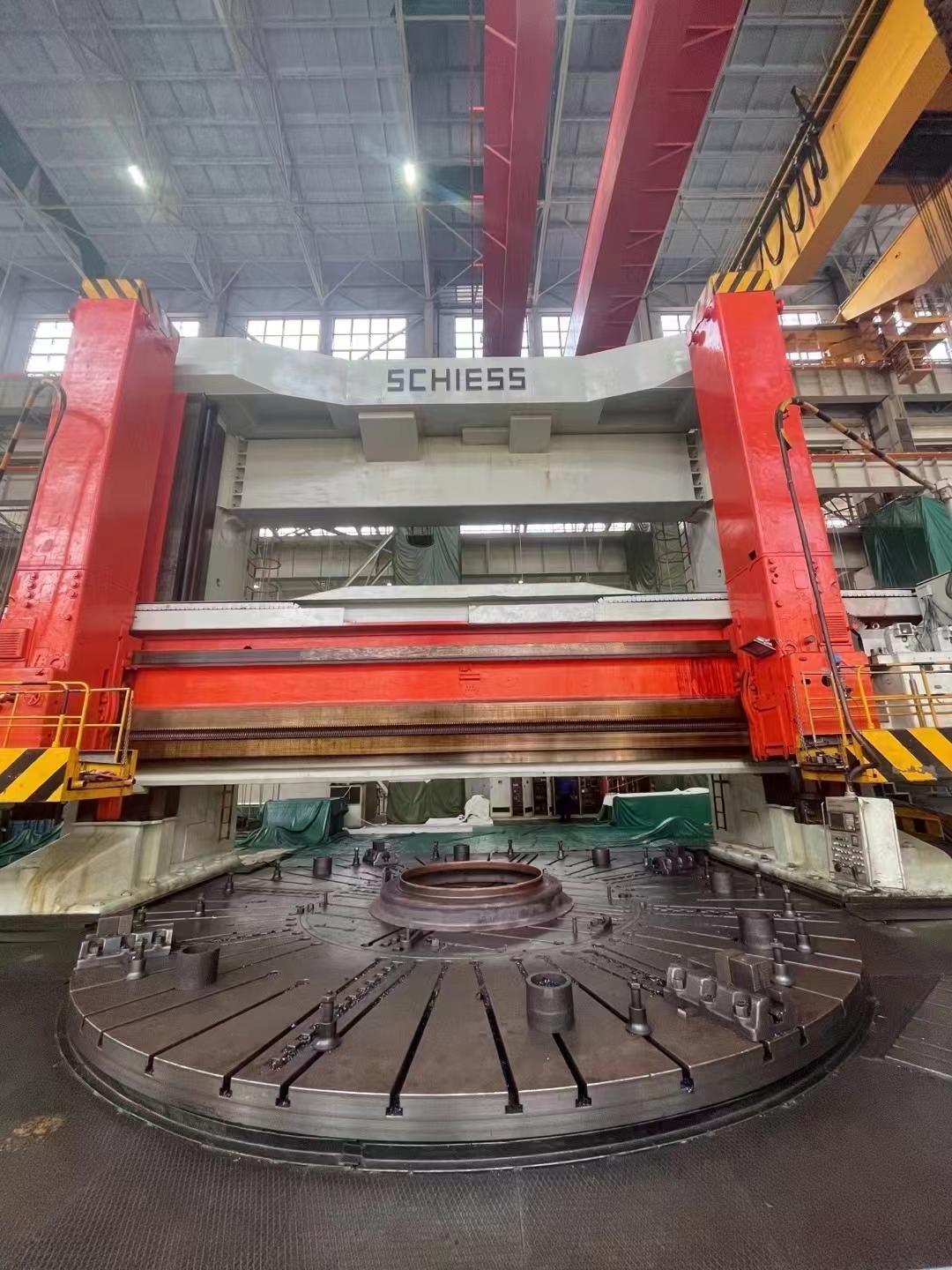

SCHIESS 12.5米 Gantry machining centre

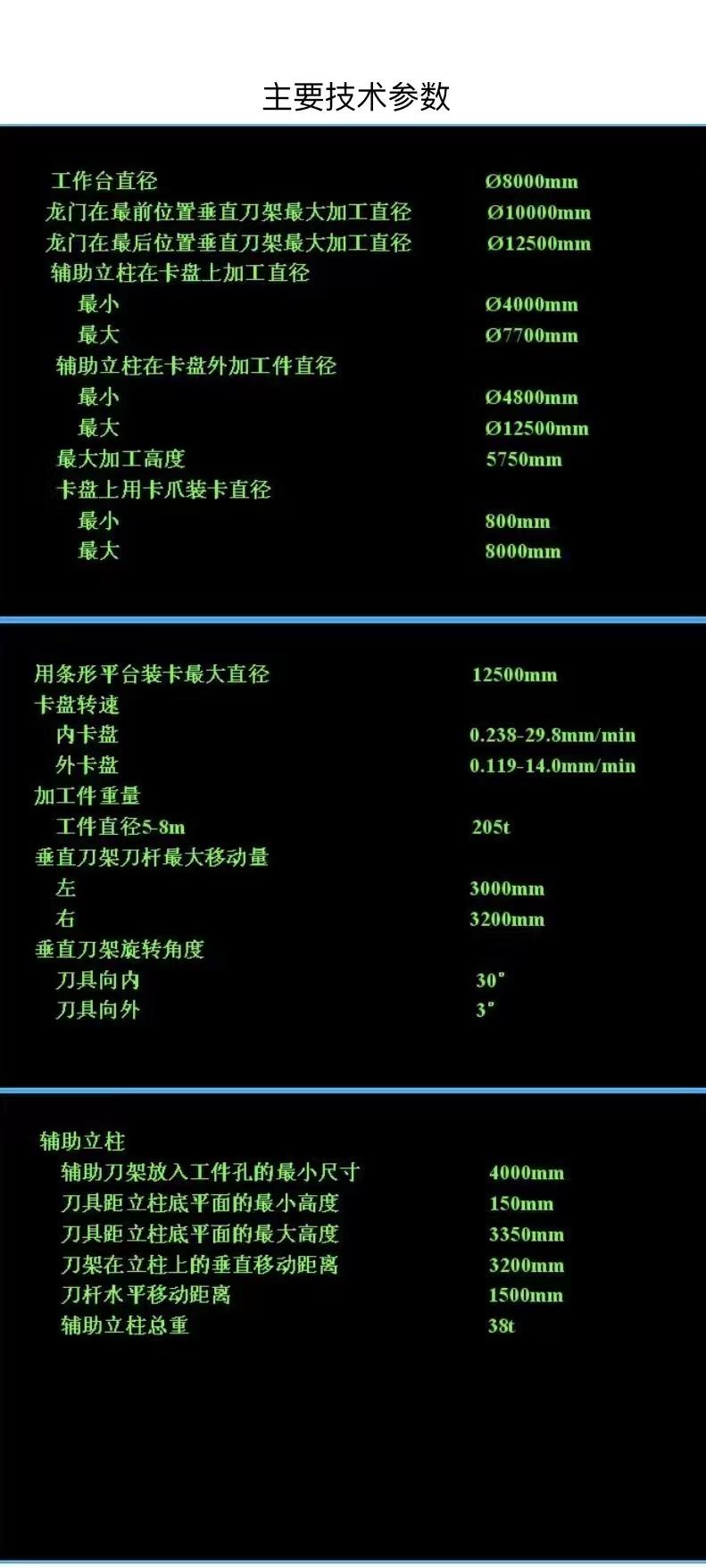

Worktable diameter: 8000mm

The maximum machining  diameter of the vertical tool holder in the front position of the gantry is 10000mm

Maximum machining  diameter of the vertical tool holder in the final position of the gantry: 12500min

Auxiliary column on chuck  machining  diameter: 7700mm

Auxiliary column in the chuck  outside the workpiece diameter: 12500mm

Maximum travel of vertical tool holder: 3000mm left, 3200mm right

Minimum size of auxiliary tool holder into workpiece hole: 4000mm

Minimum height of Tool from the bottom plane of the column: 150mm

The maximum height of Tool from the bottom plane of the column: 3350mm

Vertical moving distance of the tool holder on the column: 3200mm

Horizontal moving distance of tool bar: 1500mm

Total weight of auxiliary column: 38t

Maximum machining  height: 5750mm

chuck  with the clamp clamp diameter: 8000mm

Maximum diameter of card mounted on stravel platform: 12500mm

Inner chuck  speed: 0.238-29.8mm /min

External chuck  speed: 0.119-14.0mim/min

Workpiece weight: 205t
