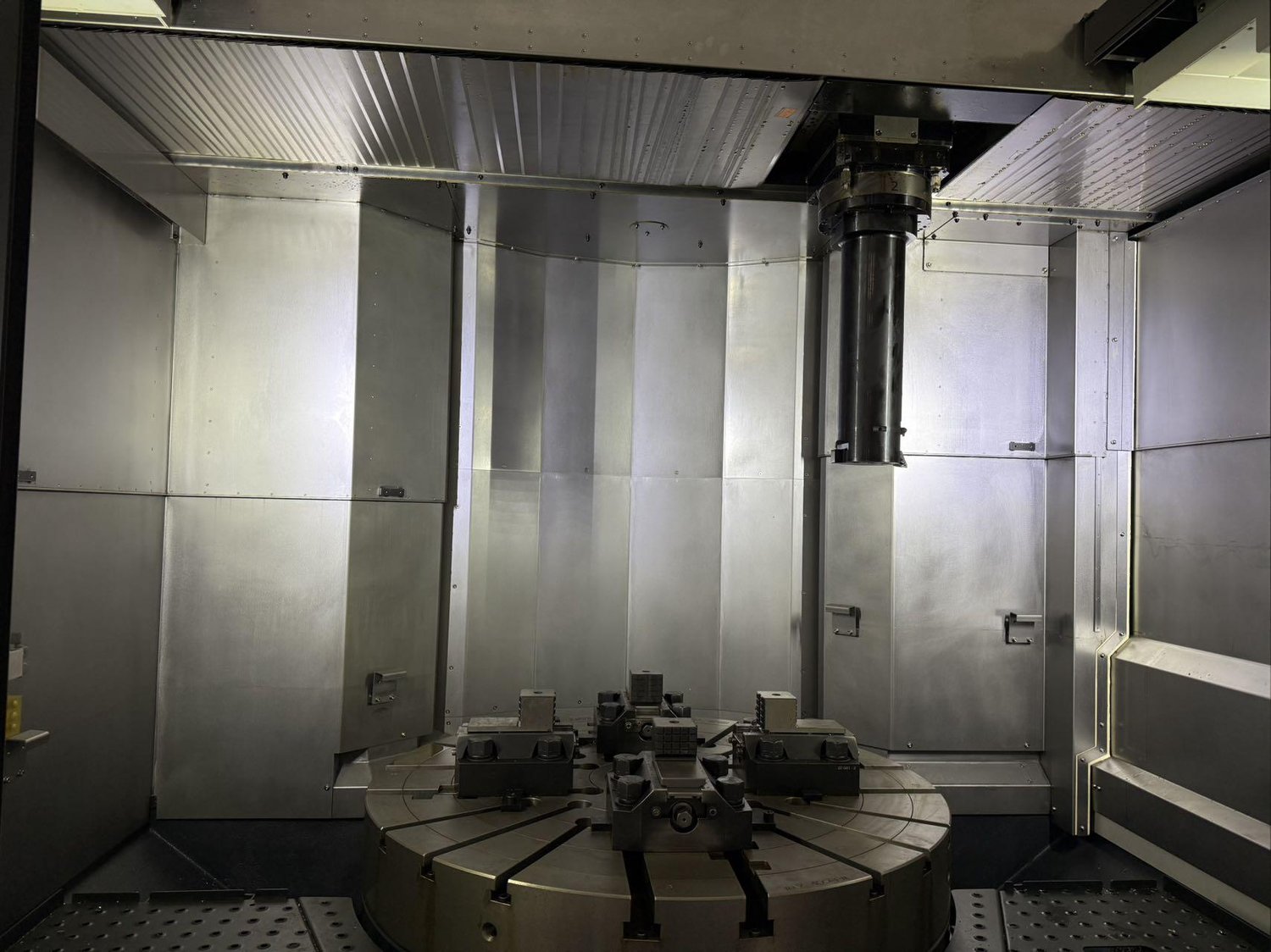

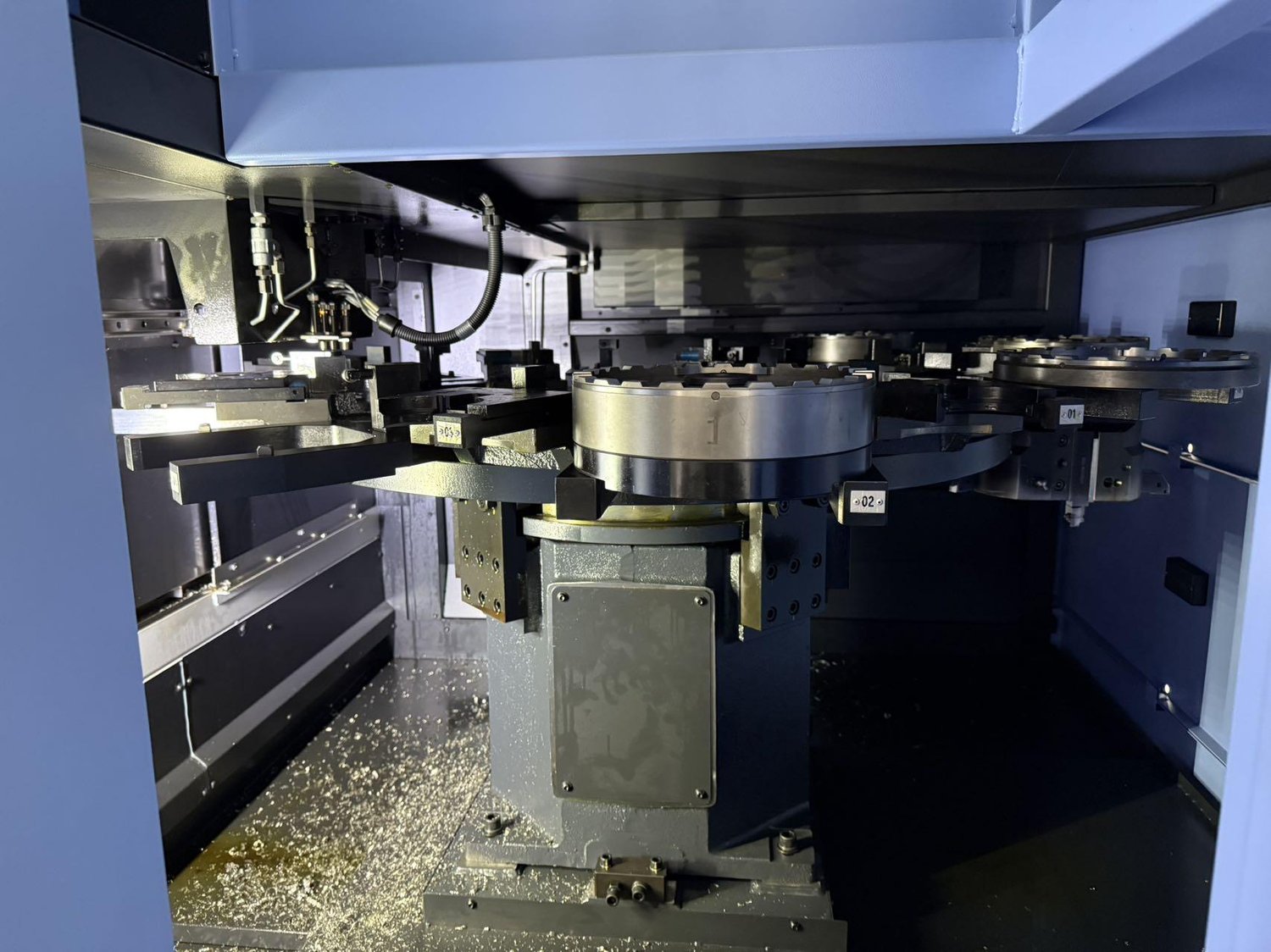

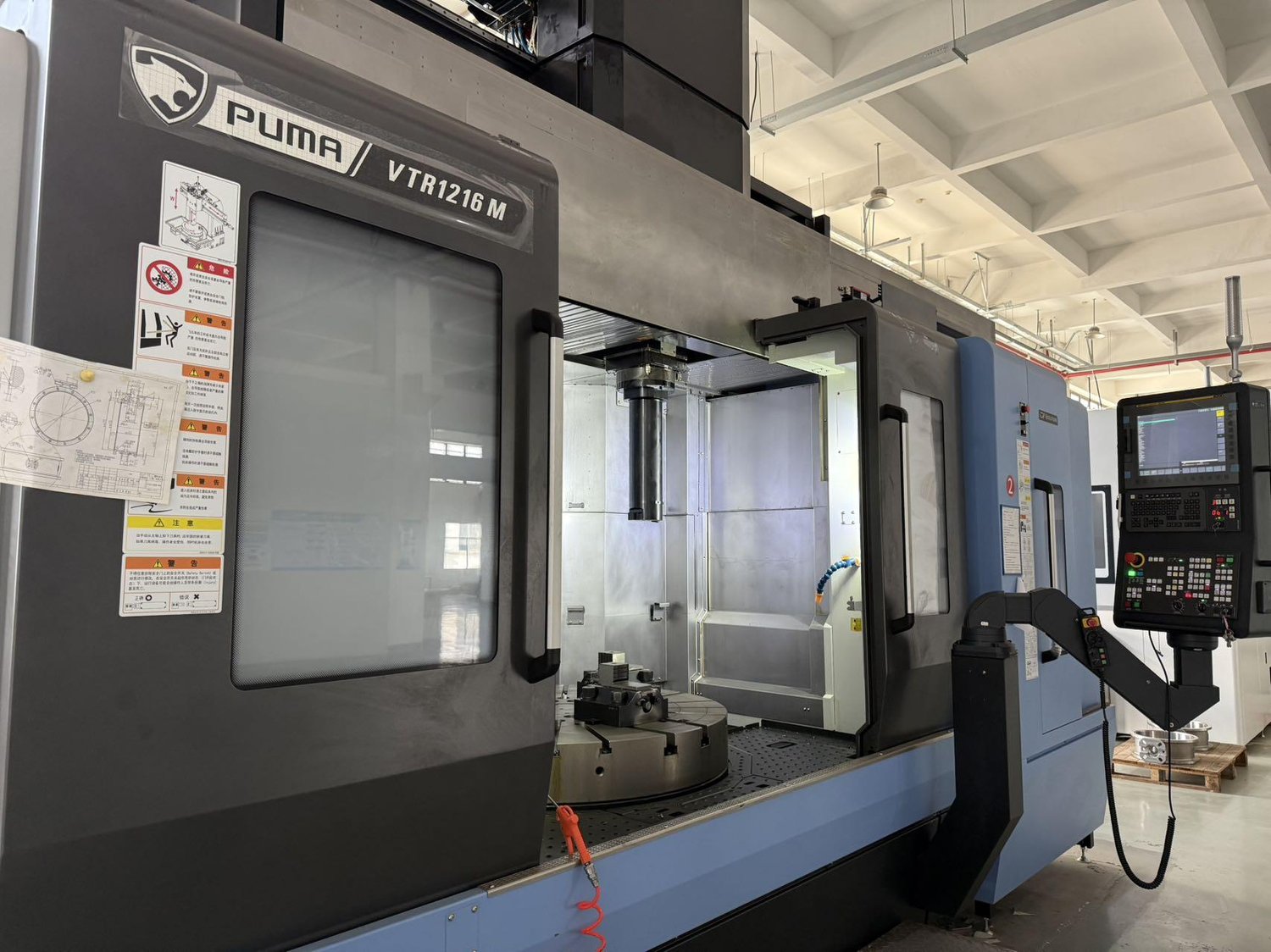

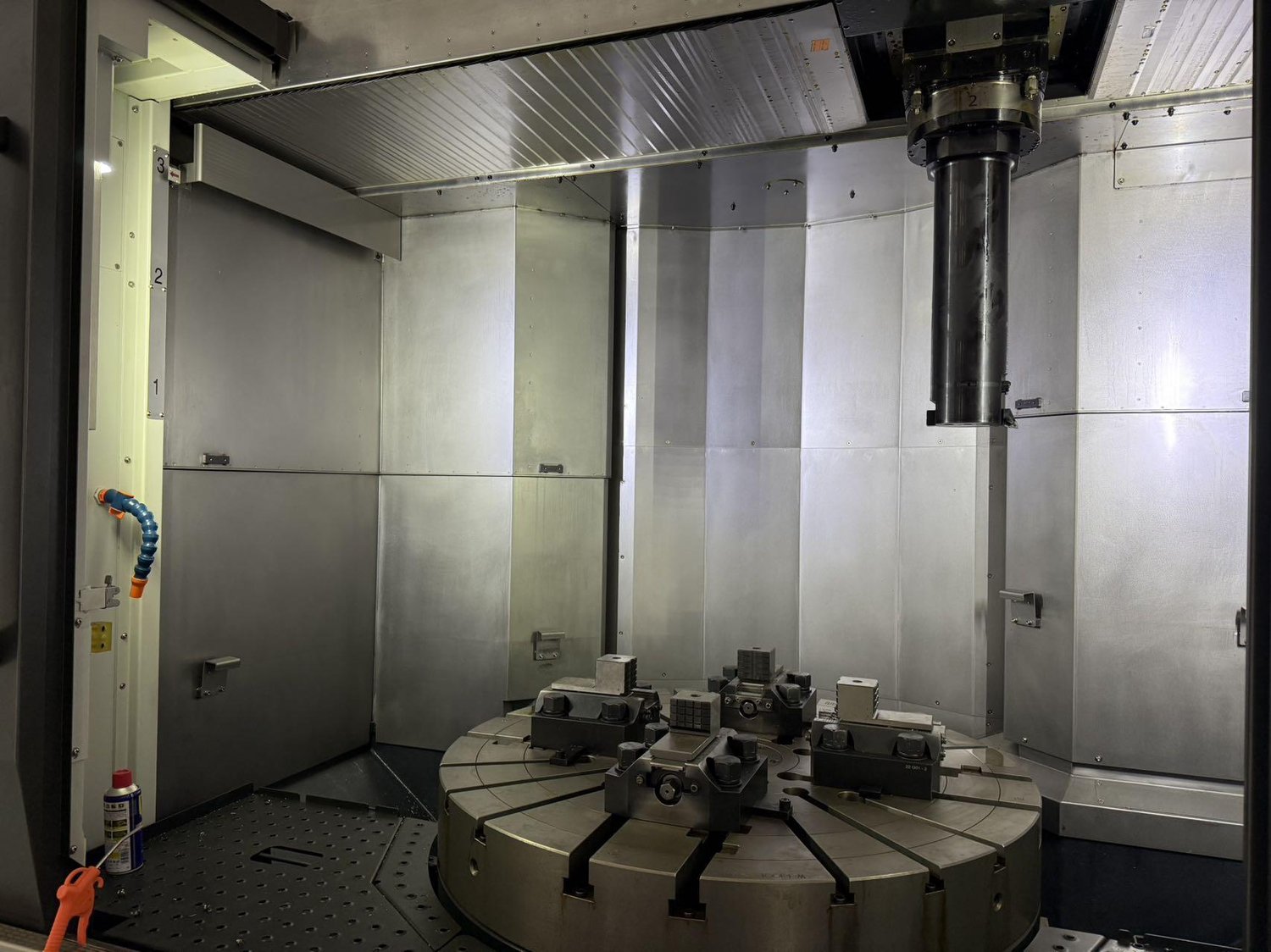

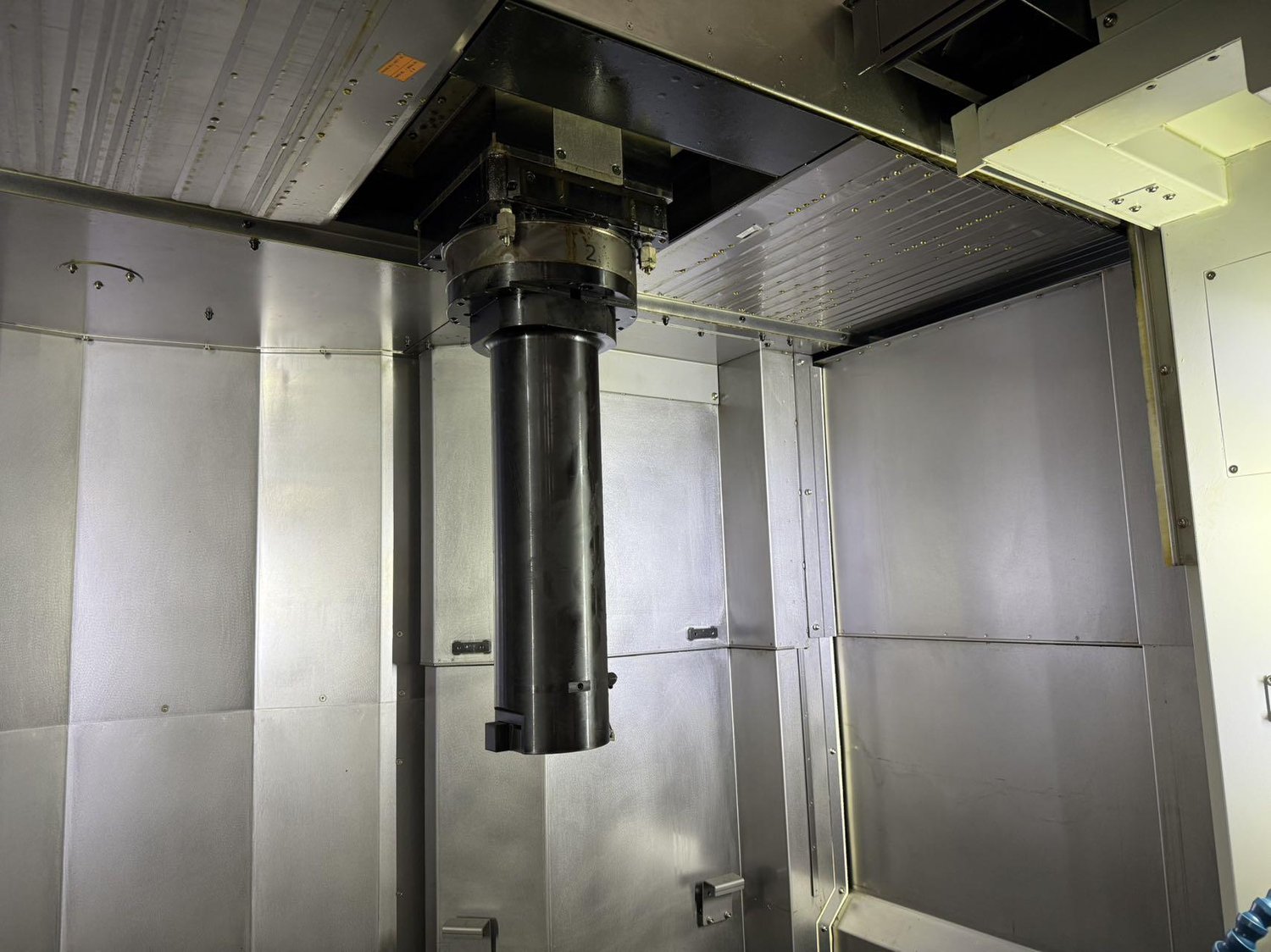

DOOSAN VTR1216M Turn Mill Machining Centre
[Product Information]:
- Inventory number：66144
- Brand：DOOSAN
- Model： VTR1216M
- Origin：South Korea
- Location：China
- Year：2023
- Create Time：2025-10-24
Specifications:
X/Z/W travel: 1000*1200*500mm
Minimum rotation Angle of the C-axis: 0.001°
X-axis Fast moving rate: 12m/min
Z-axis Fast moving rate: 10m/min
The maximum rotation diameter of the bed: 1700mm
Recommended turning diameter: 1250mm
Maximum turning diameter: 1600mm
Maximum machining height: 1250mm
The maximum load (including the chuck ) is 8,000 kg
spindle speed: 400rpm
Motor power: 45/37 kW
The maximum Tool length for turning is 500mm
mill: 350mm
Diameter of the frame: 100mm
Maximum speed of C-axis: 3000rpm
The X/Z axis is equipped with a glass scale and an oil chiller for spindle

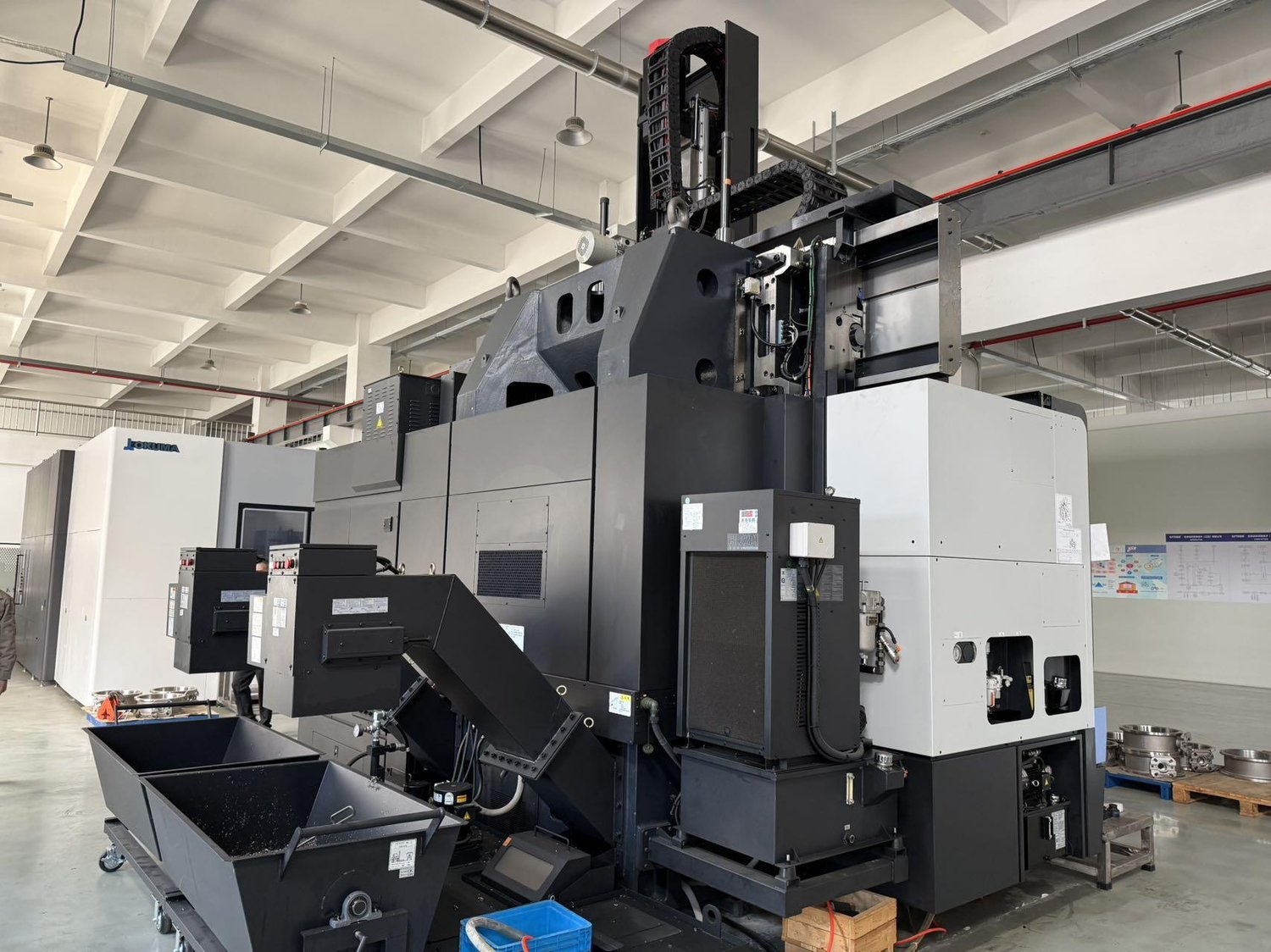

Equipped with a center flushing outlet and a chip conveyor
