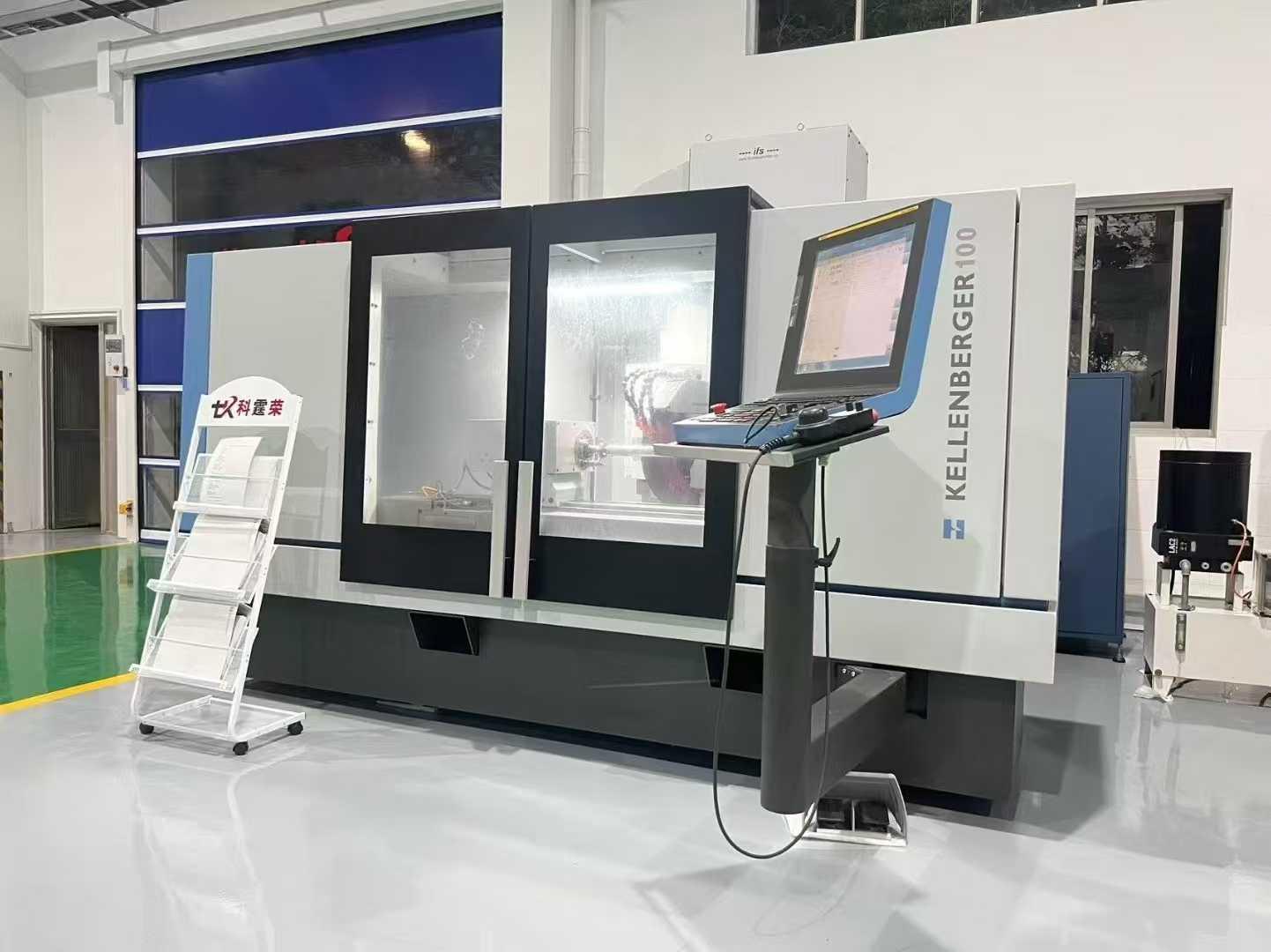

Kellenberger K100 Grinding machines

The rotational speed of the inner cylindrical grinding head is 40,000 RPM

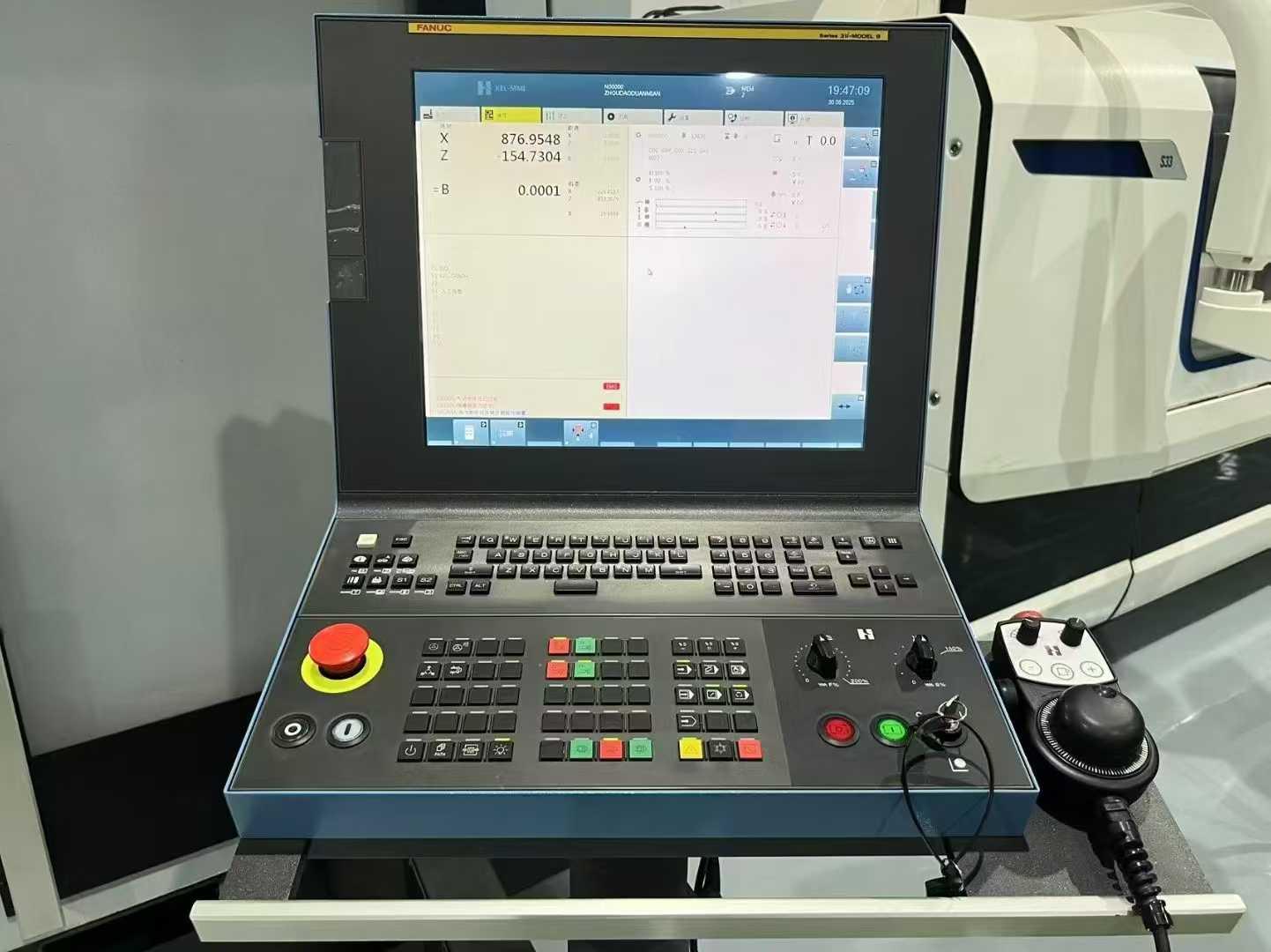

CNC System :FANUC  31i-MODEL  B

Center height: 200mm

Maximum grinding length: 1000mm

B-axis direct drive motor, with an arbitrary rotation Angle of 0.0001

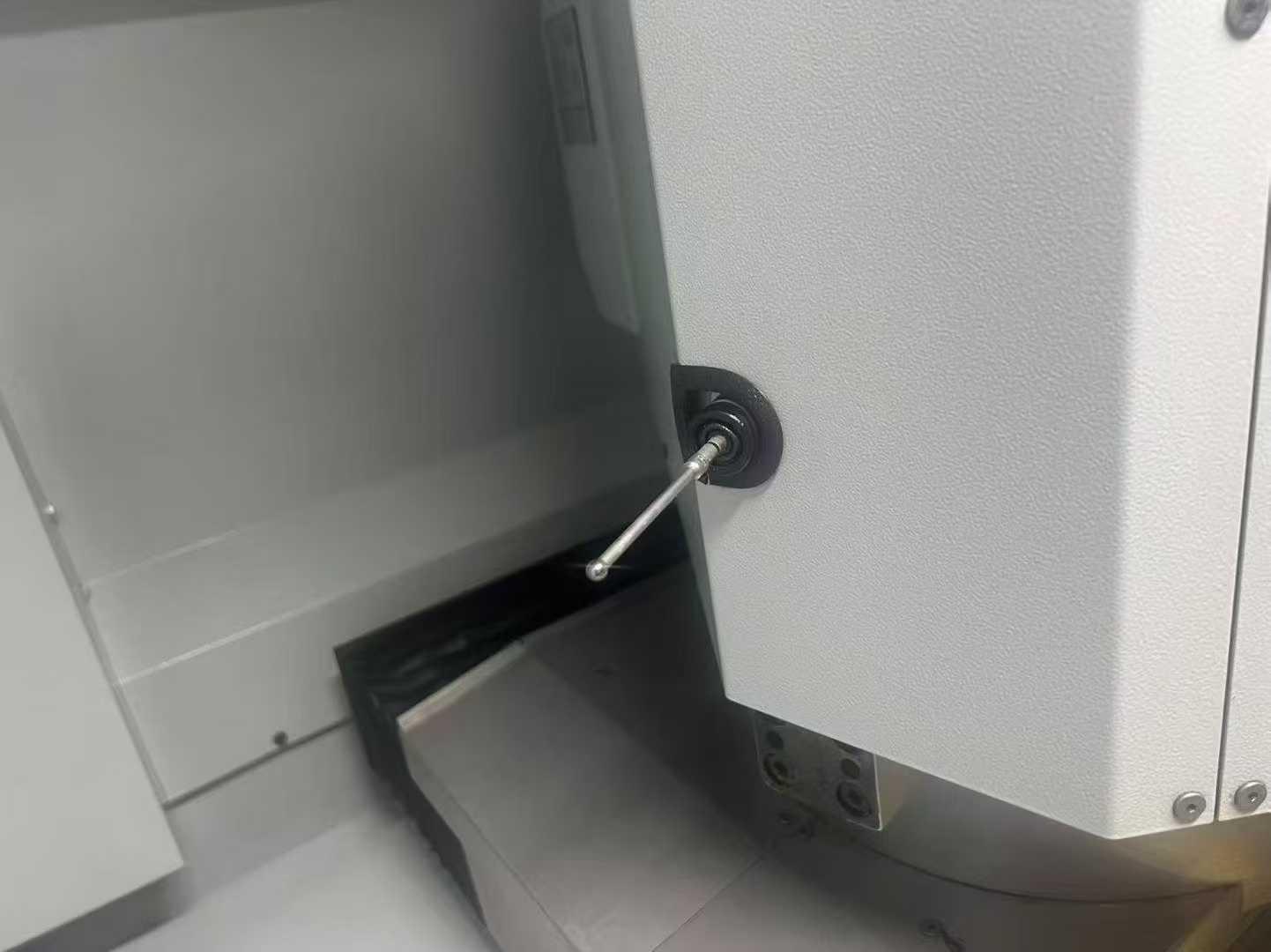

Equipped with an end face measuring instrument

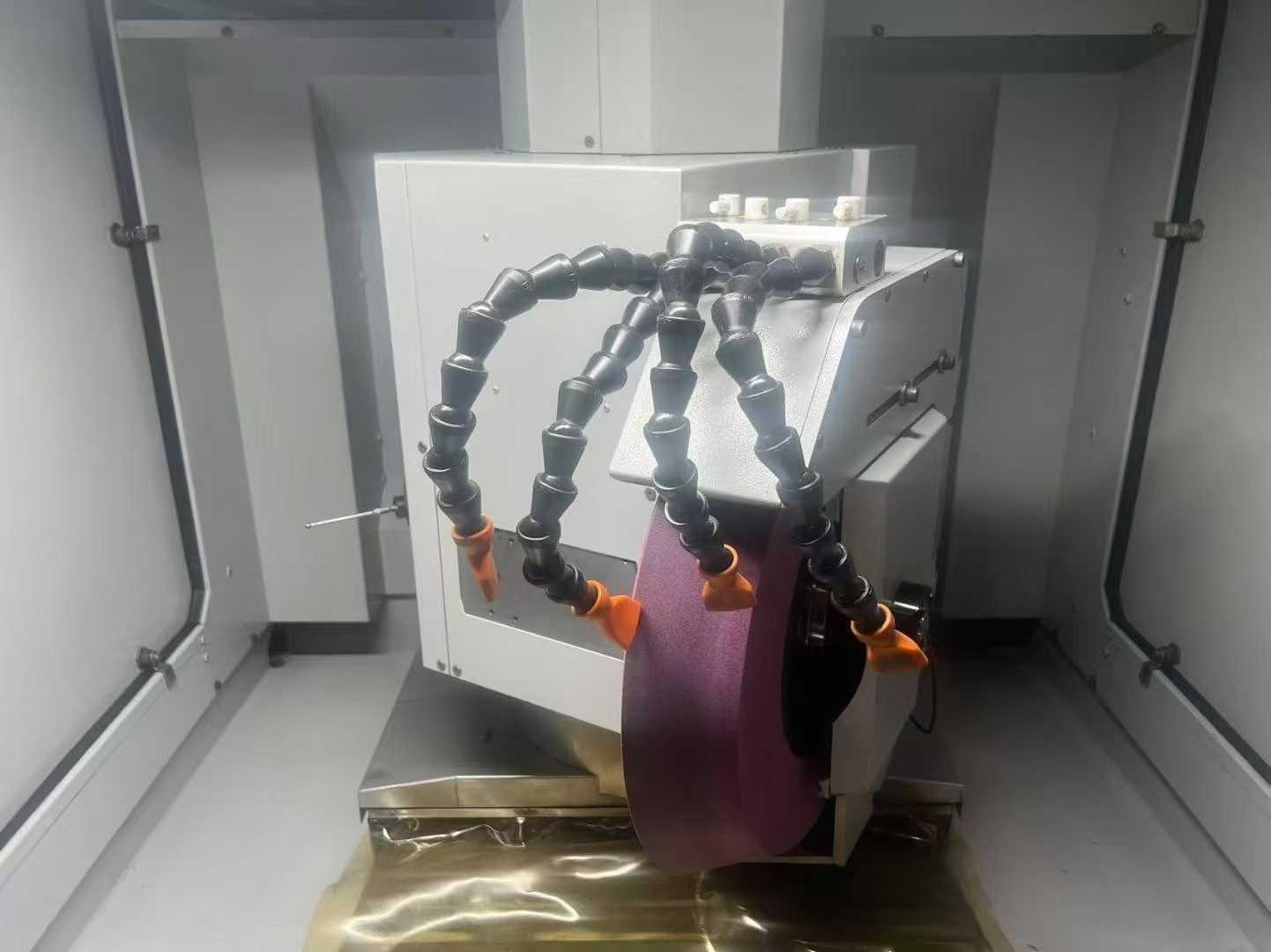

Dynamic balance of grinding wheel

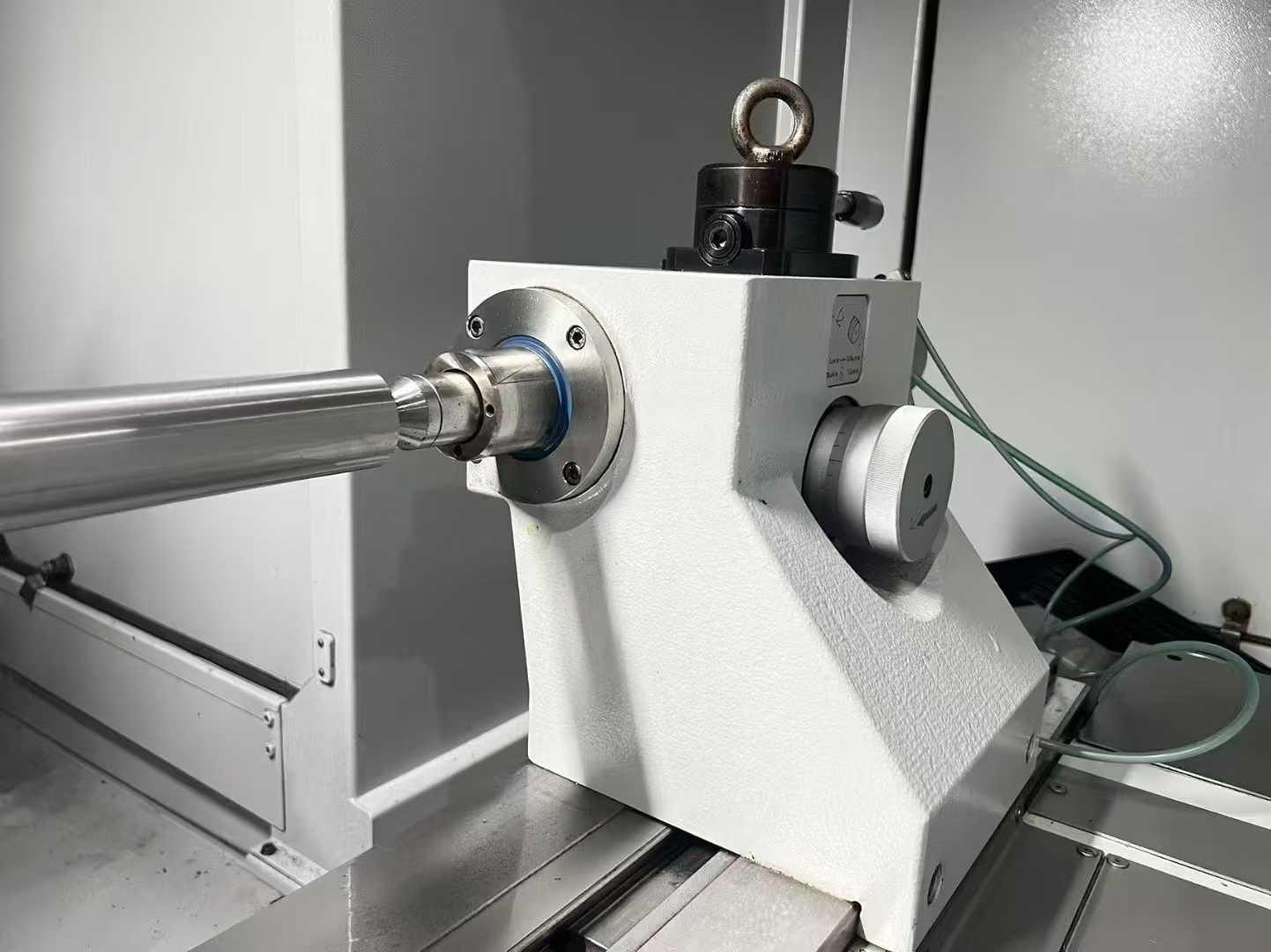

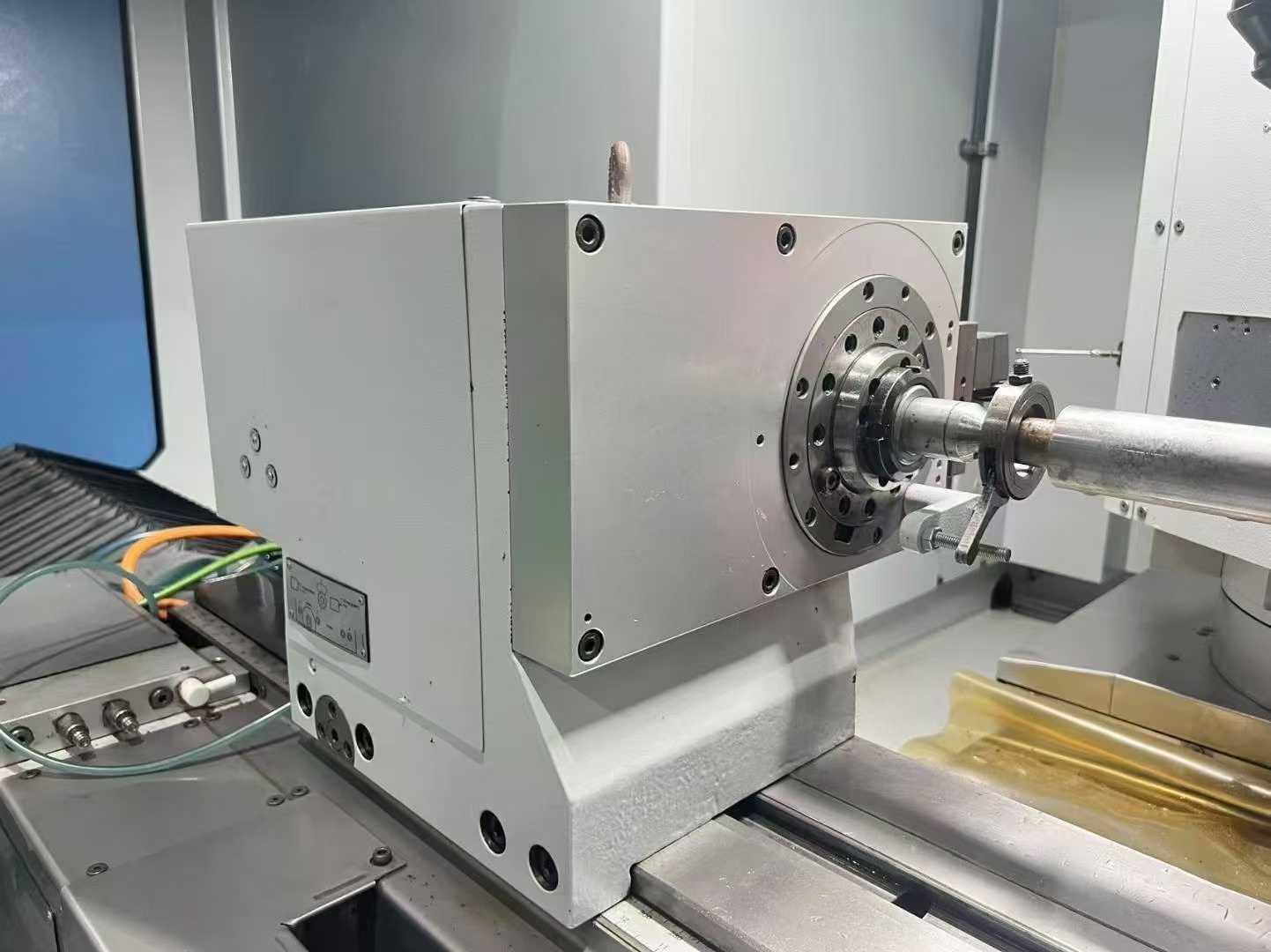

Universal workpiece headstock

It can switch between living top and dead top

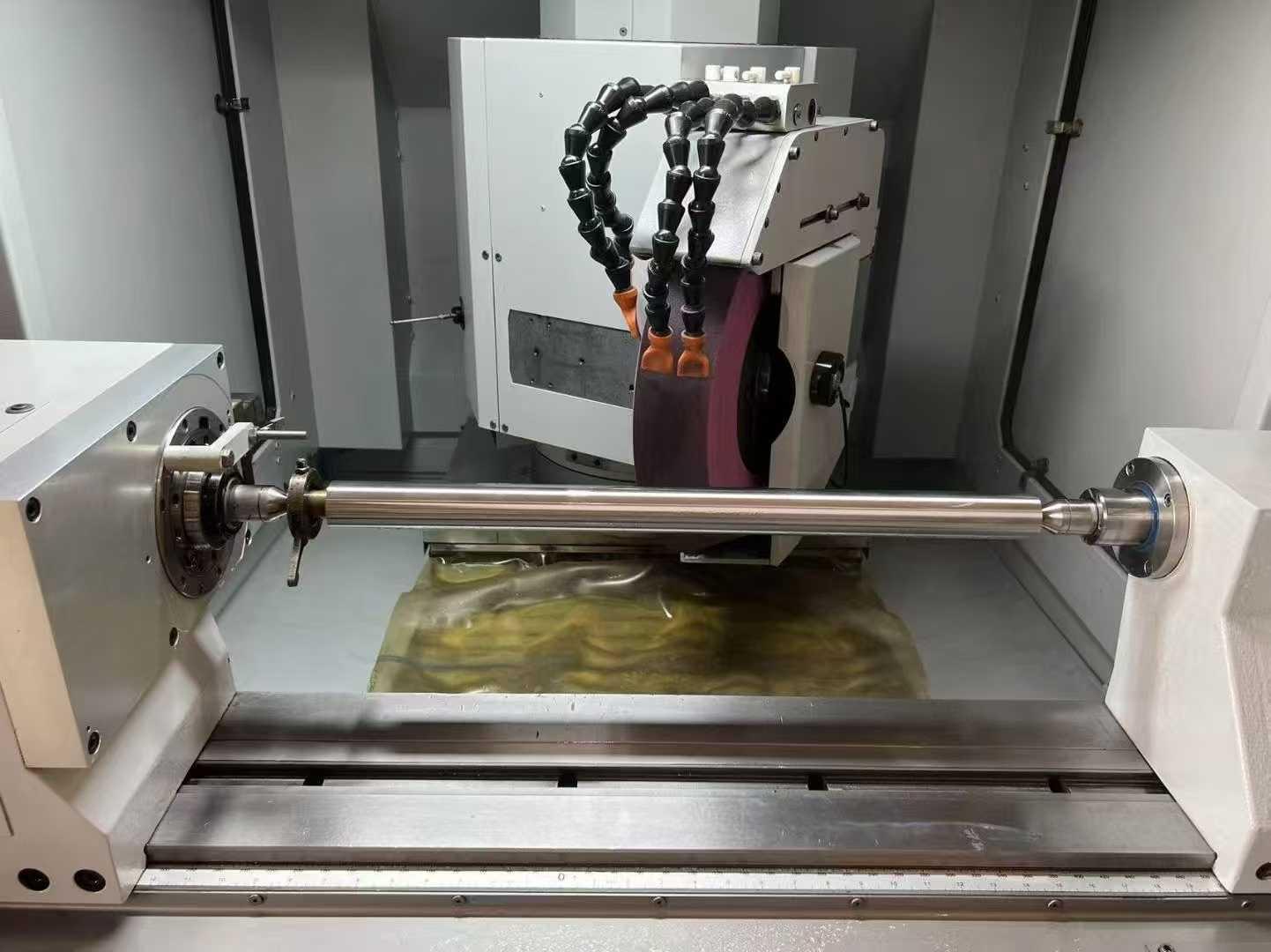

The maximum load of the two top points is 100kg
