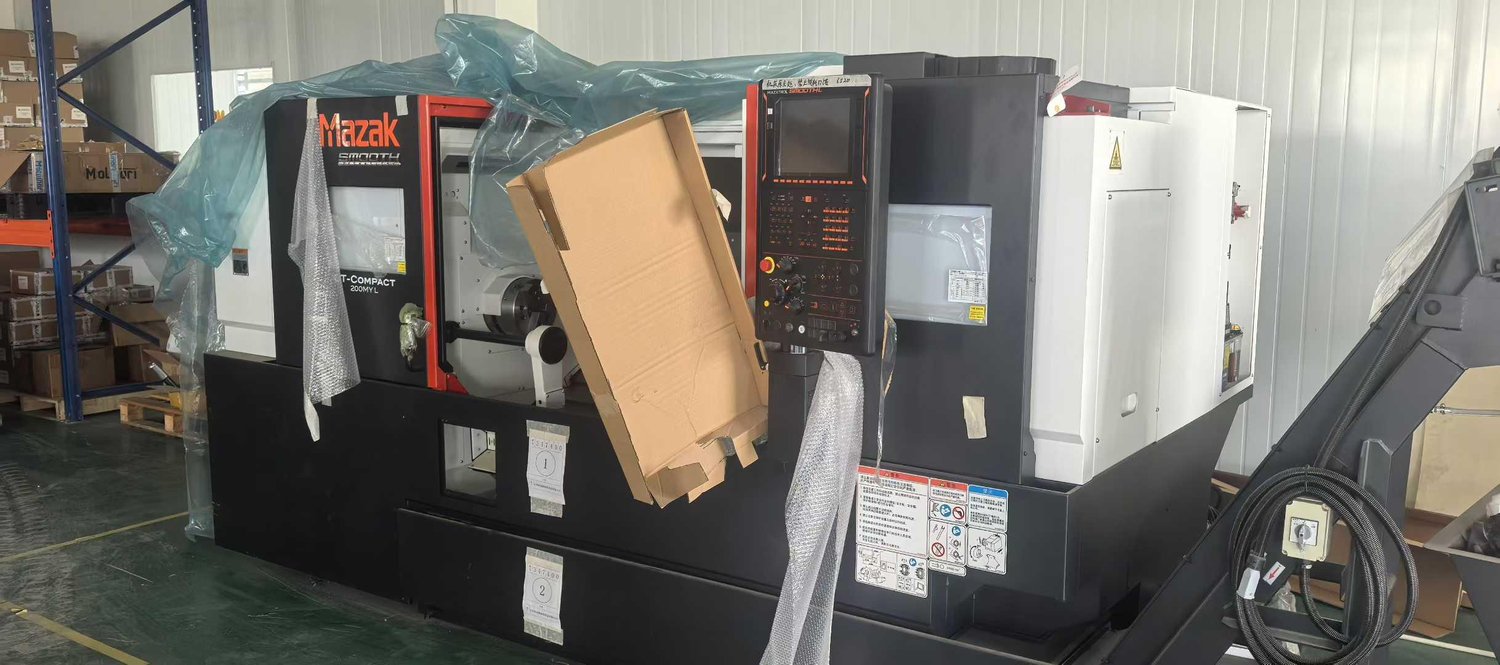

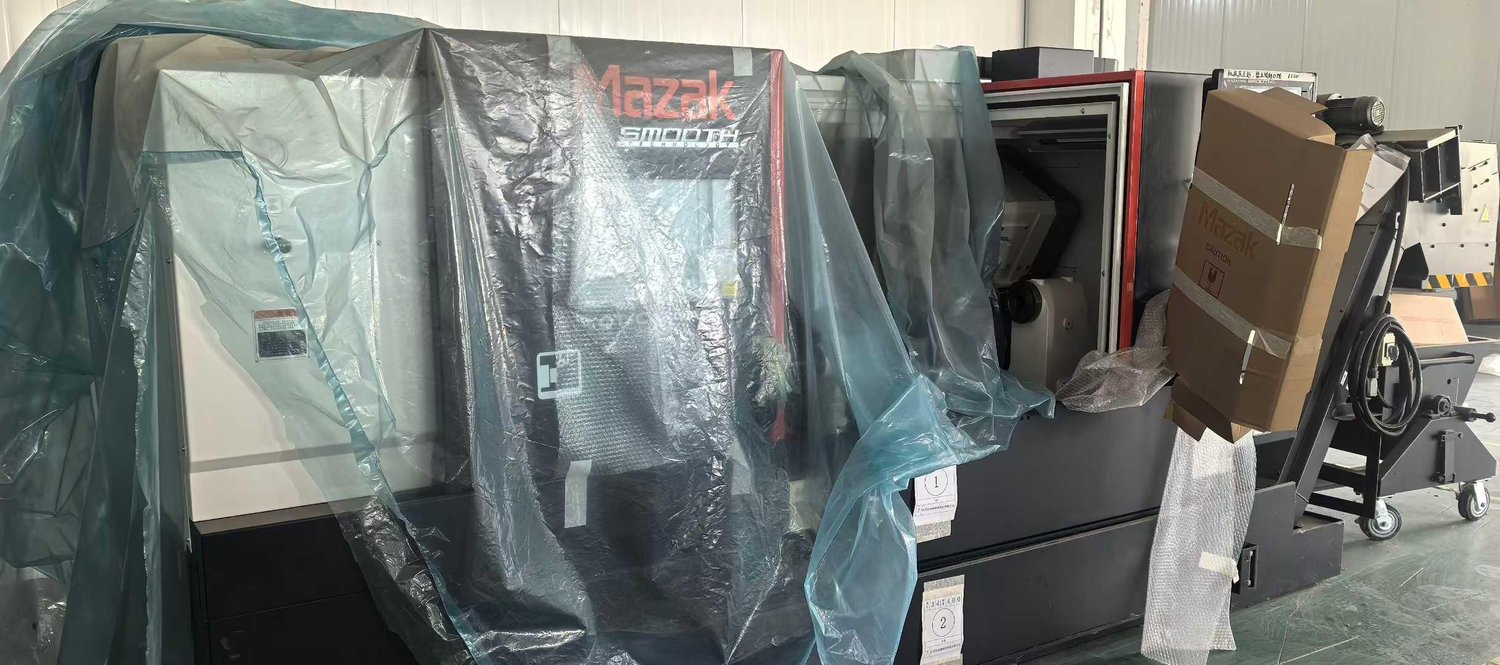

MAZAK QT-COMPACT 200MYL Turn Mill Machining Centre

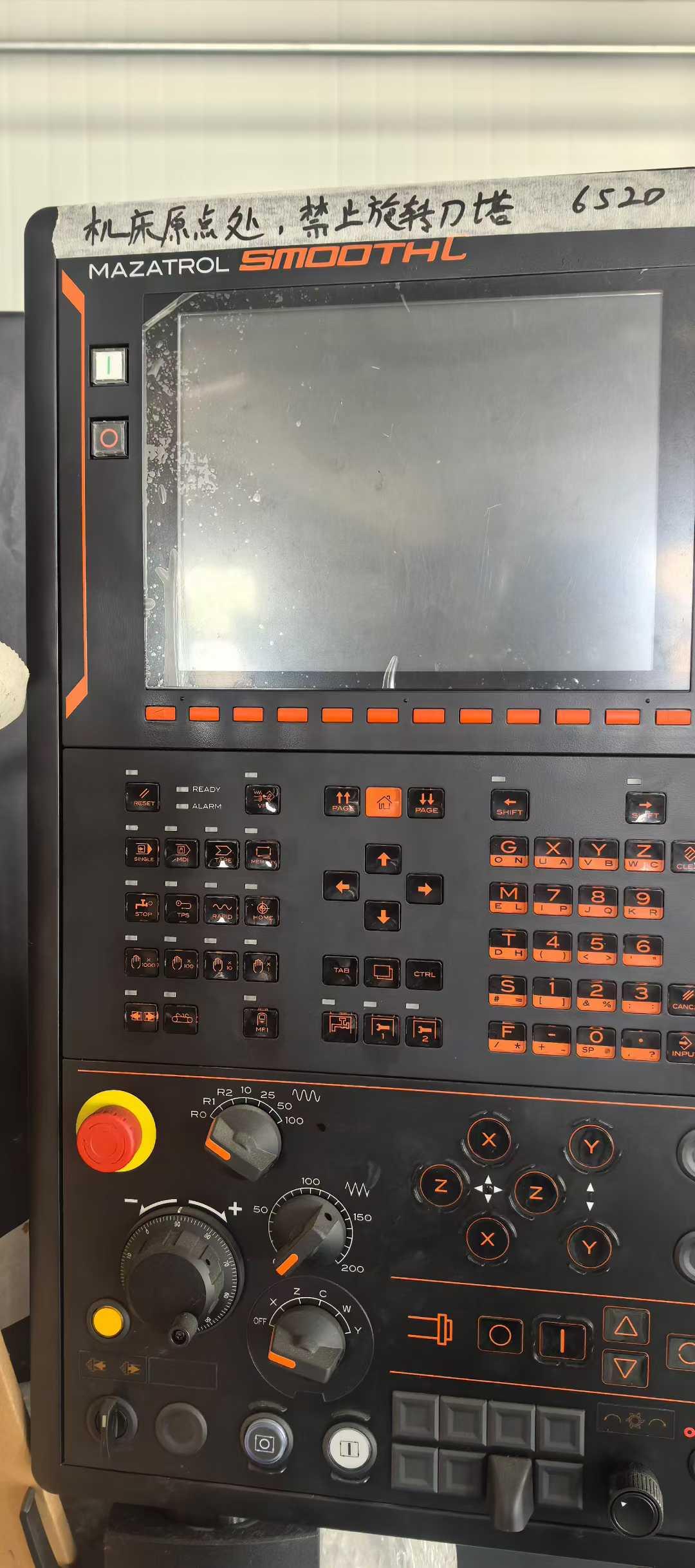

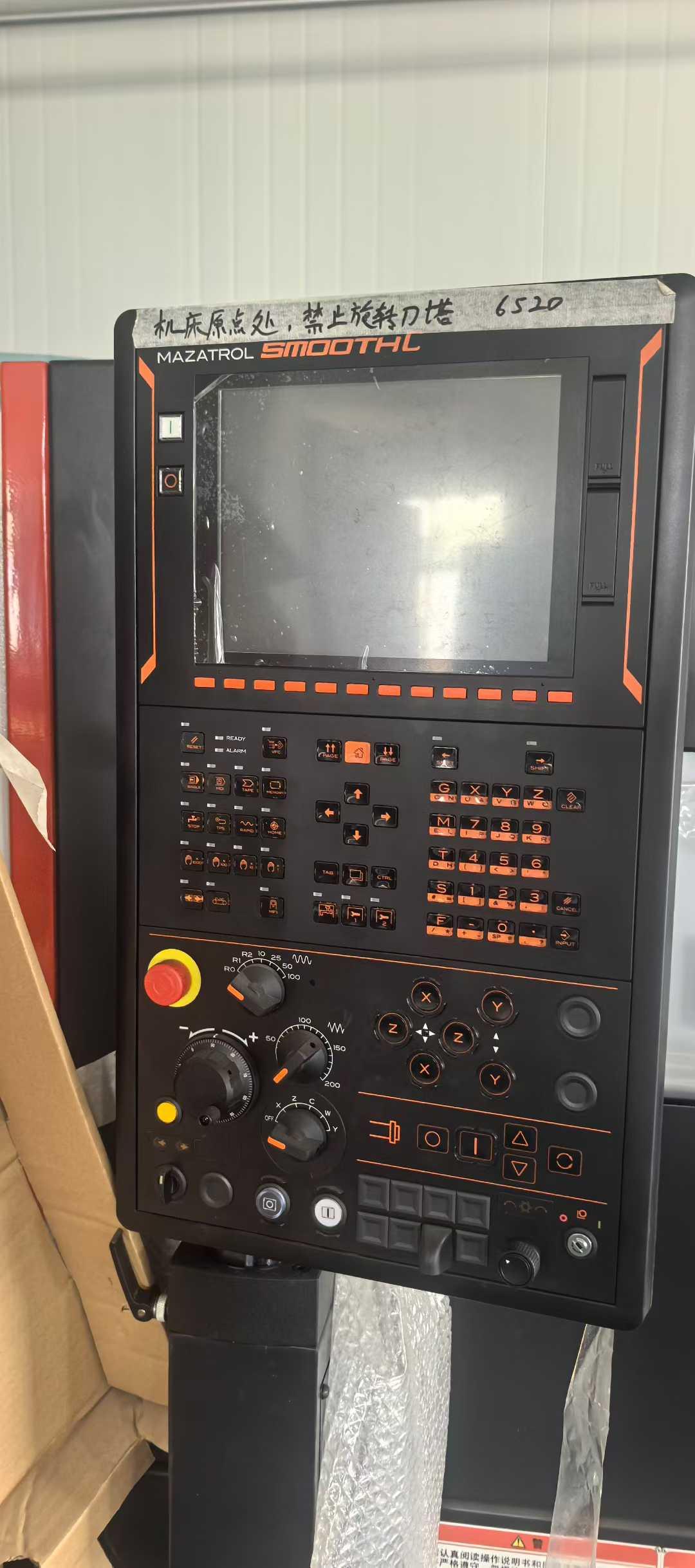

CNC CNC System: Mazak SMOOTH

Maximum rotational diameter: 728mm

Maximum machining  diameter: 340mm

three-axis travel: 215*100*1155mm

Maximum spindle speed: 5000rpm

spindle power: 15KW

chuck : 8-inch medium solid

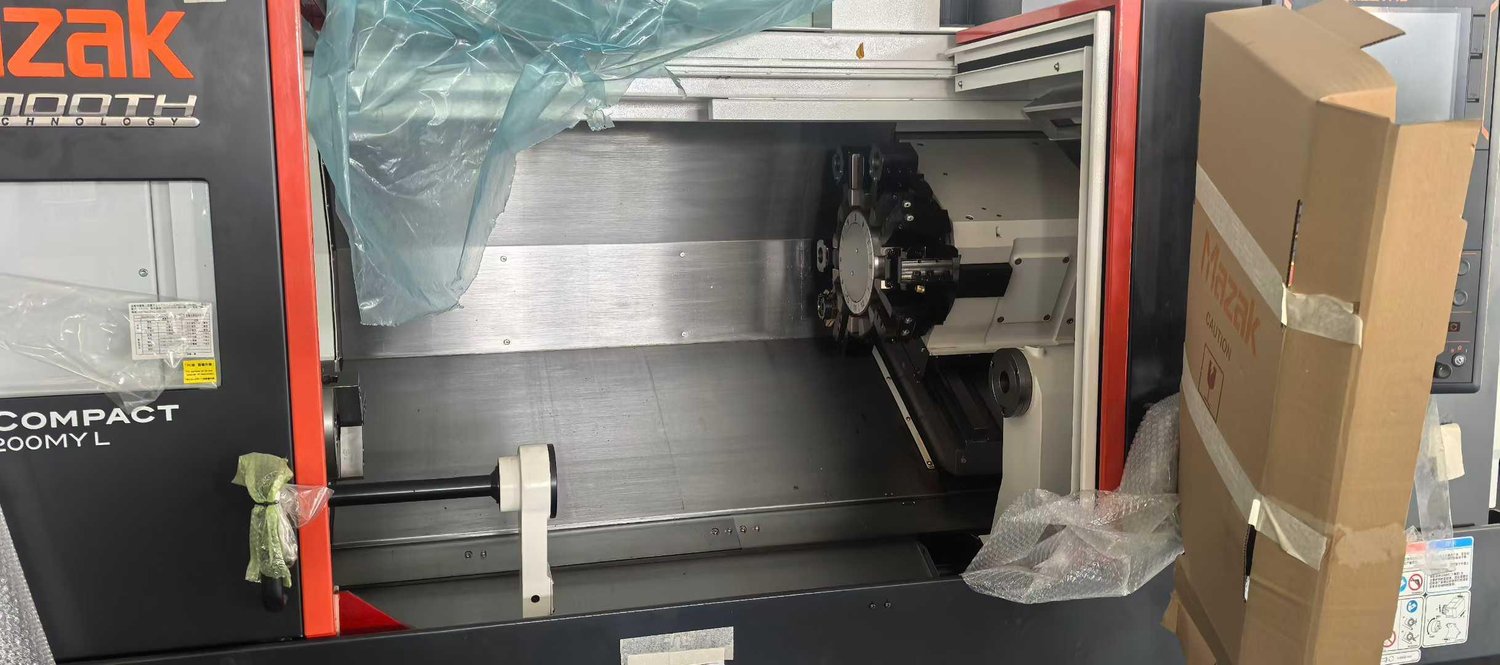

Turret positions: 12 workstations

The maximum speed of the milling spindle is 4500rpm

milling spindle power: 5.5KW

3 axes fast traverse speed: 30,000 * 10,000 * 30,000 mm/min

tailstock travel: 900mm

machine tool Footage: 3385*1760*1825mm

machine tool weight: 5350kg

Configuration

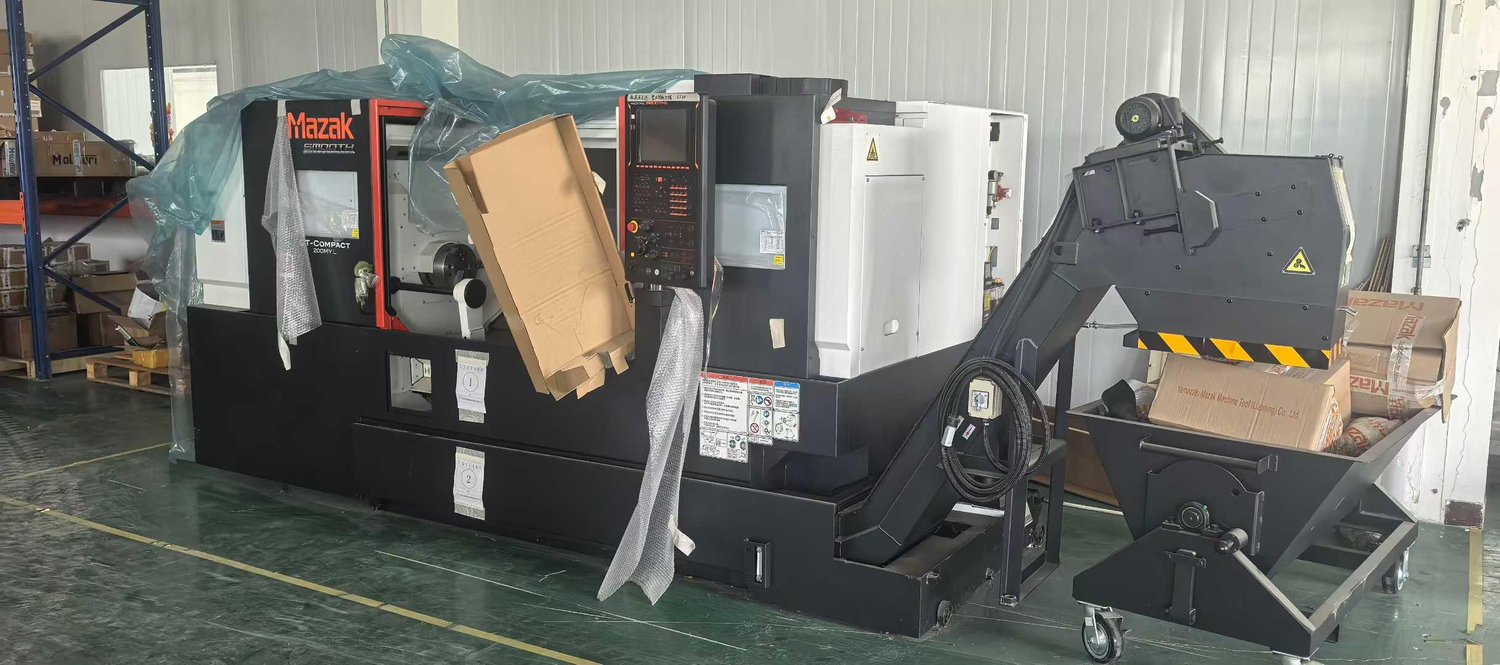

Chip conveyor

Water Water tank

Chip removal vehicle
