YINGKOU YK311000-6 Hobbing machine
[Product Information]:
- Inventory number：88777
- Brand：YINGKOU
- Model：YK311000-6
- Origin：China
- Location：China
- Year：Lost Ex-factory date
- Create Time：2025-09-04

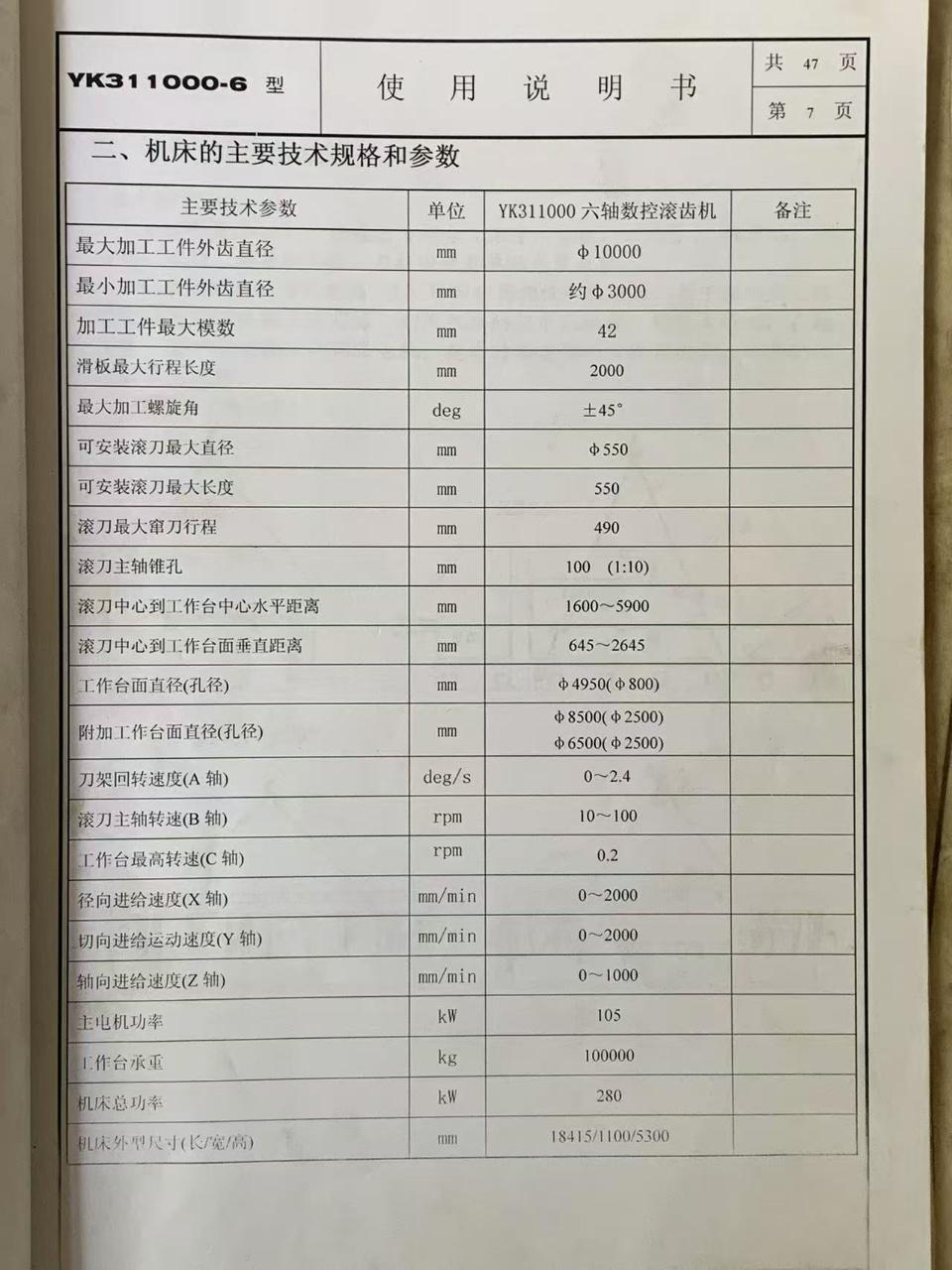

Specifications:
CNC CNC System: Siemens 840d
The diameter of the external teeth of the machining workpiece: 3000-10000mm
The maximum module for machining workpiece: 42mm
The maximum travel length of the slide plate: 2000mm
Maximum machining helix Angle: ±45°
The maximum diameter of the installable hob is 550mm
The maximum length of the installable hob is 550mm
The maximum travel of the hob: 490mm
The taper of the hob spindle: 100mm
The horizontal distance from the center of the hob to the center of workWorktable: 1600-5900mm
The vertical distance from the center of the gear Tool to workWorktable surface: 645-2645mm
tool holder speed (A-axis) : 0-2.4dge/s
spindle speed of the gear Tool (B-axis) : 10-100 RPM
The maximum rotational speed of workWorktable (C-axis) : 0.2rpm
3 axes rapid shift: 2000*2000*1000mm/min
WorkWorktable load: 100,000 kg
The external Footage of machine tool (length/width/height) : 18415*1100*5300mm
