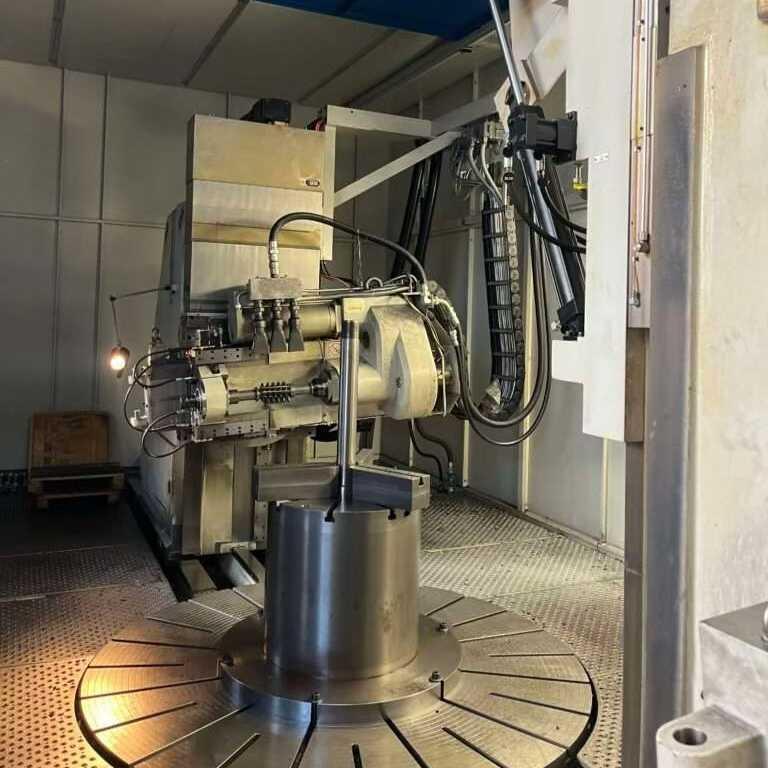

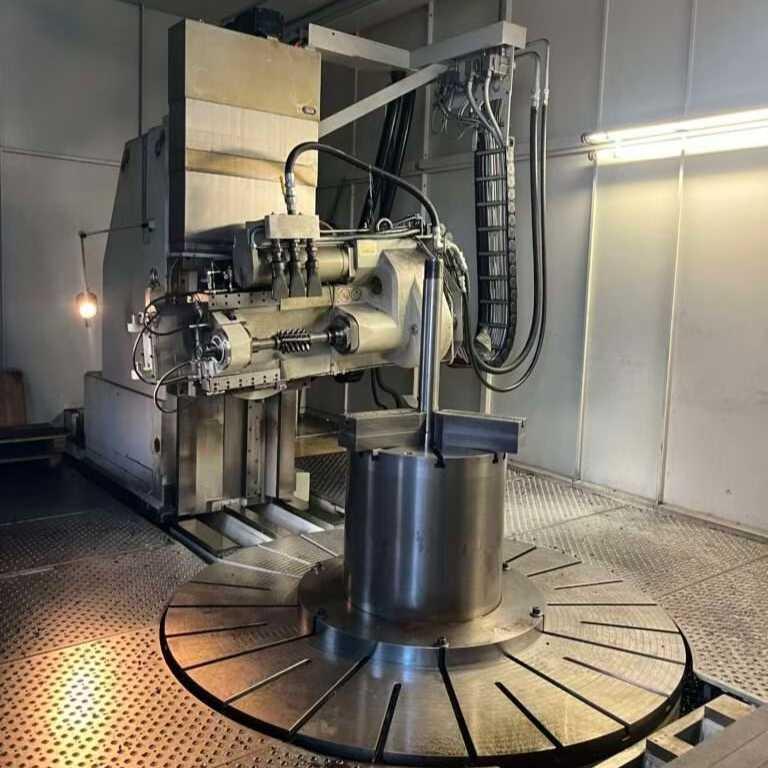

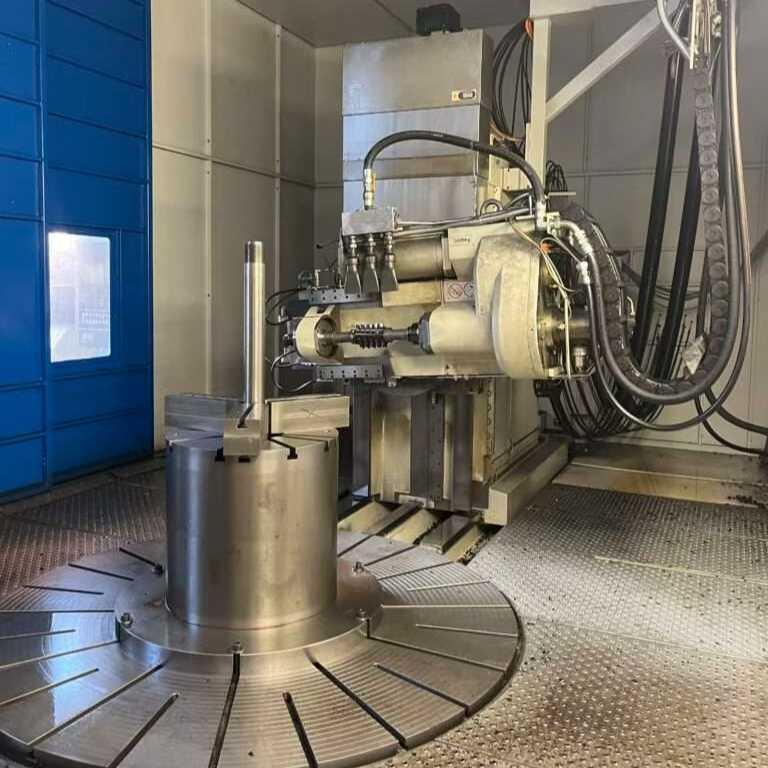

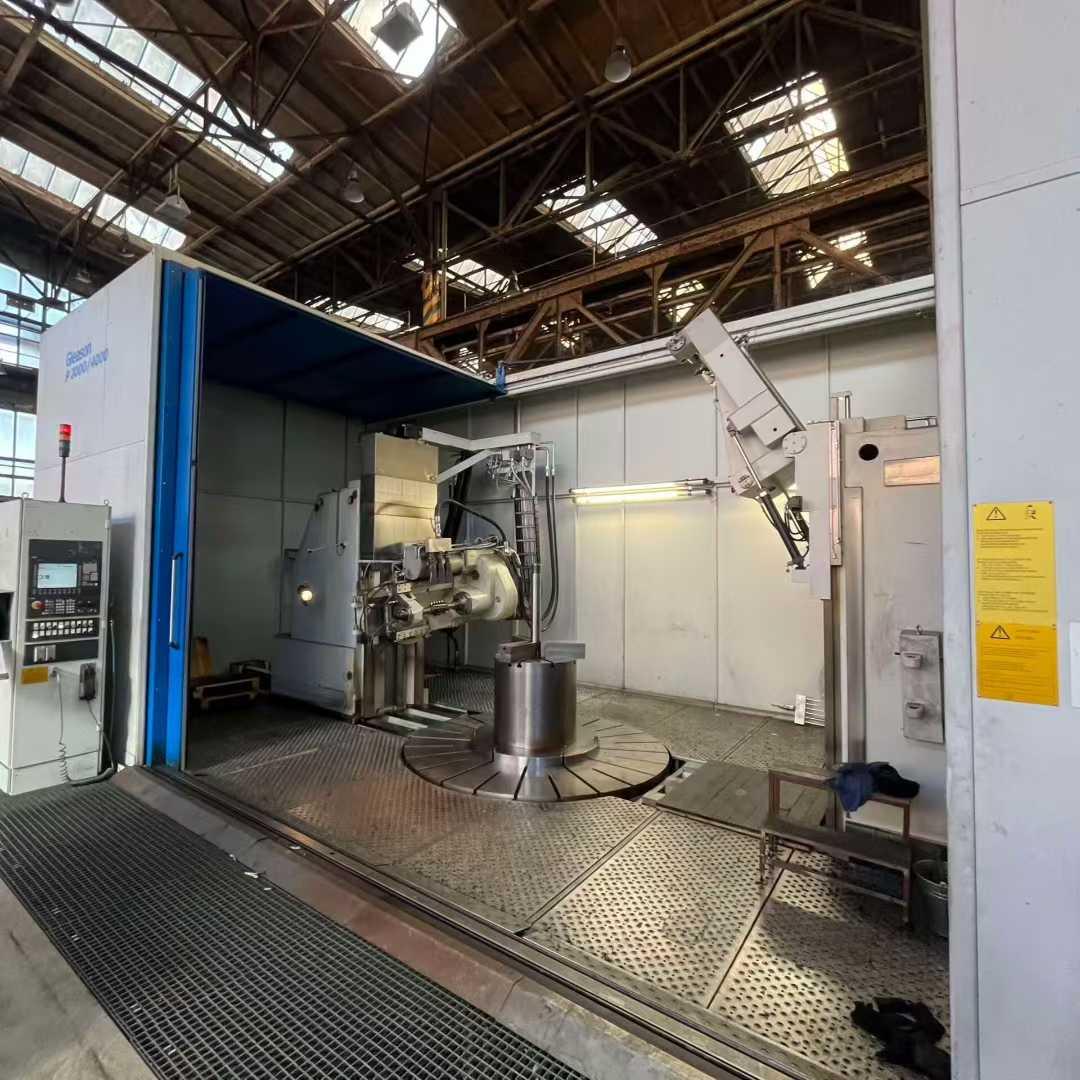

GLEASON P3000/4000 Hobbing machine

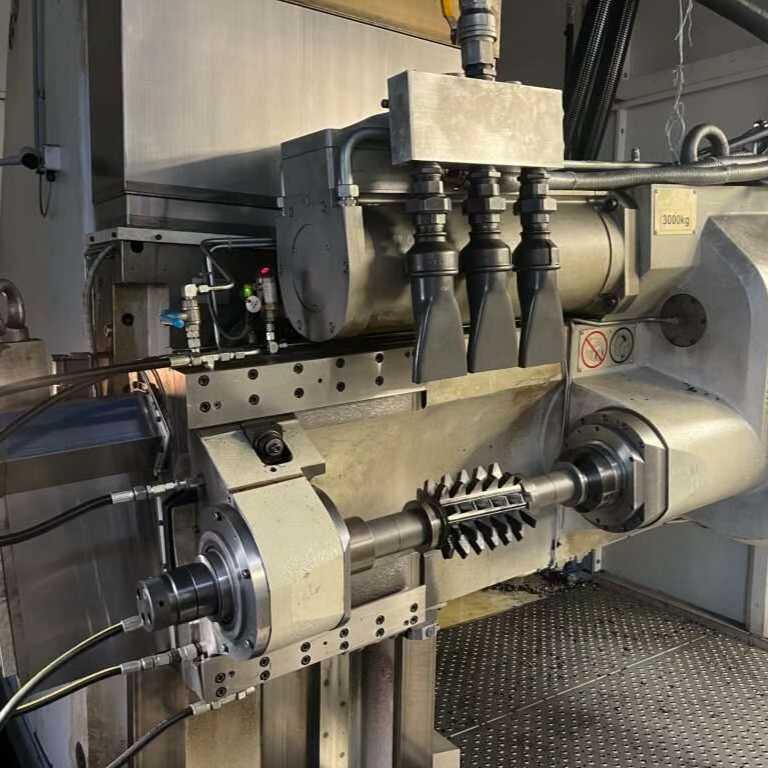

External head

WorkWorktable diameter: 2500mm

WorkWorktable hole diameter: 880mm

workpiece diameter: 4280mm

Maximum module: 25/35mm

From the center of the hob to the center of workWorktable surface: 550/2250mm

Z-axis: 1600mm(from 450 to 2050 above the countertop)

Y-axis: 450mm

A-axis milling head: +30º/-45º

Internal head

workpiece diameter: 5000mm

Minimum Internal diameter: 630mm

machining  height: 600mm

Head rotation: ±15º

Rotational speed: 180 rpm

power: 46 kw

Z-axis position: 450 to 2050mm on the countertop

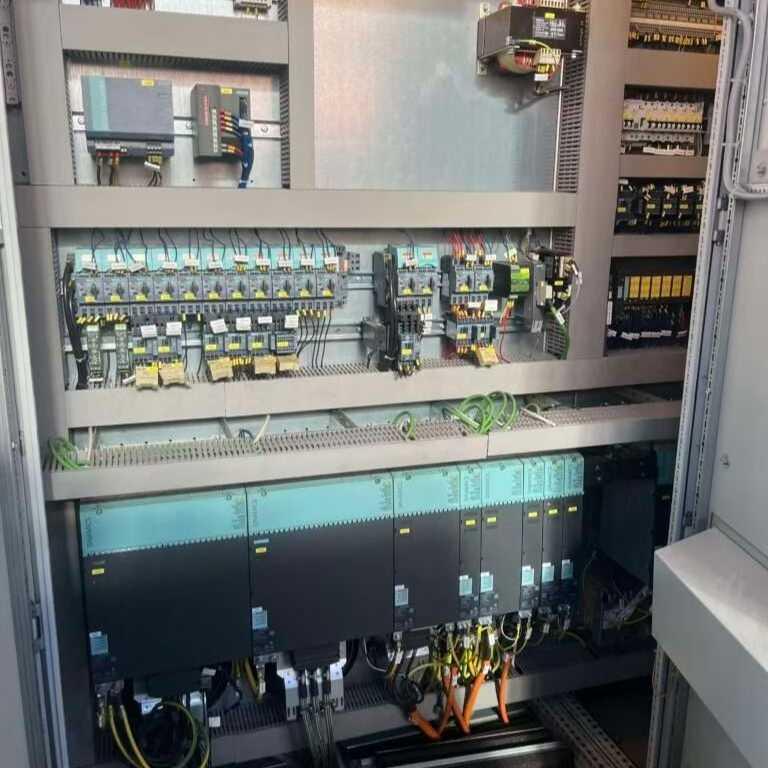

CNC System: Siemens 840D sl
