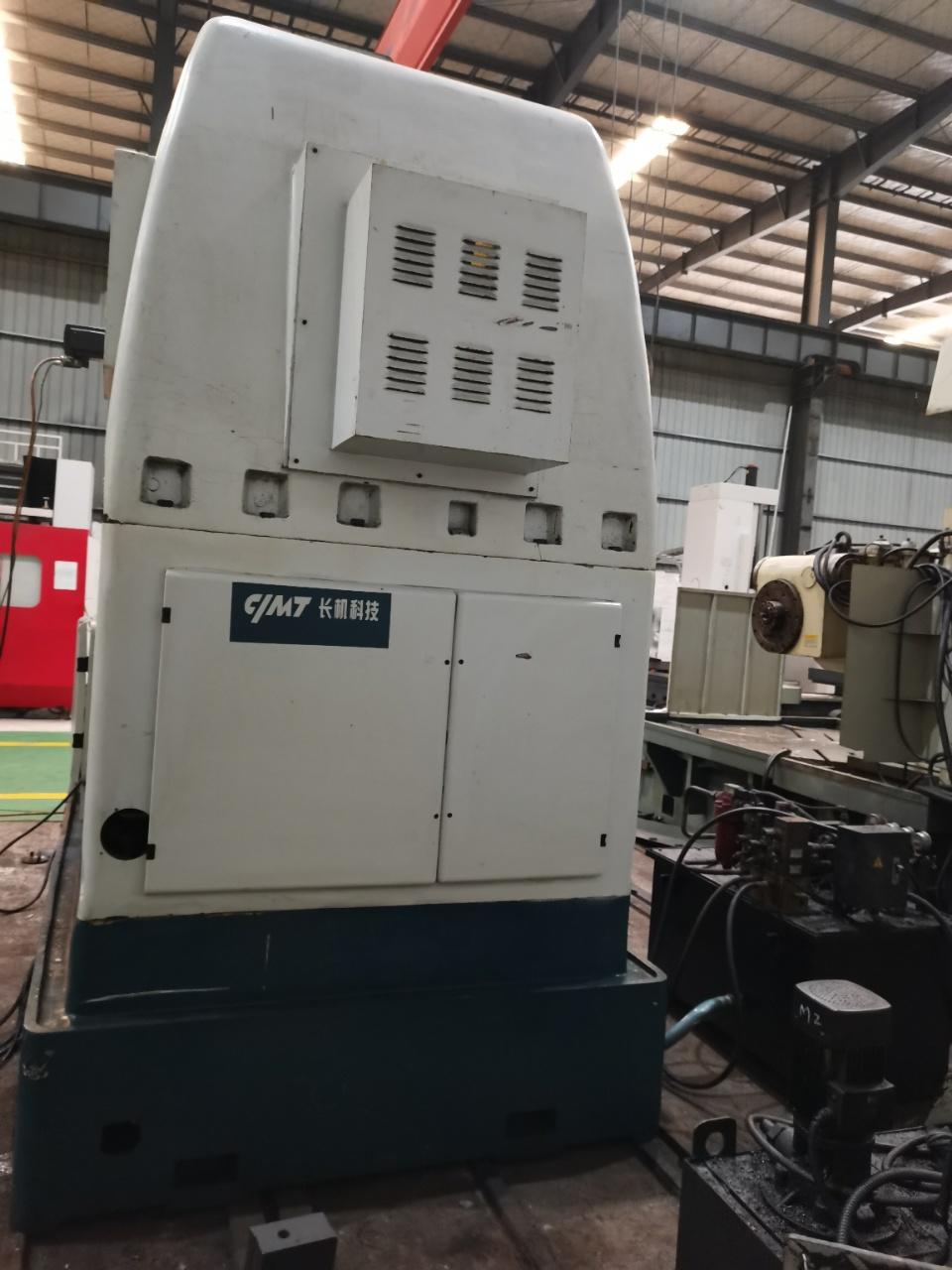

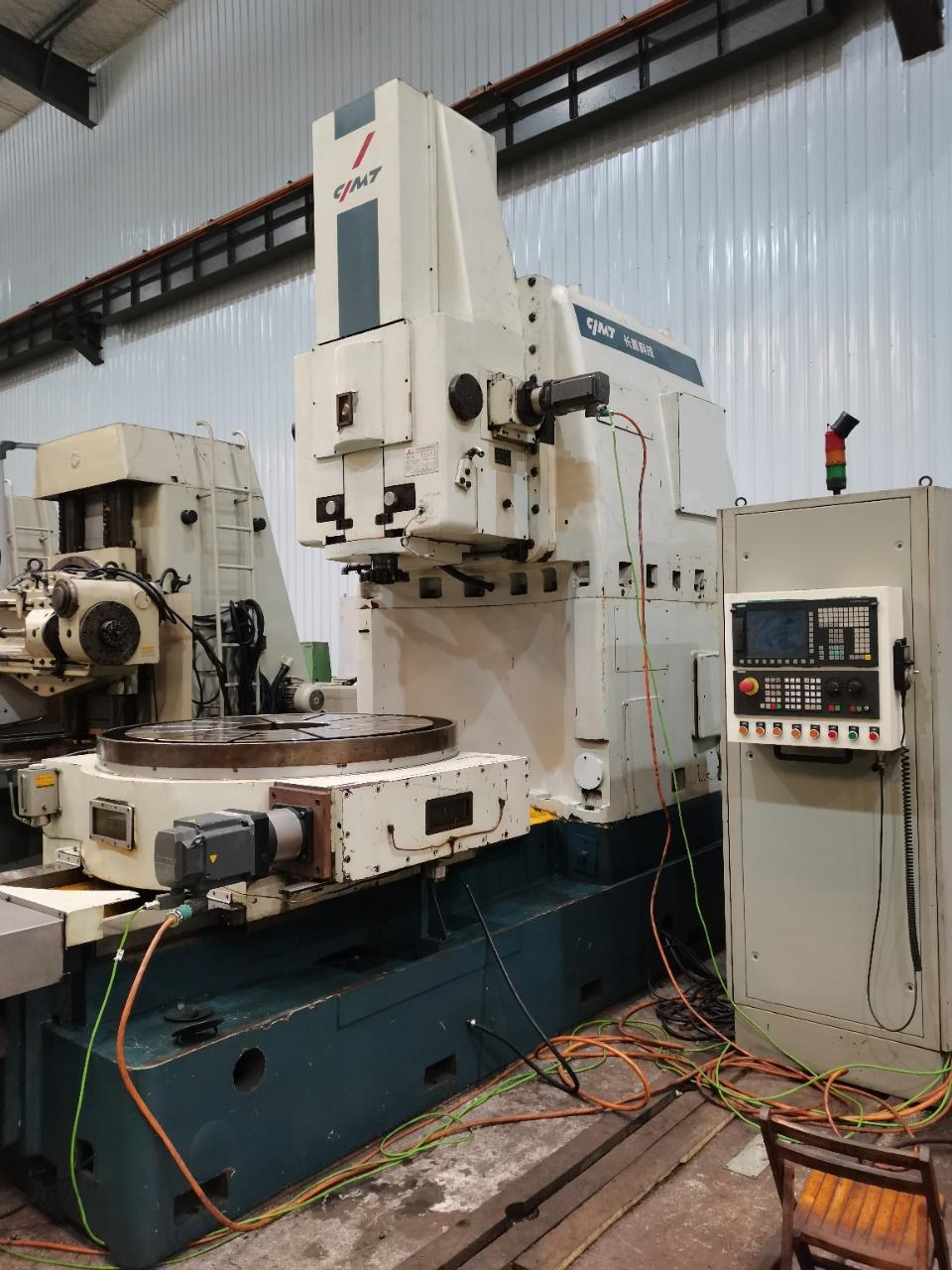

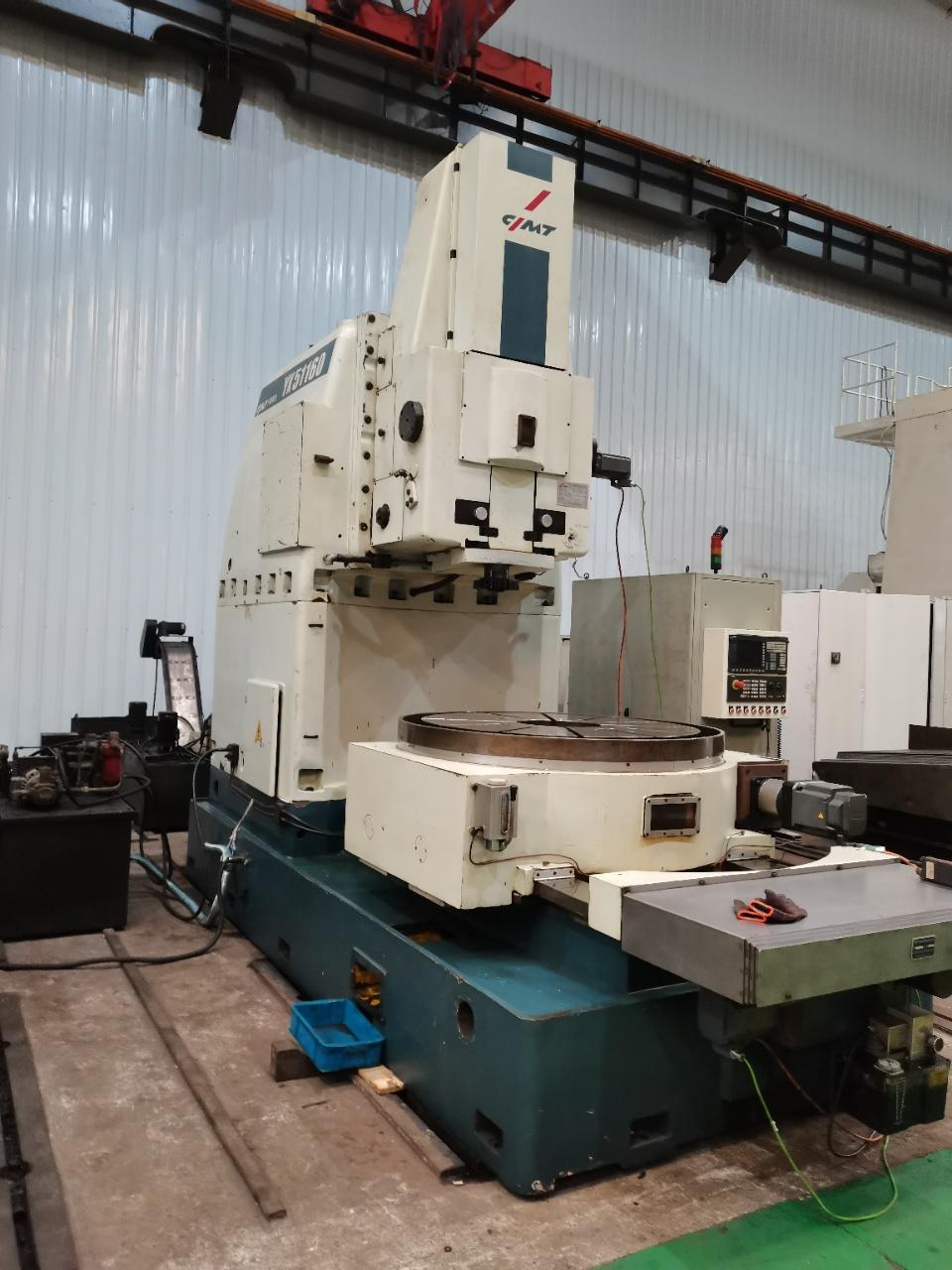

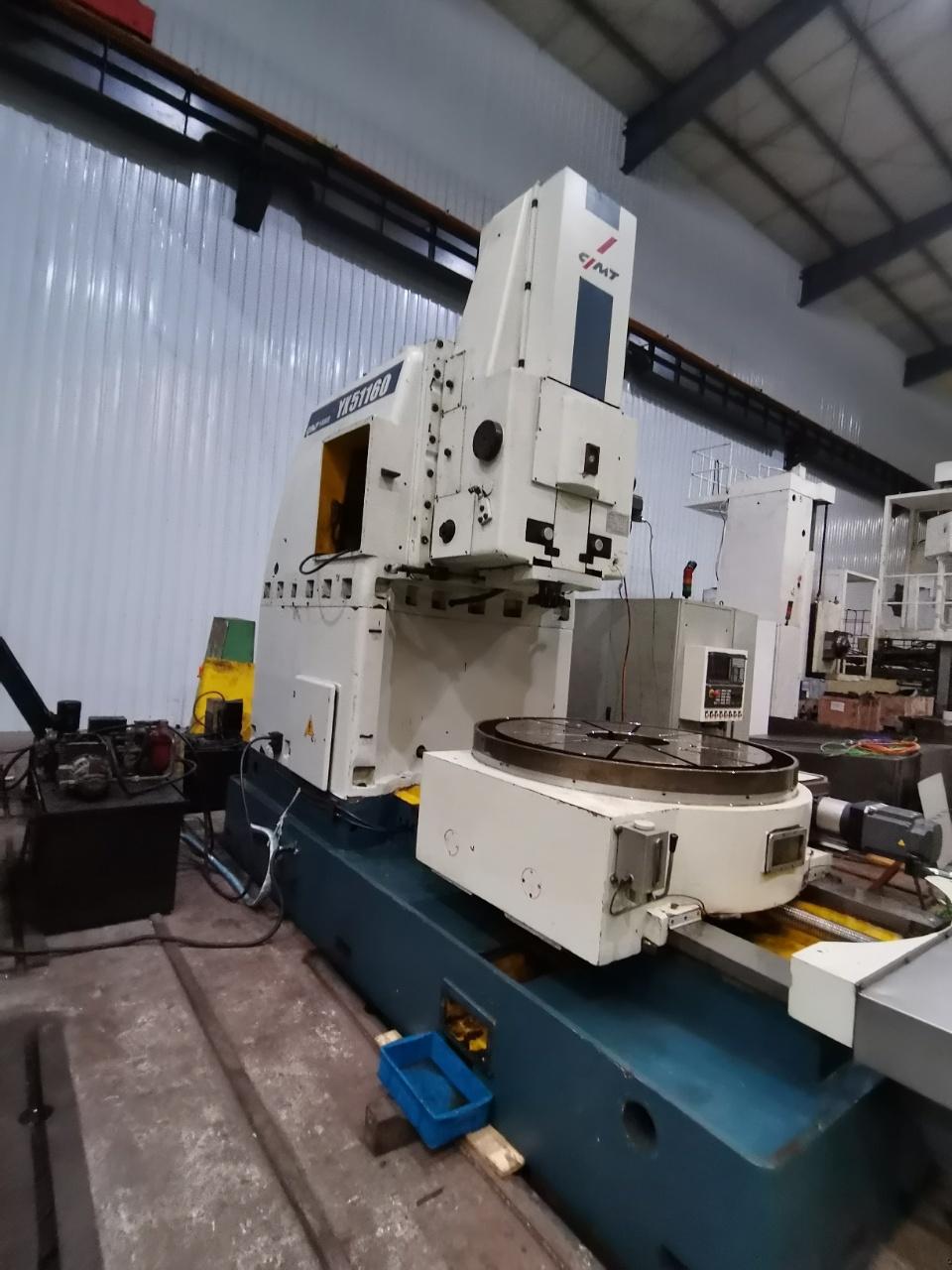

CIMT YK51160 Gear shaping machine

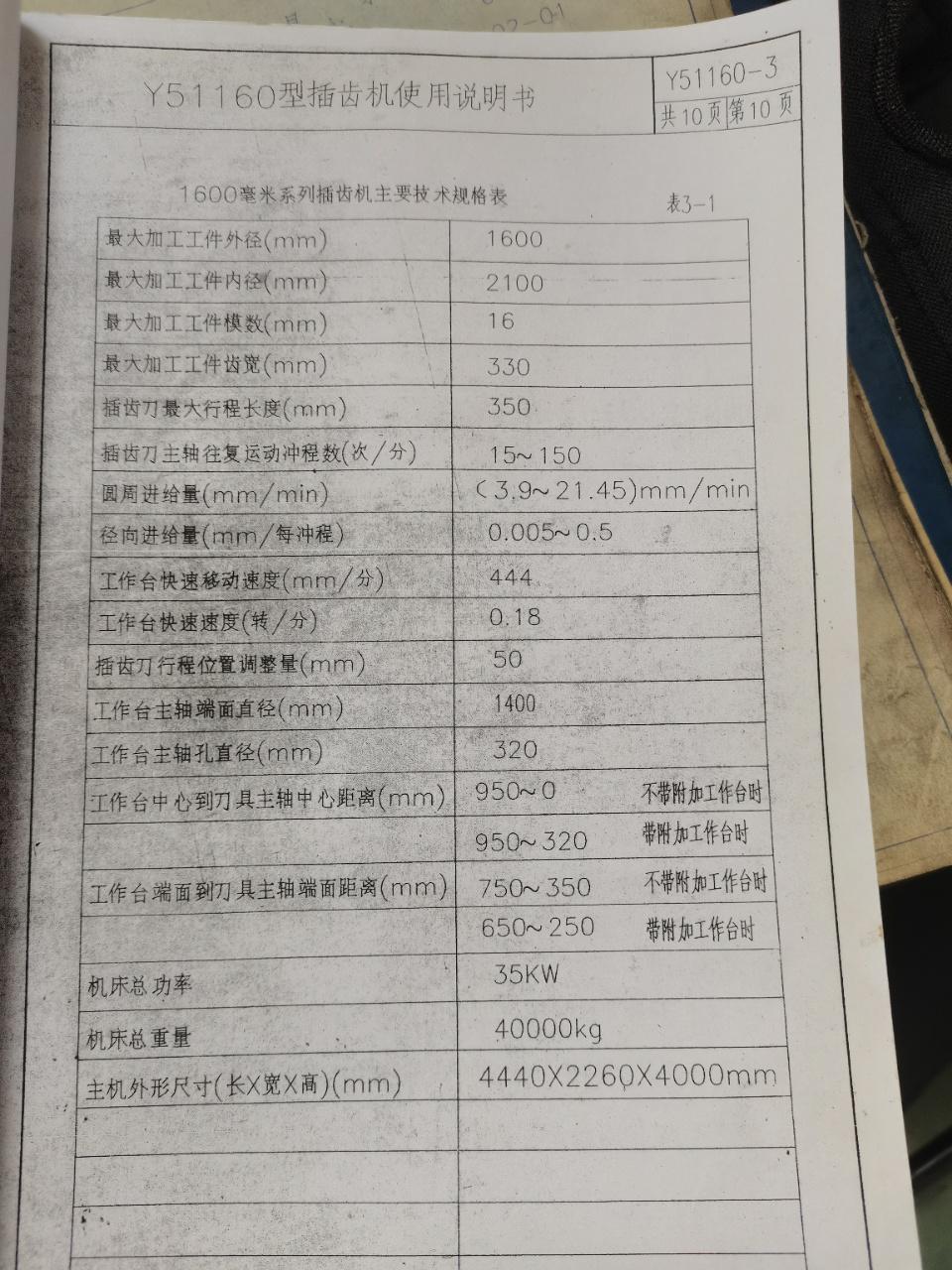

Maximum machining  workpiece external diameter: 1600mm

Maximum machining  workpiece Internal diameter: 2100mm

Maximum machining  workpiece module: 16mm

Maximum machining  workpiece tooth width: 330mm

The maximum travel length of the gear shaping Tool is 350mm

The reciprocating travel number of spindle of the gear shaping Tool: 15 to 150 RPM

Circular feed rate: 3.9-21.45mm/min

gear shaping Tool travel position adjustment amount: 50mm

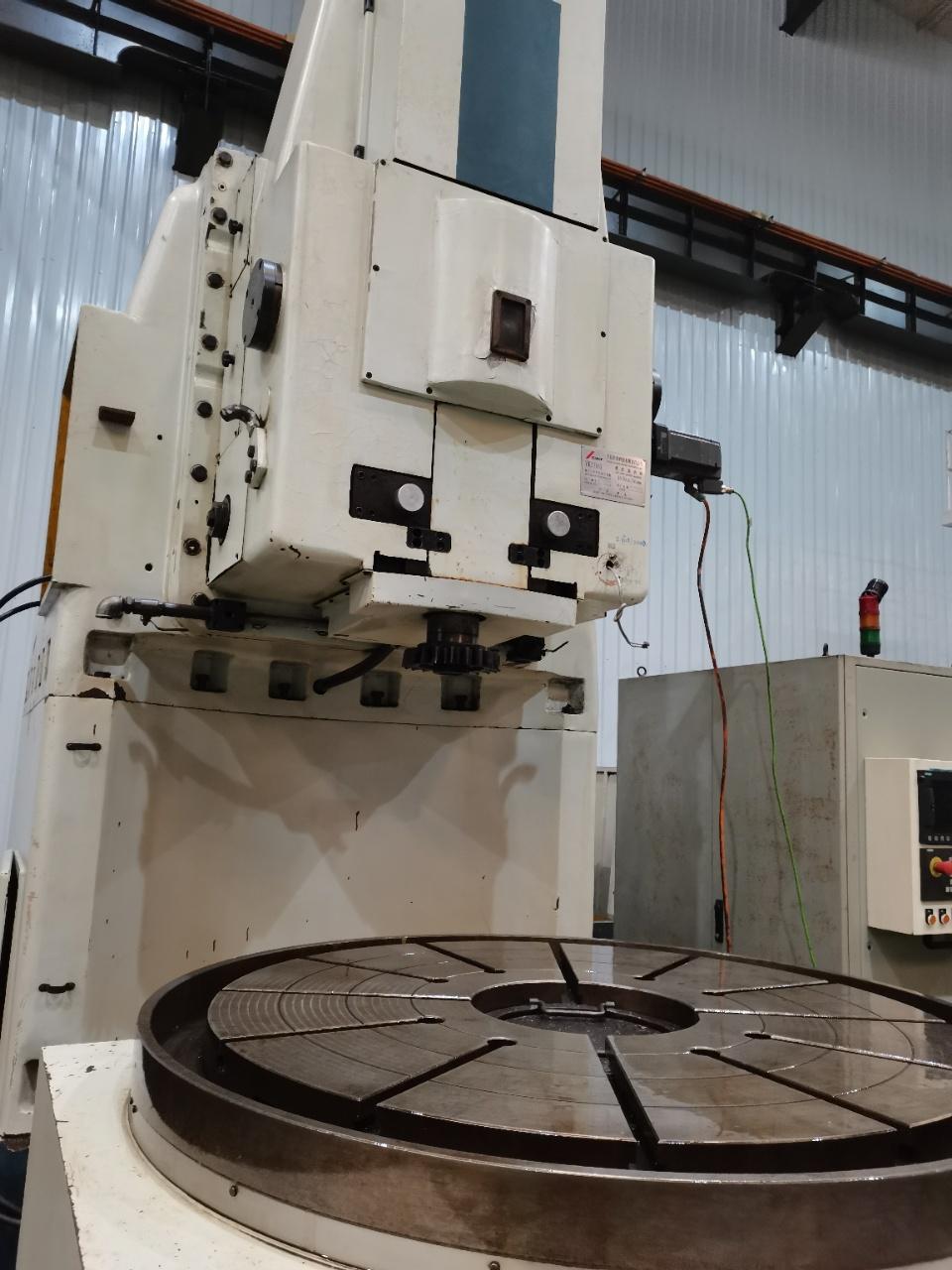

The diameter of the end face of workWorktable spindle: 1400mm

The diameter of spindle through hole of workWorktable is 320mm

The total power of machine tool is 35kw

The total weight of machine tool is 40,000 kg

Overall Footage: 4440x2260x4000mm
