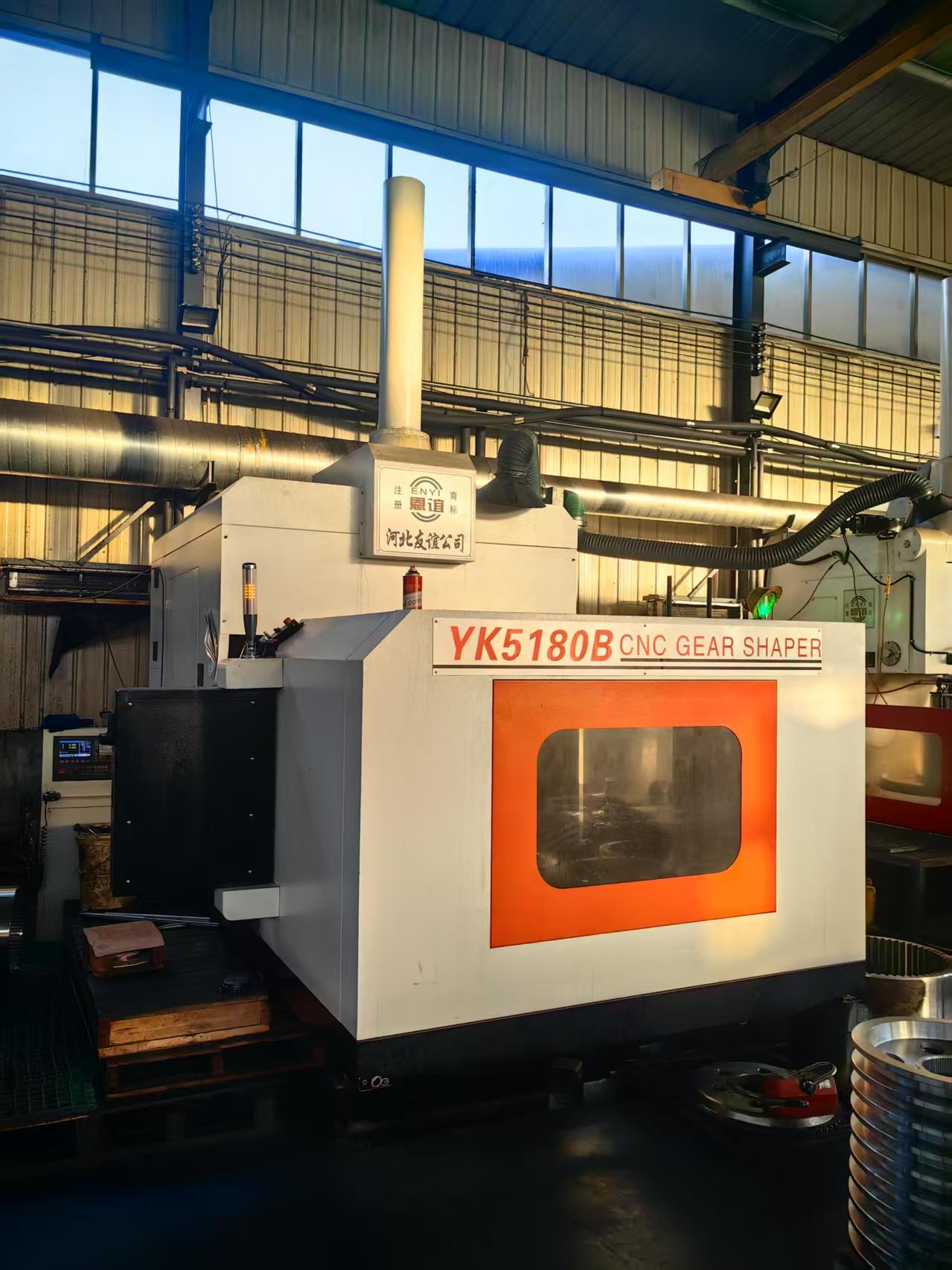

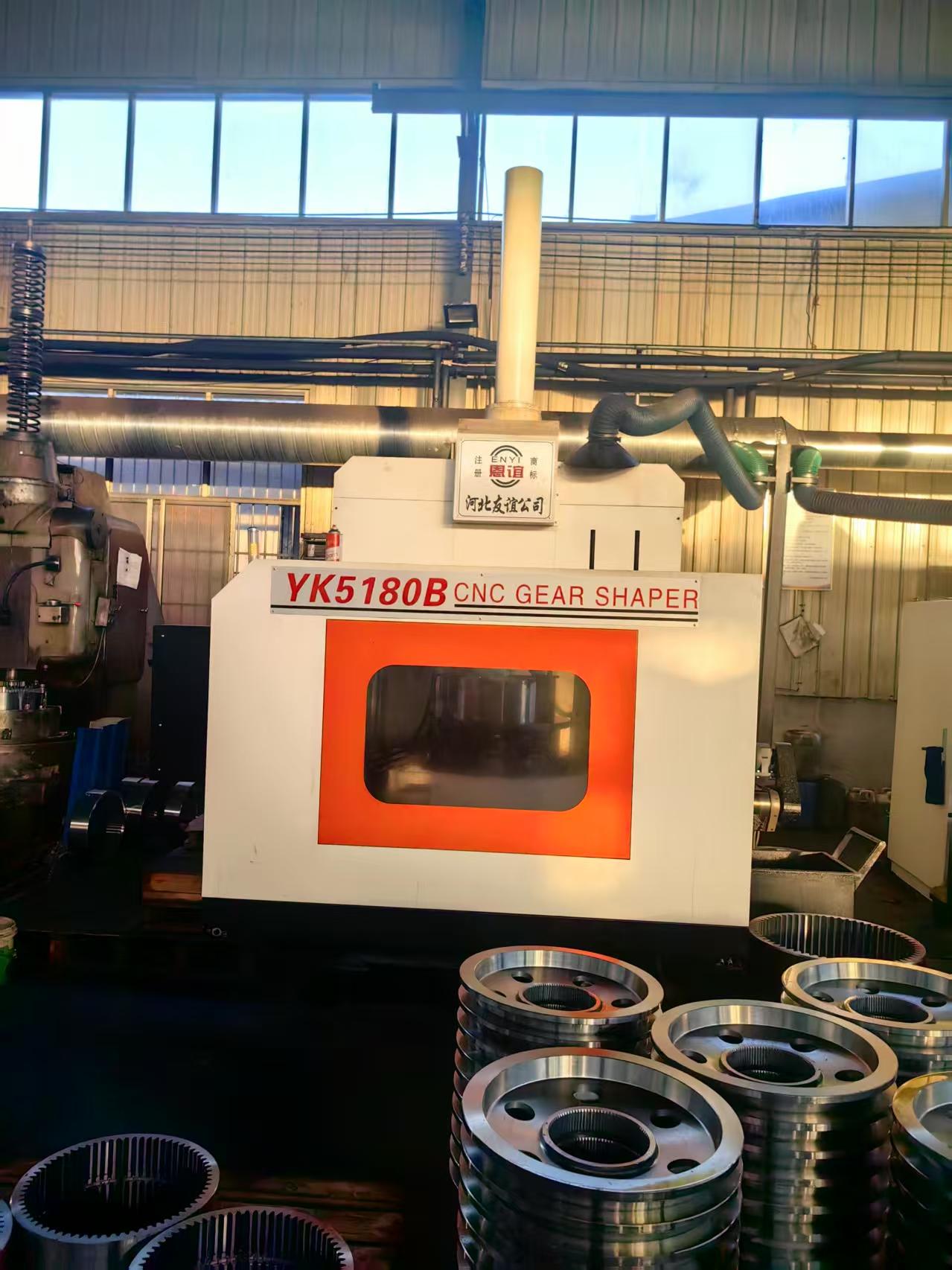

Youyi Yk5180 Gear shaping machine

Maximum machining  diameter (external teeth) : 800mm

Maximum machining  diameter (internal teeth) : 1000mm

Maximum machining  module: 12m

The maximum machining  tooth width inside: 265mm

The maximum travel length of the gear shaping tool is 300mm

The circular feed rate per reciprocating travel is infinite

The diameter of workWorktable flower plate is 800mm

WorkWorktable through hole: 130mm

Distance from the axis of the gear shaping tool to the axis of workWorktable: 0-700mm

Distance from the support surface of the gear shaping tool to workWorktable surface: 50mm-450mm

The number of reciprocating travel of the gear shaping tool per minute (times per minute) : infinite

The allowance of the gear shaping tool during its return travel: ≥0.65mm

The diameters of the journal for installing gear shaping Tools are 31.743mm, 88.9mm, and 101.6mm

Main motor power: 15KW

Overall Footage (length × width × height) : 4100*1900*3792mm

The weight of machine tool is 12,000 kg
