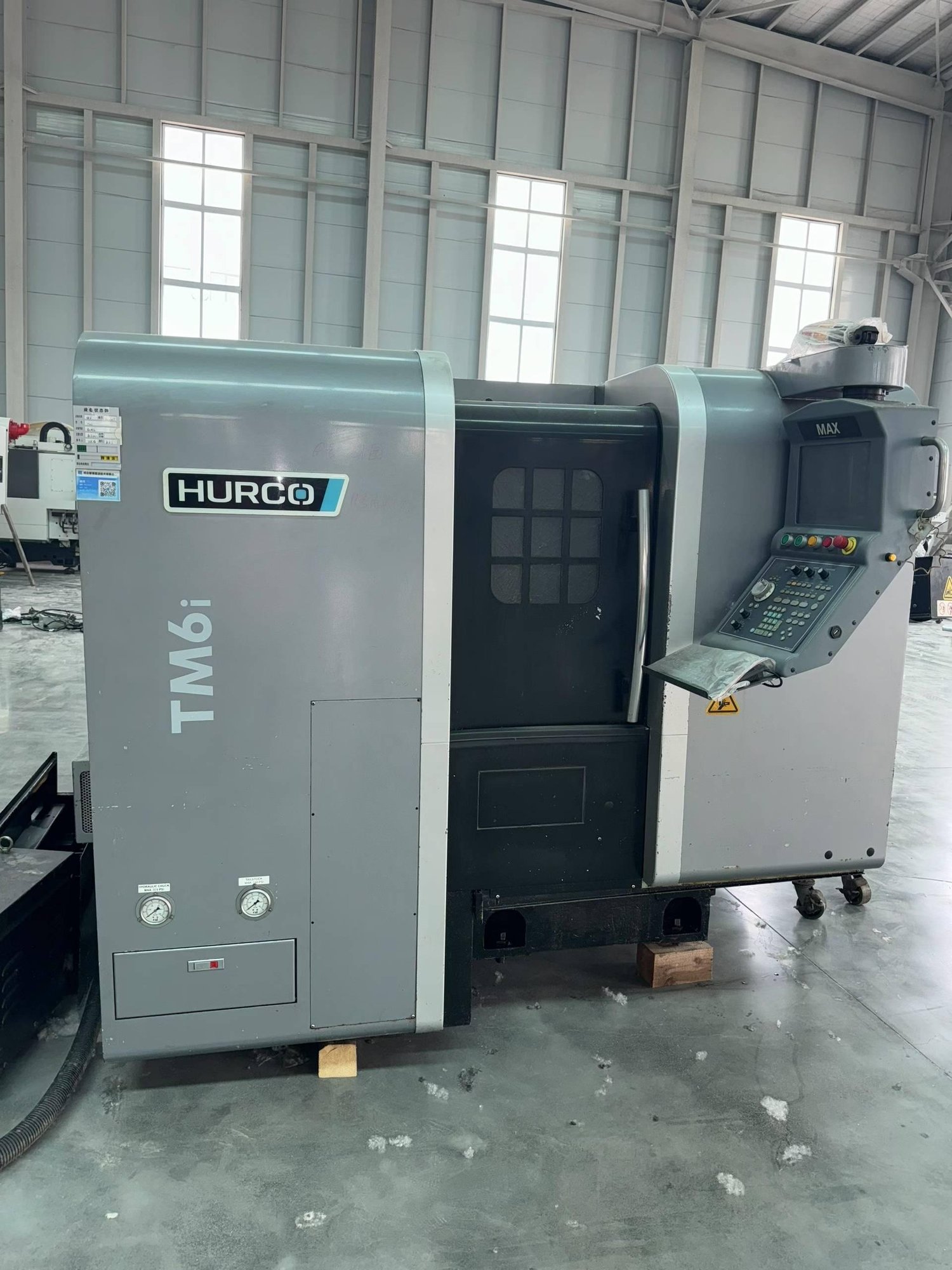

HURCO TM6i CNC turning lathe

[Product Information]:

X* Z-axis travel: 168*356mm

Spindle speed: 6000rpm

X*Z Fast feed rate: 30,000 * 30,000 mm/min

Bed rotation diameter: 405mm

The rotating diameter of the horizontal slide board is 240mm

machining length: 340mm

chuck diameter: 169mm

Pull tube diameter: 45mm

The standard power of spindle is 13kW

Maximum torque: 114Nm

6-inch chuck

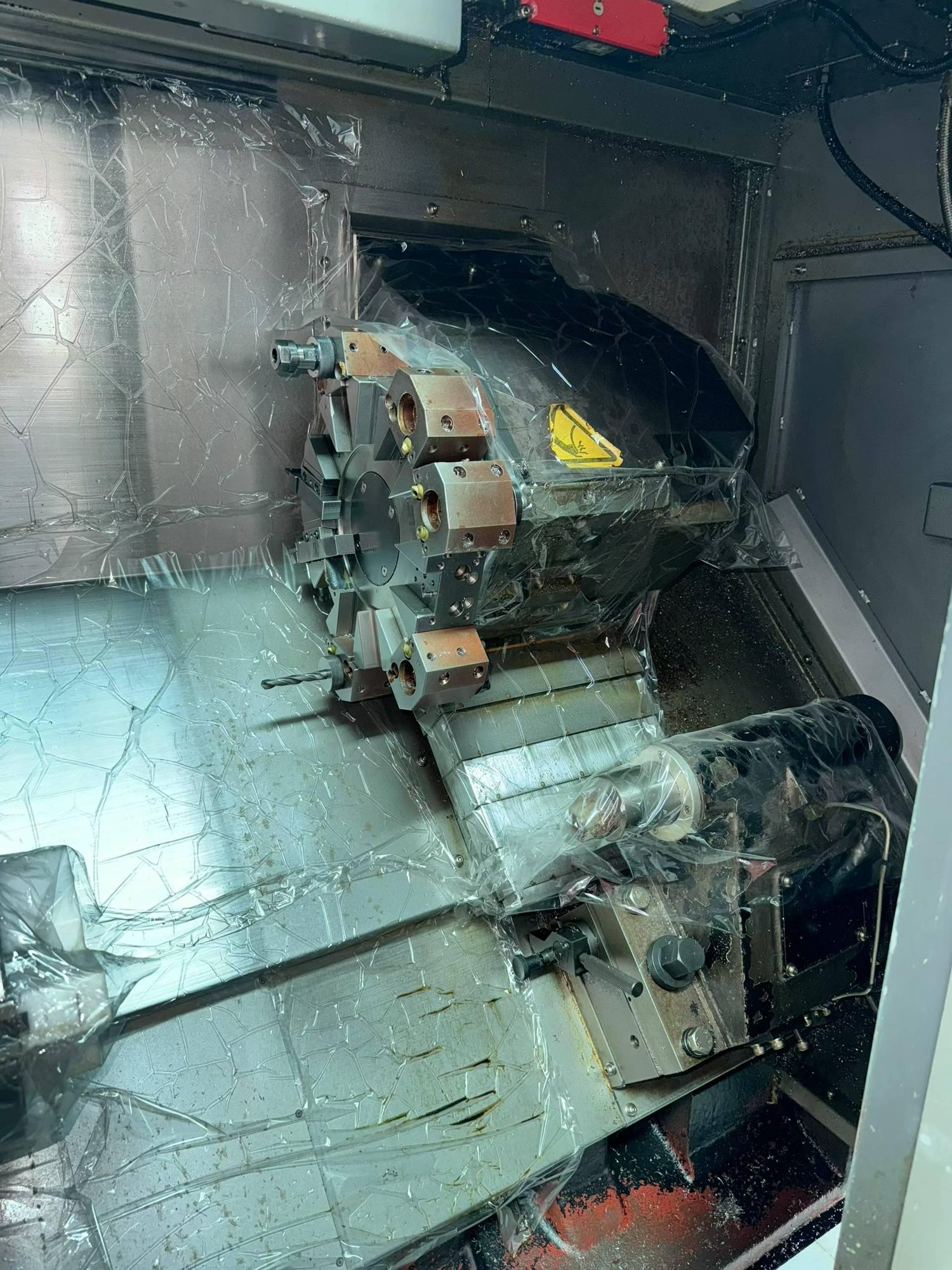

12-position tool turret
