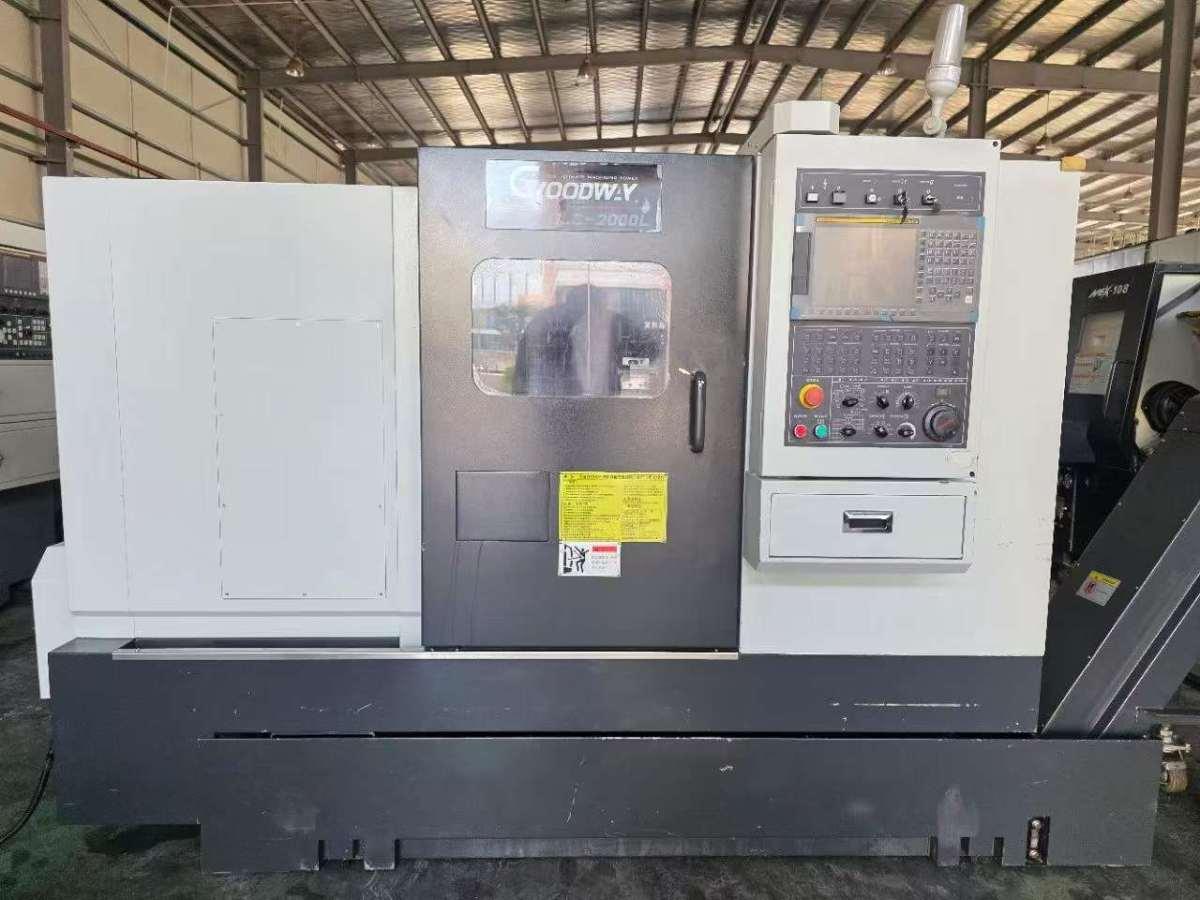

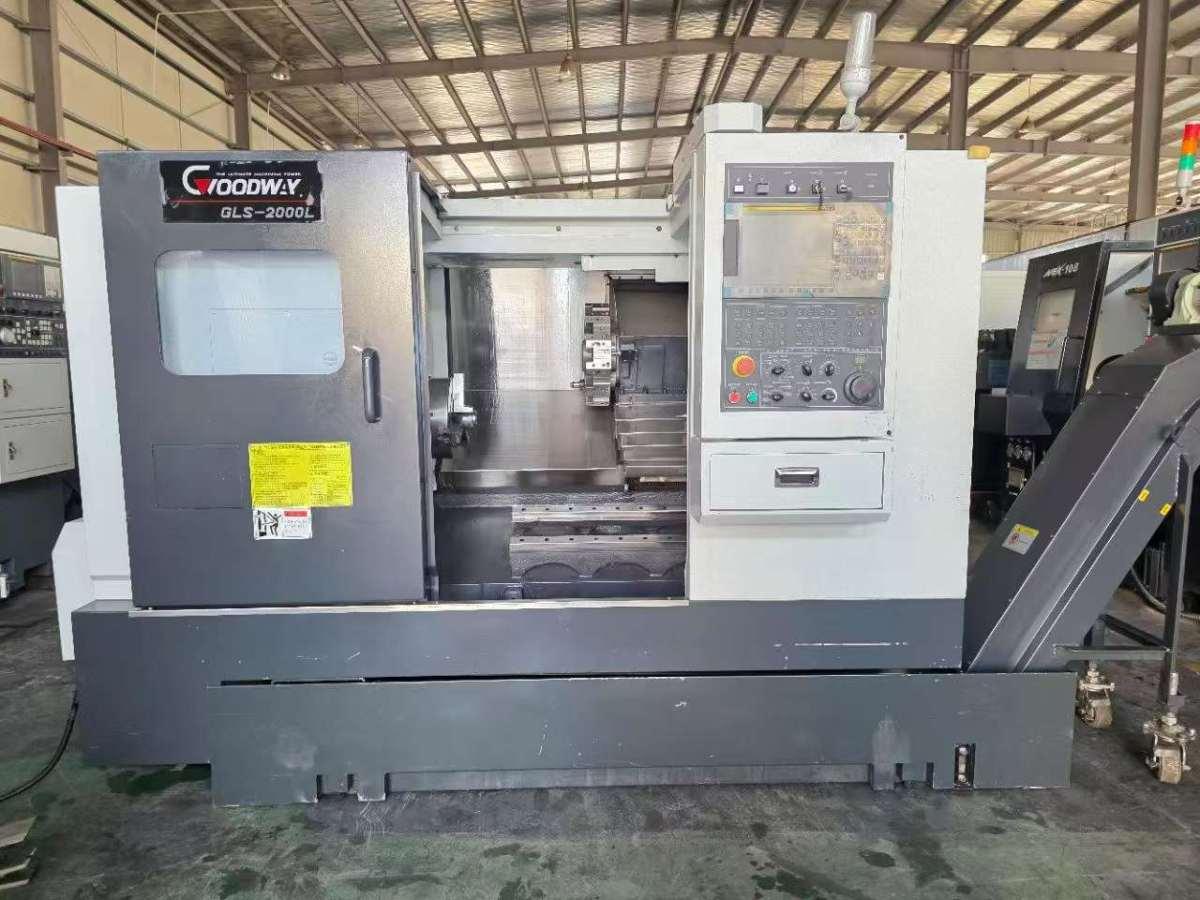

GOODWAY GLS-2000L CNC turning lathe

[Product Information]:

Inventory number：812664
Brand：GOODWAY
Model：GLS-2000L
Origin：Taiwan, China
Location：China
Year：2022
Create Time：2026-07-16

Specifications:

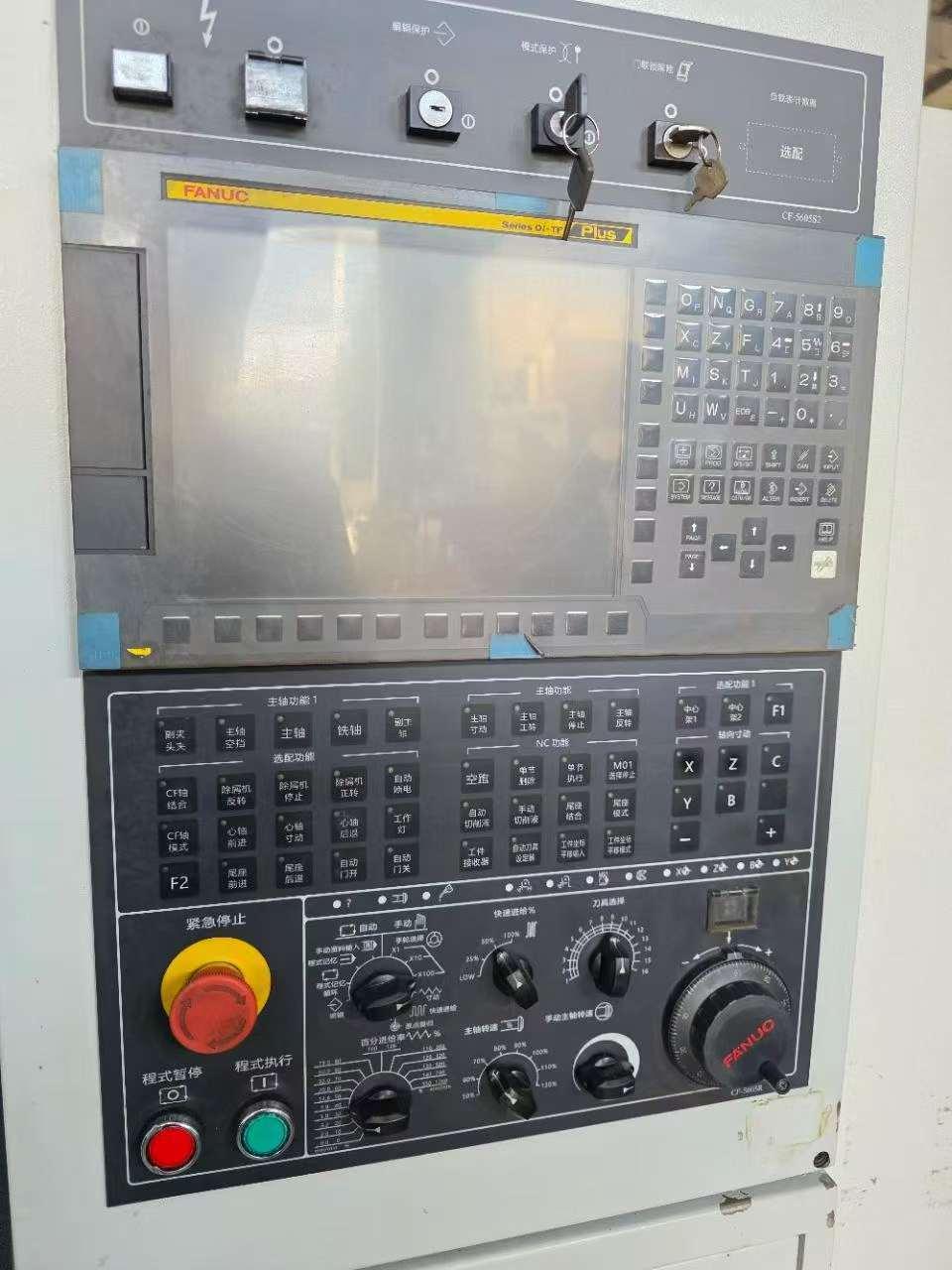

CNC System: FANUC Oi-TF
Maximum Swing Diameter: Φ560 mm
Maximum Turning Diameter: Φ420 mm
Maximum Machining Length: 630 mm

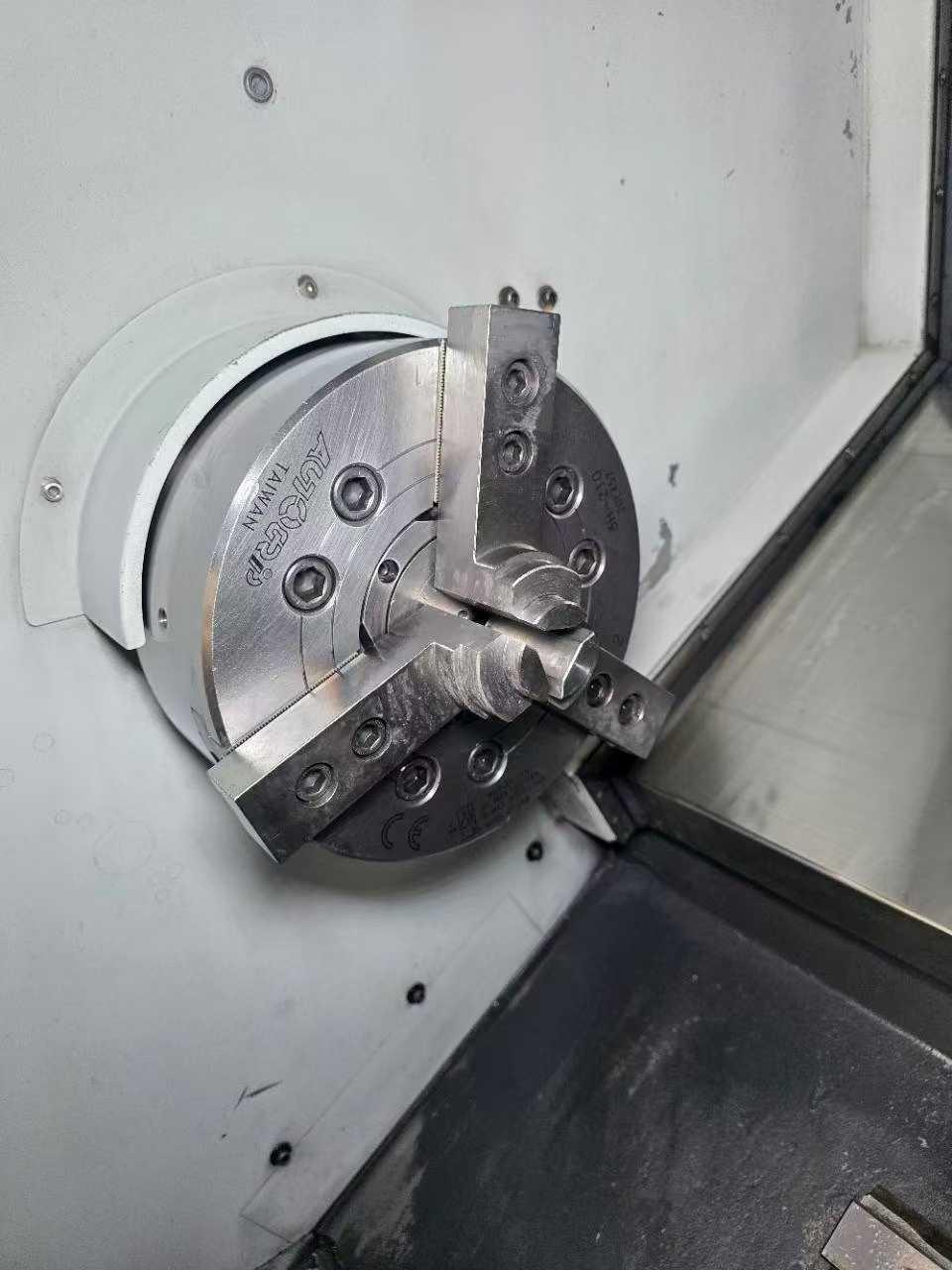

Hydraulic Chuck: 8 inch
Spindle Bore Diameter: Φ66 mm
Maximum Bar Capacity: Φ51 mm
Spindle Nose: A2-6
Spindle Bearing Diameter: Φ100 mm
Spindle Speed: 4200 rpm
Spindle Motor Power: 11/15 kW
X/Z-axis Travel: 230 × 630 mm
Maximum Feed Rate (X/Z-axis): 30 m/min

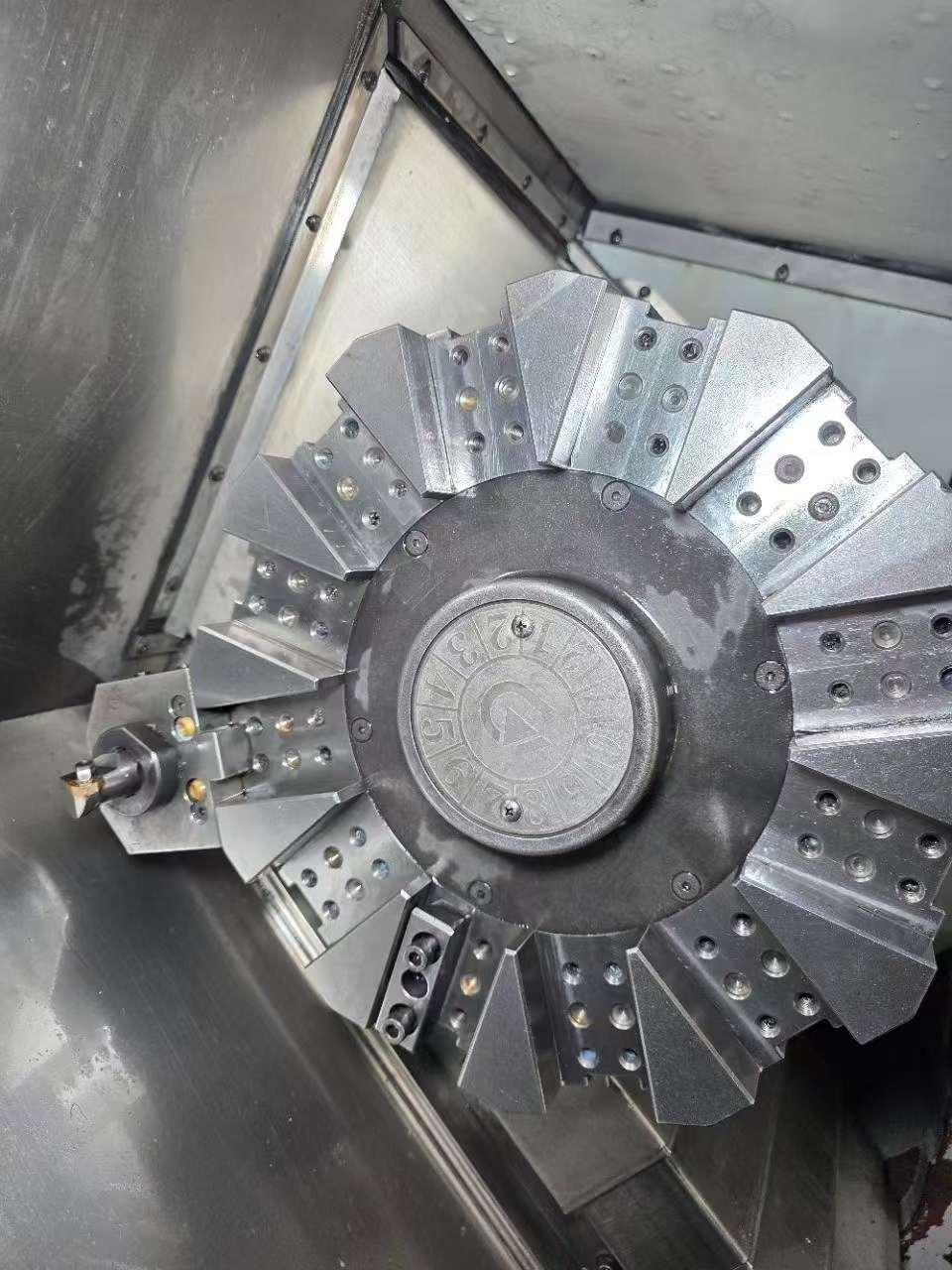

Turret Capacity: 10 Stations

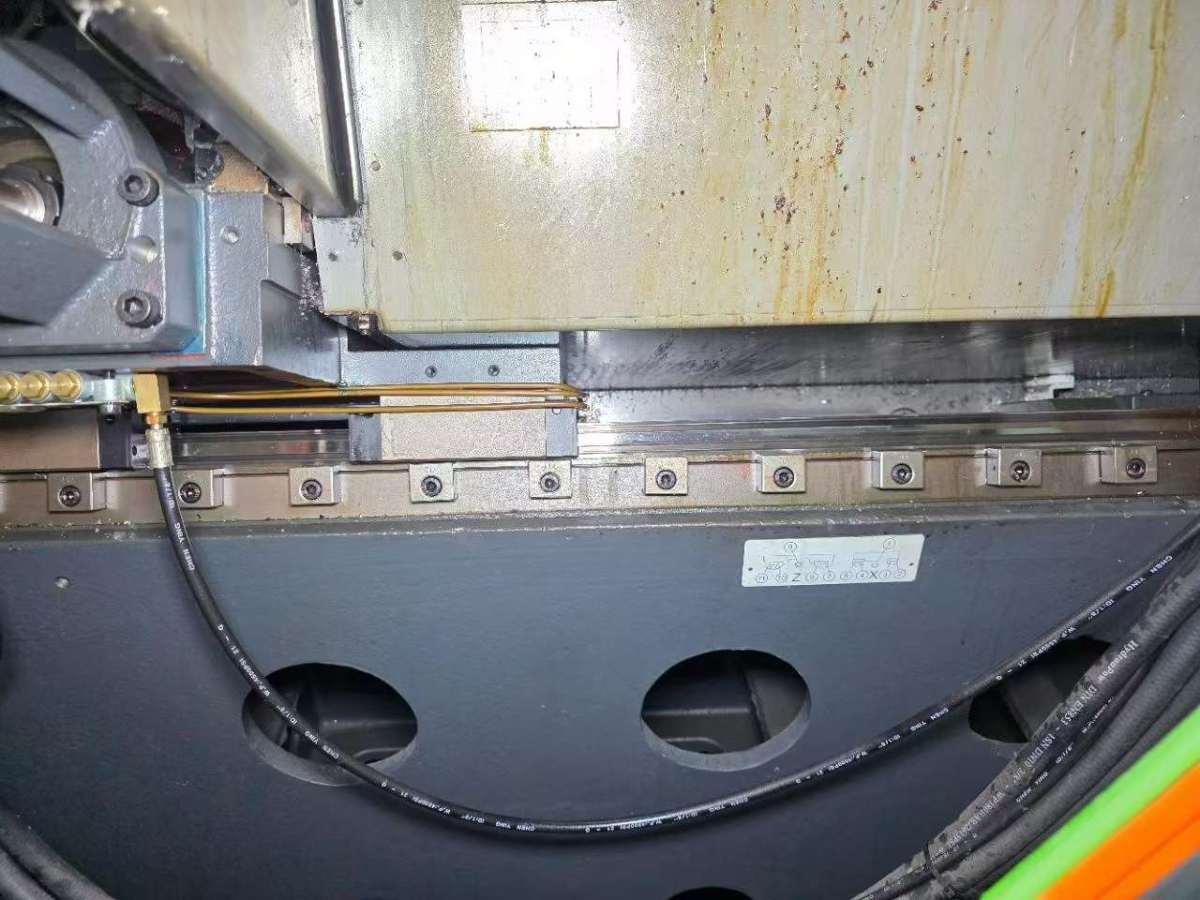

Guideway Type: Linear Guideway
Machine Weight: 3400 kg
Machine Dimensions (L × W × H): 3612 × 1780 × 1716 mm
