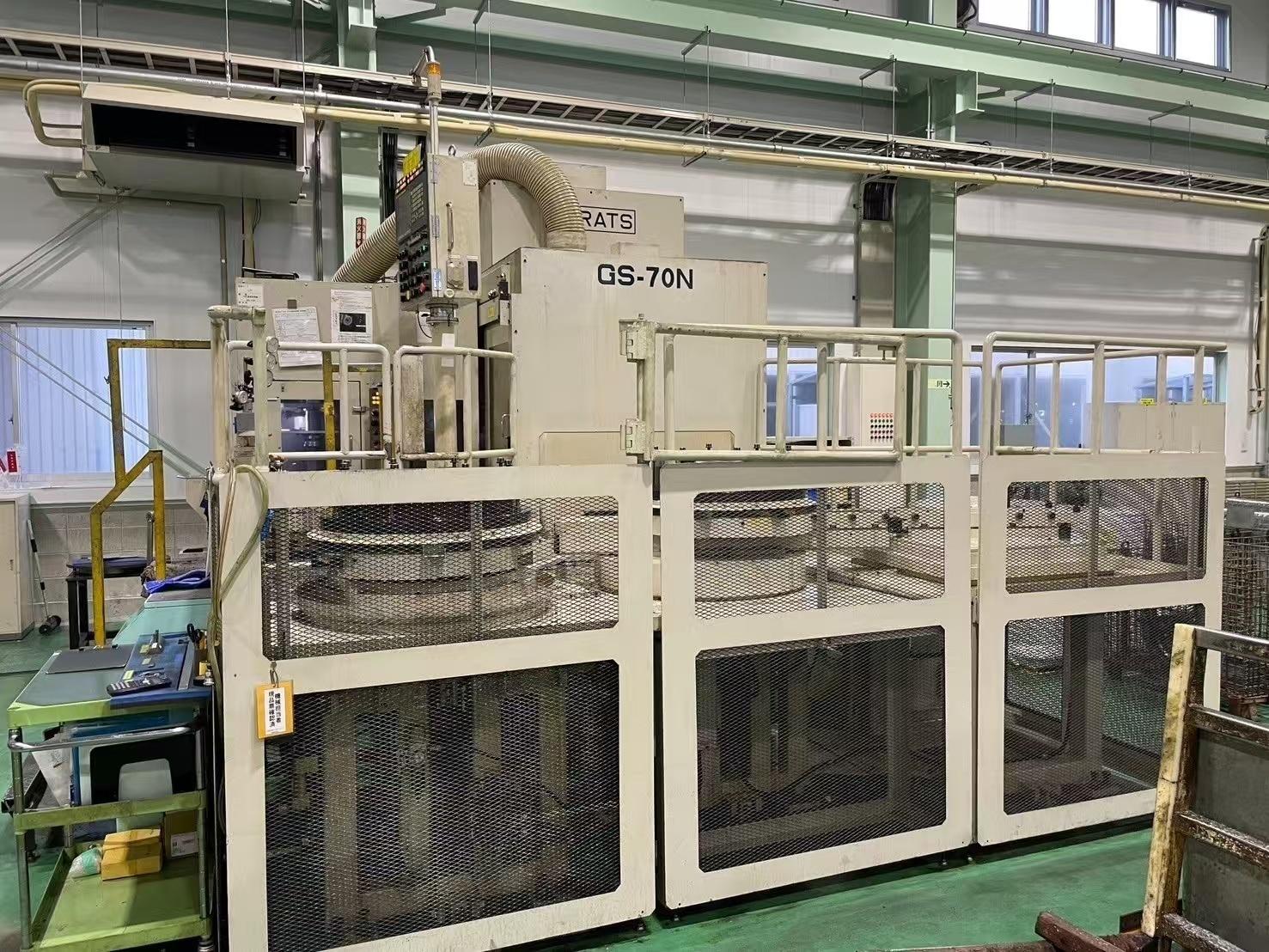

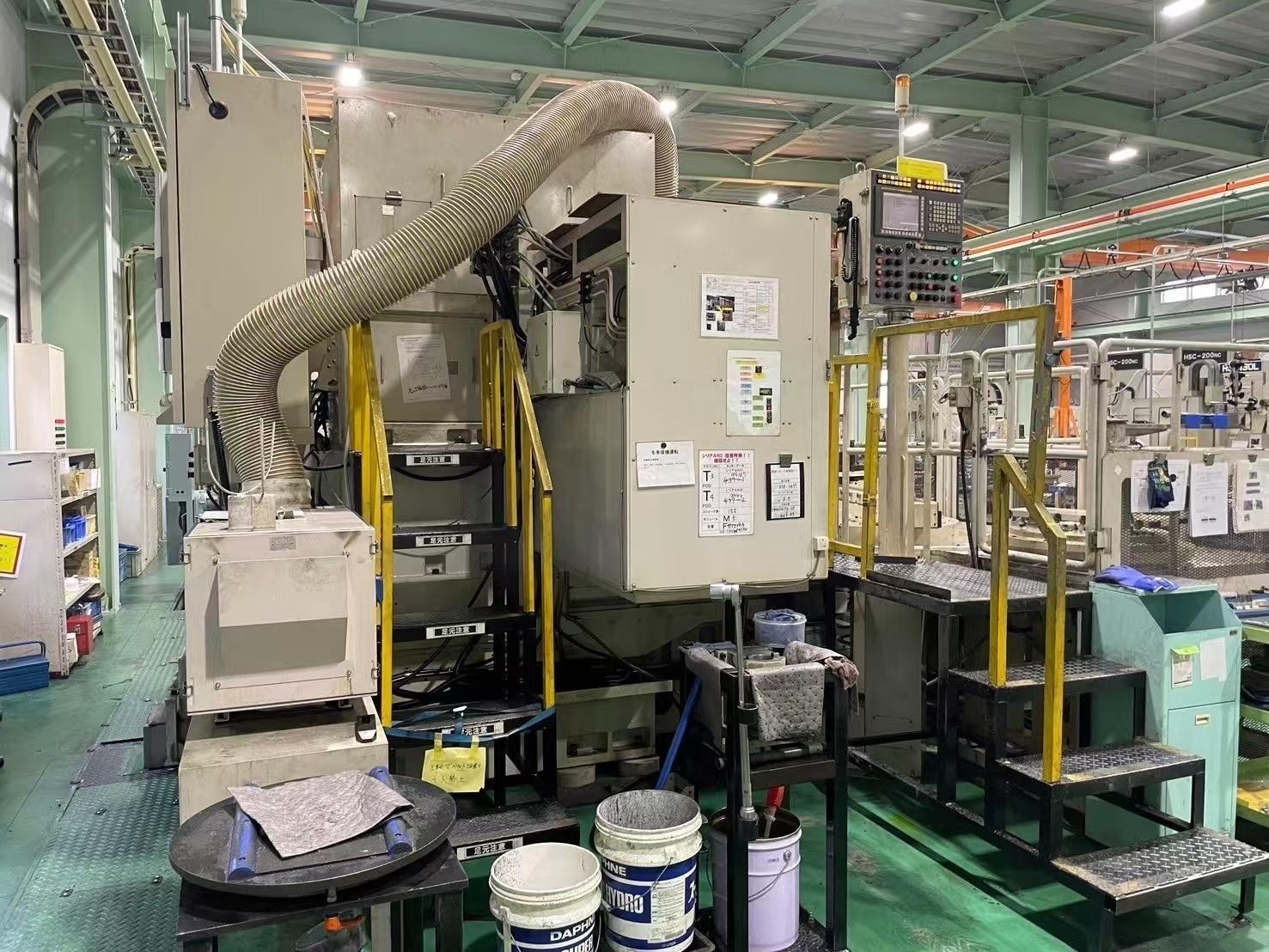

KARATSU GS-70N Grinding machines

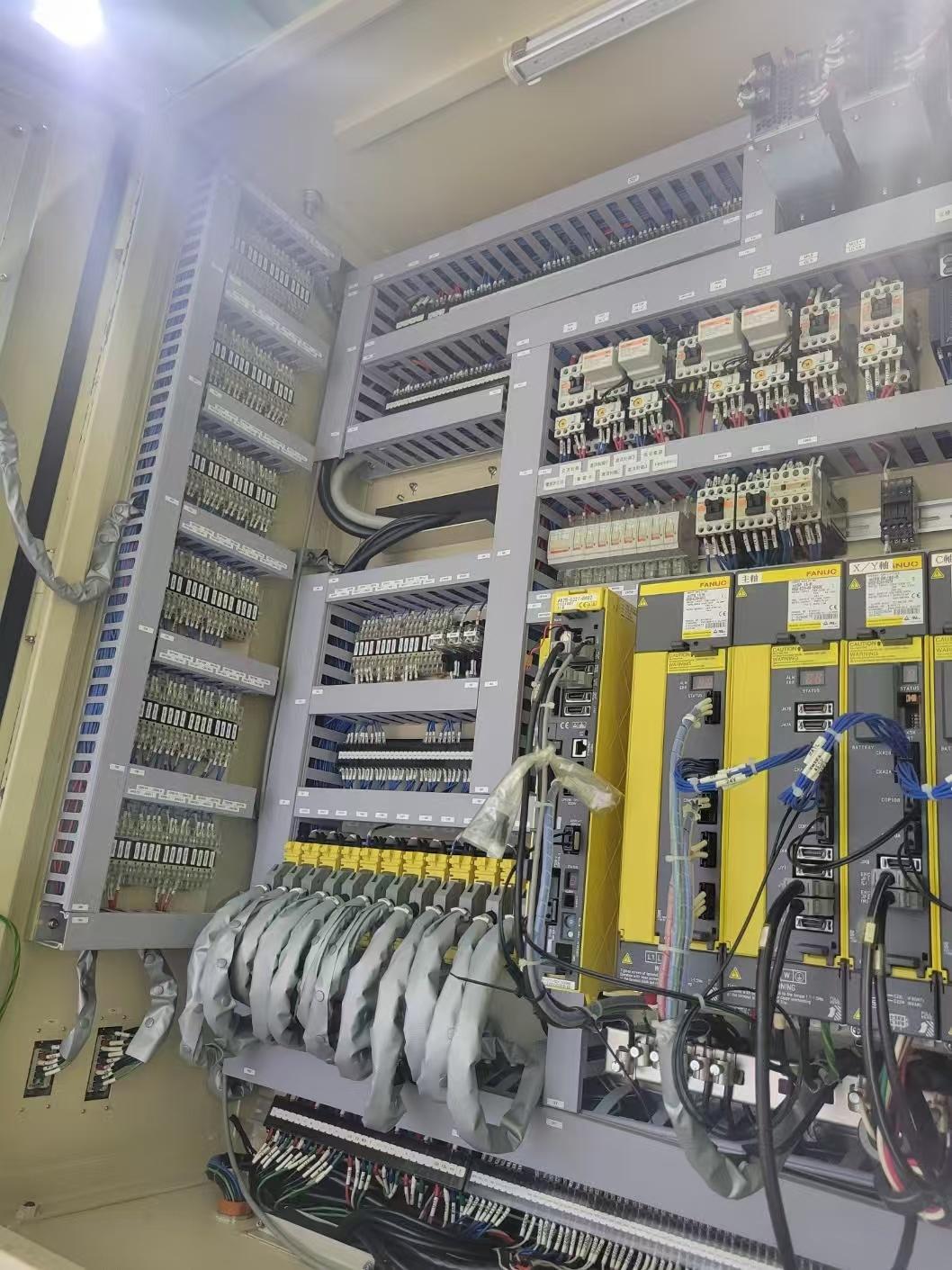

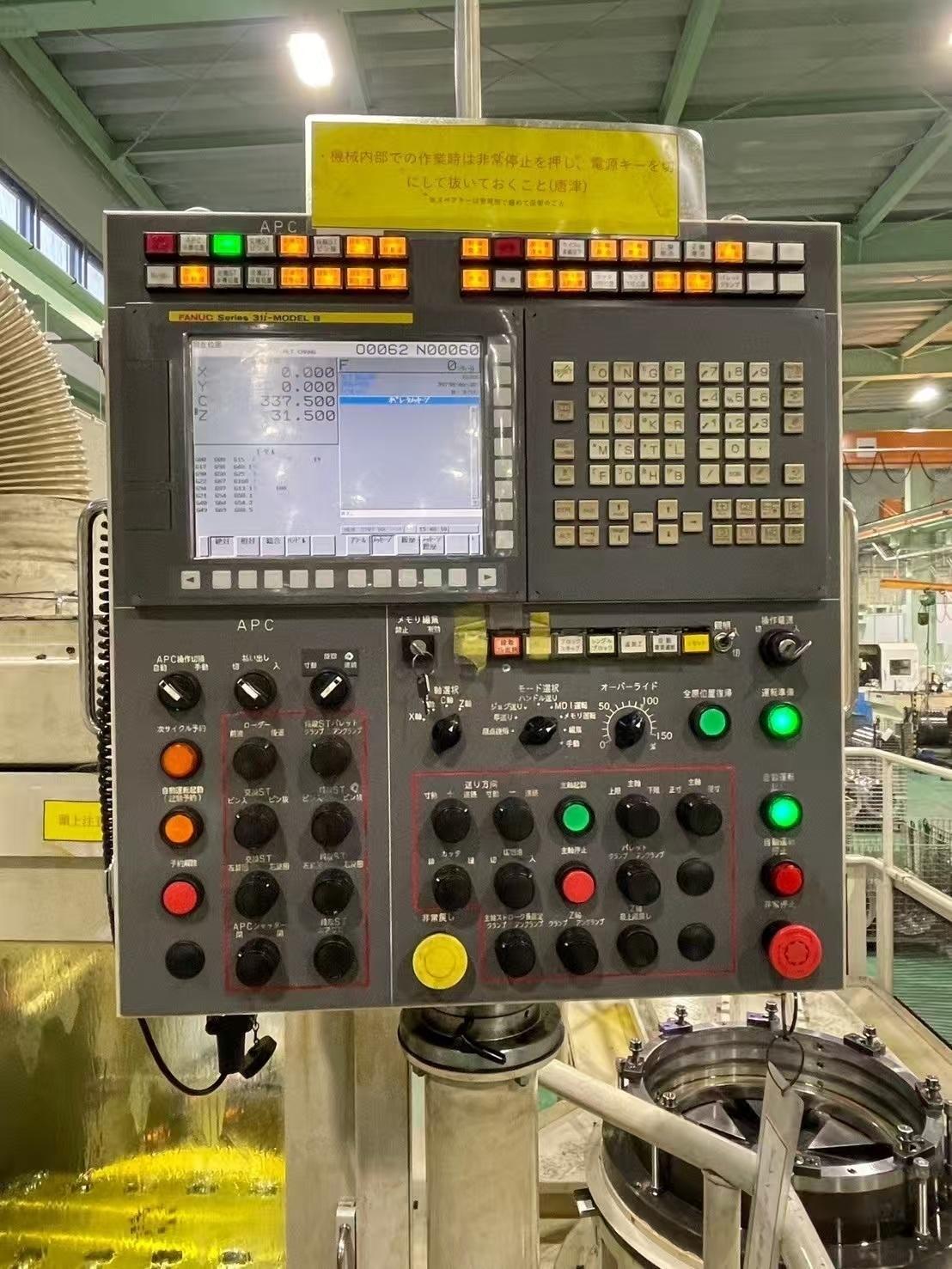

CNC System :FANUC Serles 31i-MODELB

Maximum diameter of flat gear :700mm

Maximum tooth width of flat gear :150mm

Maximum diameter of the internal gear :580mm

The maximum tooth width of the internal gear is 150mm

The shape of spindle nose :BBT50

Distance from spindle nose to workWorktable surface :290 to 510mm

external diameter of workWorktable :700mm

The center hole diameter of workWorktable :200mm

spindle external diameter :110mm

Spindle speed :30-250rpm(stepless)

spindle travel :170mm

Bed area :3890x4920mm

Machine height :3615mm

Machine weight :12 tons
