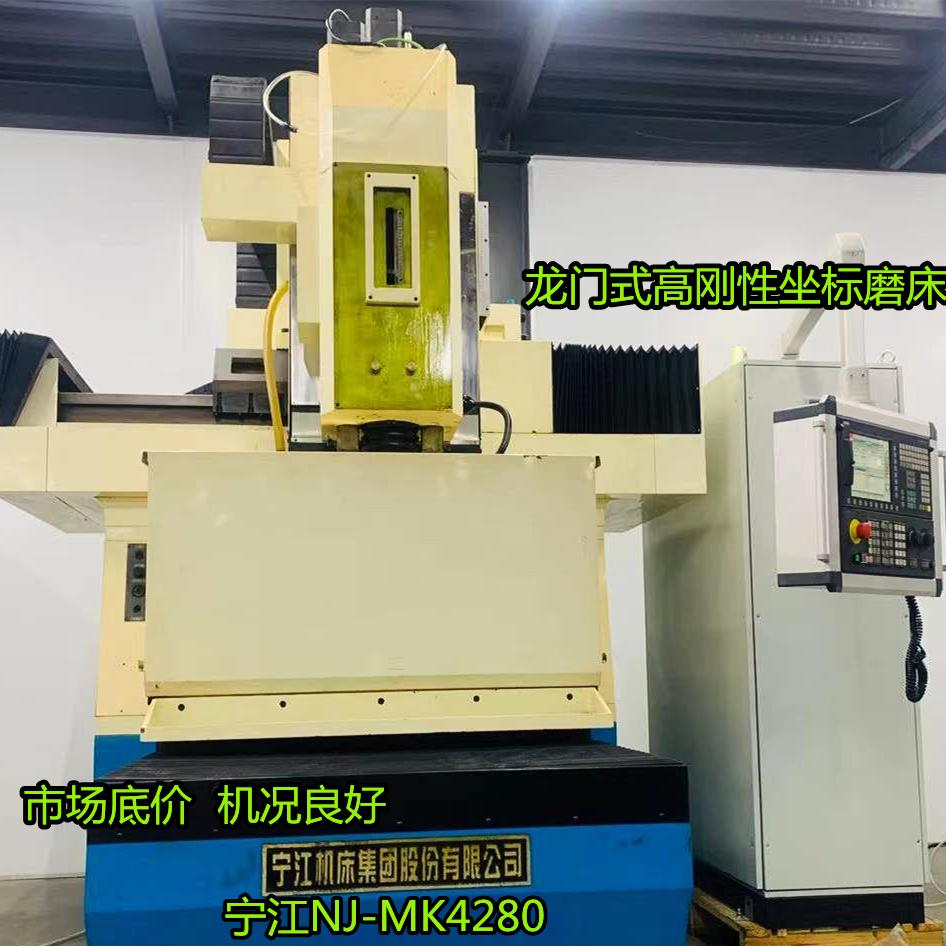

NJ Machine Tools MK4280 CNC Jig grinding machine

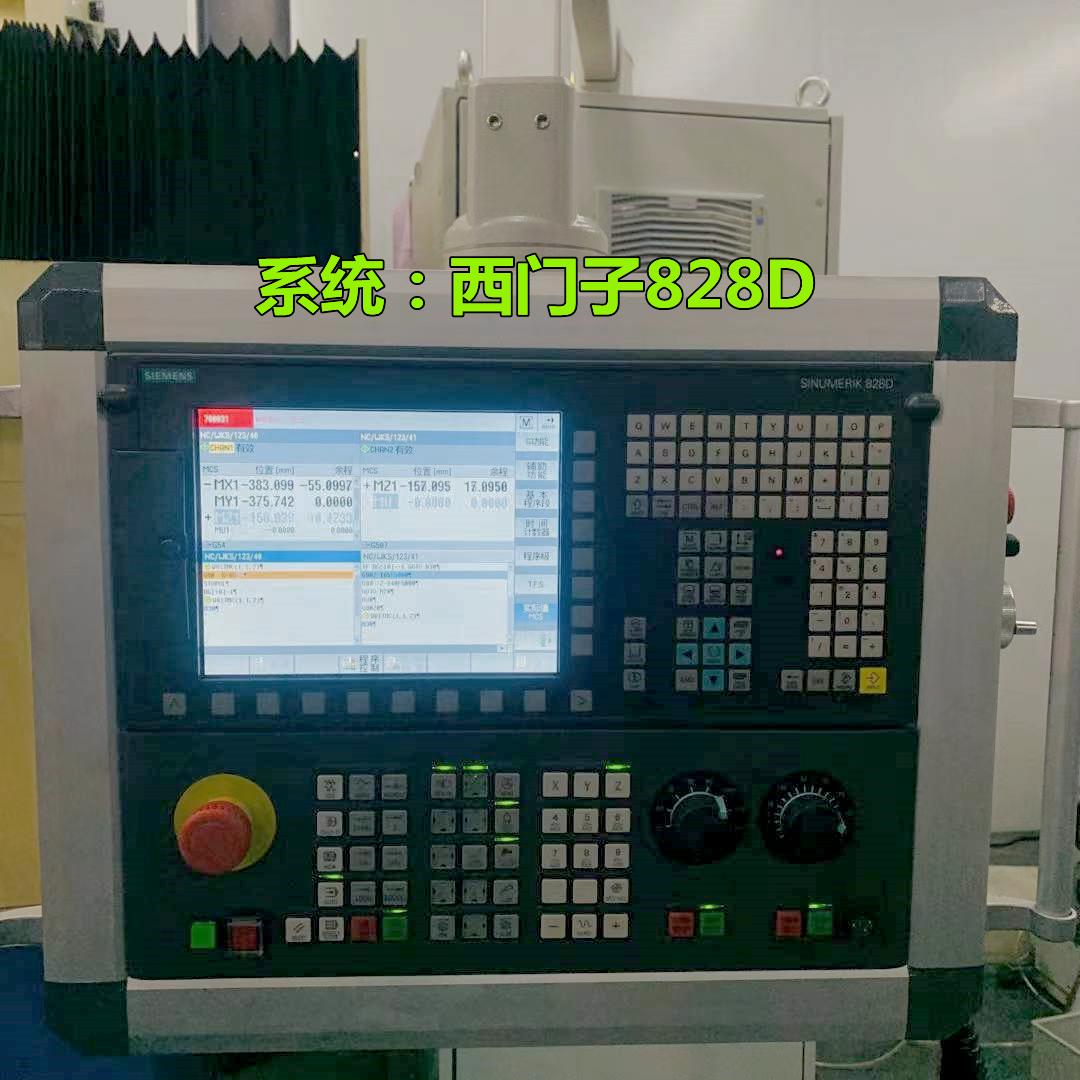

CNC System: Siemens 828D

WorkWorkWorktable size :800*1120mm

WorkWorktable travel :1000mm

X-axis travel :1000mm

Y-axis travel :700mm

Z-axis travel :180mm

W-axis travel :600mm

U-axis travel :6mm

C-axis: 360°

guideway method: Hydrostatic guideway

Each axis drive mode :XY lead screw

WorkWorktable size :800*1120mm

The maximum idle speed of workWorktable movement :3000mm/min

The maximum load of workWorktable is 1000kg

Grinding wheel reciprocating travel :180mm

The maximum reciprocating travel speed of the grinding wheel :0.01-10m/min

Minimum lateral feed rate :0.1μ

Longitudinal minimum feed: two :0.1p

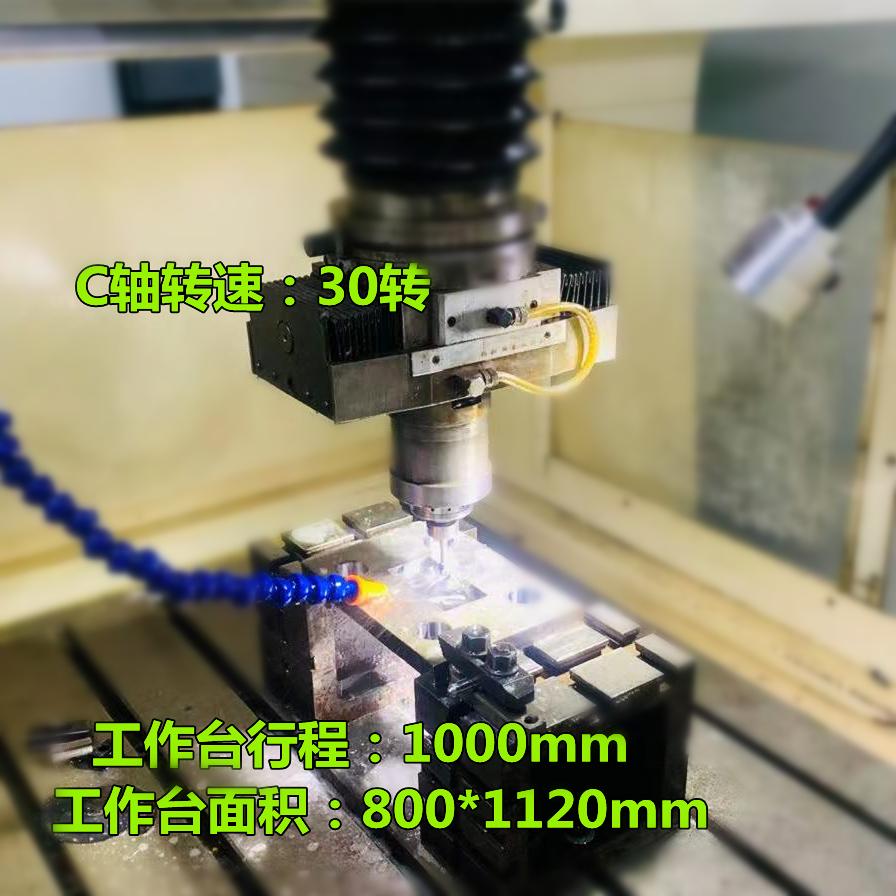

C-axis speed :30rpm

The lateral travel of the grinding head box :620mm

Grinding wheel speed: Electric 45,000-80,000 RPM

Grinding wheel speed: Pneumatic: 100,000-180,000 RPM

Maximum taper of grinding holes :16°

Maximum grinding hole diameter :220mm

Total input of machine tool electrical box :10KVA

Overall Footage (length x width x height):3005x2380x3379mm

Net weight of machine tool: 14,000 kg
