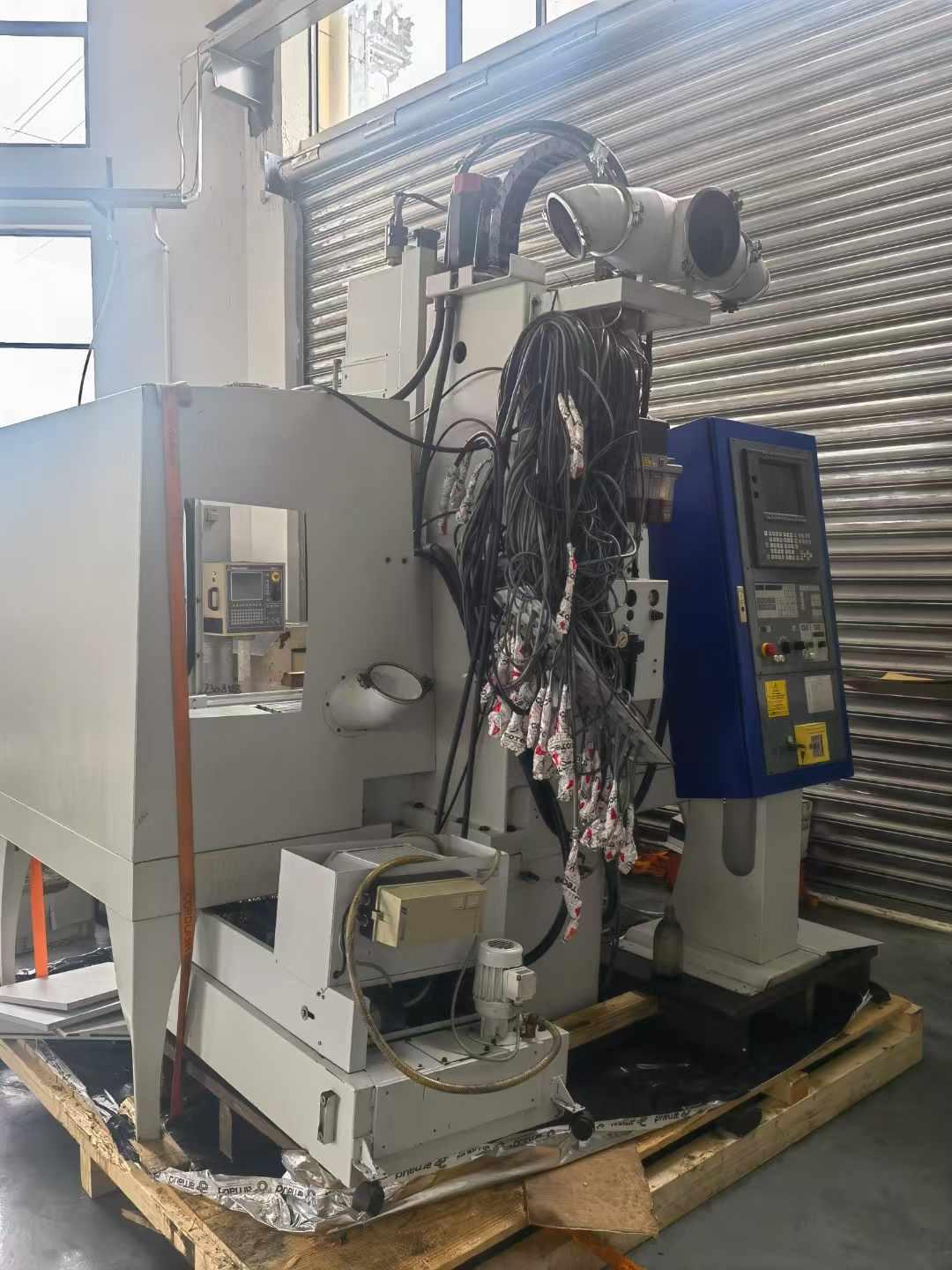

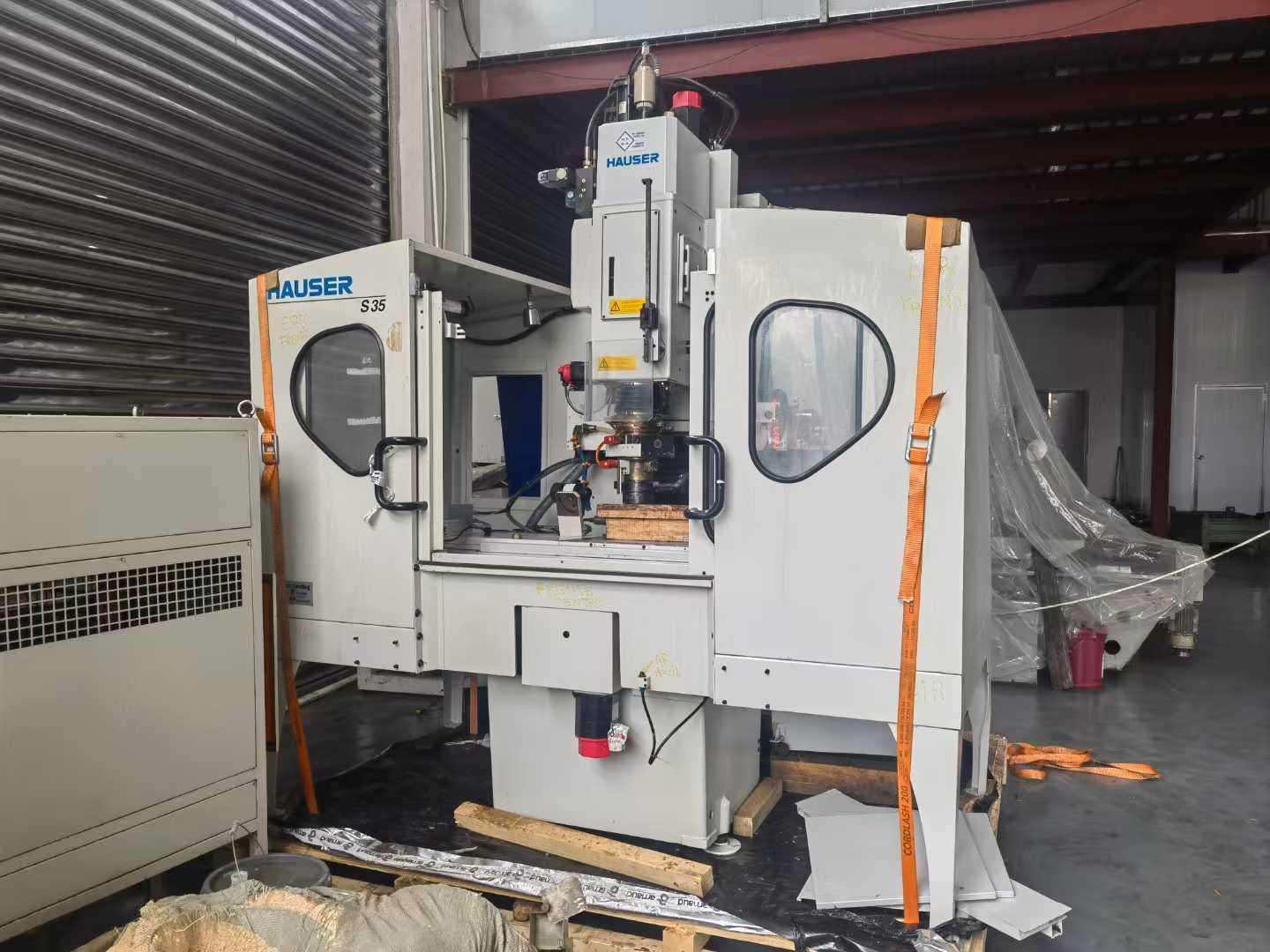

HAUSER S35-400 CNC Jig grinding machine

Length of Worktable: 600mm

WorkWorktable width: 380mm

X axis travel: 500mm

Y-axis travel: 300mm

W axis travel: 450mm

WorkWorktable load: 250kg

Grinding diameter: 230mm

Display disk: 360mm

travel of spindle head: 340mm

Grinding taper angle: 16.0 °

Grinding shaft vertical travel (non-polar) : 1-110mm

travel speed (non-polar) : 0-9 m/min

Z-axis: 0.5-12000mm/min

travel frequency: Z4 Hz

travel length Z (unlimited adjusWorktable) : 110mm

U-axis: 5.5mm

C-axis (non-polar) : 5-300rpm

Possible grinding spindle speed (non-polar) : 4500-80000rpm

Air turbine: 160000rpm

工作电压：50Hz3x380Volt

machine tool weight: 4100kg

Footage (length * width * height) : 2650*1700*2850mm
