Takisawa TC-2 CNC turning lathe

CNC CNC System :KND1000

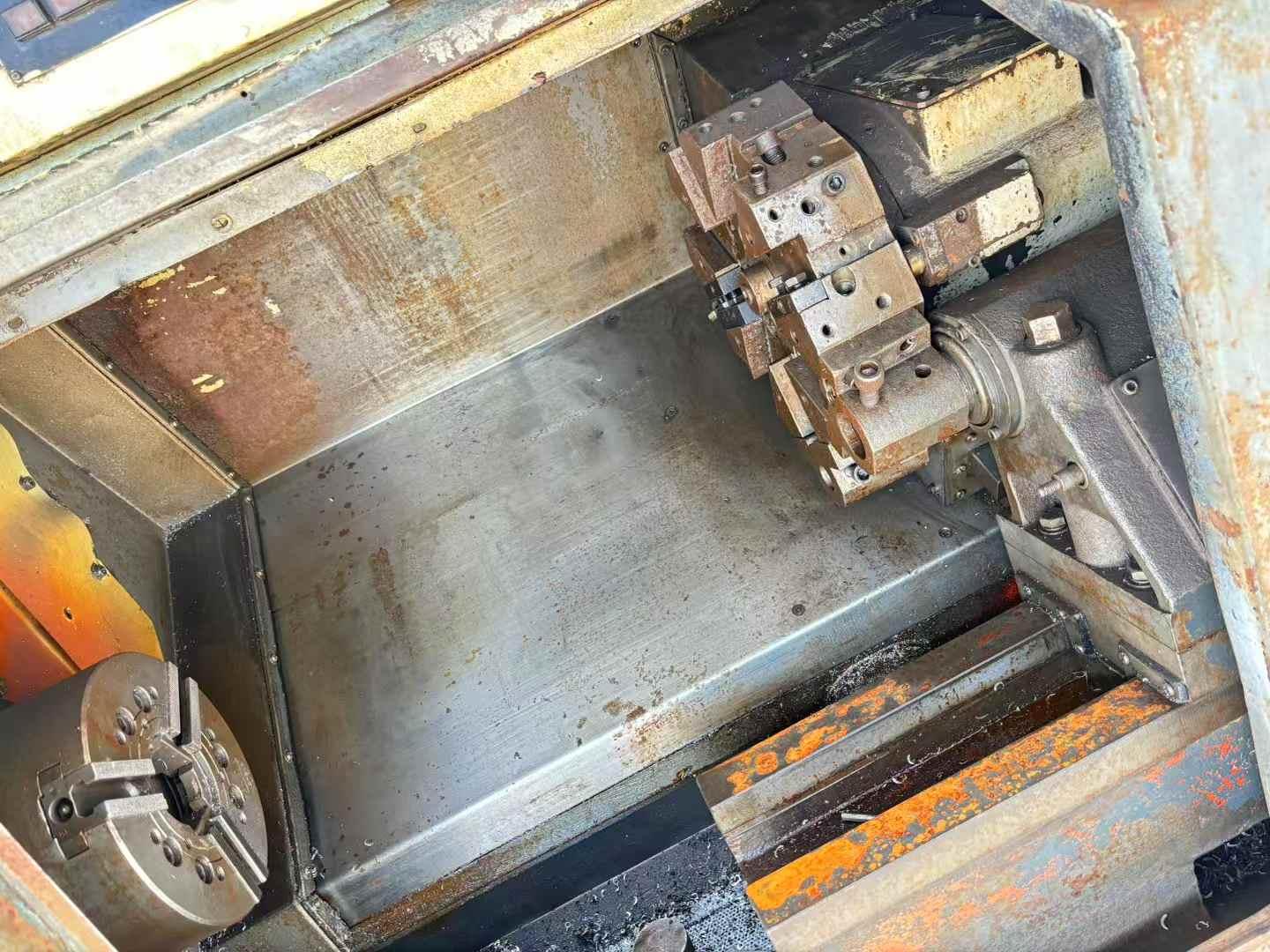

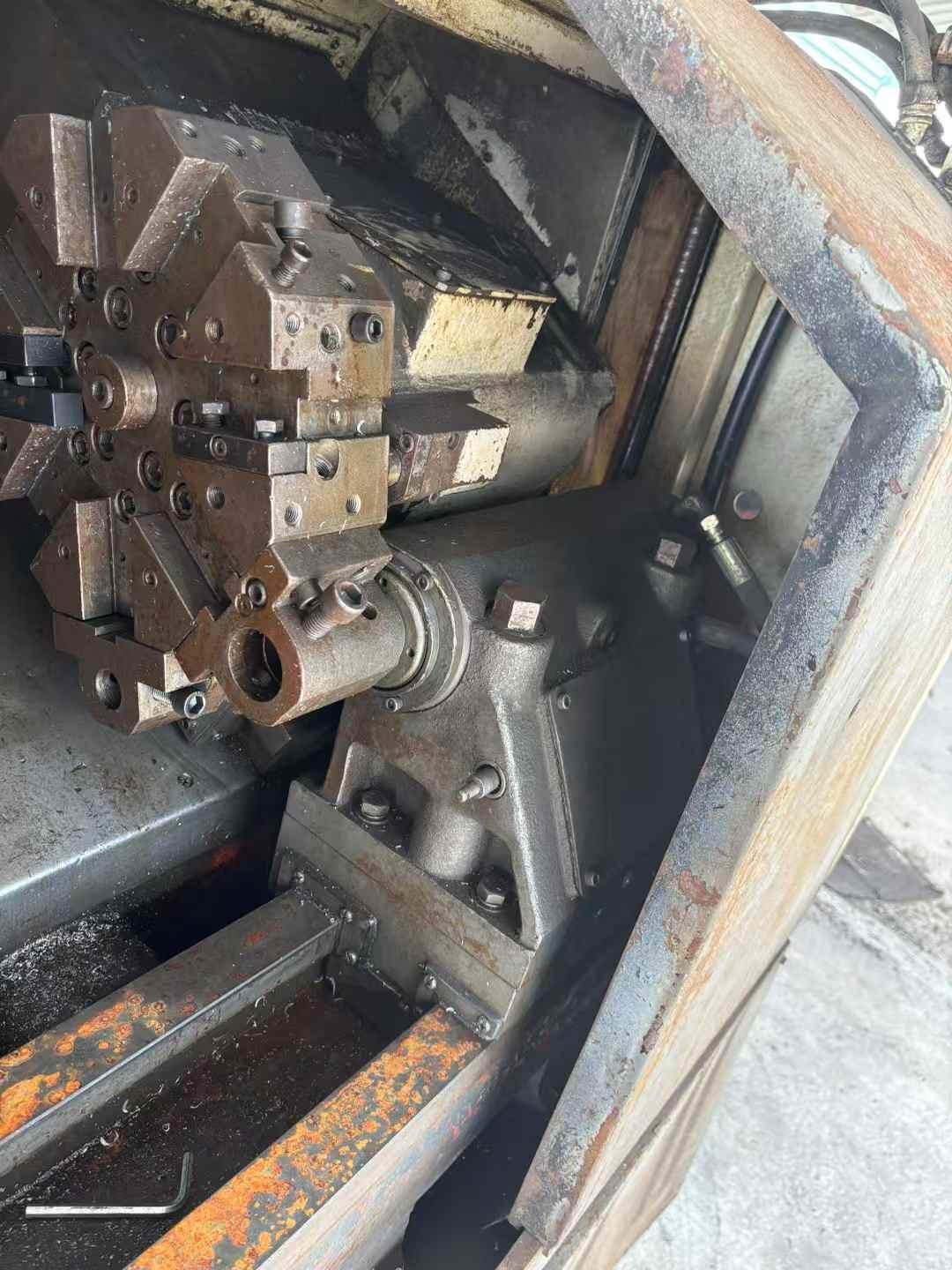

6-station tool turret

8-inch hydraulic chuck

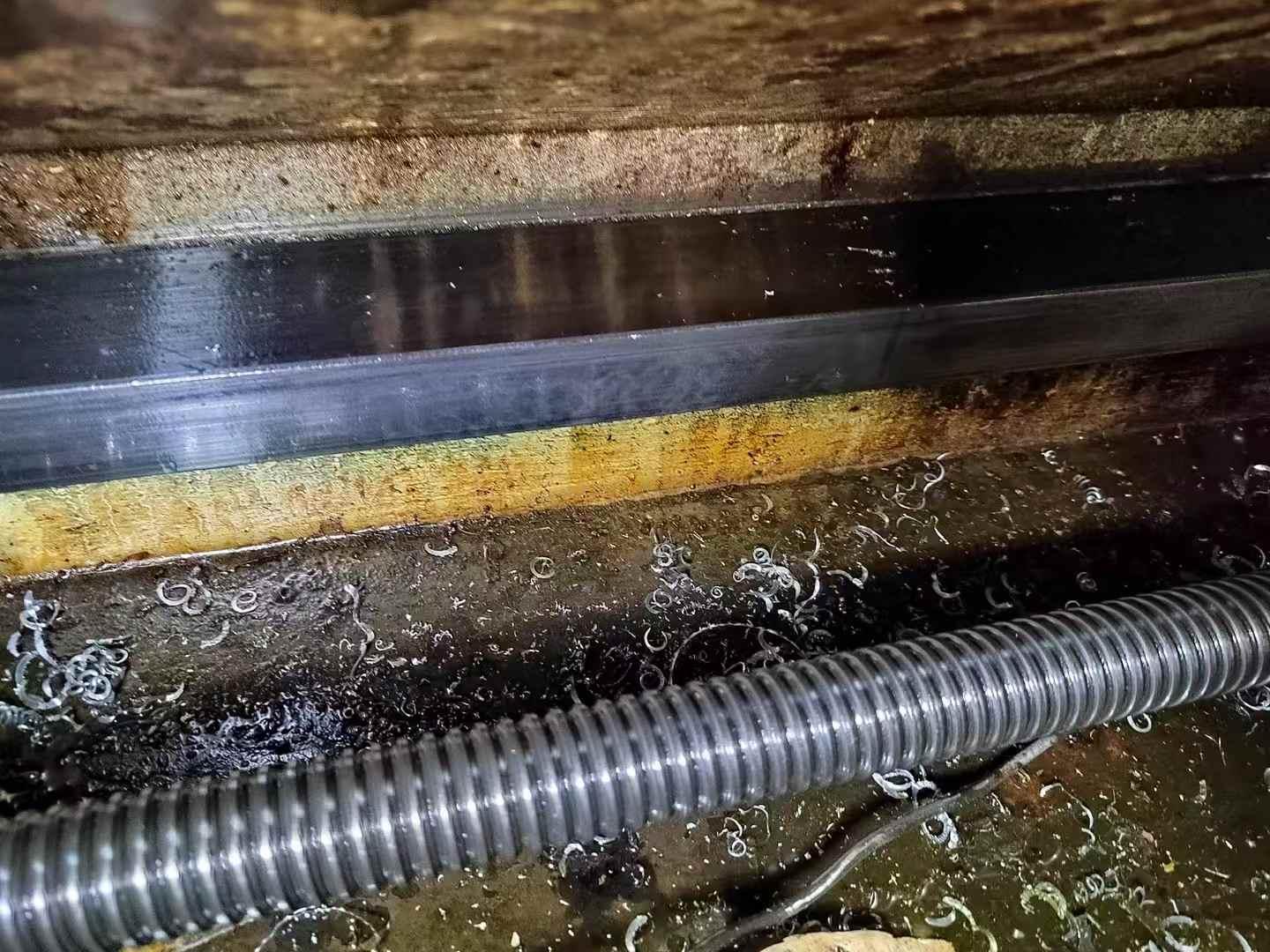

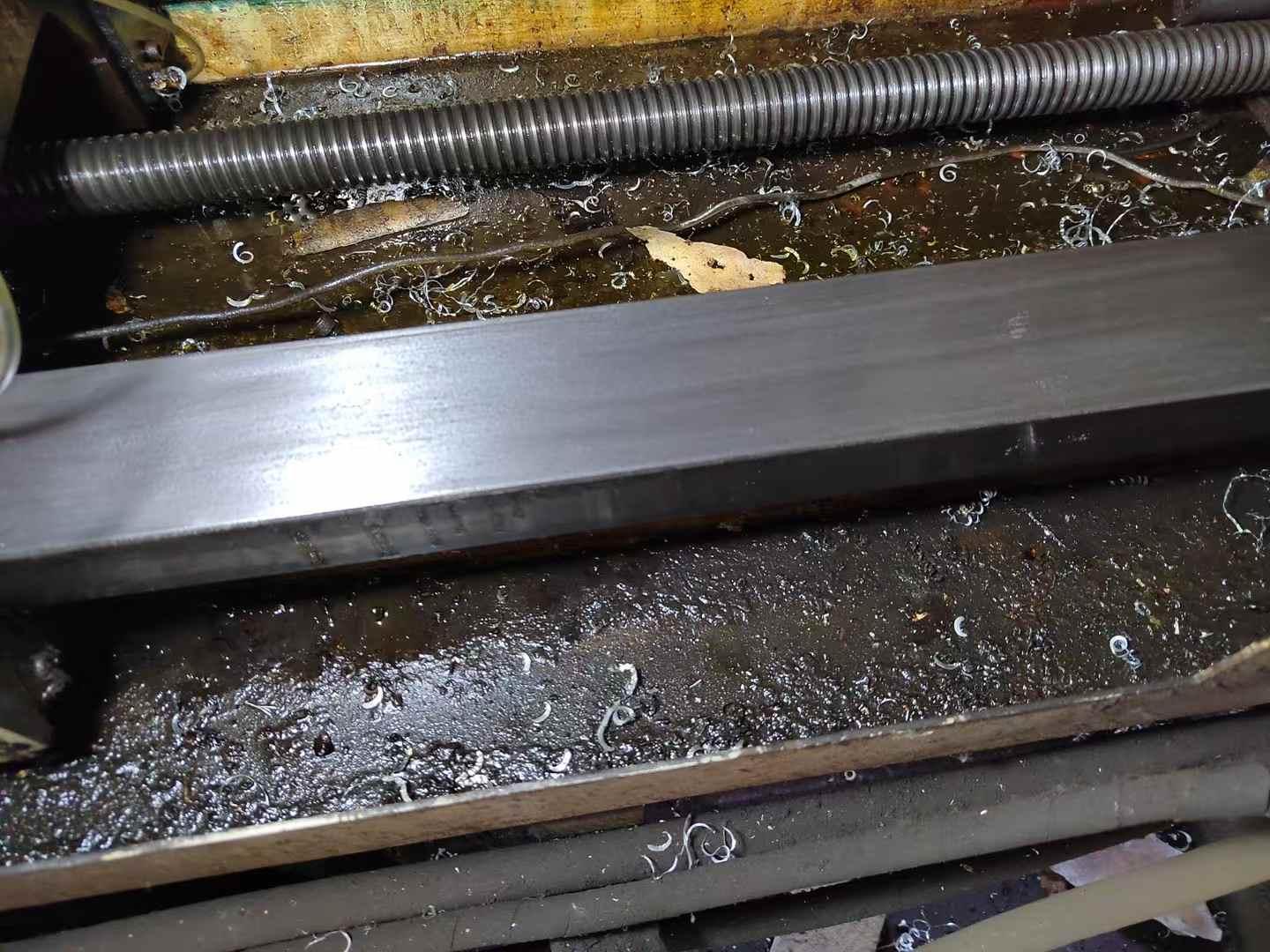

rigid guideway machine

Maximum rotational diameter 420mm

Standard machining  diameter : 225mm

Maximum machining  diameter 250mm

Maximum machining  length: 300mm

Bar machining  diameter: 51mm

travel X-axis travel: 140mm

Z-axis travel: 375mm

Spindle speed (resolutions per minute) : 64 to 3200rpm

Diameter of the A2-6 through hole at spindle nose 63mm

Internal diameter of the bearing 100mm
