LICI TC-220 CNC turning lathe

[Product Information]:

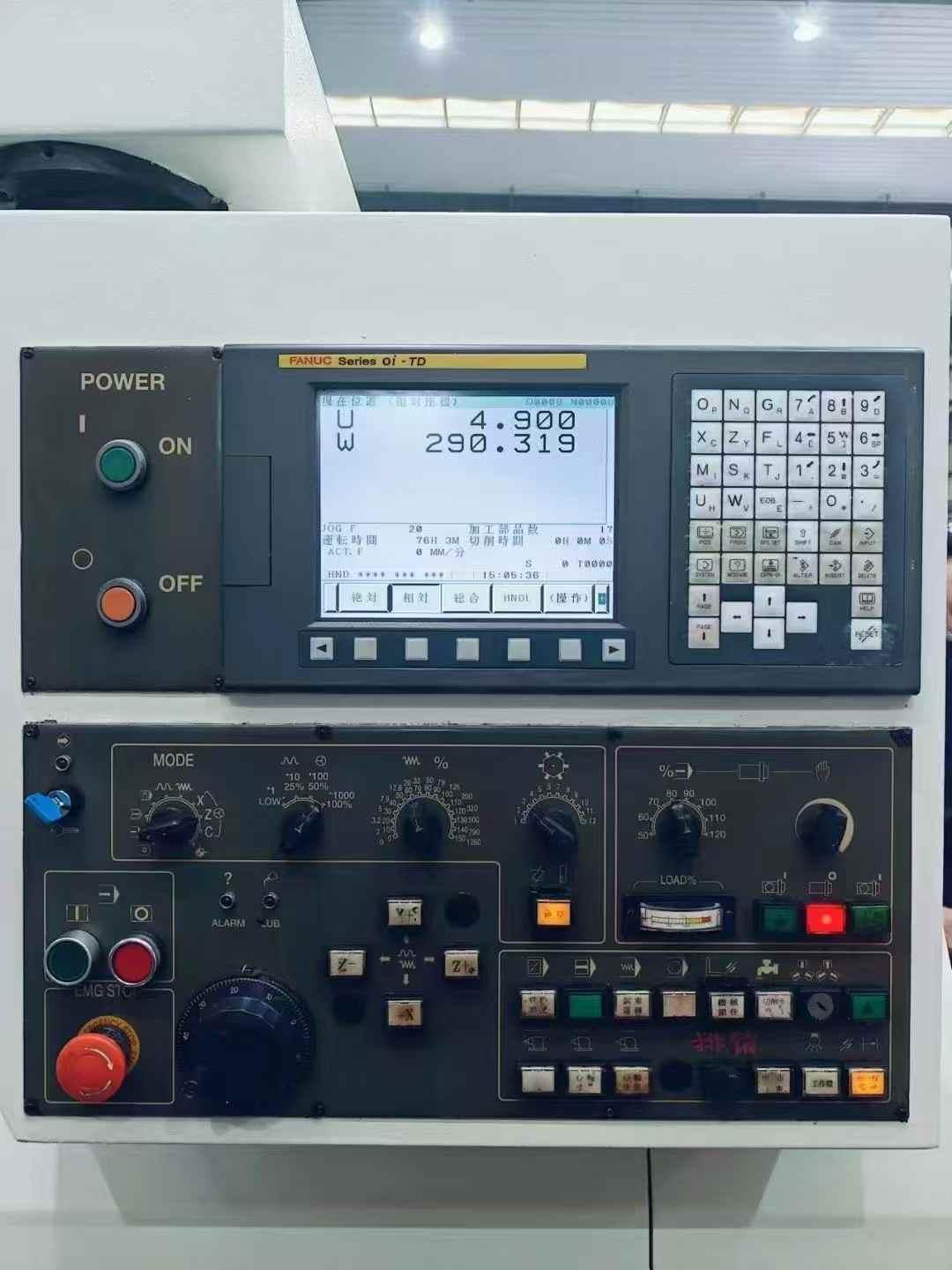

CNC CNC System: FANUC TD

machining length: 500mm

Diameter: 300mm

turning diameter: 200mm

Machining length: 450mm

Chuck size: 8

Bar capacity: 51mm

spindle nose: A2-6

spindle motor power: 11kw

Spindle speed: 4500rpm

spindle torque: 35.8N-m

XZ axis travel: 200*480mm

Fast feed rate: 20m/min

Feed rate: 4800mm/min

Machine weight: 3500kg

Footage: 2480*1300*1635mm

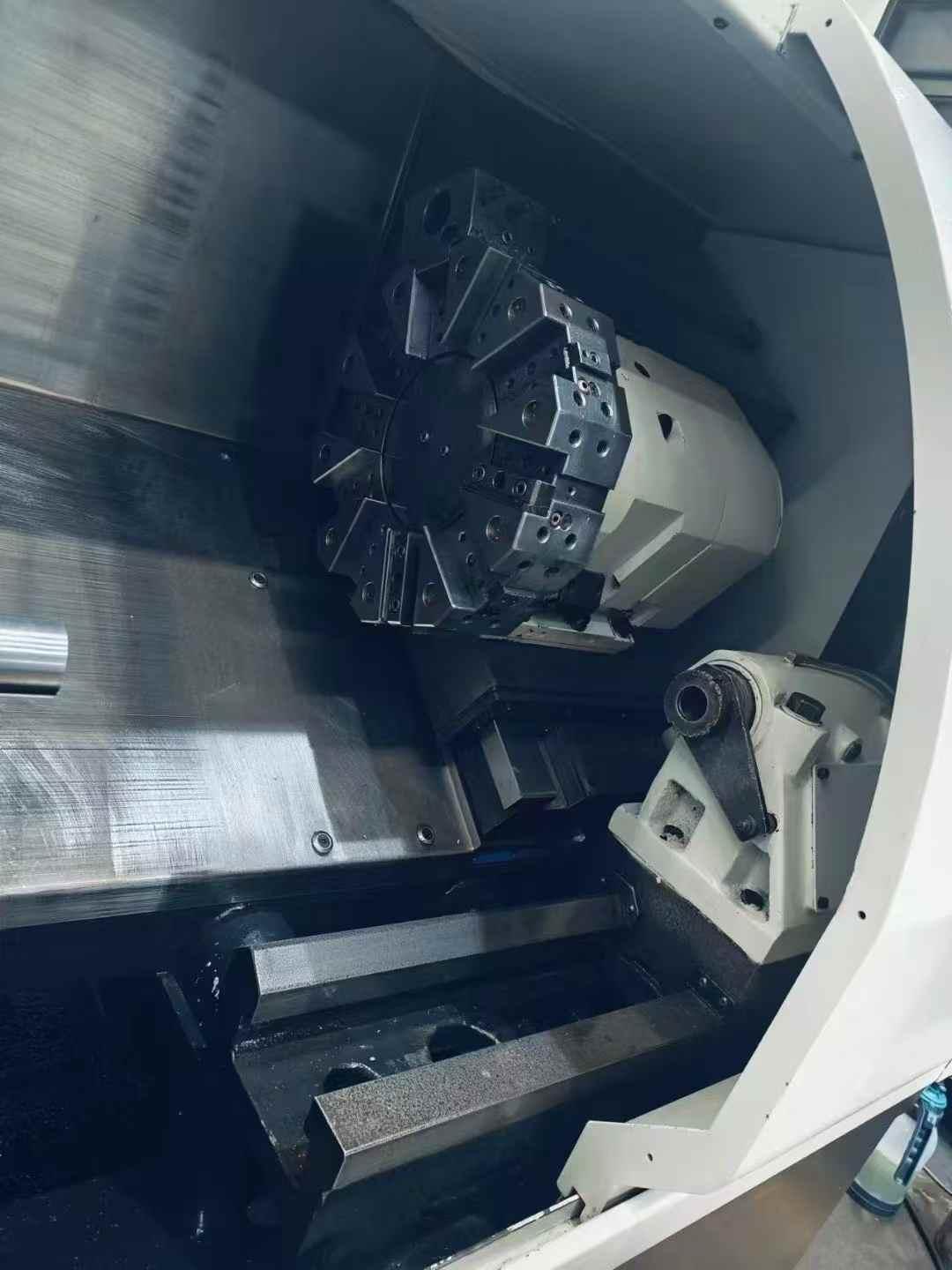

Turret position: 8
