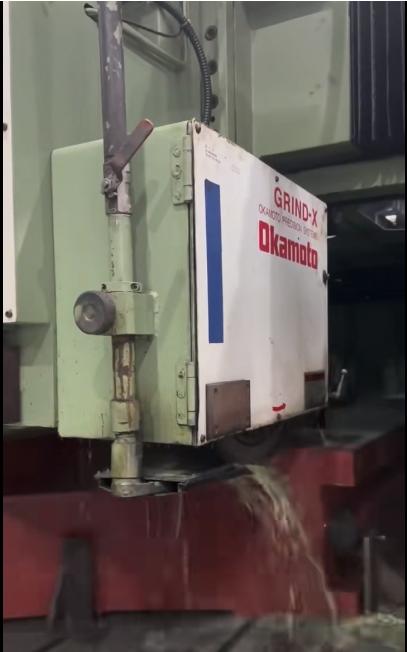

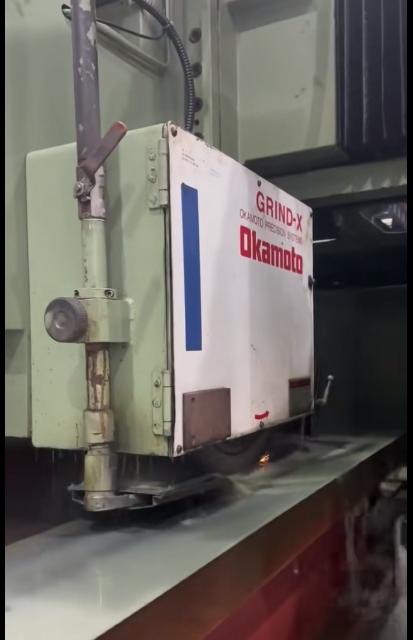

Okamoto PSG 4015 CHNC Grinding machines

WorkWorktable size: 4050*1550mm

WorkWorktable load: 10,800 kg

X-axis travel: 4250mm

Fast feed rate: 2m-30m/min

Z-axis travel: 1670mm

Minimum setting unit: 0.0001mm

Automatic feed: 0.0001-1500mm/min

Handwheel feed: 0.0001mm(0.001,0.01,0.1) per Indexing

Y-axis grinding wheel travel: 860mm

Minimum setting unit: 0.0001mm

Automatic feed: 0.0001-1500mm/min

Handwheel feed: 0.0001mm(0.001,0.01,0.1) per Indexing

grinding wheel external diameter: Medium 610*150*Ф305

Speed: 300-1800rpm

grinding wheel head: 22kw
