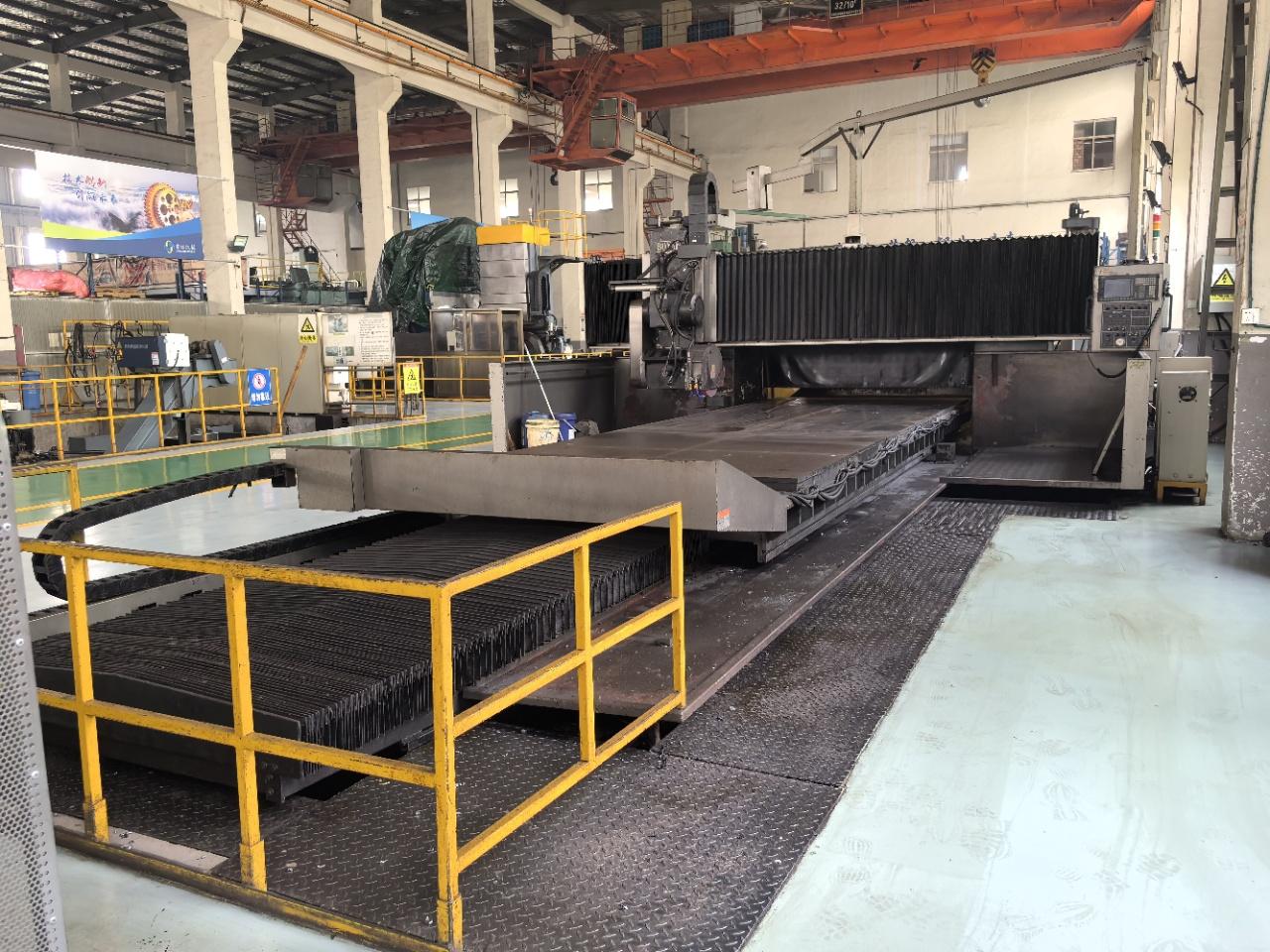

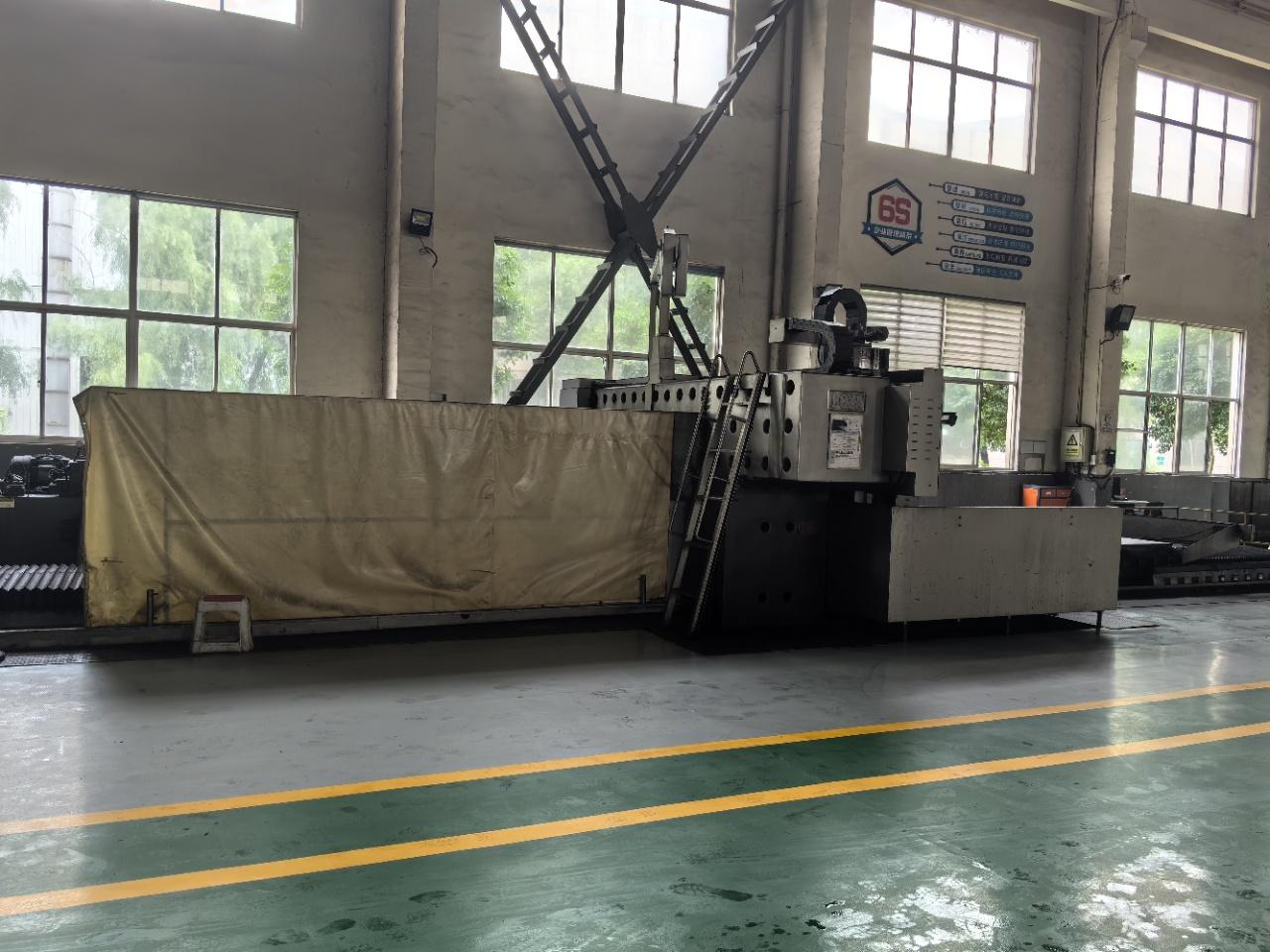

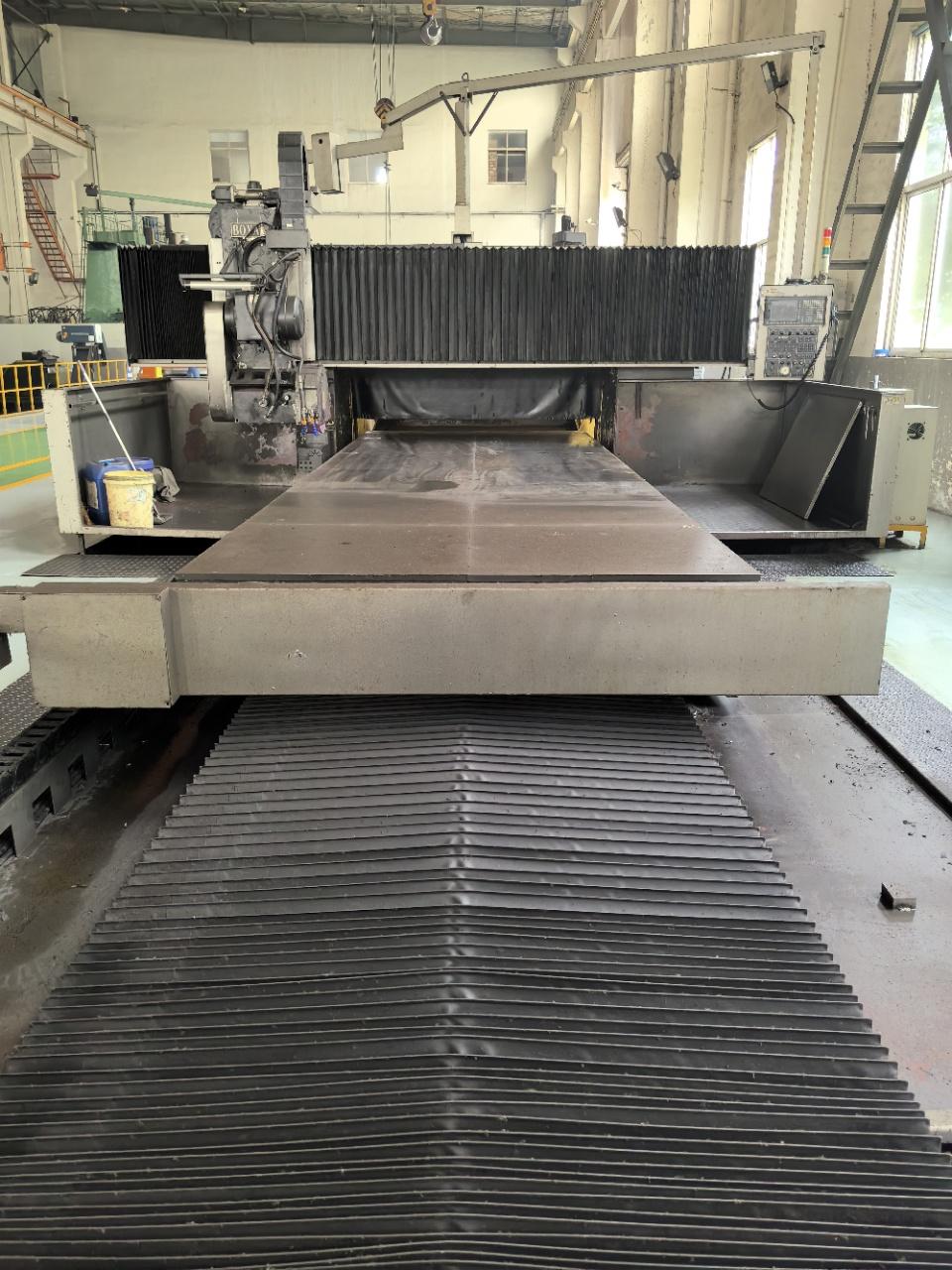

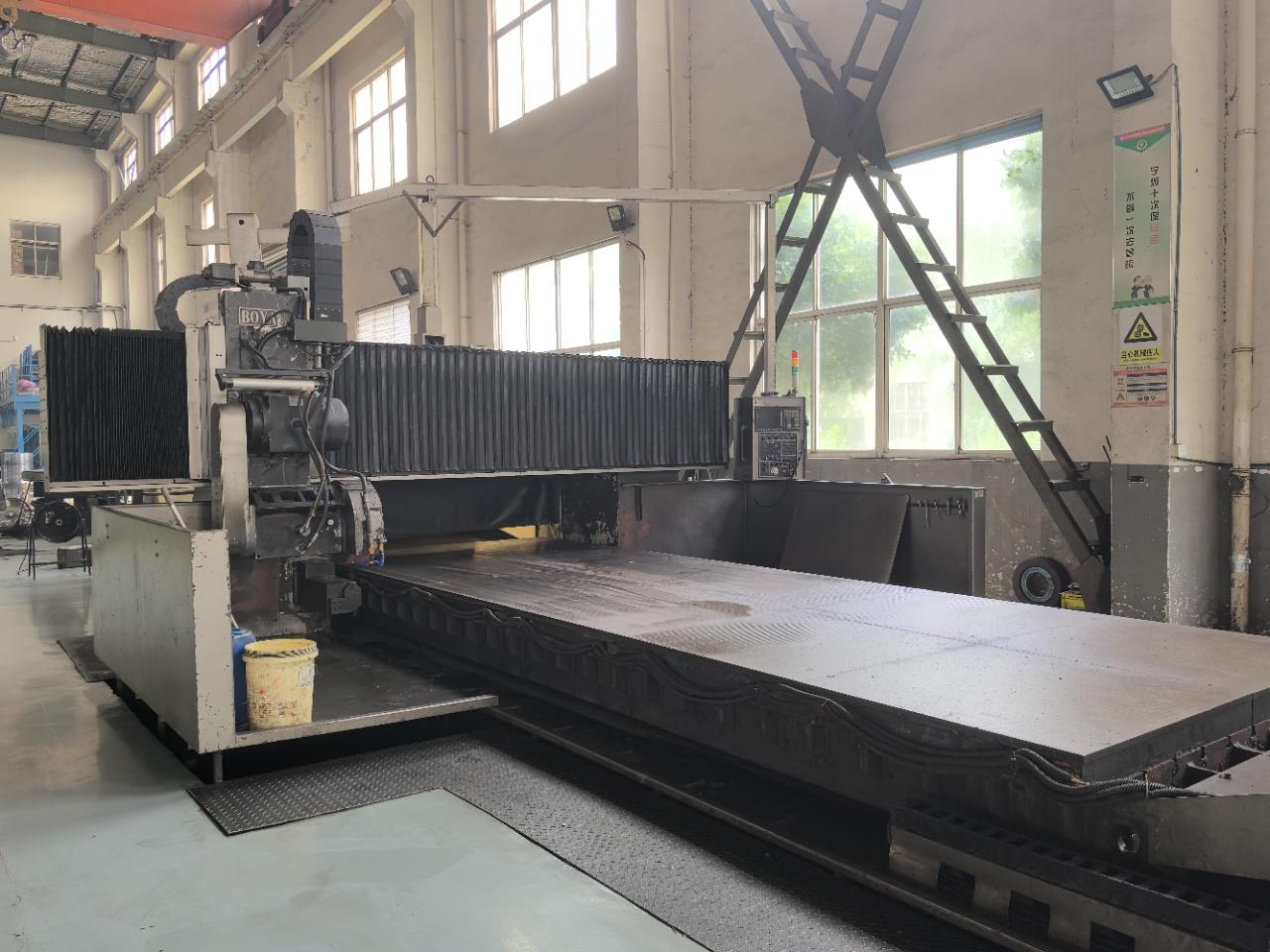

BOYA GDS25-600B Grinding machines

[Product Information]:

Inventory number：84497
Brand：BOYA
Model：GDS25-600B
Origin：Taiwan of China
Location：China
Year：2018
Create Time：2024-08-17

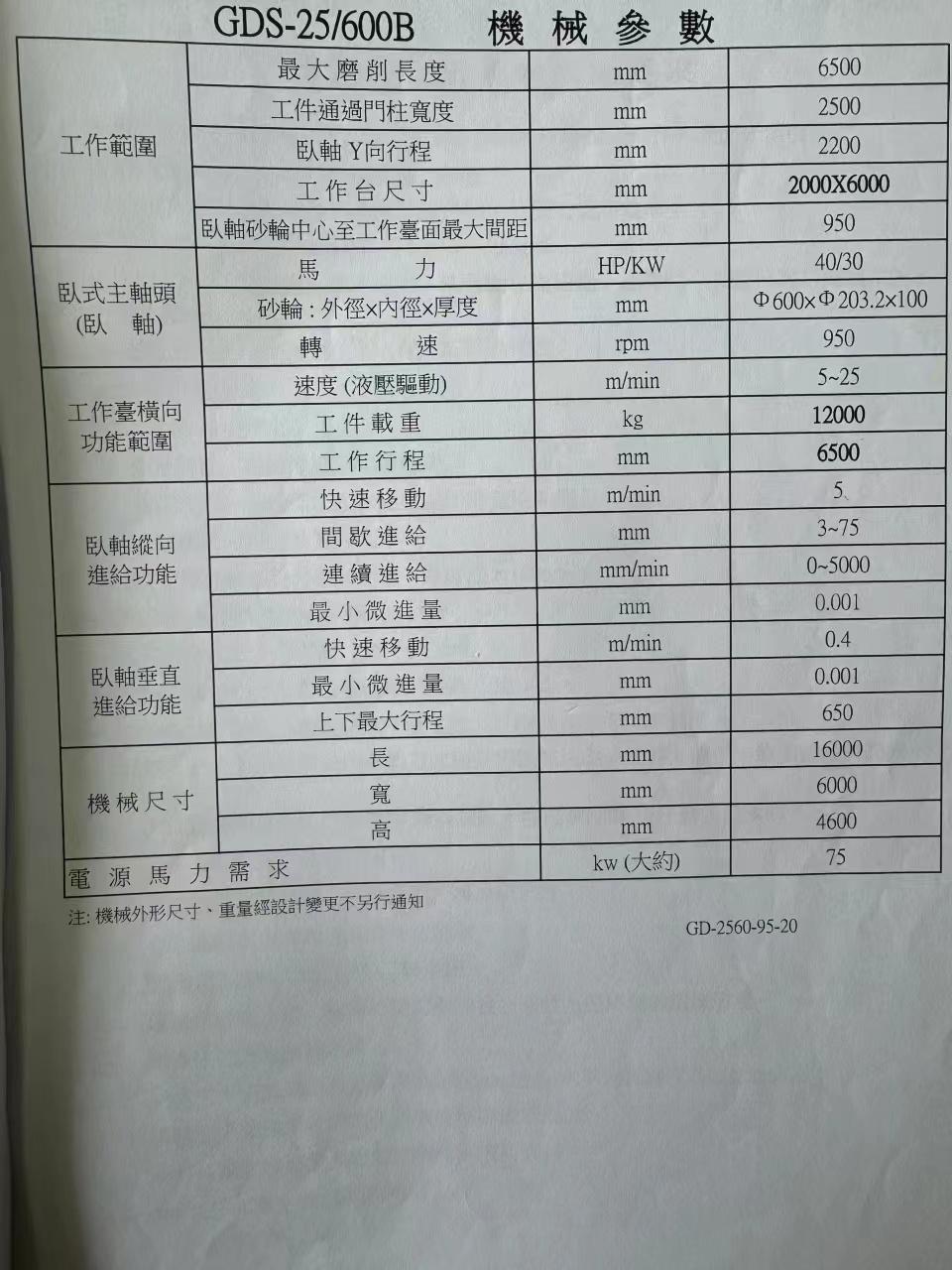

Specifications:

Three axis travel: 6500 * 2200 * 650mm
Maximum grinding length: 6500mm
Longmen width 2500mm
Y-axis stroke of horizontal axis: 2200mm
Maximum distance from the center of the horizontal grinding wheel to the workbench: 950mm
Horsepower: 40/30HP/KW
Grinding wheel: outer diameter × inner diameter × thickness: Φ 600x Φ 203.2 × 100mm
Speed: 950rpm
Speed (hydraulic drive): 5-25m/min
Workpiece load capacity: 12000kg
Work schedule: 6500 mm
Fast movement: 5m/min
Intermittent feed: 3-75mm
Continuous feed: 0~5000mm/min
Minimum micro feed: 0.001mm
Fast movement: 0.4m/min
Minimum micro feed: 0.001 mm
Maximum travel up and down: 650mm
Dimensions: 16000 * 6000 * 4600mm
