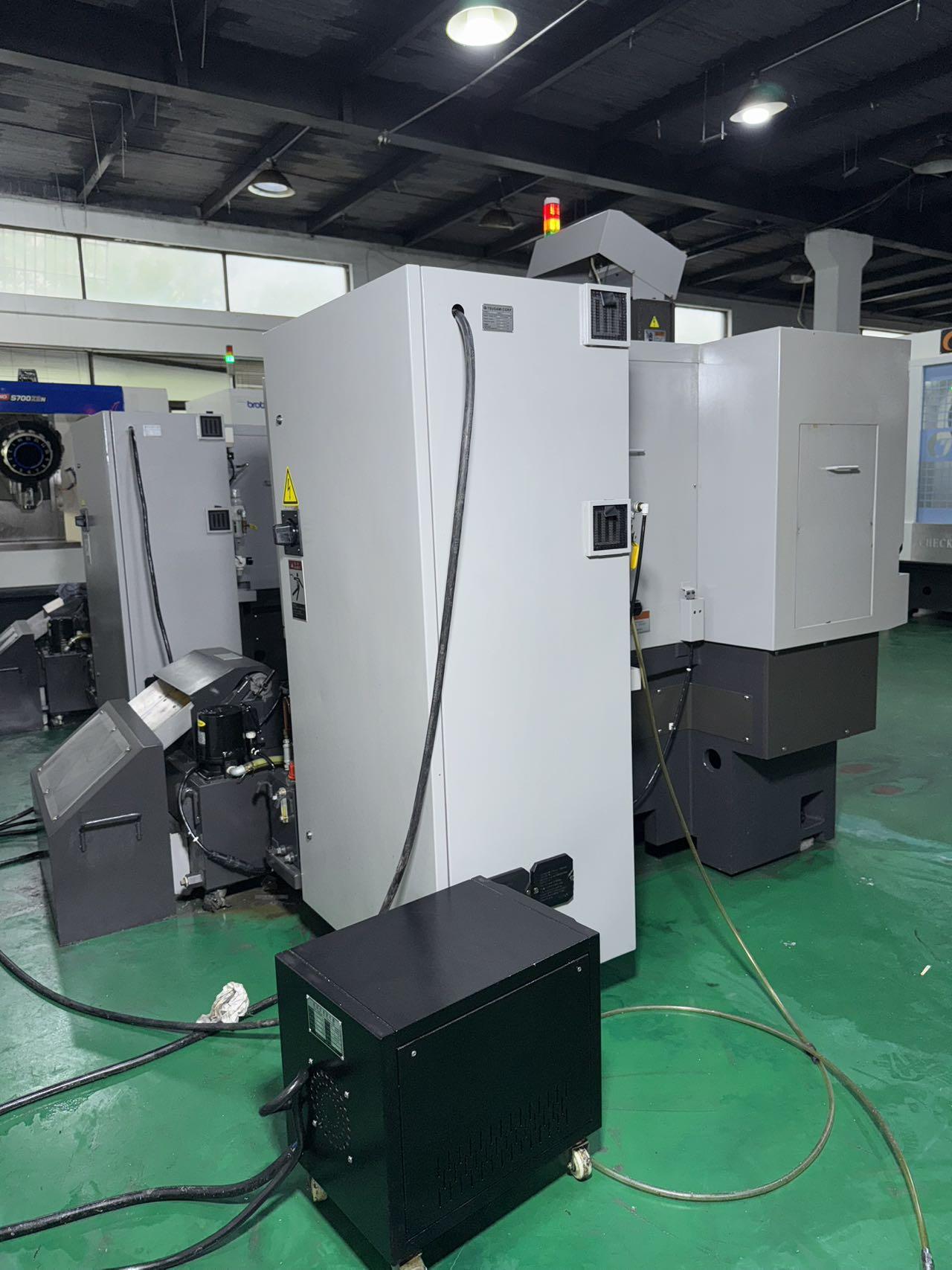

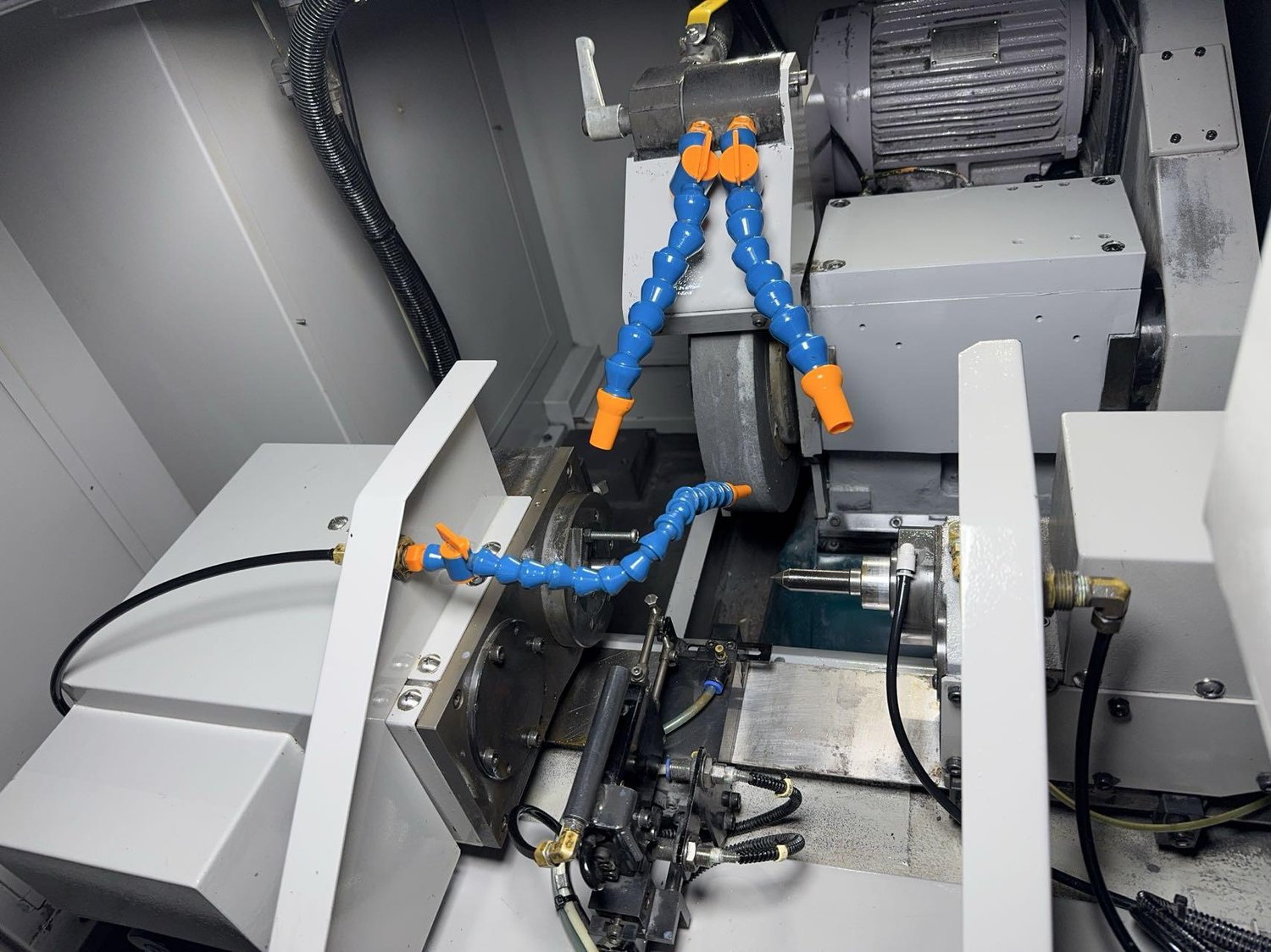

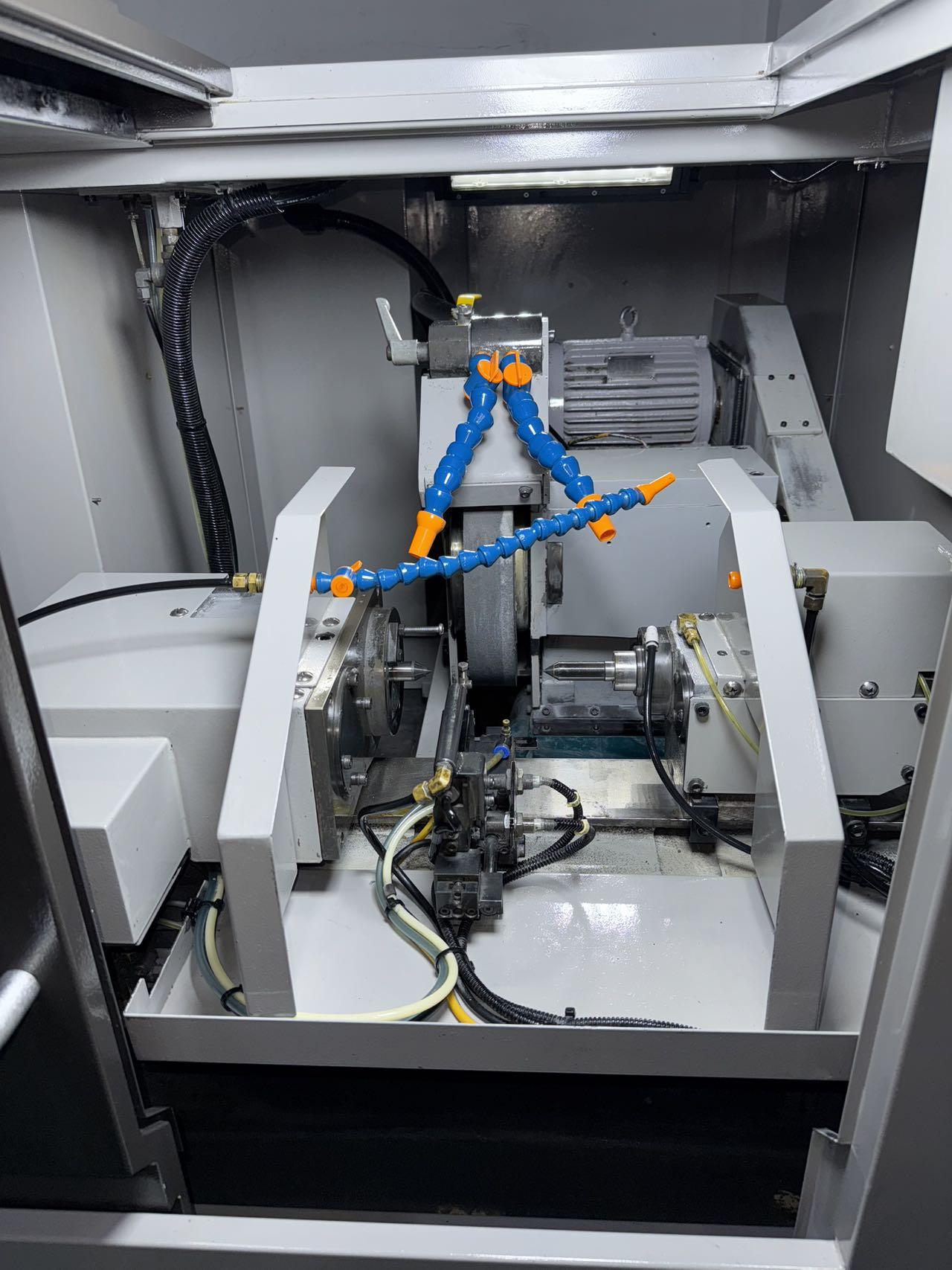

Tsugami G18-II SB CNC Cylindrical grinder

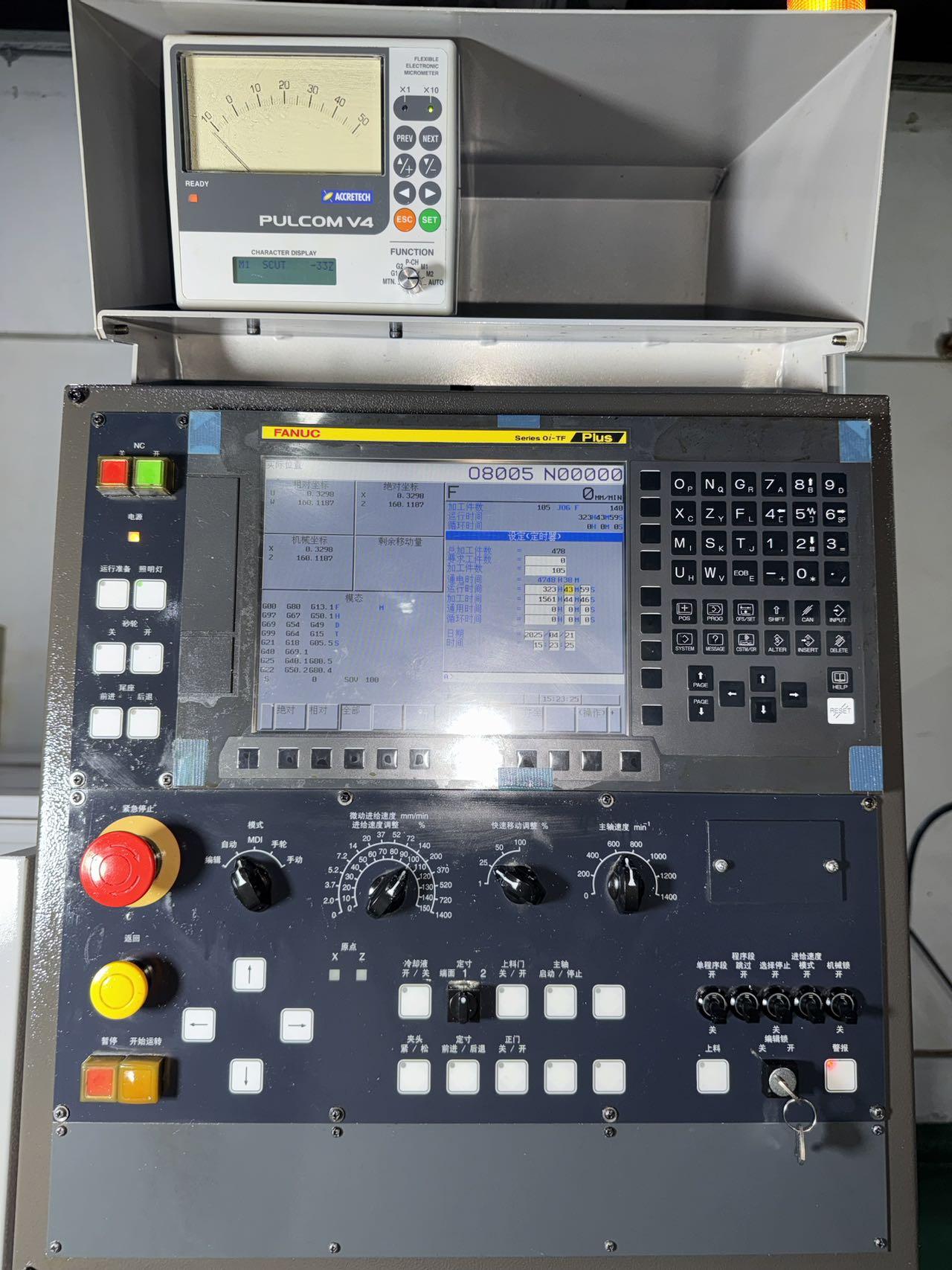

CNC CNC System: FANUC

Rotary diameter: 180mm

Distance between centers: 250mm

Maximum machining  diameter: 50mm

Maximum top support weight: 20Kg

grinding wheel Footage (external diameter * maximum width * Internal diameter) : 355*50*127mm

grinding wheel linear velocity: 2700m/min

The X-axis travel of the grinding wheel Worktable: 170mm

The rotation Angle of the grinding wheel Worktable :0°

Spindle speed: 50-1400rpm

tailstock axis travel: 30mm

Floor area: 1450*2085mm

Height from the center of the ground: 1050mm

Machine weight: 2000Kg
