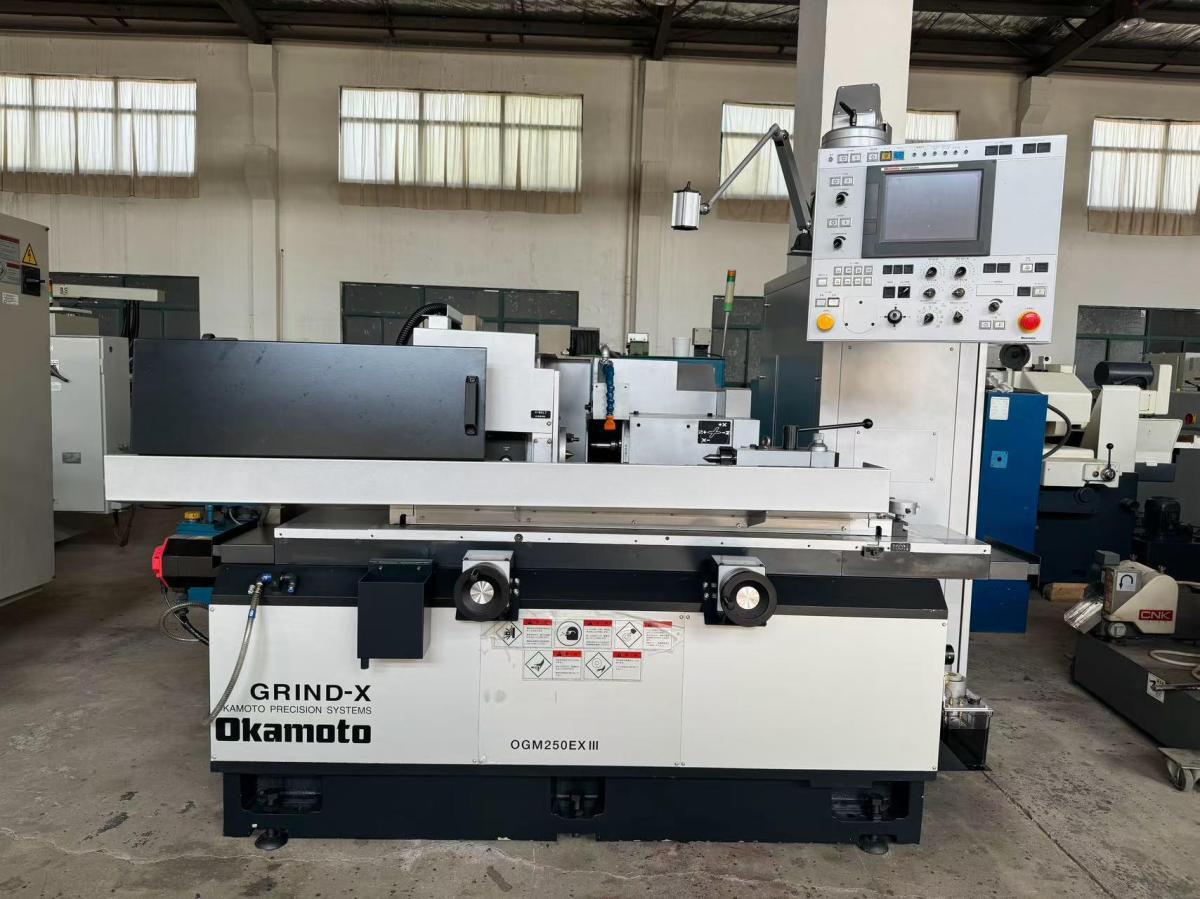

Okamoto OGM250EXIII CNC Cylindrical grinder

Distance Between Centers: 500 mm
Maximum Machining Diameter: 200 mm
Maximum X/Z-Axis Travel: 215 × 762 mm
Grinding Wheel Size (Diameter × Width × Bore): 355 × 38 × 127 mm
Grinding Wheel Speed: 1,614–2,247 rpm
Maximum Peripheral Speed of Grinding Wheel: 30 m/s
Worktable Swivel Angle: 0° to -9°
Spindle and Tailstock Taper: MT3
Spindle Through-Hole Diameter: 18 mm
Workpiece Speed: 10–500 rpm
Spindle Swivel Angle: 30° to -90°
Tailstock Travel: 20 mm
Overall Dimensions (L × W × H): 2920 × 2010 × 1950 mm
Machine Weight: 3,400 kg
