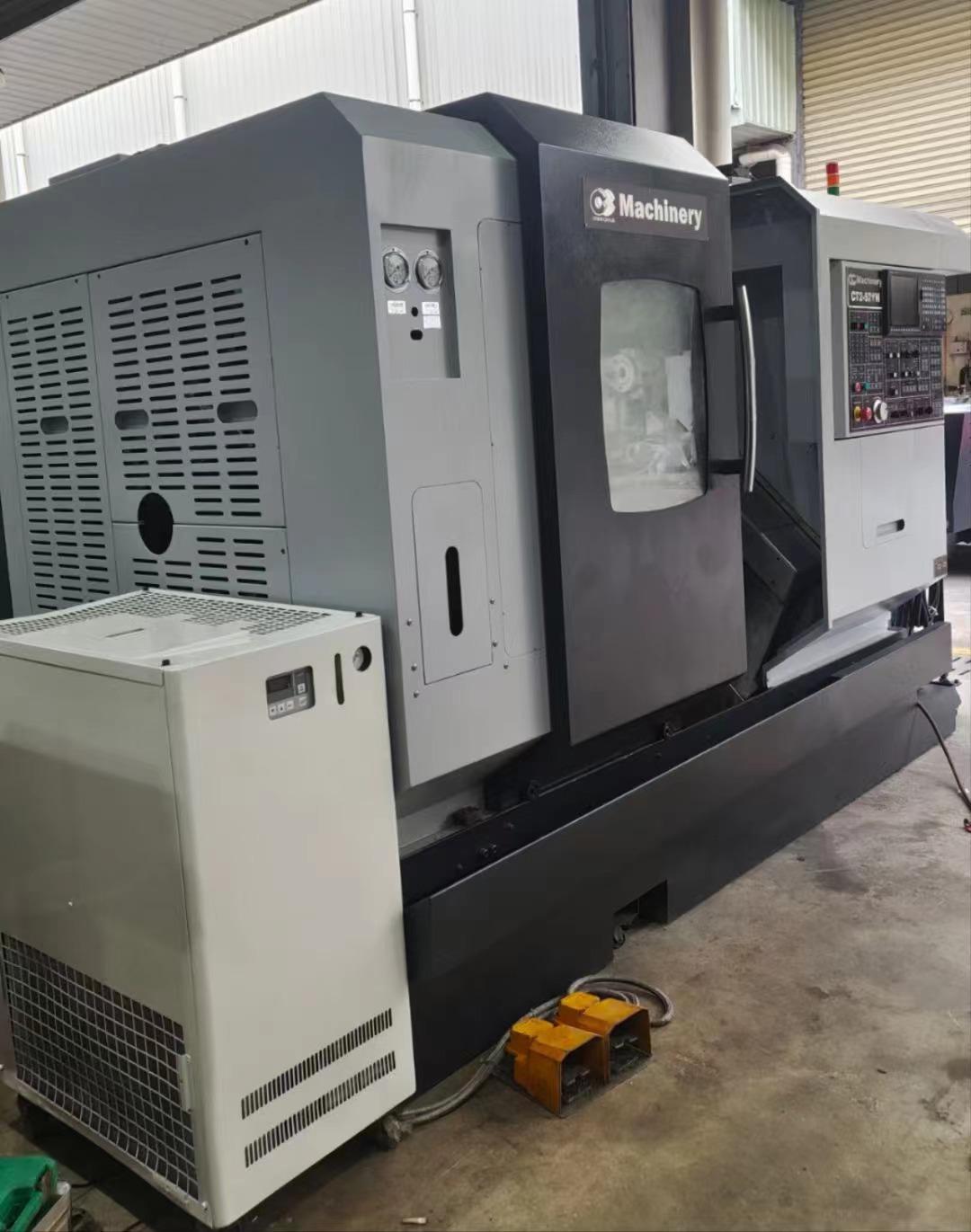

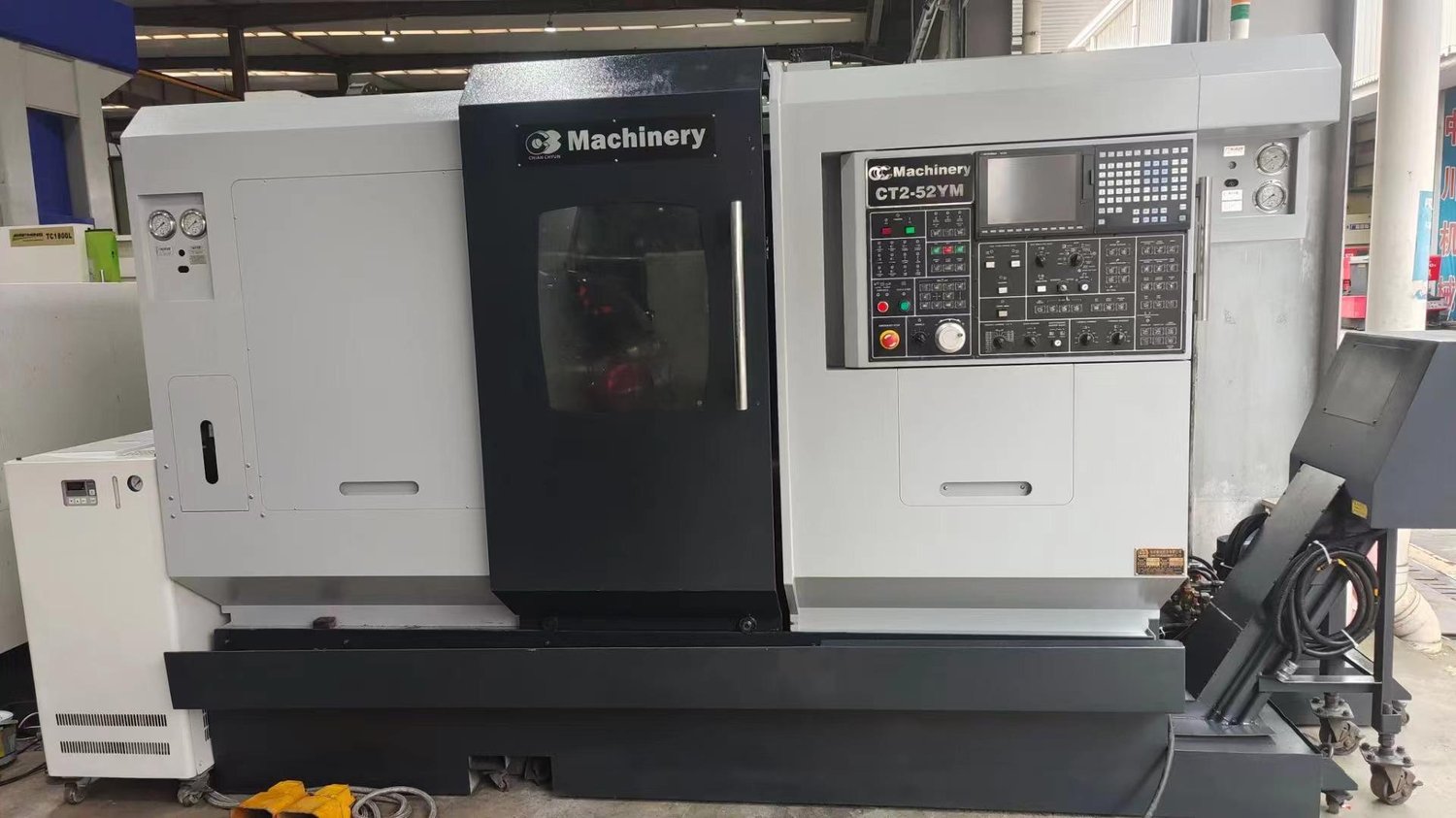

Chiah Chyun CT2-52YM Machining centre

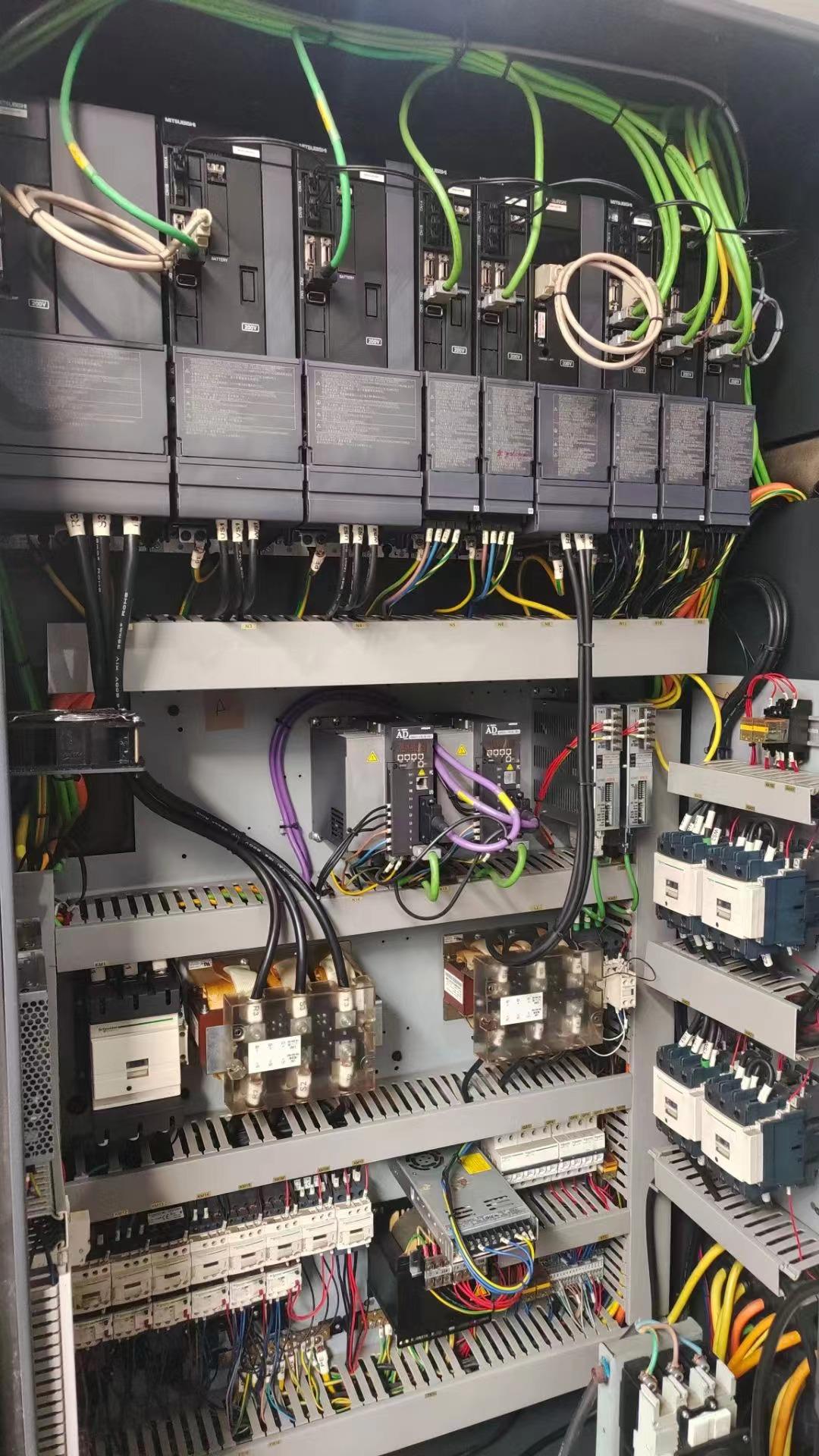

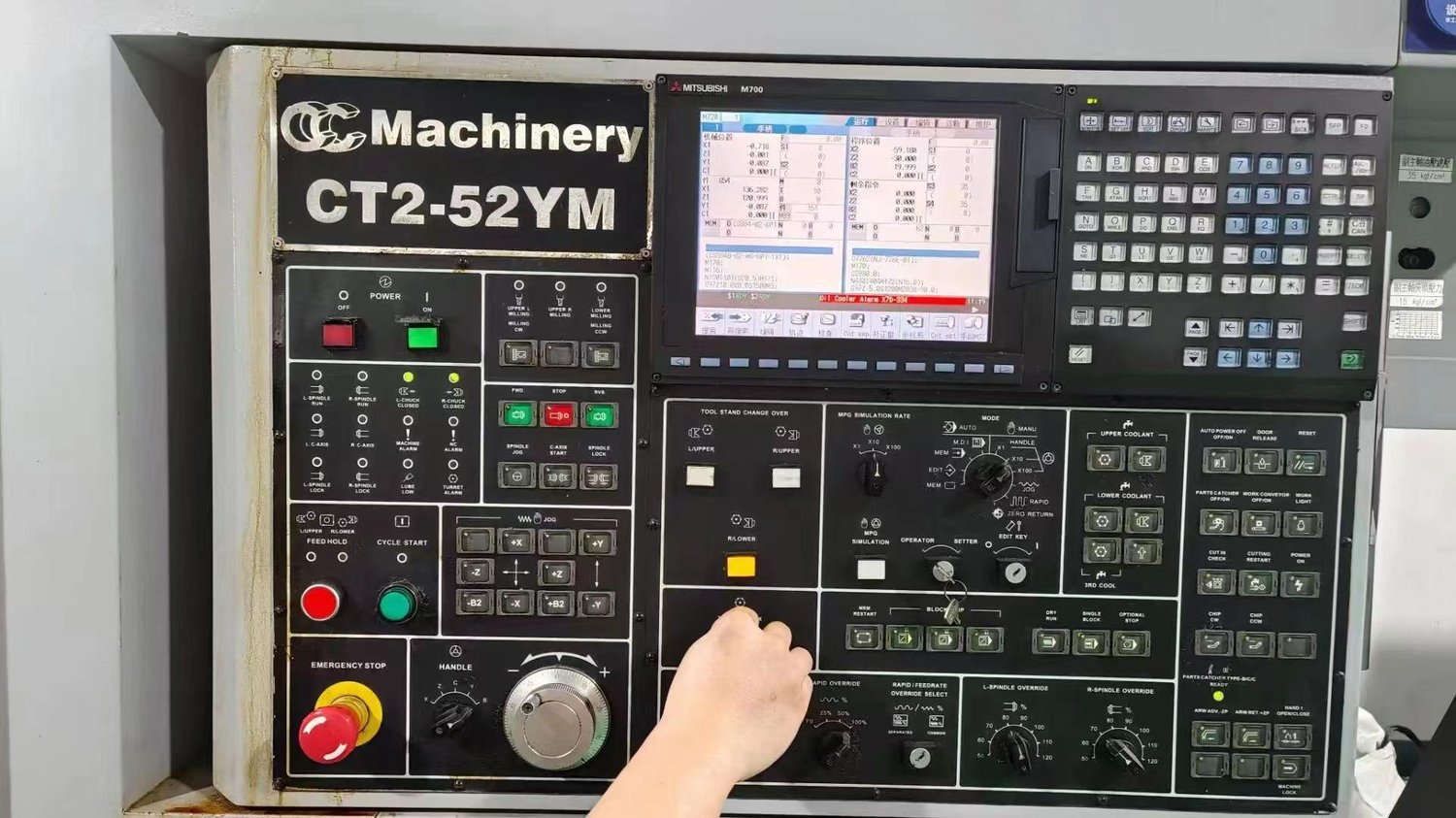

CNC CNC System: Mitsubishi M700

machining  external diameter: 210-360mm

Bed surface diameter: 830mm

machining  length: 440mm

Bar machining  capacity: 51mm

Distance between two centers: 920mm

B-axis travel: 650mm

Z-axis travel: 440mm

Spindle speed: 6000rpm

spindle through hole: 60.5mm

The center height of spindle: 1188mm

spindle bar machining  capacity: 51mm

Main motor power: 11-15kw

The external diameter of spindle bearing: 90mm

The weight of machine tool is 10,200 kg

Footage: 4216*2342*2144mm

Belt chip conveyor

With the Y-axis

Dota Workstation: 16

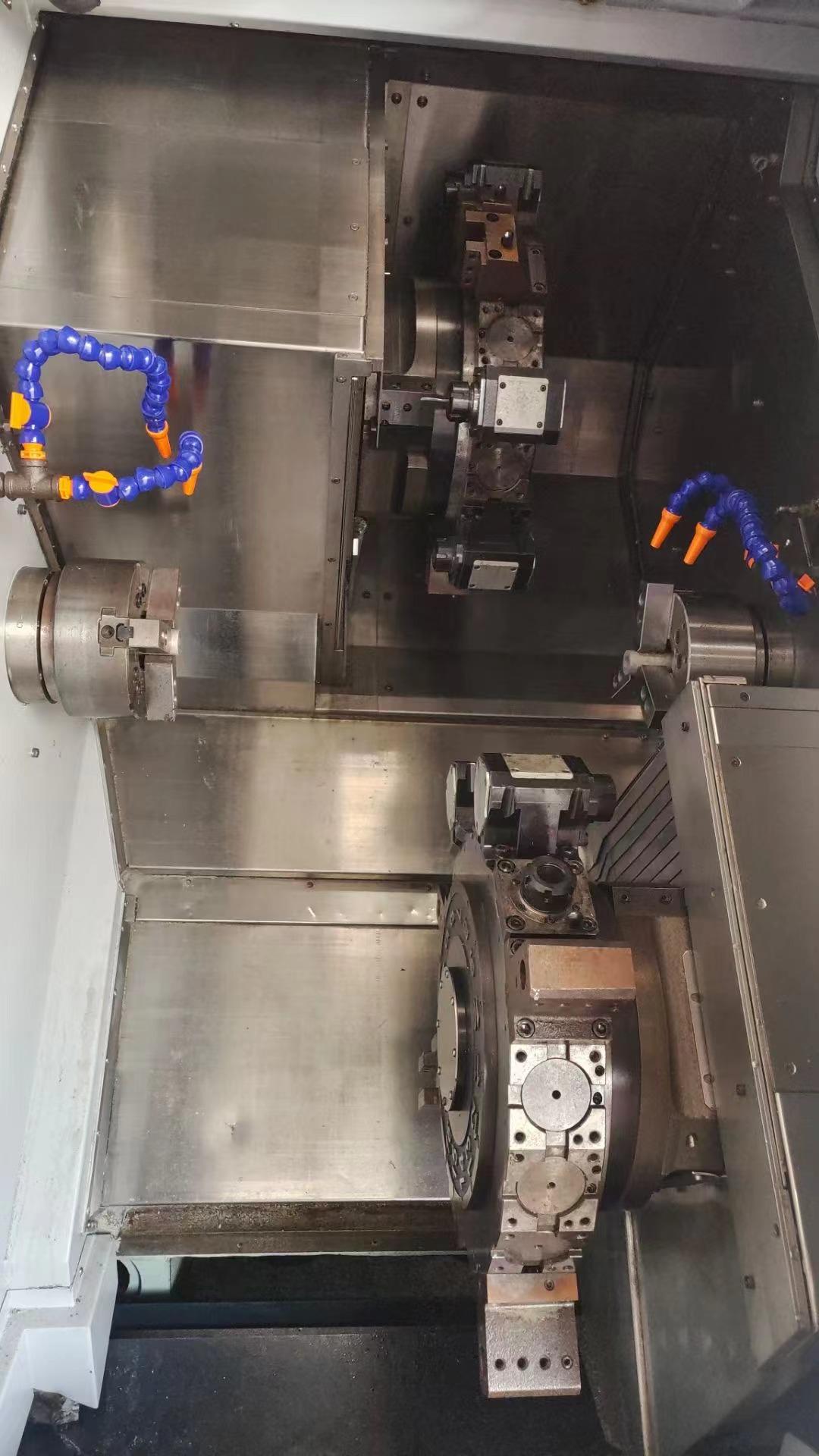

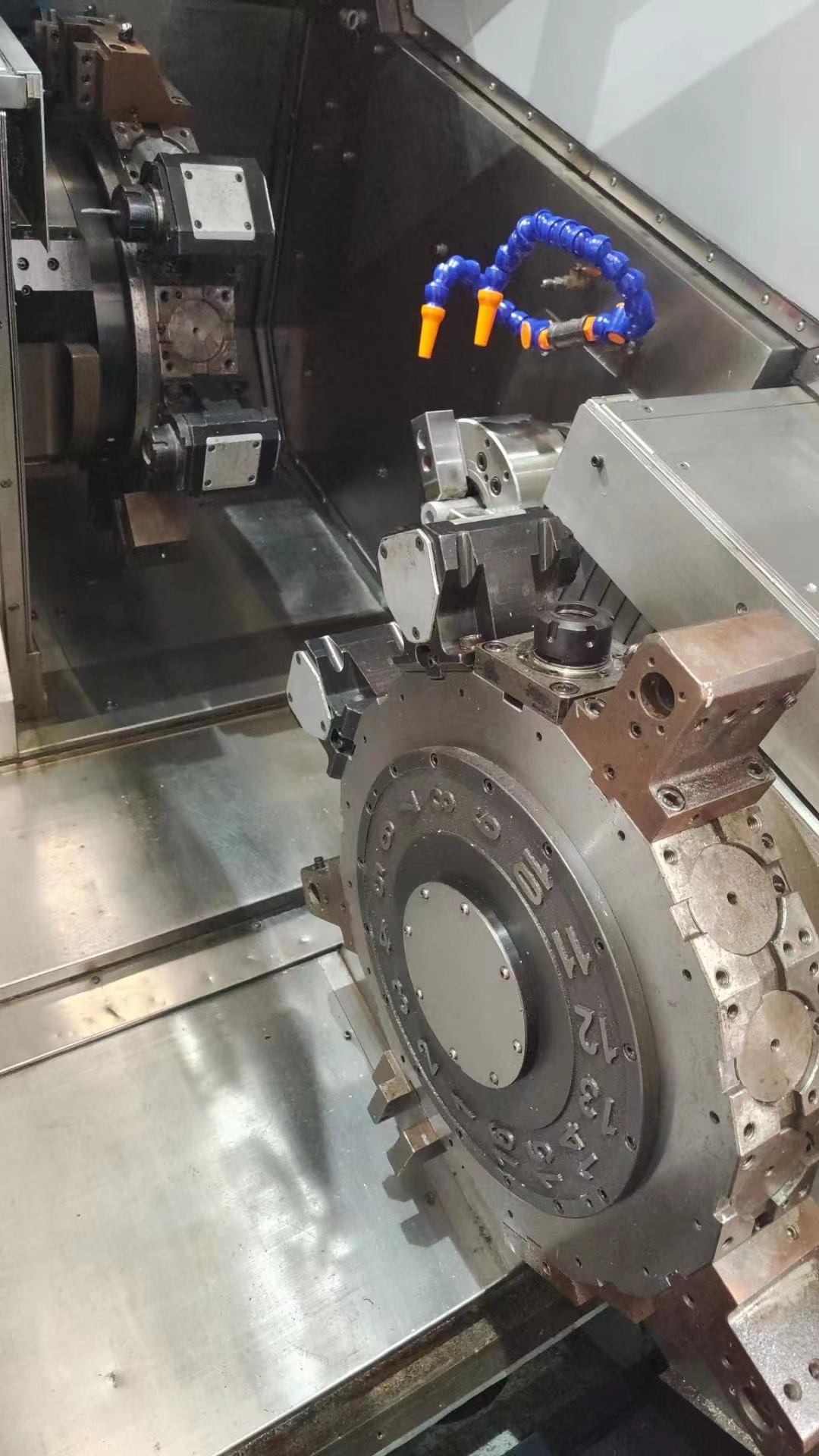

Dual-power blade turret
