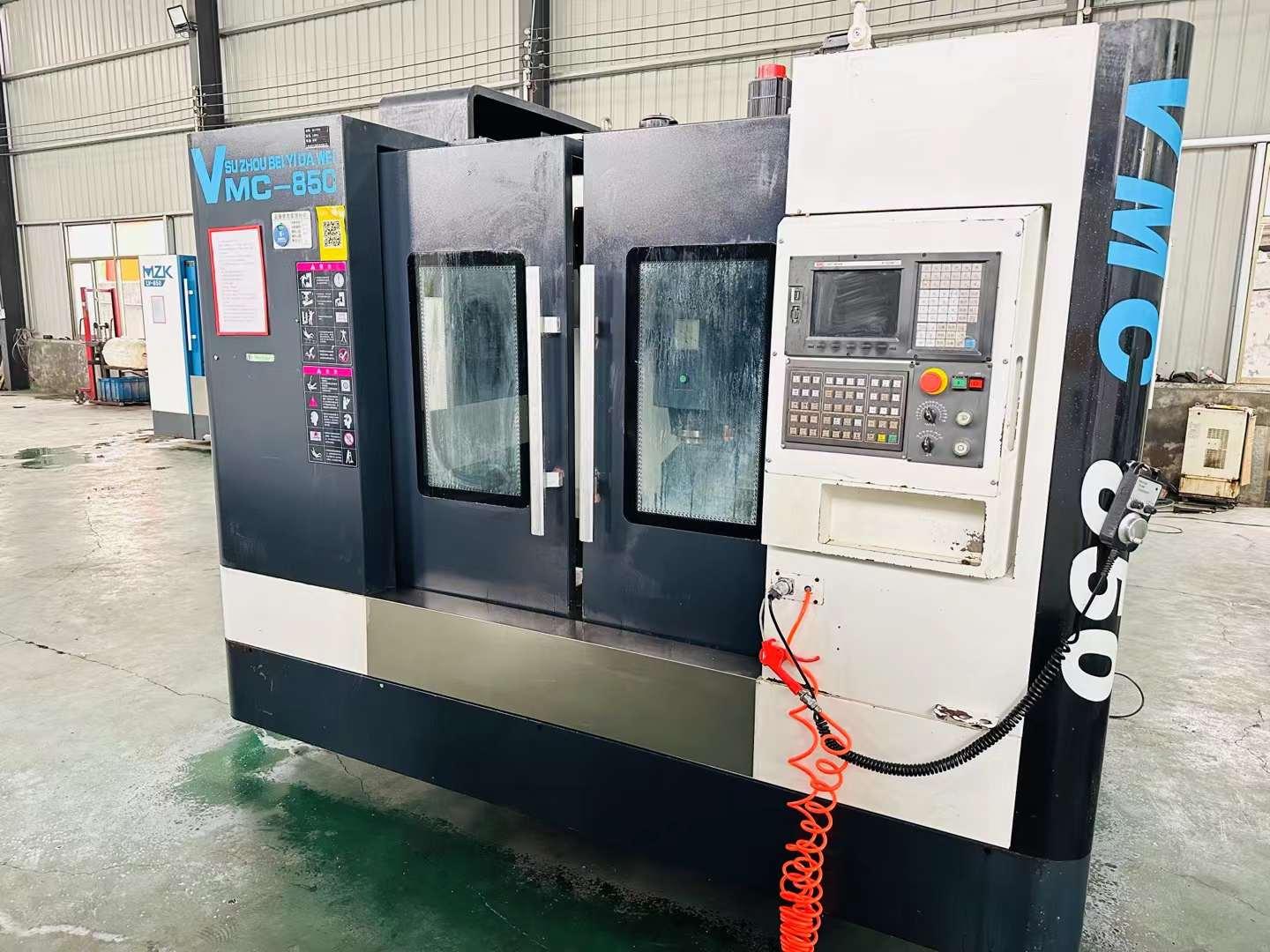

Okuma-BYJC VMC-850 Machining centre

three-axis travel: 800*500*500mm

Distance from spindle nose to work surface: 150-680mm

Distance from Distance from spindle center to column lead rail surface: 560mm

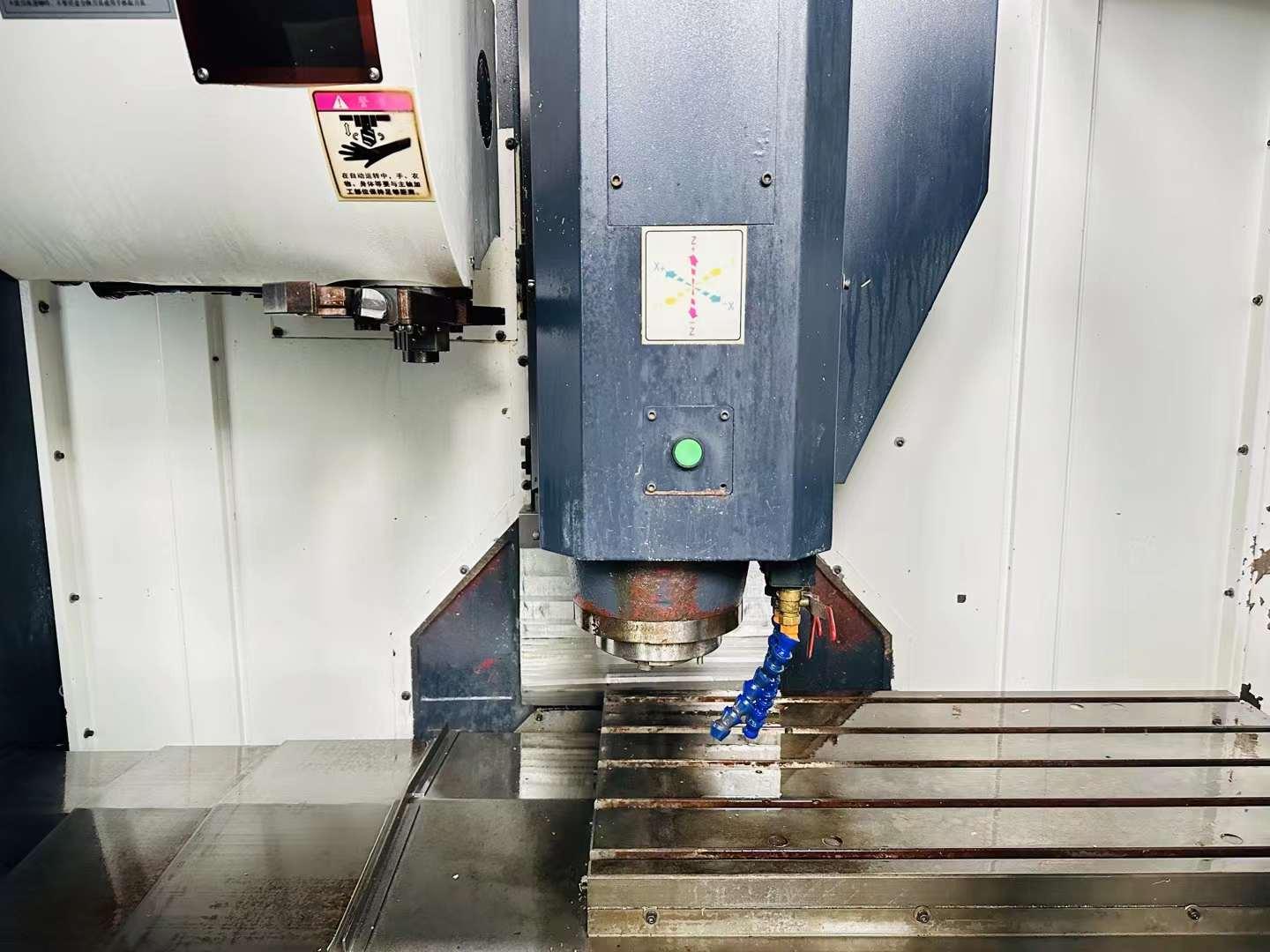

WorkWorktable size: 1000×500mm

WorkWorktable load: 600kg

tools magazine: 24

T-slot size: 3×18×150mm

Main motor power: 7.5kw (actuating motor)

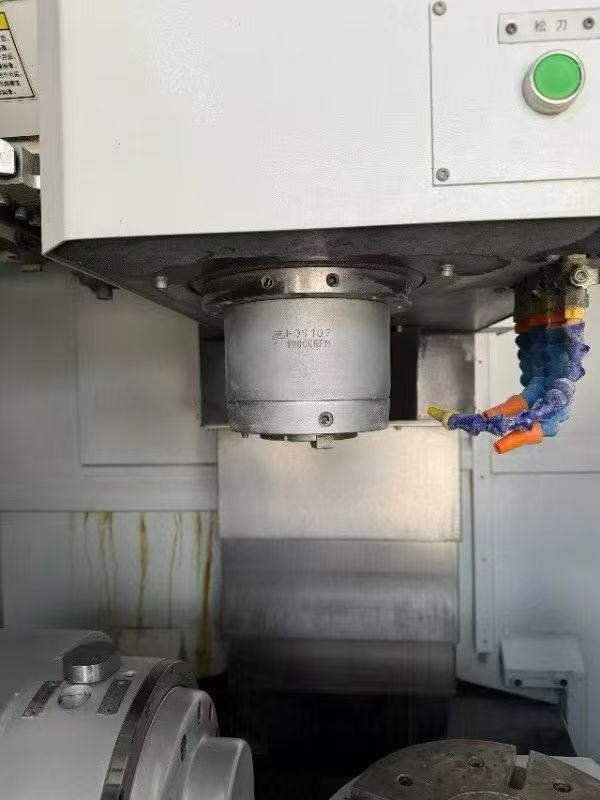

spindle: BT40

Spindle speed: 10000rpm

Maximum cutter diameter: φ80mm.

Maximum cutter length: 300mm.

Maximum cutter weight: 8kg

Fast moving rate: X/Y axis 24m/min, Z axis 18m/min.

Cutting feed rate: 1-5000mm/min
