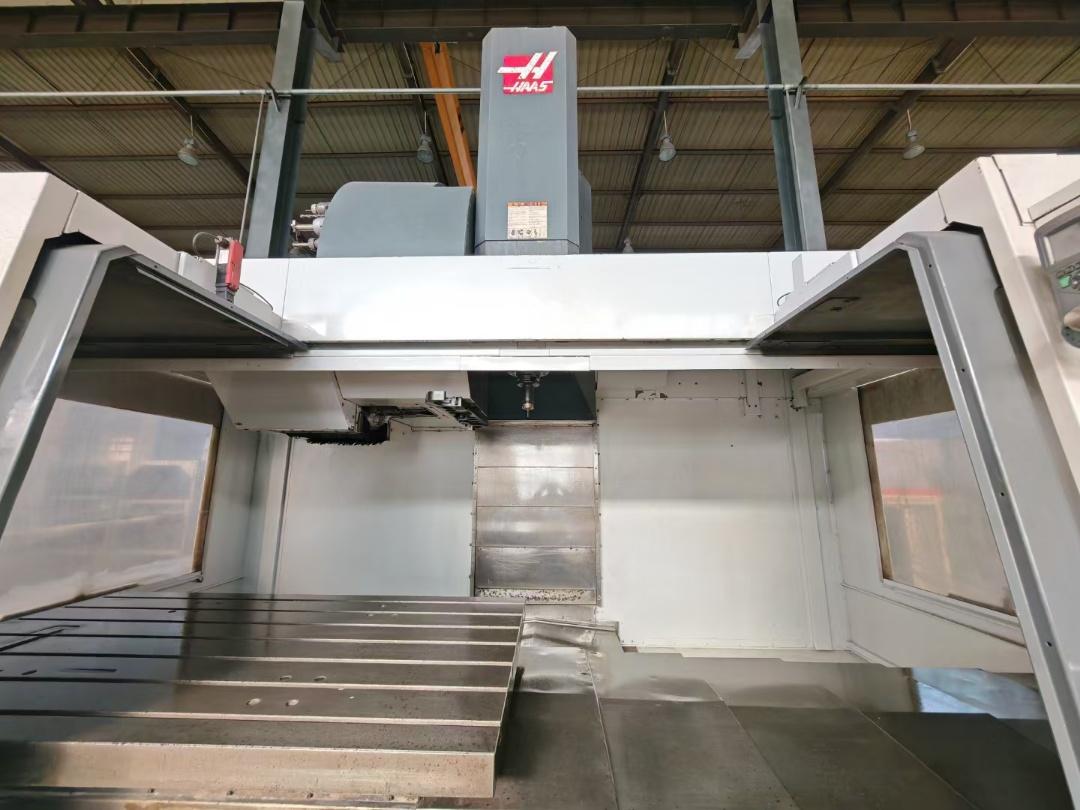

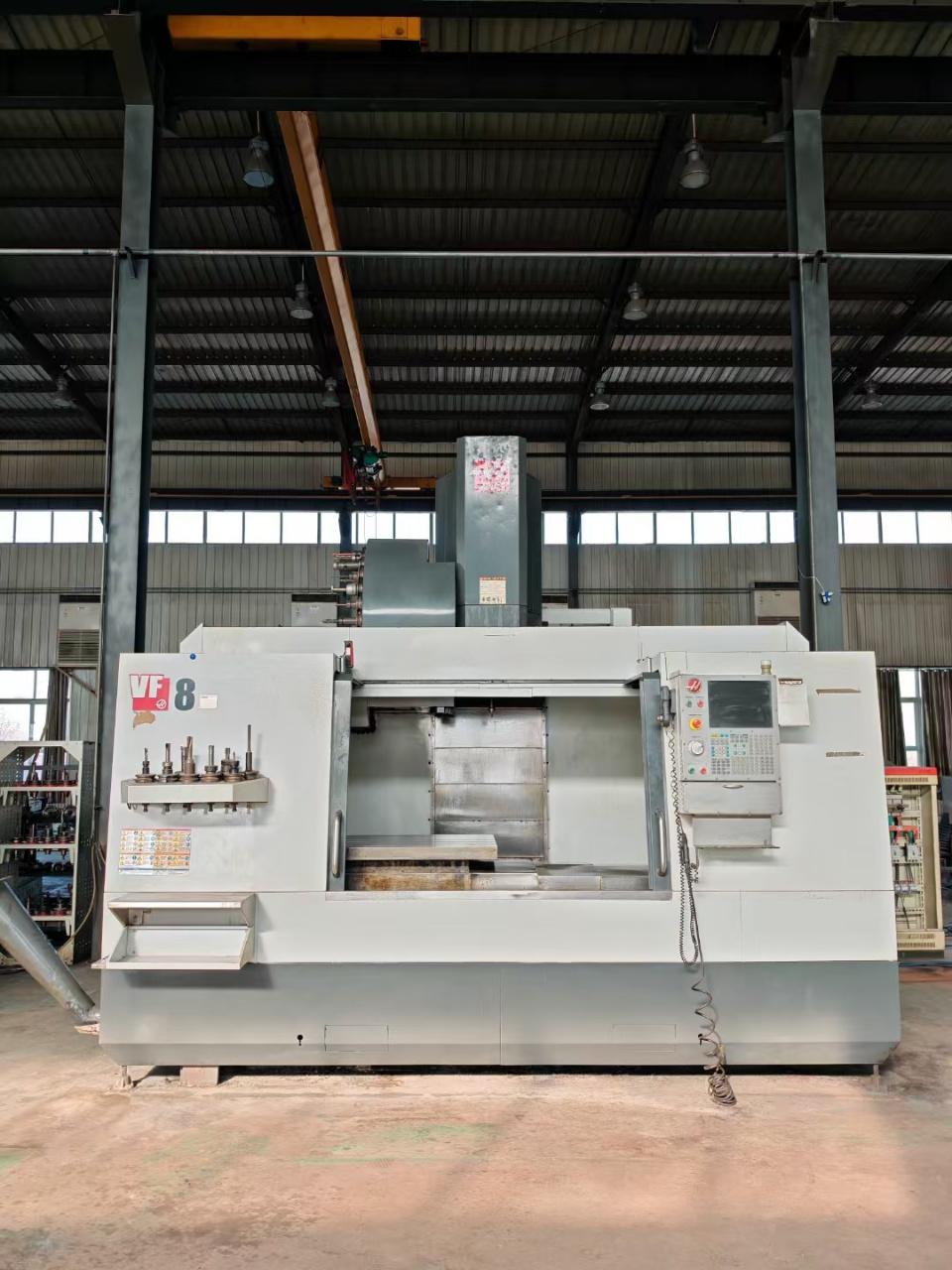

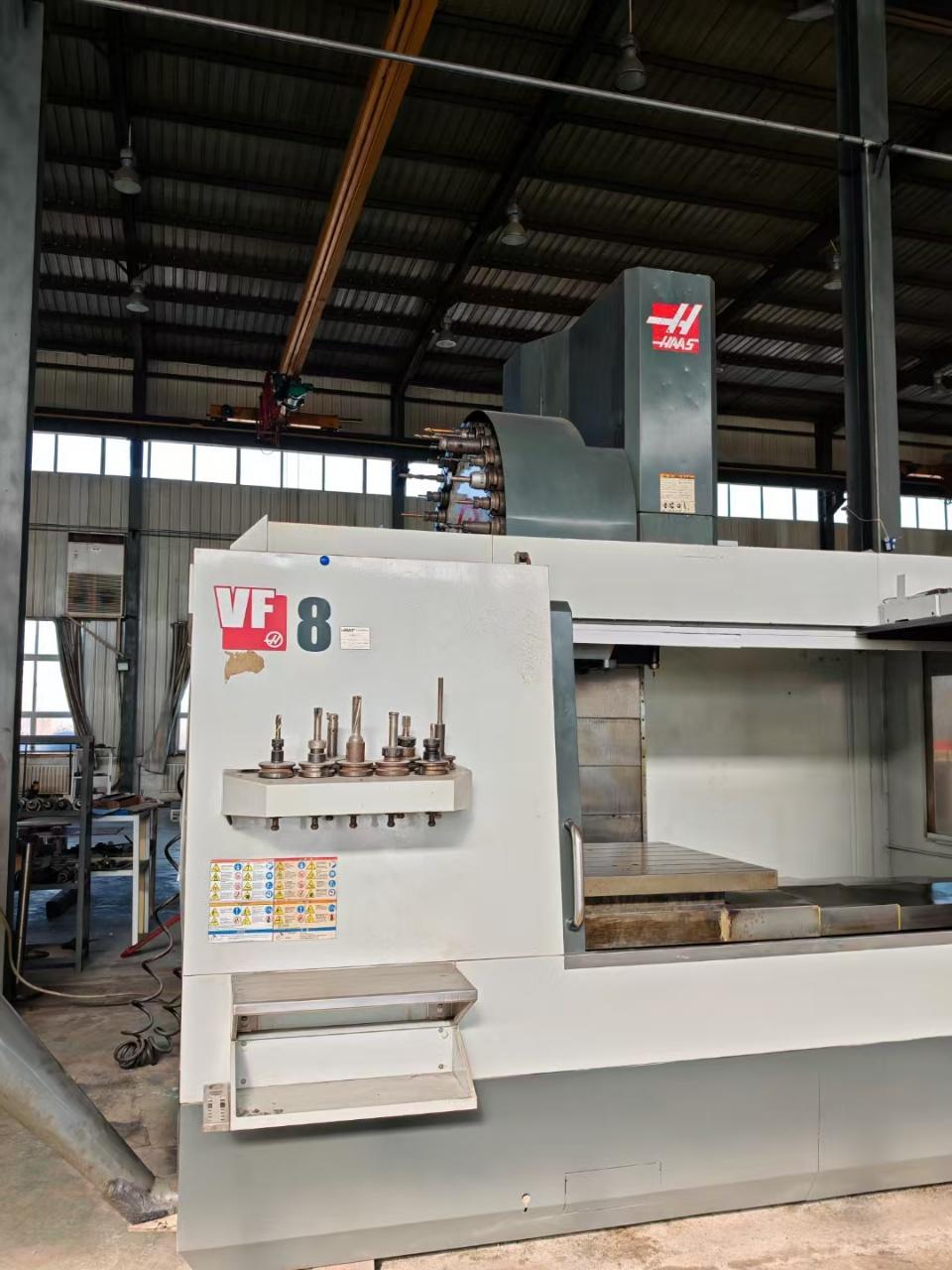

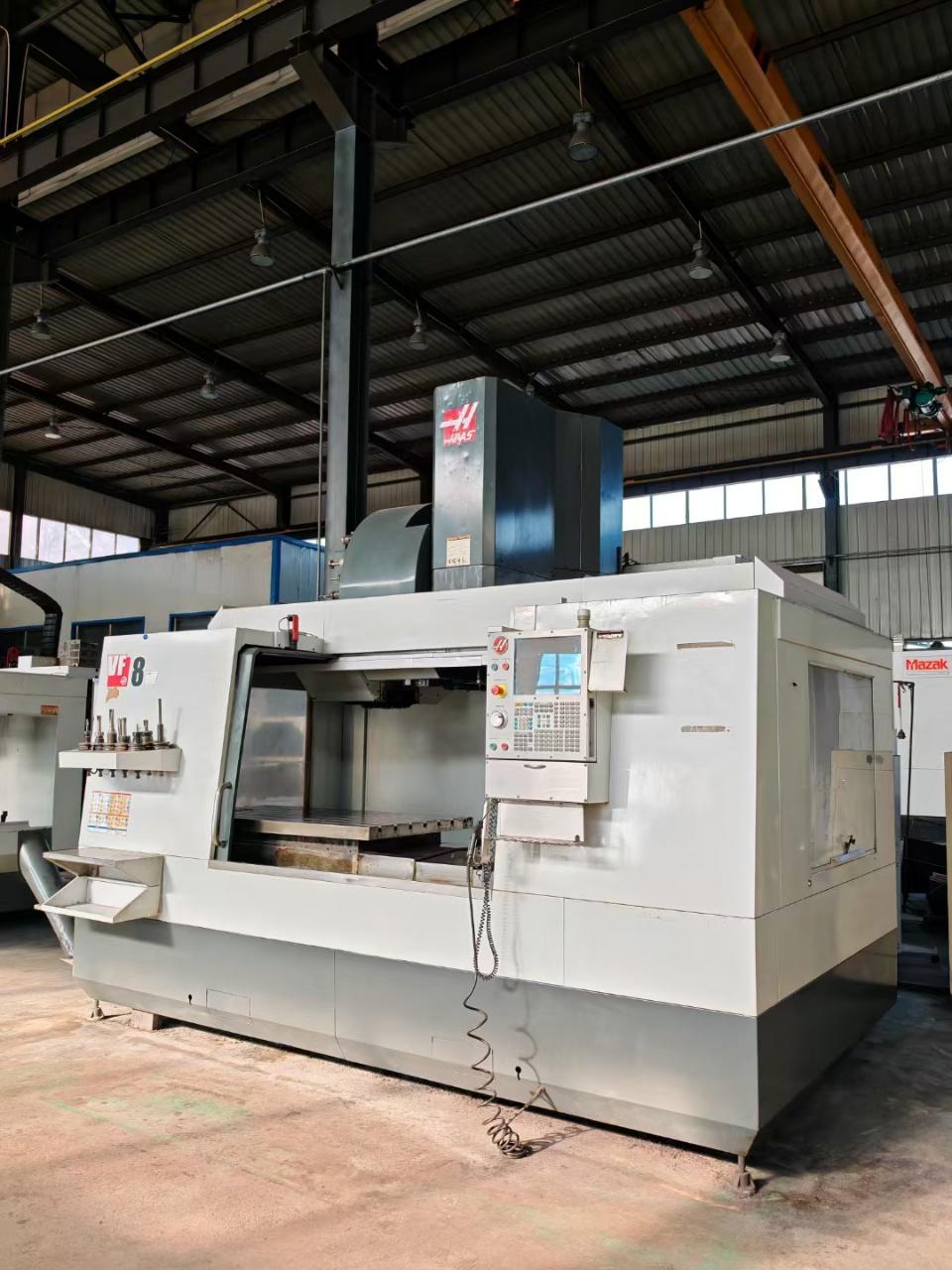

HAAS VF-8/50 Boring and milling machine
[Product Information]:
- Inventory number：87107
- Brand：HAAS
- Model：VF-8/50
- Origin：America
- Location：China
- Year：2014
- Create Time：2025-04-14
Specifications:
three-axis travel: 1626*1016*762 mm
Maximum distance from nose of spindle to WorkWorktable: 864mm
Minimum distance from nose of spindle to WorkWorktable: 102 mm
spindle maximum power: 22.4kW
spindle maximum speed: 8100 rpm
spindle: BT50
spindle cooling mode: liquid cooling
spindle torque: 122 Nm @ 2000 rpm
X-axis Fast moving rate: 15.2m /min
Y-axis Fast moving rate: 15.2m /min
Z-axis Fast moving rate: 15.2m /min
Tool quantity: 30+1
Maximum Tool diameter: 76 mm
Maximum Tool length: 406 mm
Maximum Tool weight: 5.4kg
Length of Worktable: 1626 mm
WorkWorktable width: 914 mm
T-slot size: 161257
Maximum load-Load of WorkWorktable: 1814 kg
