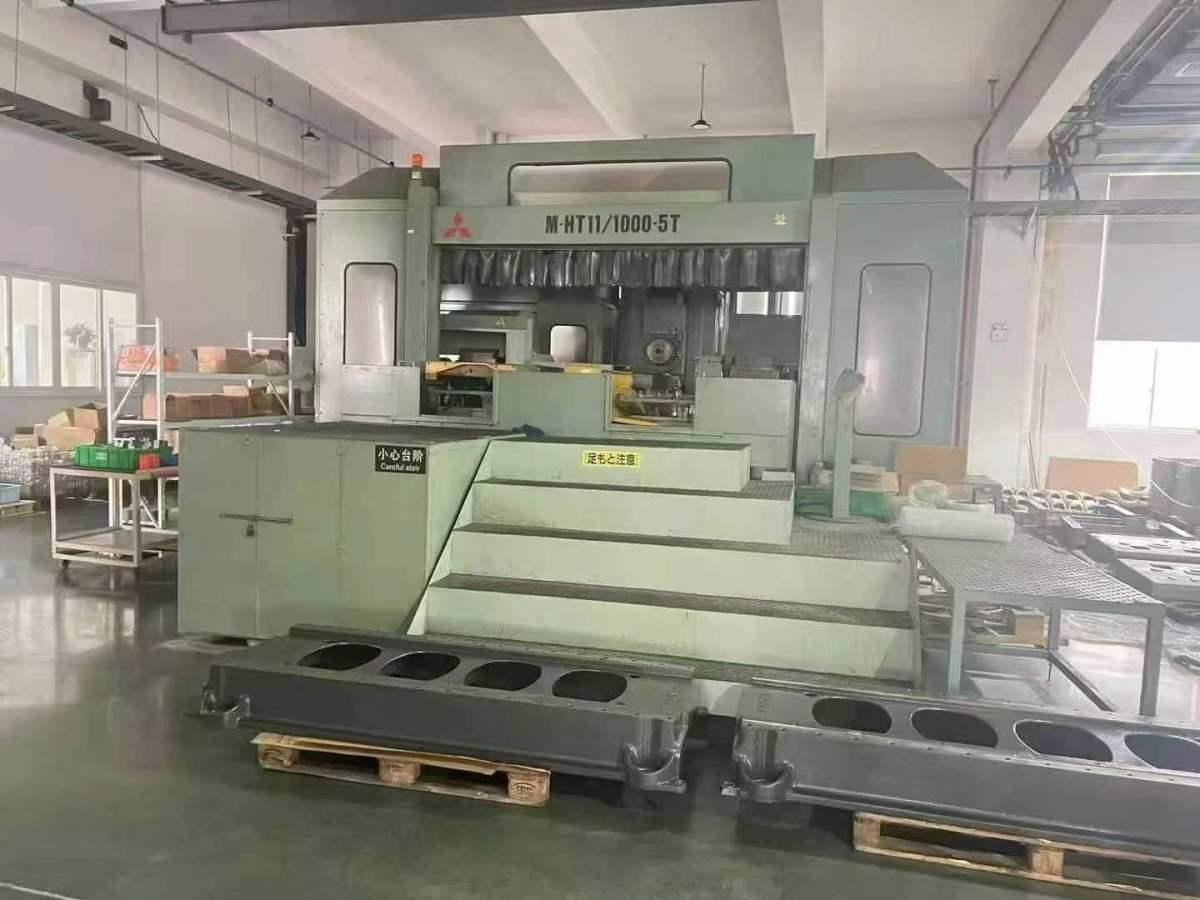

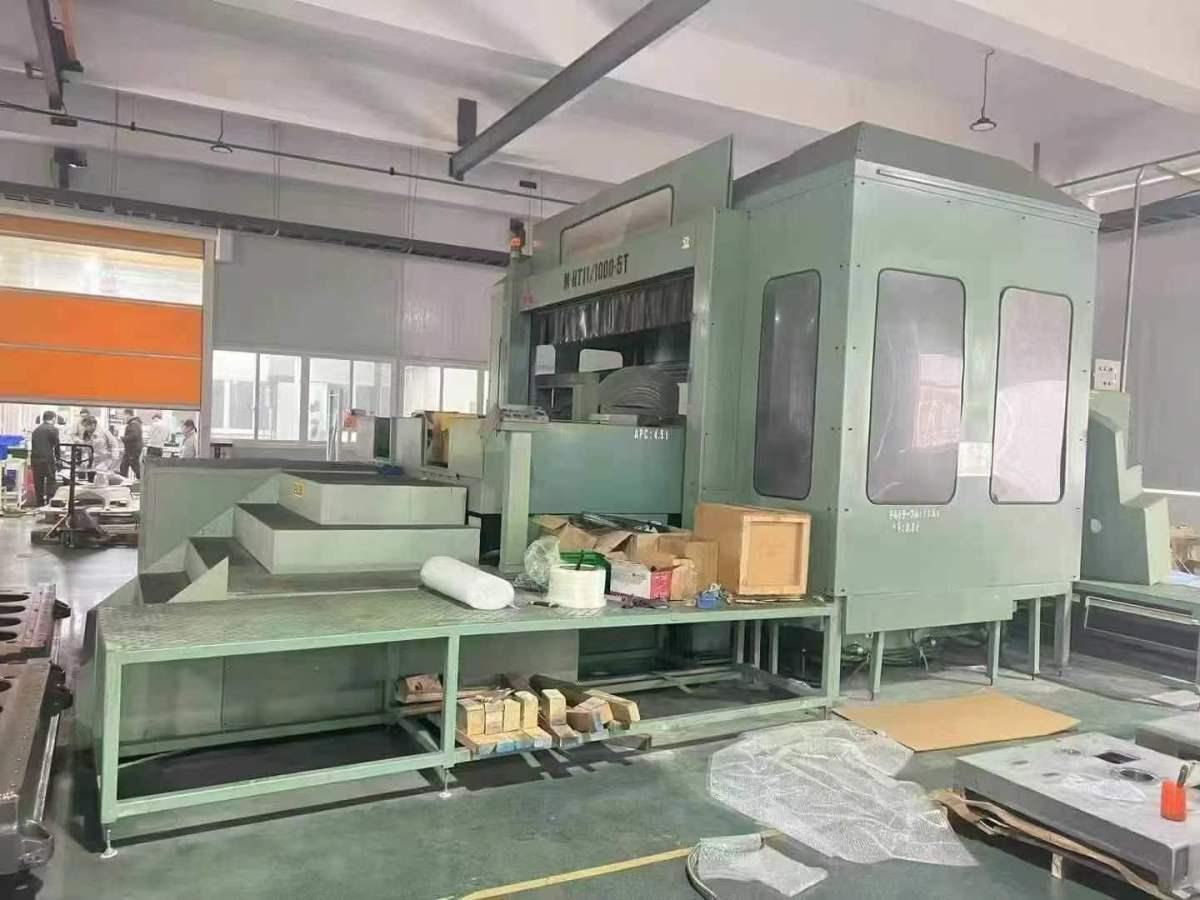

Mitsubishi M-HT11/1000-5T Boring and milling machine

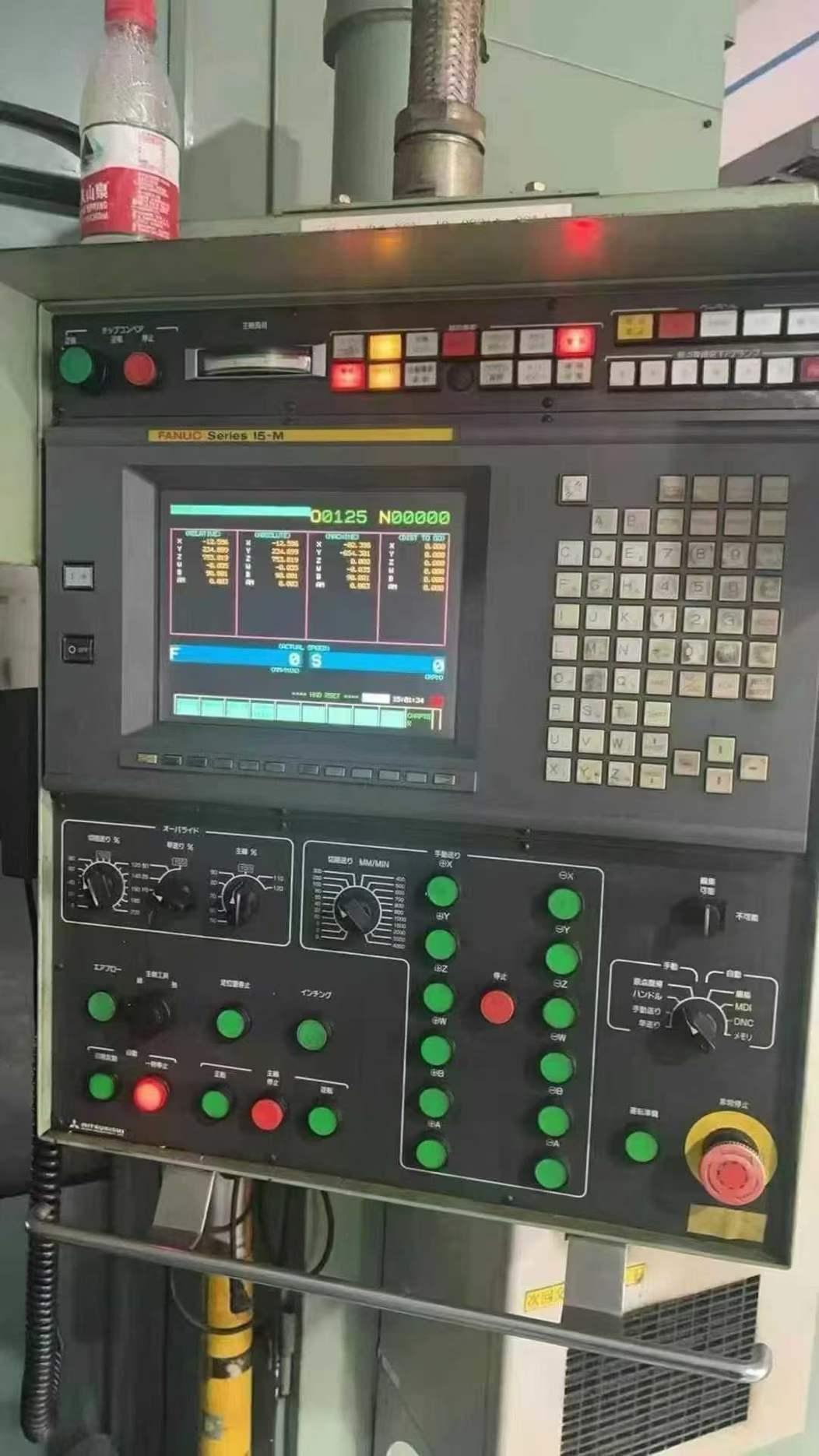

CNC System: FANUC 160i

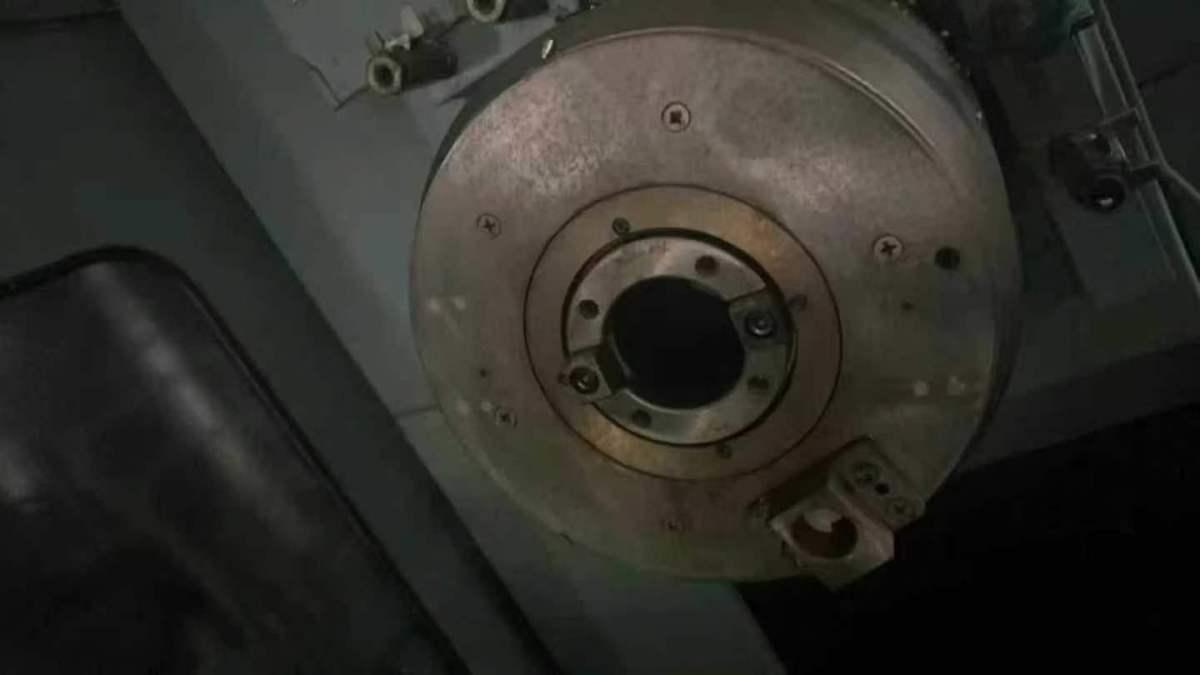

Spindle diameter: 110 mm
Spindle speed: 50–8000 rpm

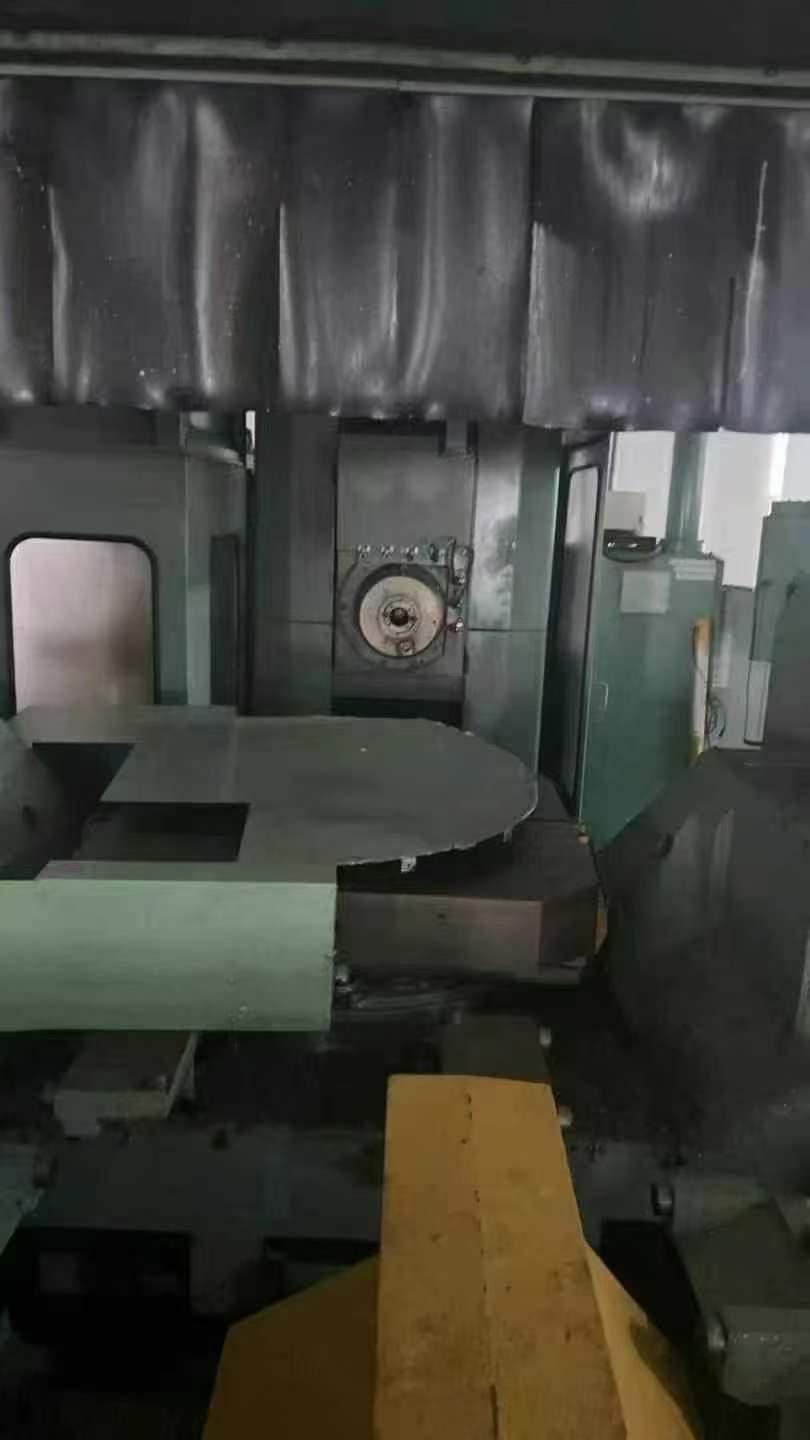

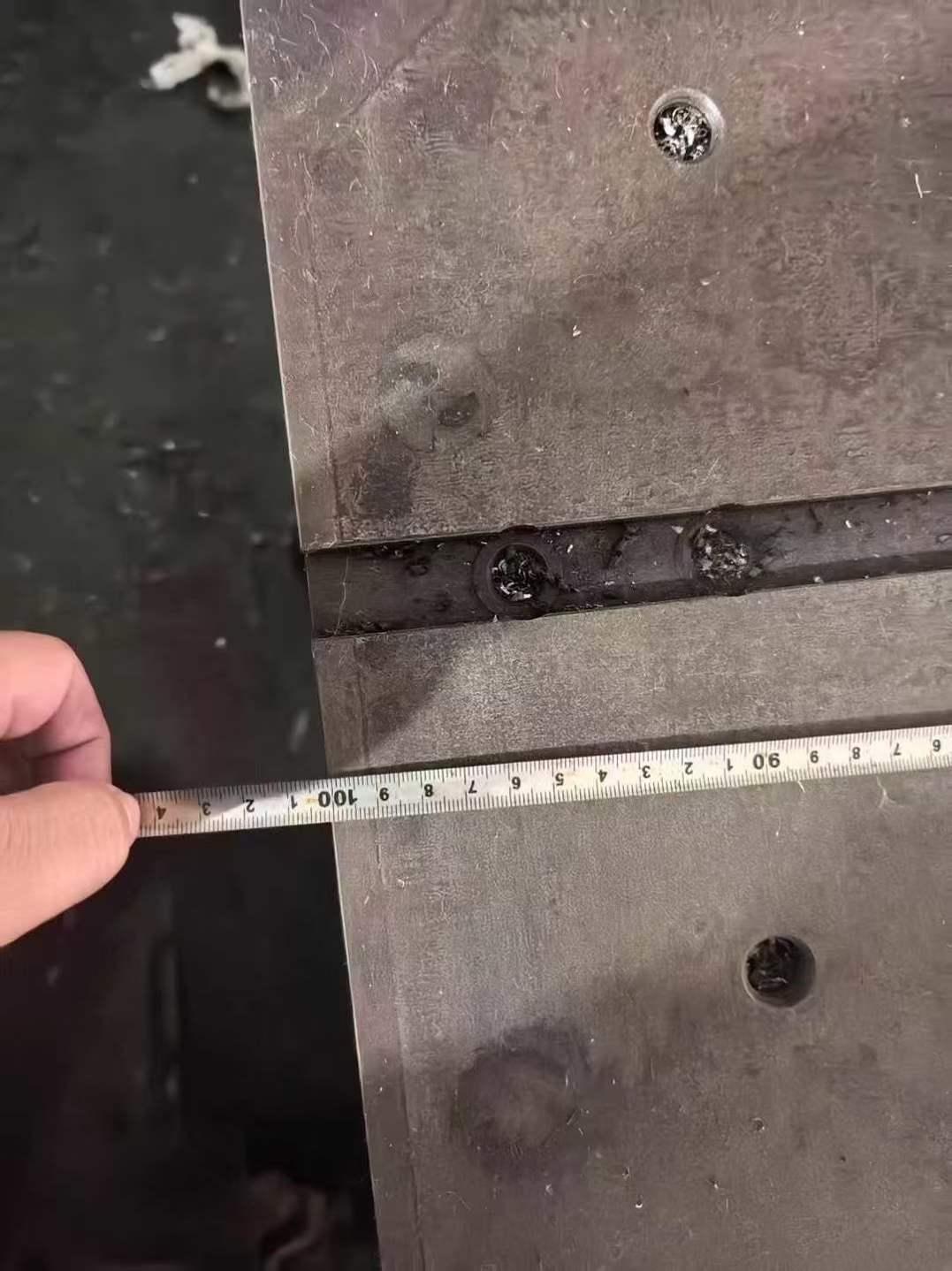

Worktable size: 1000 mm
Worktable load: 2250 kg
Travel of each axis:
Z-axis: 1300 mm
Y-axis: 1500 mm
X-axis: 1550 mm
A-axis: 10–(-100)°
B-axis: ±360°
NC cutting feed:
X/Y/Z axes: 2–10,000 mm/min
A/B axes: 0.1–800 °/min
Feed rate override: 0–200%, 10% increments
Rapid movement:
X/Z axes: 20,000 mm/min
Y-axis: 20,000 mm/min
A/B axes: 1000 °/min
Rapid movement override: F0, 25, 50, 100%
Guideways: Three-axis linear guideways
Feed thrust:
X/Y/Z axes: 9800 N

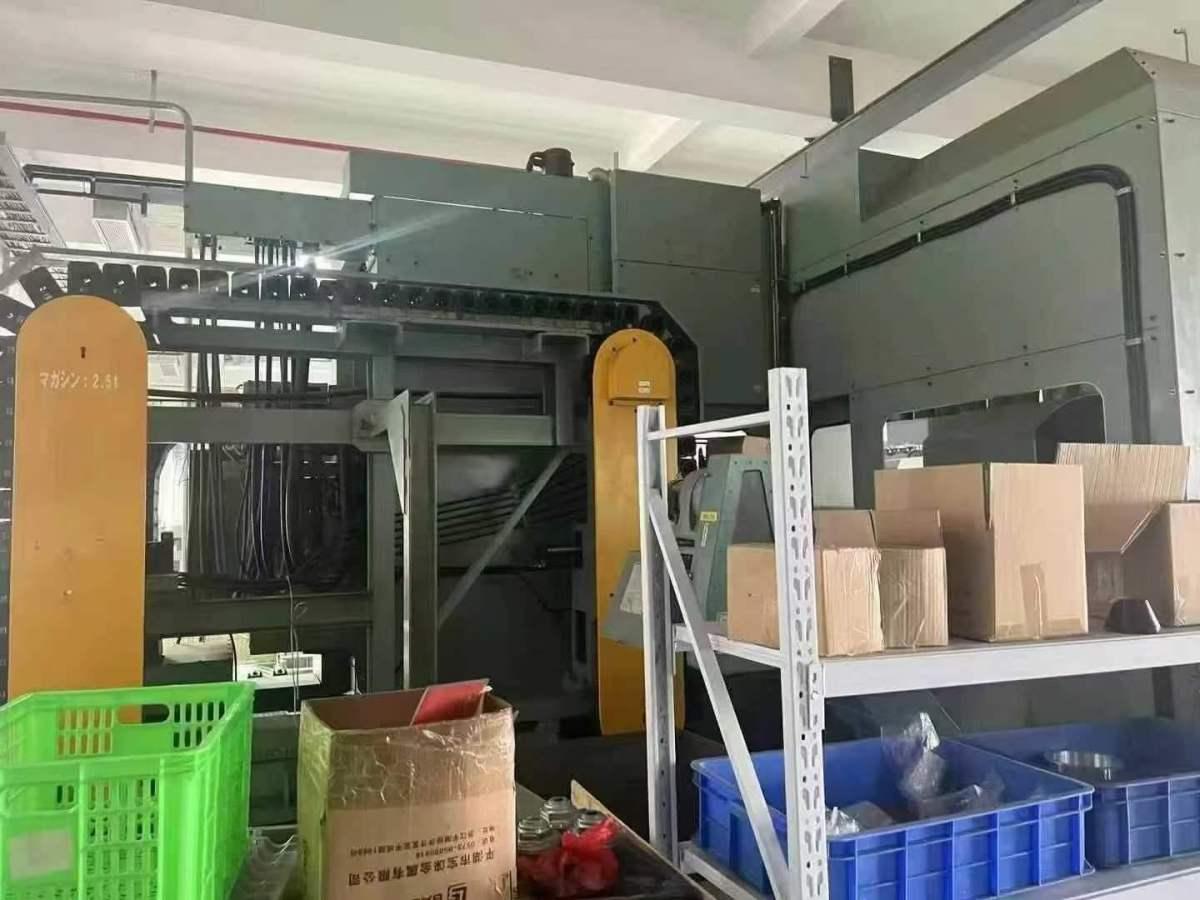

Tool magazine capacity: 80 tools
Maximum tool length: 750 mm
Maximum tool diameter: 240 mm
Tool changing time: 7 ± 1 seconds
