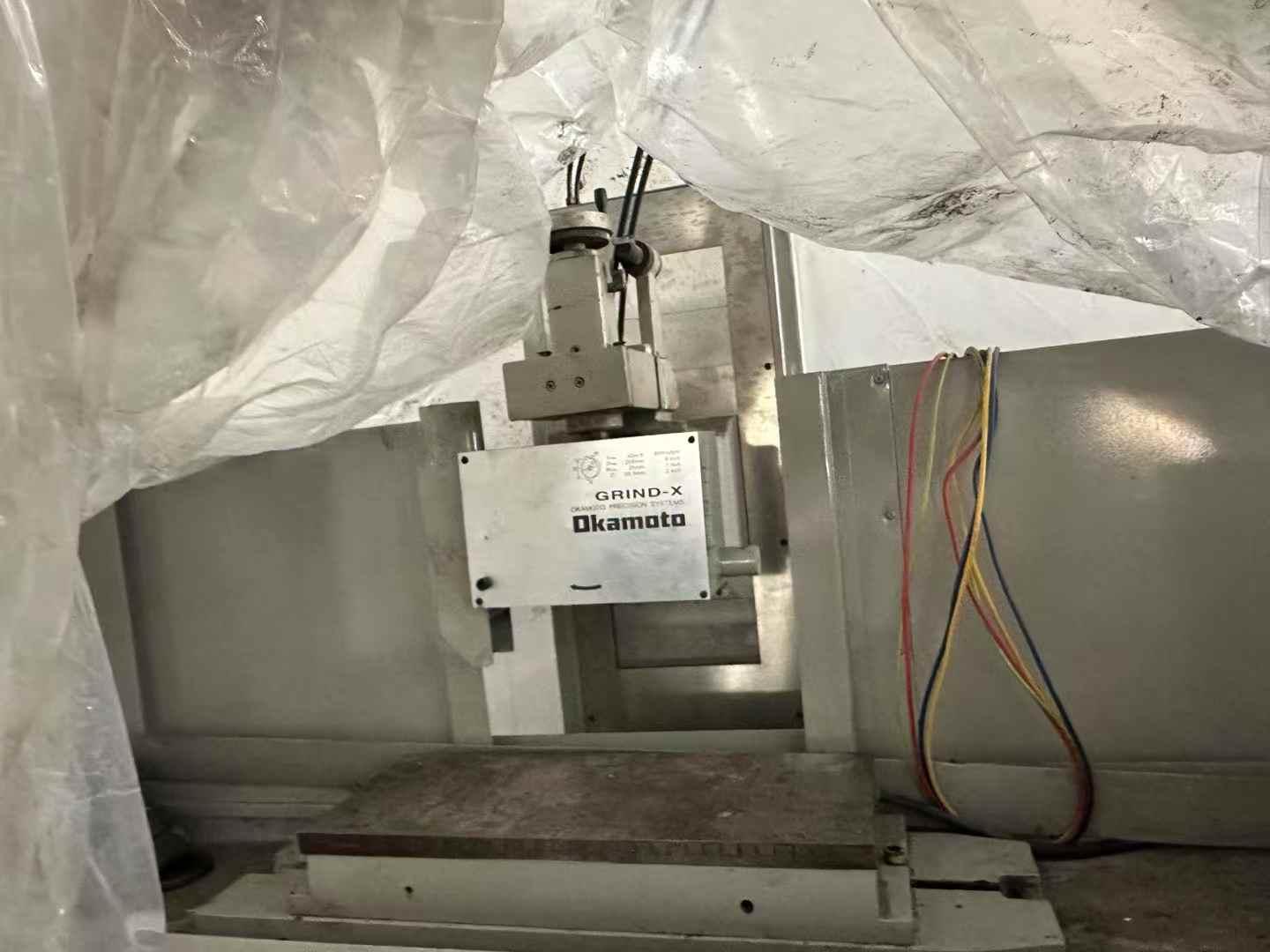

Okamoto ACC52ST Grinding machines

Maximum grinding width * length: 500*200mm

WorkWorktable size (length * width) : 550*220mm

Chuck size (length * width) : 500*200*80mm

Maximum vertical clearance: 47.5-397.5mm

Maximum longitudinal travel: 650mm

Maximum transverse travel: 230mm

WorkWorktable load plus chuck : 200kg

T-slot (width * slot quantity) : 17*1mm

Longitudinal Worktable movement:

Longitudinal feed: 0.3~25m/min

Feed per change of hand: 47mm

Lateral movement:

Feed per change of hand: 5mm

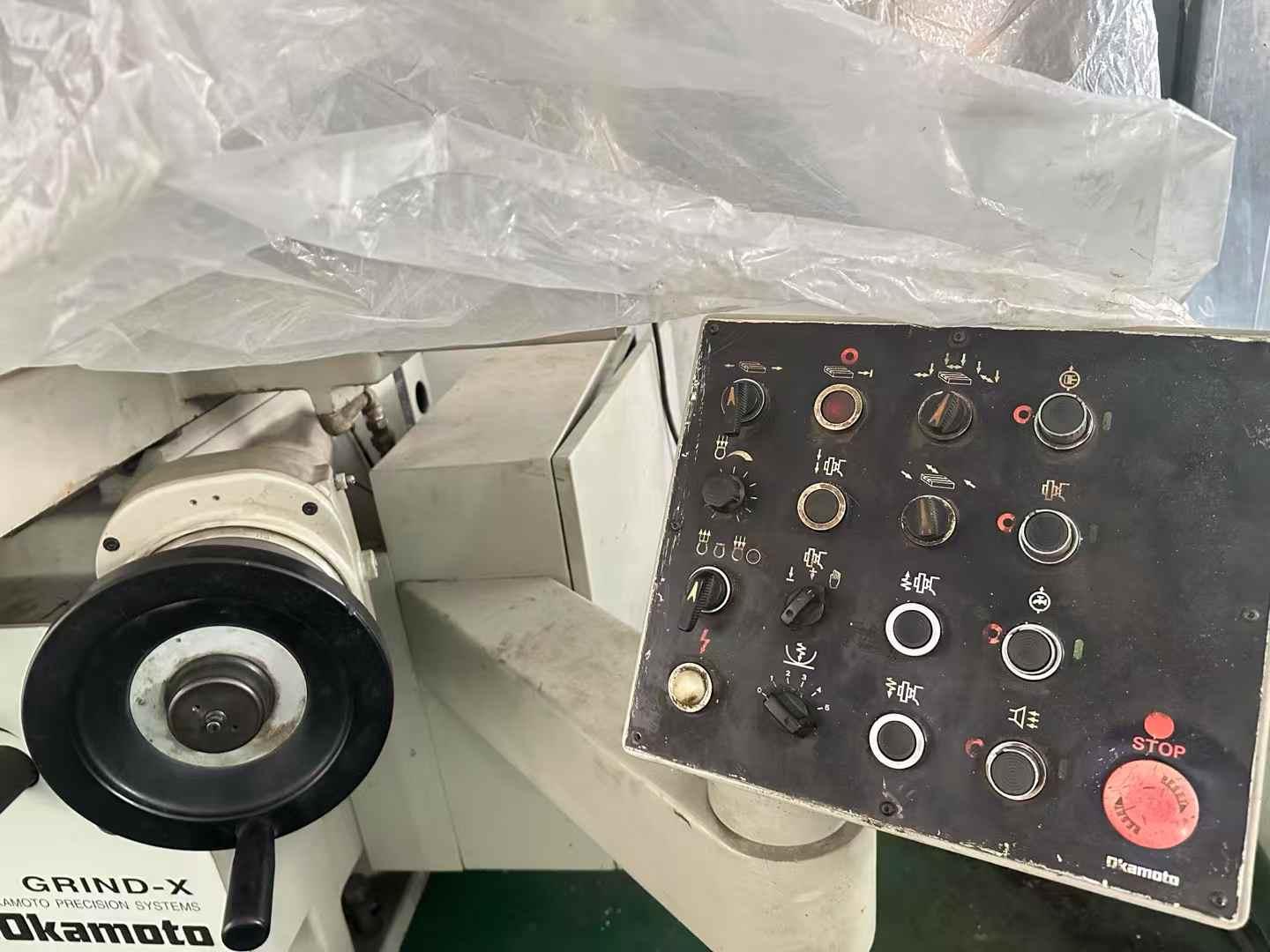

remote control box scale: 0.02mm

Intermittent feed: 0.5-12mm

Continuous feed: 0.1-1m/min
