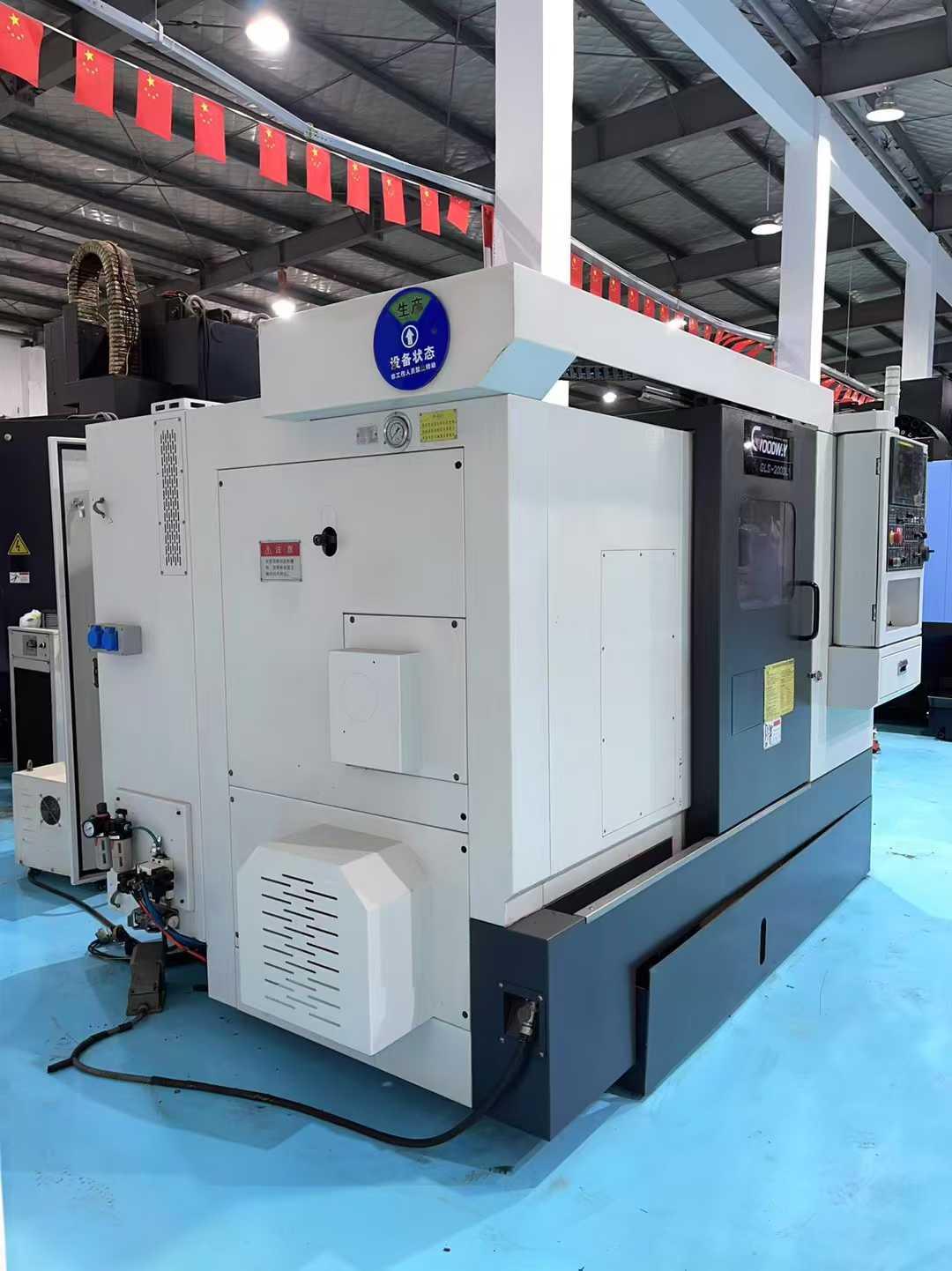

GOODWAY GLS-2000Le CNC turning lathe

CNC CNC System: FANUC oi-TF

Maximum diameter: φ560mm

Maximum turning diameter: φ420mm

Oil pressure chuck: 8 inches

spindle through hole diameter: φ66mm

Bar capacity: 51mm

spindle nose: A2-6

spindle bearing diameter: φ100mm

Spindle speed: 4200rpm

spindle motor power: 11/15kw

X*Z axis maximum travel: 230*630mm

X*Z axis maximum feed: 30m/min

Turret position: 10

guideway: Linear guideway

Machine weight: 3400kg

Machine Footage (length * width * height) : 3612*1780*1716mm
