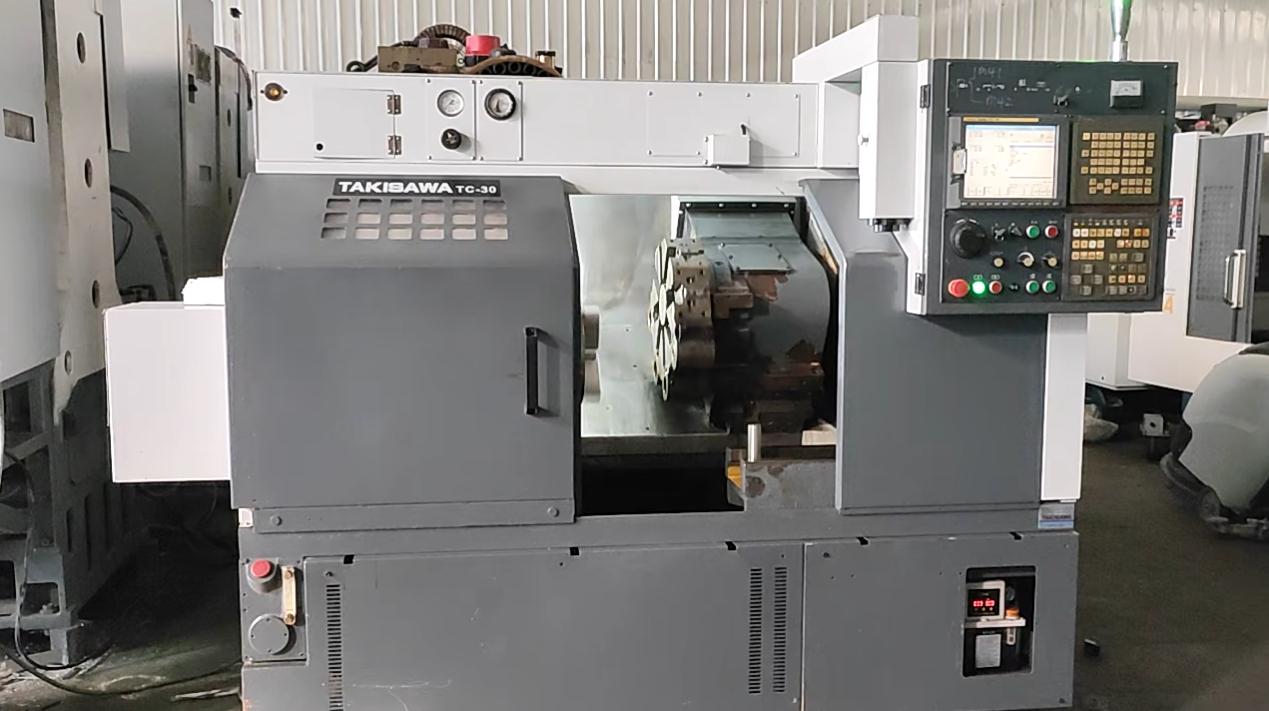

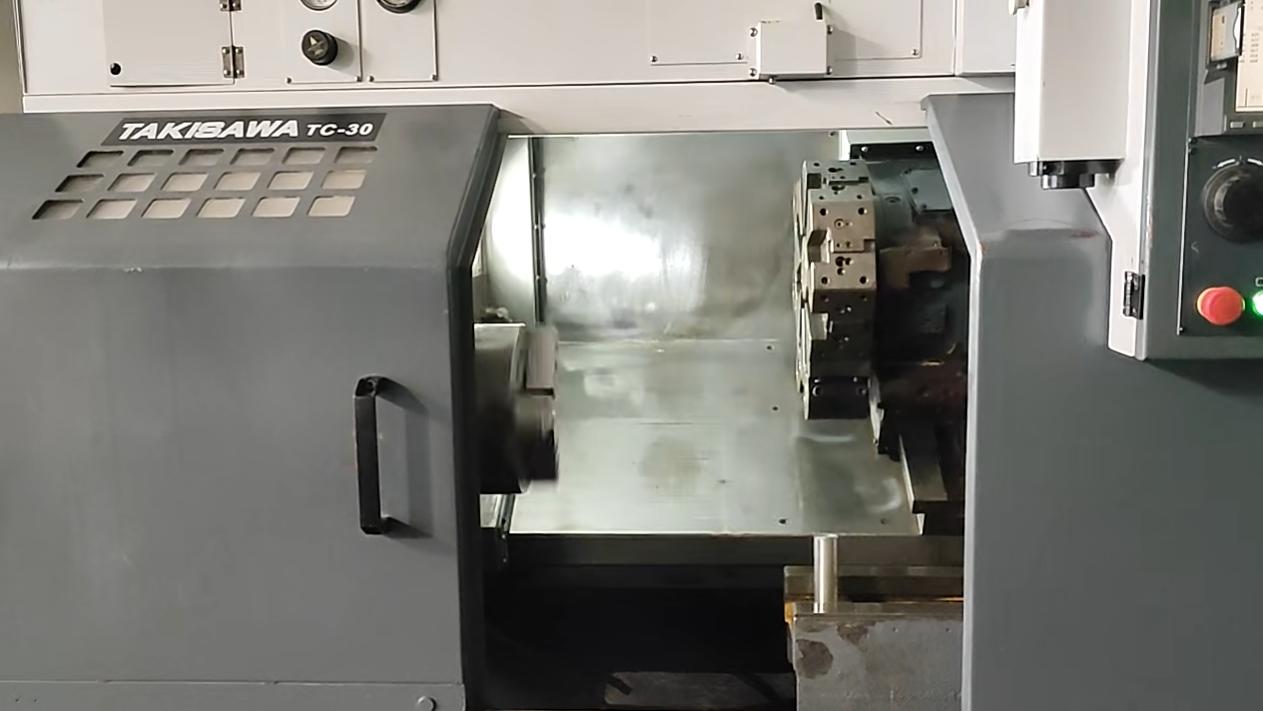

Takisawa TC-30 CNC turning lathe
[Product Information]:
- Inventory number：67517
- Brand：Takisawa
- Model：TC-30
- Origin："Japan
- Location：China
- Year：2009
- Create Time：2026-04-17
Specifications:
Maximum rotational diameter: 540mm
Maximum turning diameter: 510mm
Maximum Machining length: 600mm
The diameter of spindle through hole: φ86mm
CNC System: FANUC 21-TB
X-axis travel: 360mm
Z-axis travel: 650mm
chuck specification: 10 inches
The maximum machining diameter of bar stock: φ76mm
Spindle speed: 3000rpm
Tool turret form: 8-station hydraulic servo tool turret
Chip removal CNC System: Automatic chip conveyor
