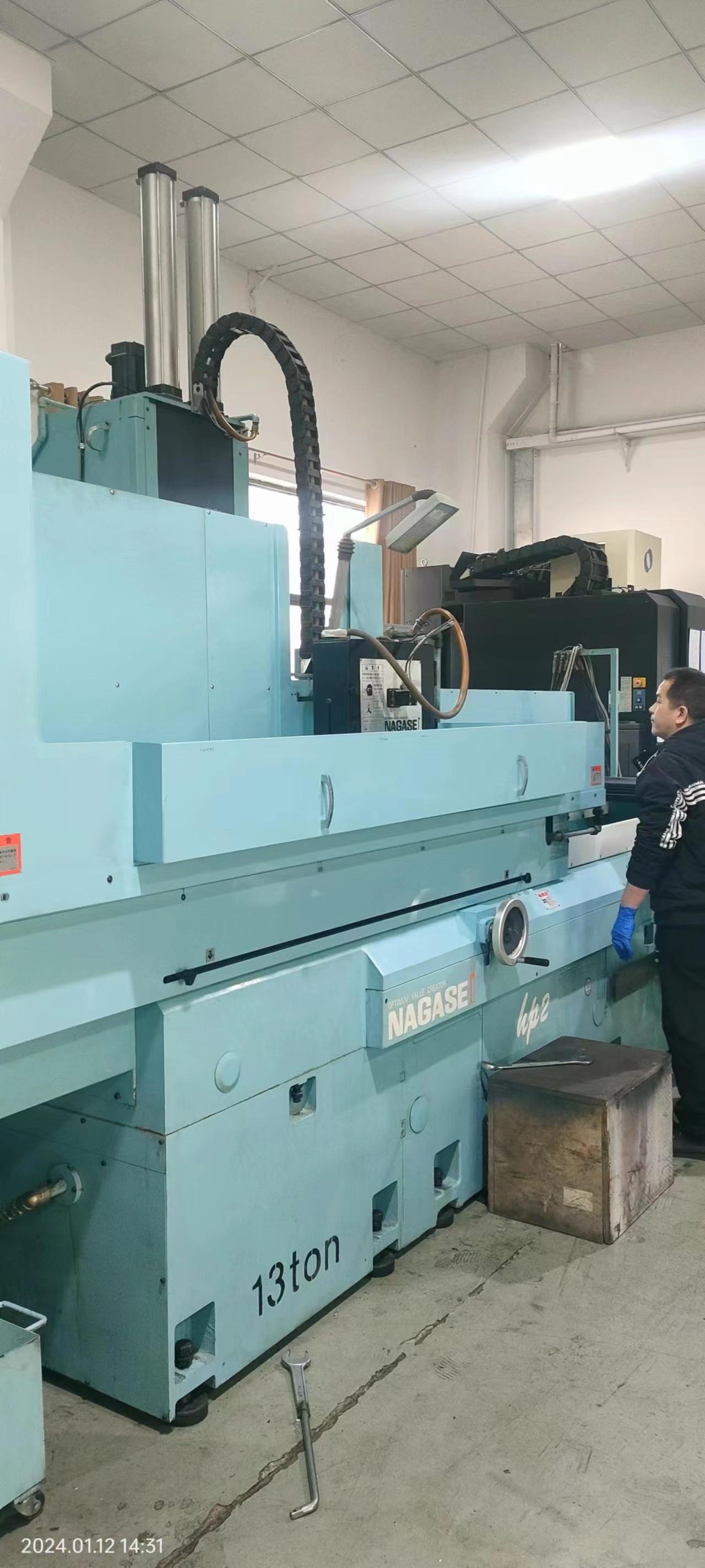

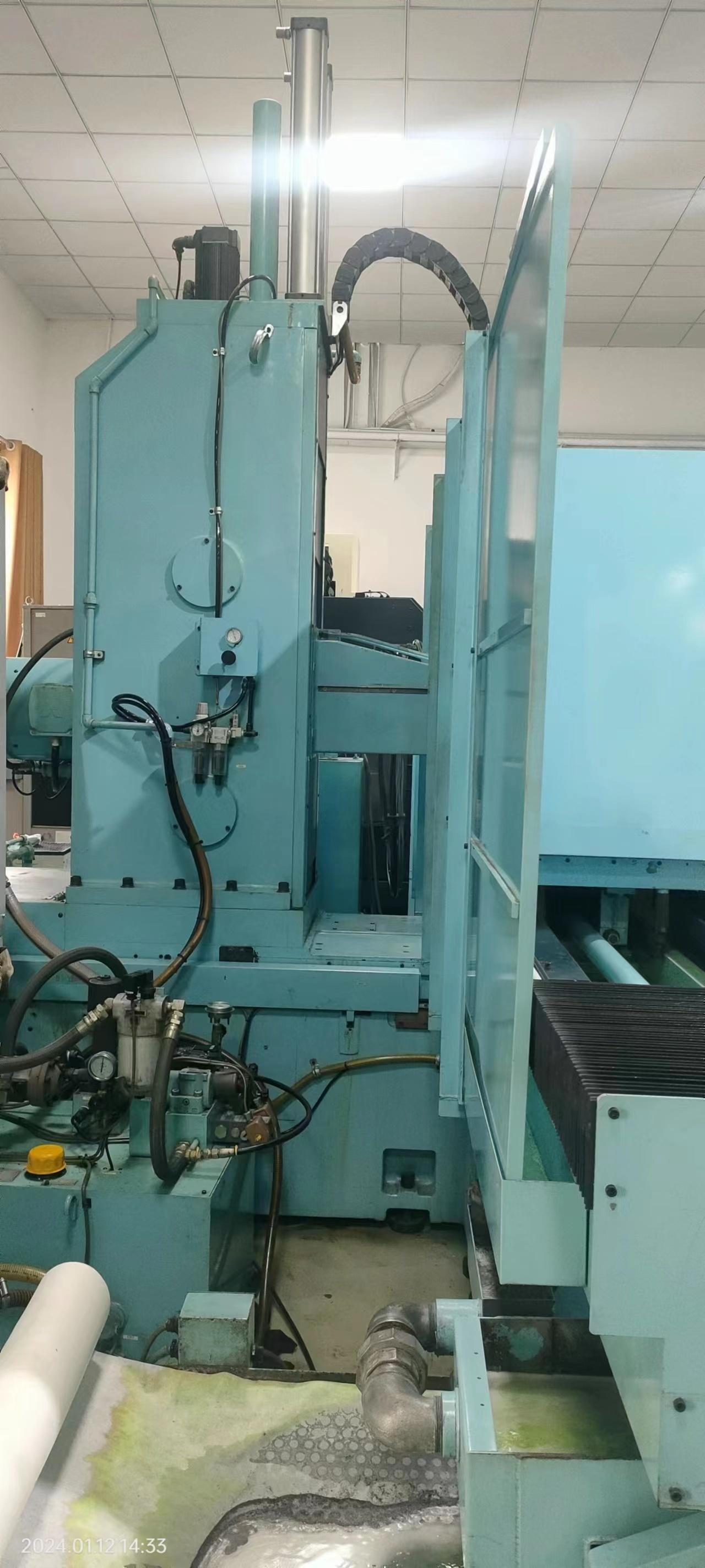

NAGASE 156 Grinding machines

three-axis travel: 1500*600*600mm

grinding wheel size (external diameter * width * Internal diameter) : φ510*50*φ127

Sand wheel shaft: 7.5KW

Distance from Worktable top to spindle center: 800mm

travel (horizontal, vertical) : 1800*660mm

Minimum feed: 0.0001mm

spindle drive mode: mechanical direct connection spindle: static pressure

WorkWorktable size: 1500*600mm

Drive mode per shaft:

YZ axis: screw drive, X axis hydraulic drive

Chip removal mode: tape filtering

guideway mode:

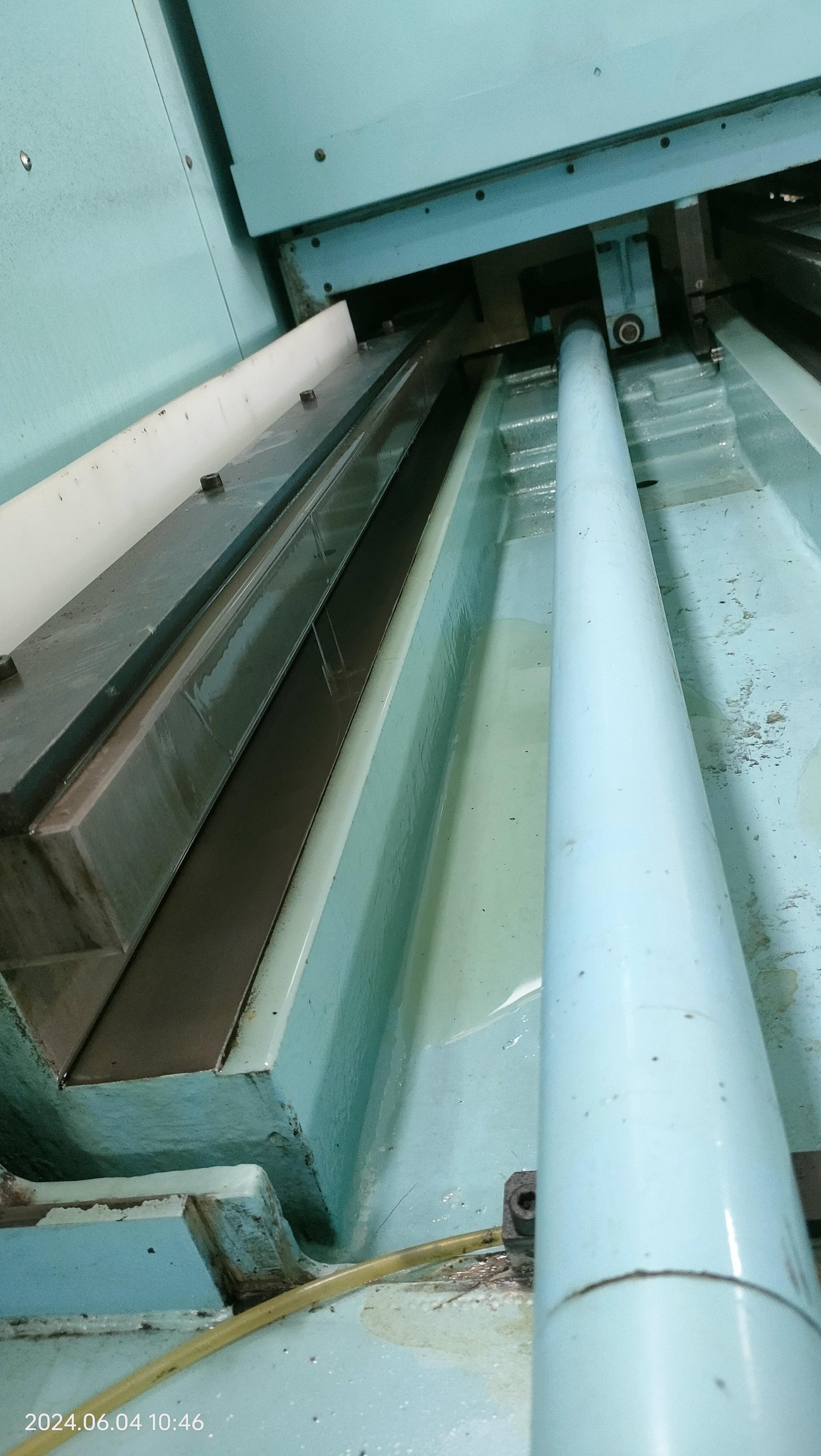

X-axis: static pressure

Y*Z axis: linear guideway

Y*Z axis glass scale, precision drive

Footage: 6000*4000*3000mm
