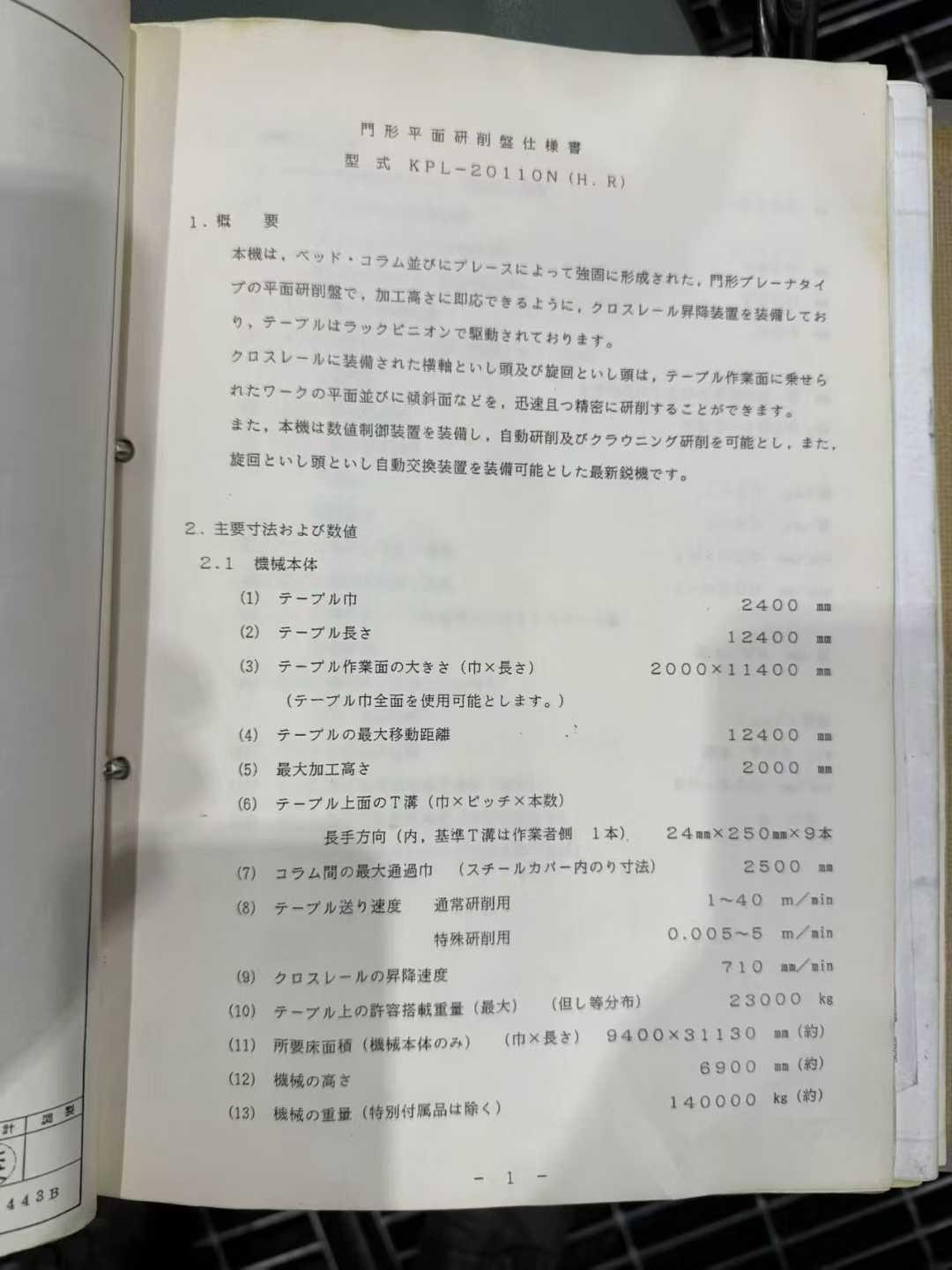

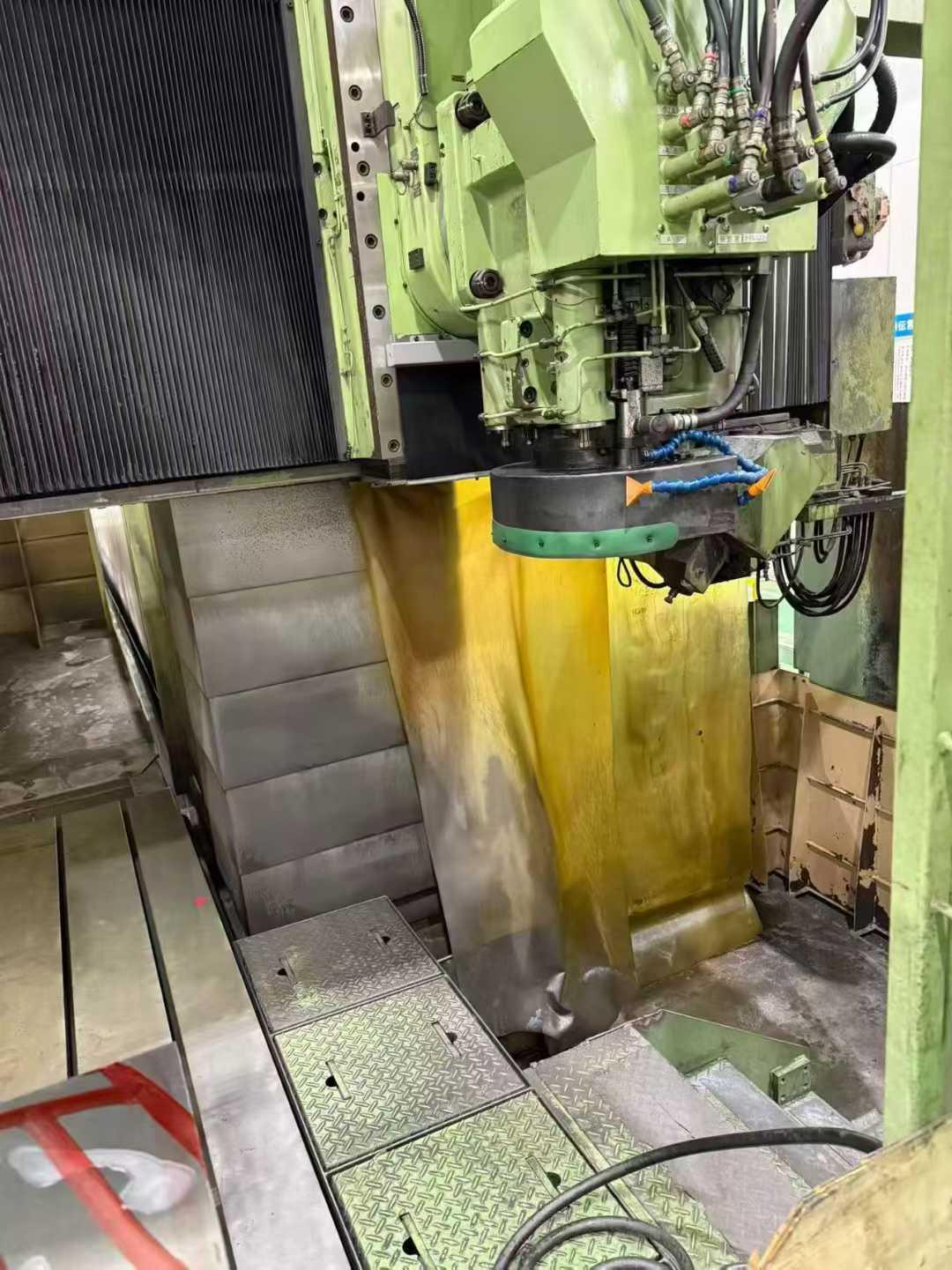

SUMITOMO KPL-20110N Grinding machines

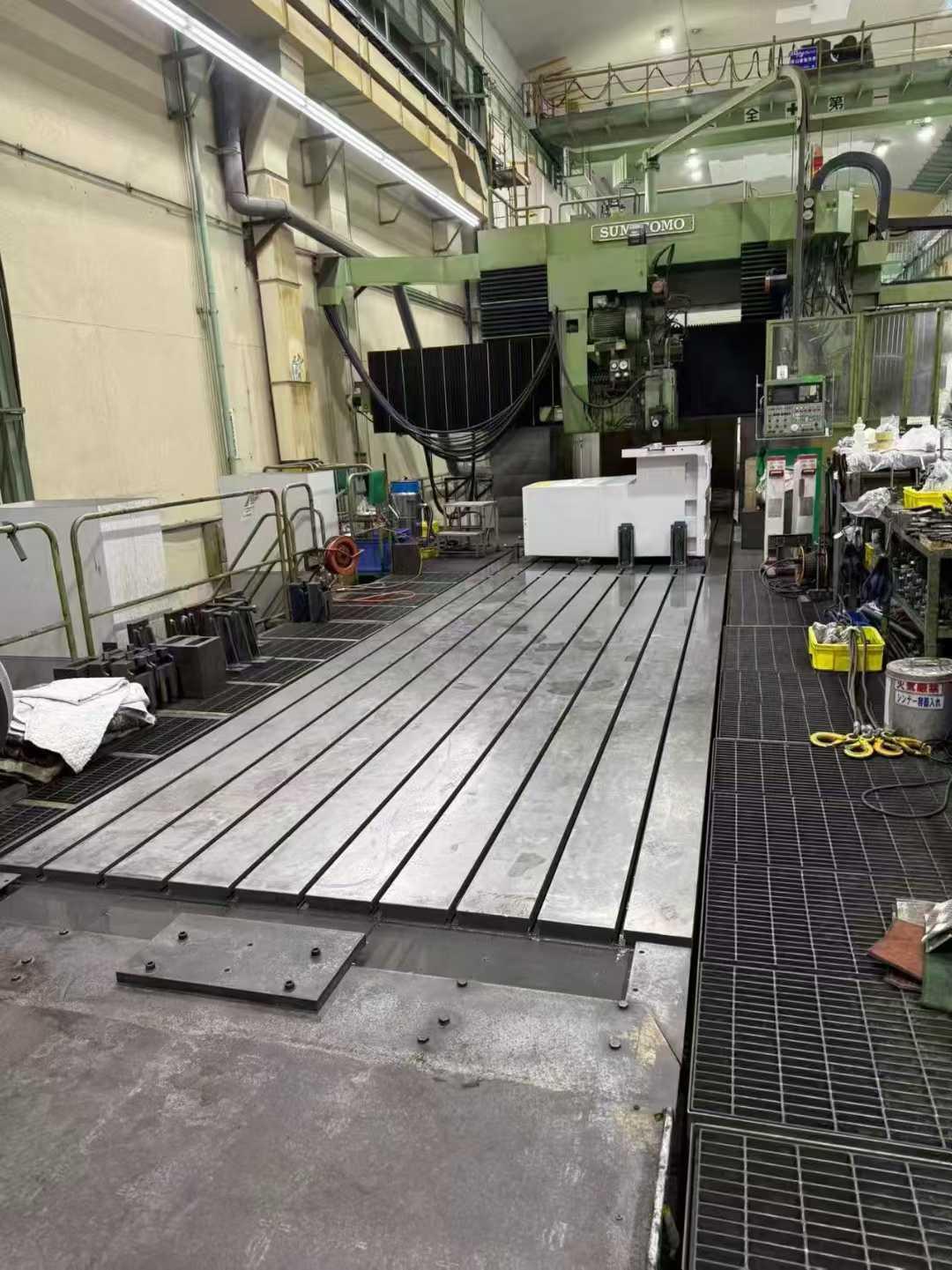

Worktable width: 2,400 mm
Worktable length: 12,400 mm
Worktable surface footage (width × length): 2,000 mm × 11,400 mm
The maximum moving distance of the work table: 12,400 mm
Maximum machining height: 2,000 mm
Gantry width: 2,500 mm
Load capacity: 23,000 kg

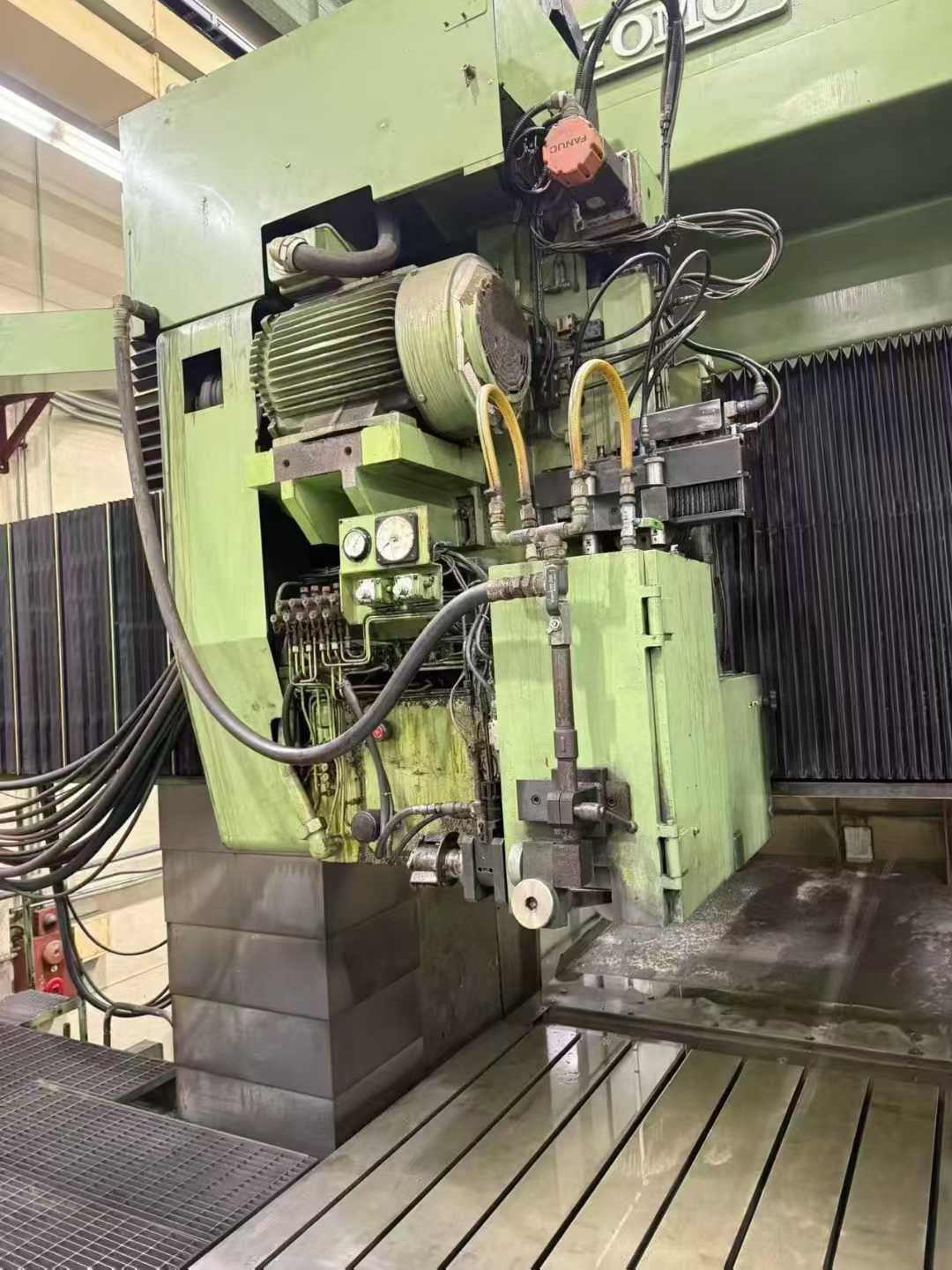

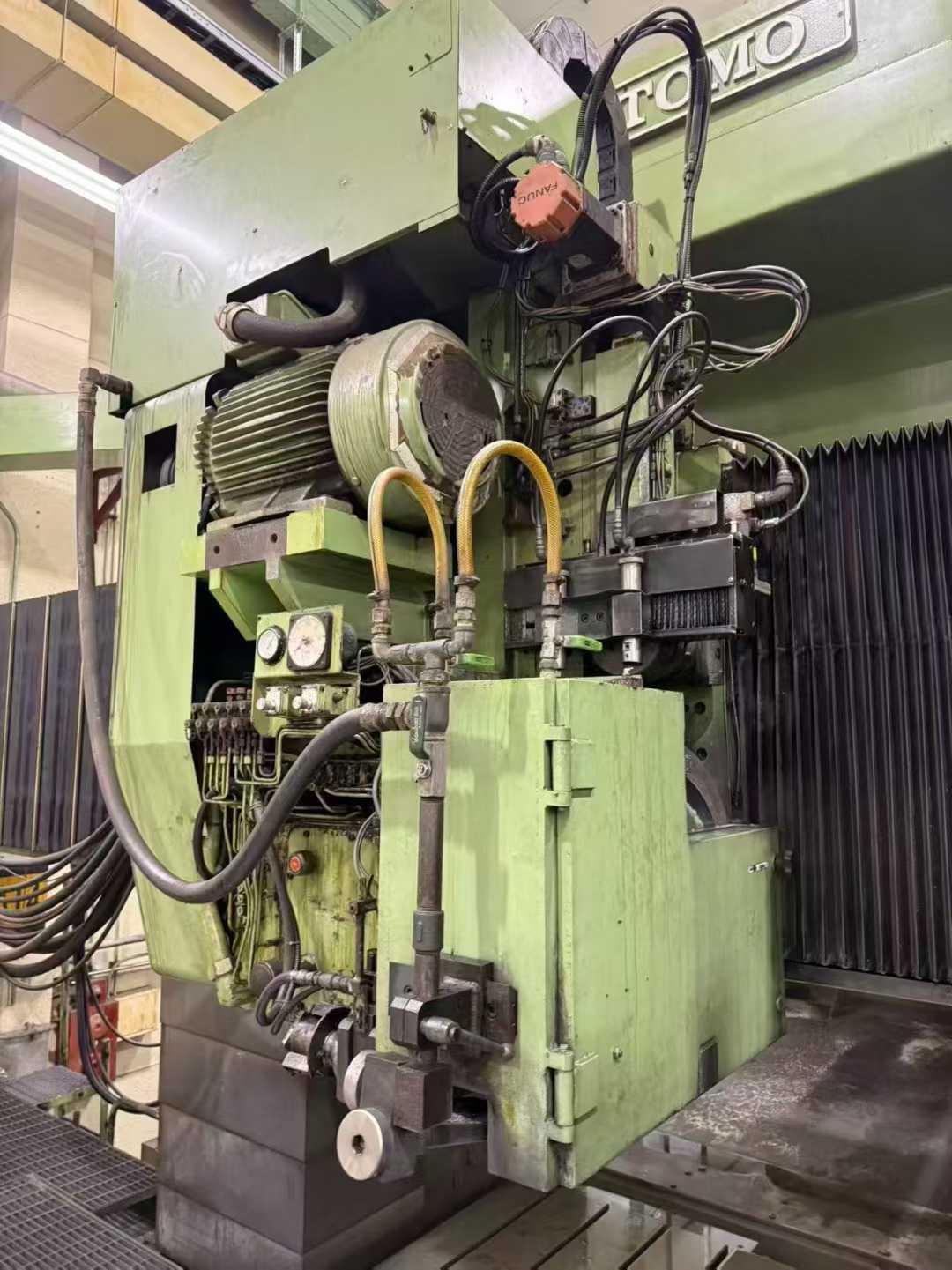

Horizontal grinding head：
Distance from work table surface to under the grinding wheel: 0–2,000 mm
The left-right movement distance of the grinding wheel center:
Towards the operator side: 1,307 mm
Facing away from the operator: 2,380 mm
The up and down movement distance of the grinding wheel head: 400 mm

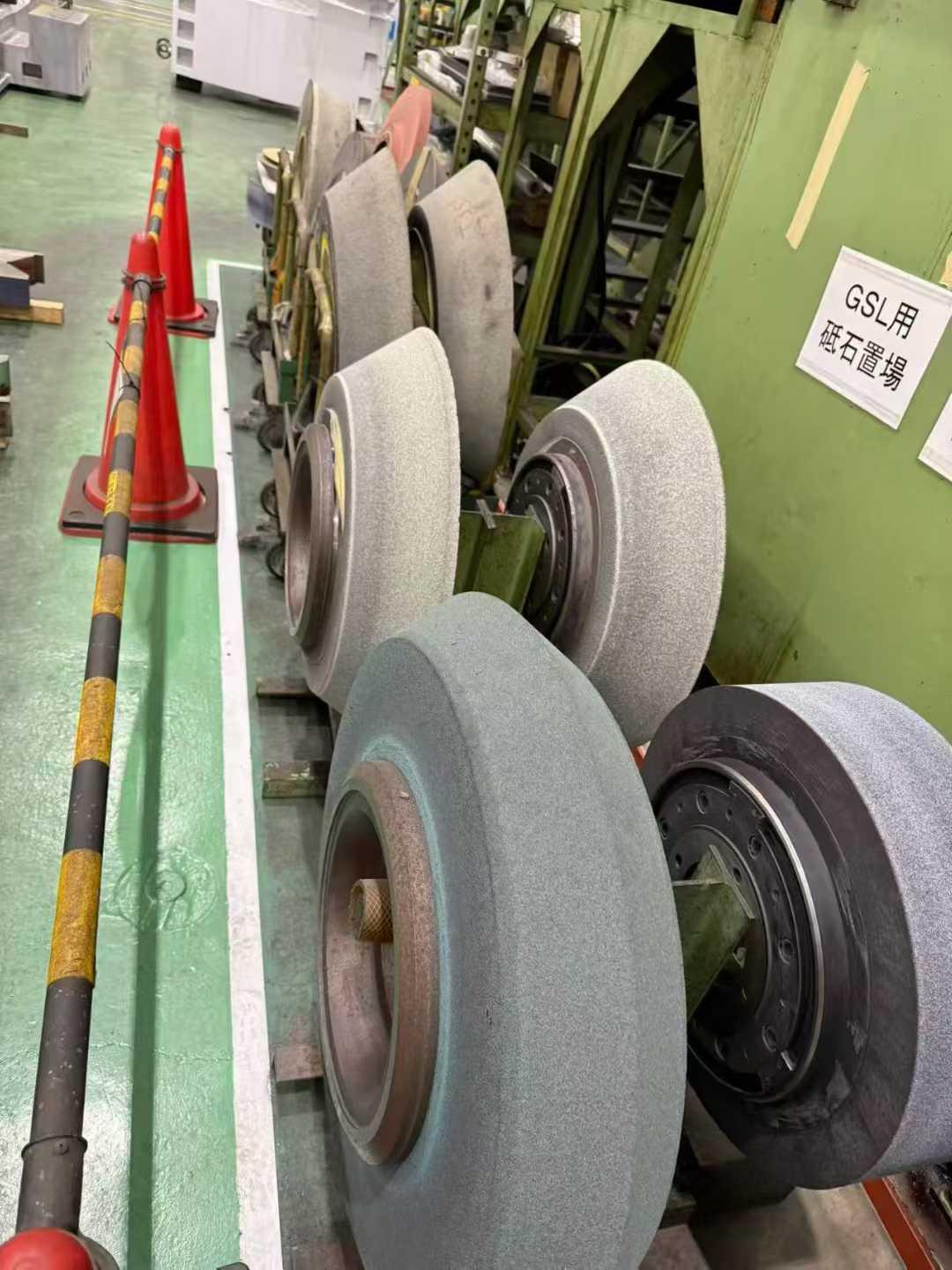

Grinding wheel shape and size (external diameter × thickness × hole diameter): No. 1 flat φ760 × 150 × φ304.8 mm
Grinding wheel shaft speed: 660–1,000 rpm
The up and down feed rate of the grinding wheel head: 1–1,000 mm/min
The left-right feed rate of the grinding wheel head: 1–4,000 mm/min
