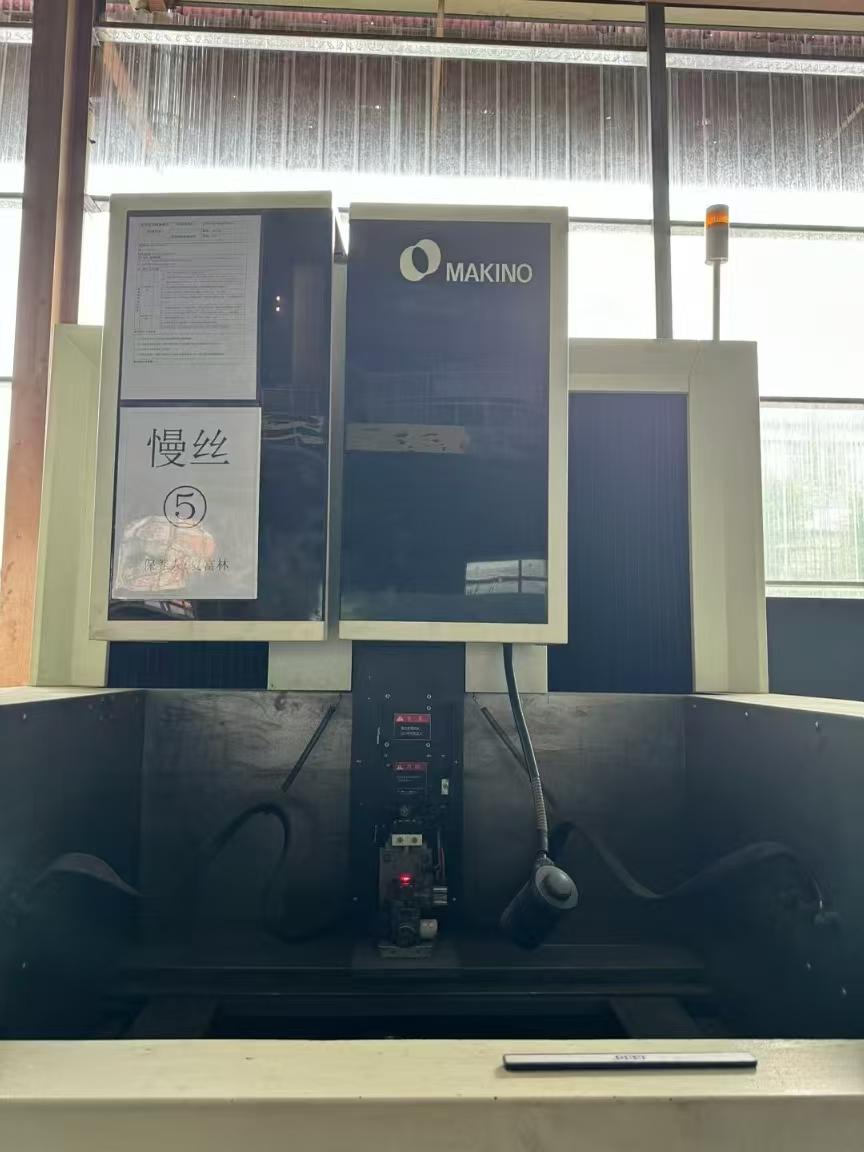

Makino U3 Wire cutting machine

three-axis travel: 370*270*220mm

U*V axis travel: ±50*±50mm

WorkWorktable size (square) : 630*450mm

WorkWorktable size (U type) : 630*460mm

Maximum workpiece size: 770*590*220mm

Maximum dielectric level: 255mm

Maximum workpiece weight: 600kg

WorkWorktable height: 950mm

Wire diameter: 0.1/0.15/0.2/0.25/0.3mm

Maximum taper: ±15°/100mm

machining  liquid capacity: 590L

Ion exchange resin: 20L

machining  fluid filter: 2/4

machine tool size: 19.81*2300*2116mm

Floor area: 2580*3650mm

machine tool weight: 3200/3300kg
