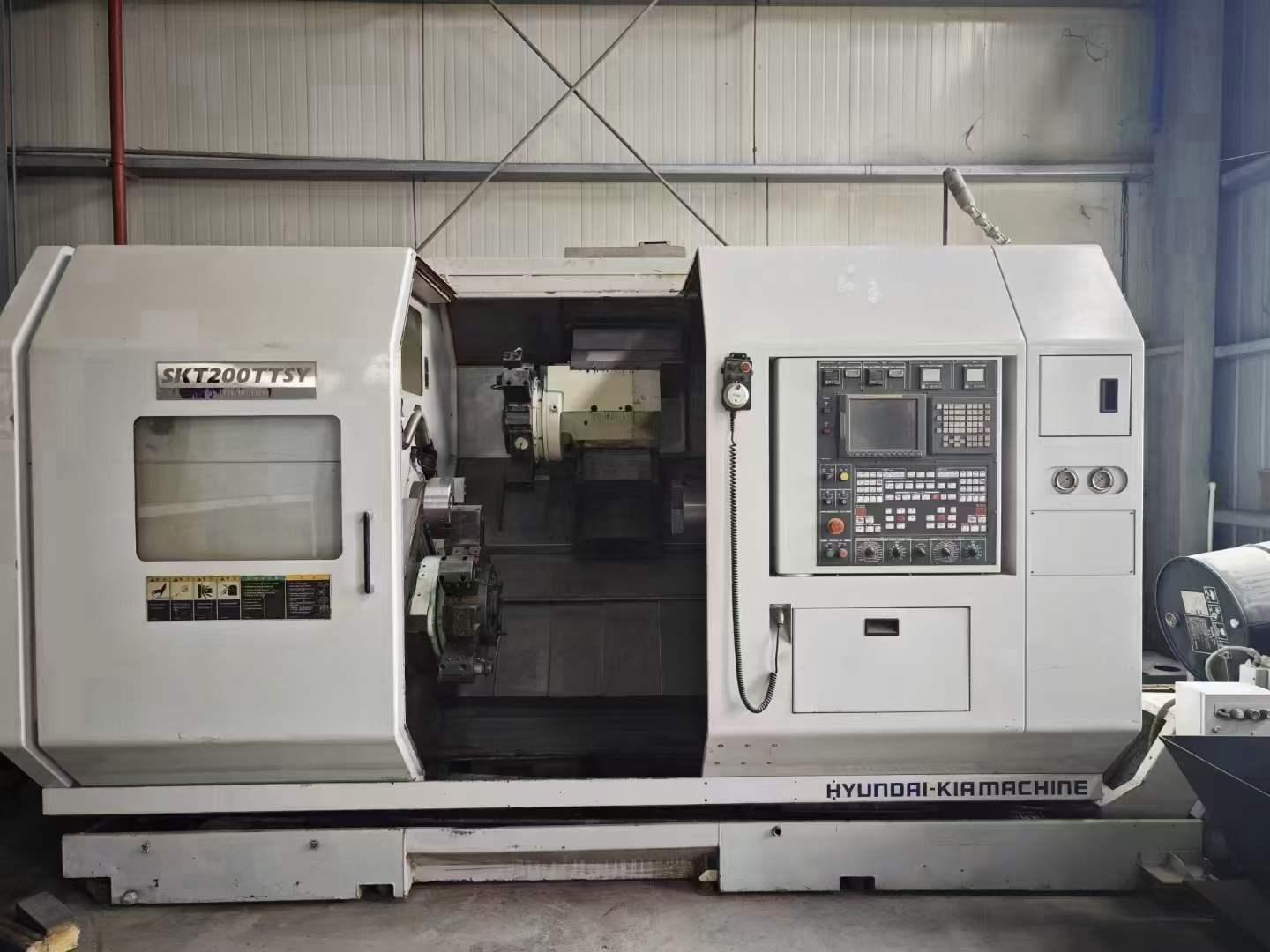

KIA SKT200TTSY Turn Mill Machining Centre

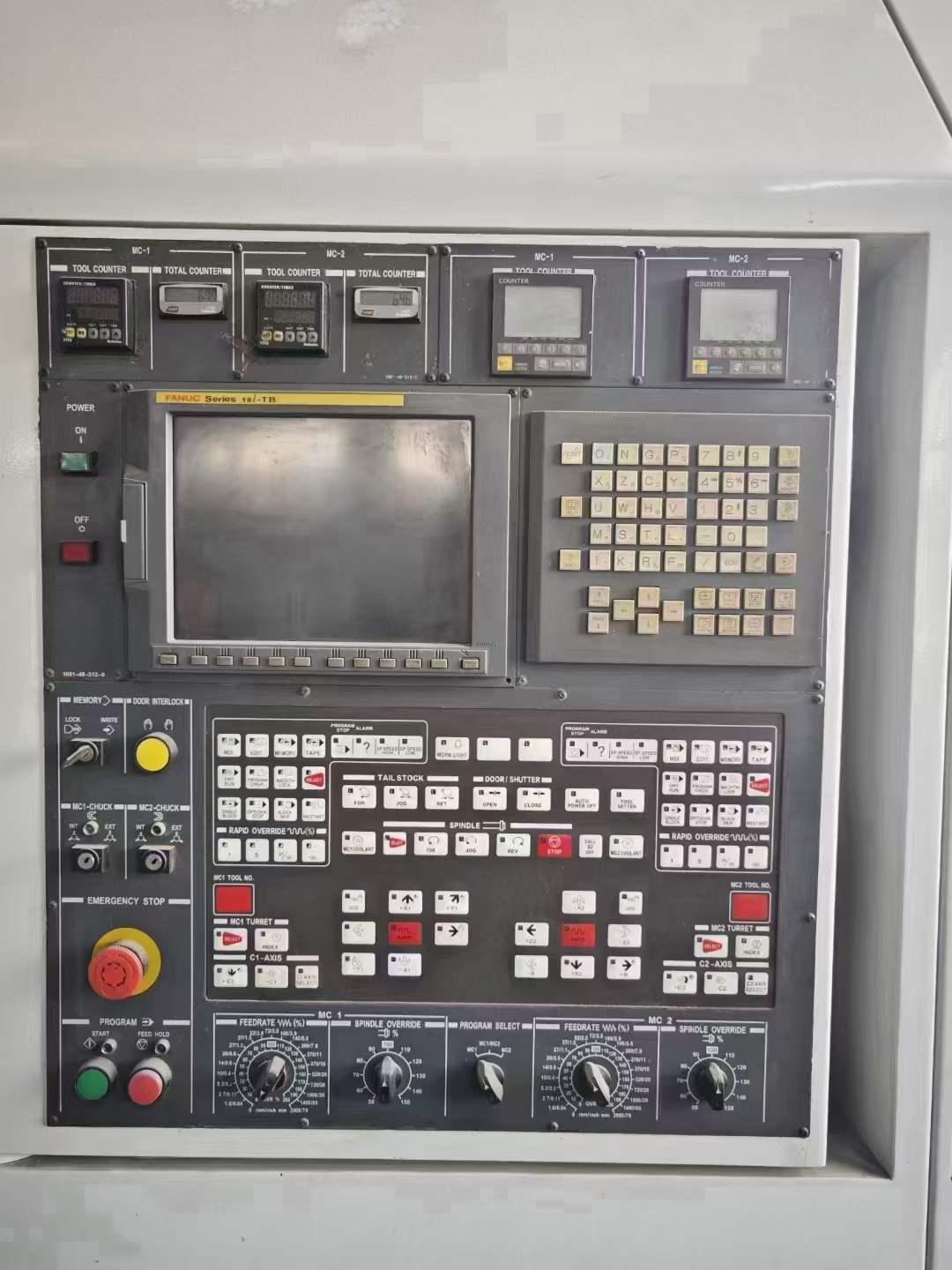

CNC CNC System: FANUC 18i TB

Rotating diameter: 760mm

machining  diameter: 380mm

Distance between centers: 1000mm

three-axis travel: 265*120*900mm

X2 travel: 190mm

Z2 travel: 900mm

Counteraxis travel: 900mm

Spindle speed: 5000rpm

Main motor: 26kw

Main chuck : 10 inch

Secondary chuck : 8 inches

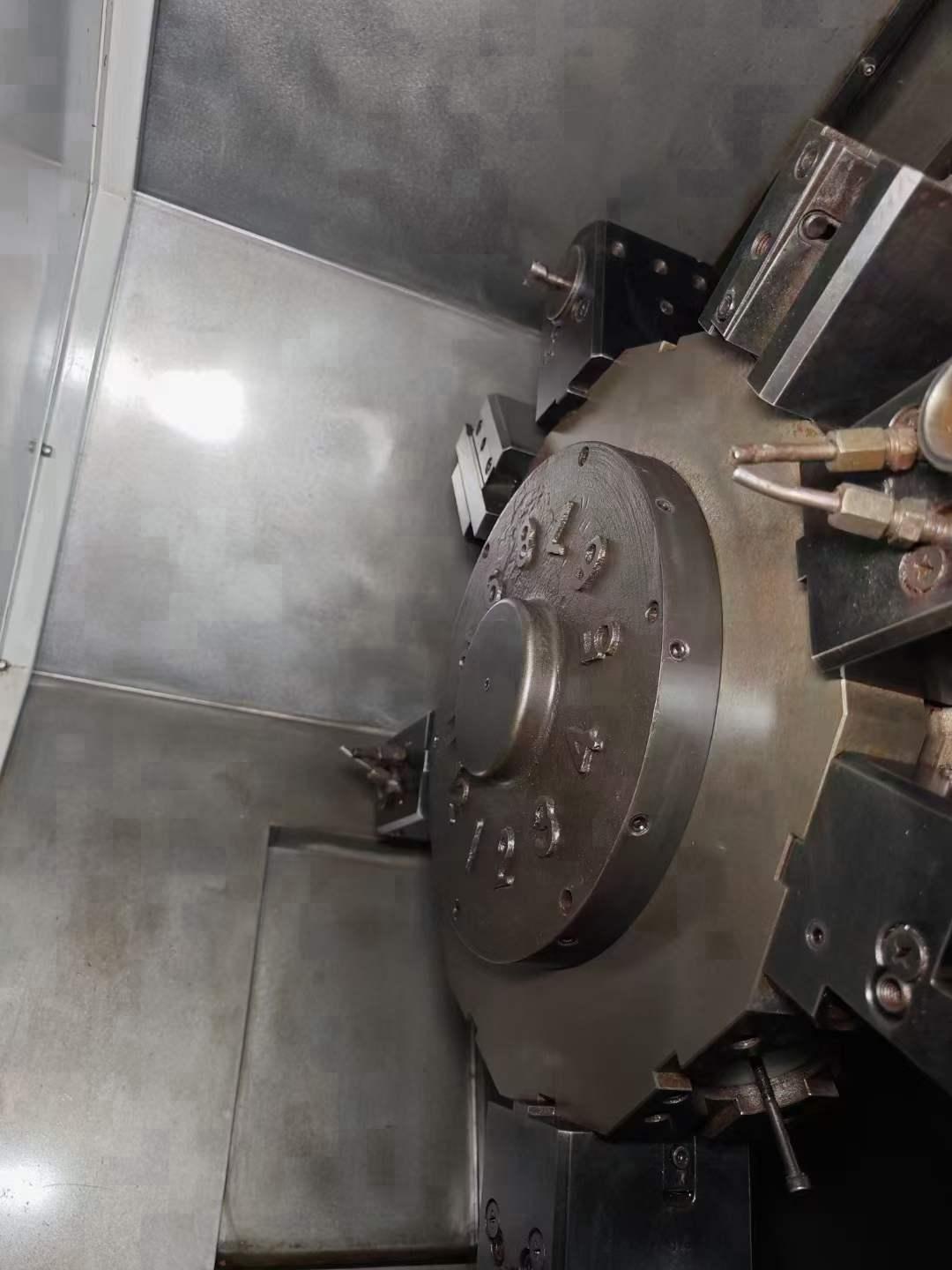

Double Turret position: 12

Secondary Spindle speed: 5000 rpm

Subspindle motor (HP) : 26KW

Milling head motor: 7.5kw

Machine weight: 24500t
